Home > Products > Sludge scraper(sucker) > NC type automatic center drive sludge thickener
NC type automatic center drive sludge thickener
- 50 Set / Sets per Month
- Qingdao port
- T/T
- NC type heavy center drive thickener for sludge treatment
- DCG-type flat mouth multi-tube water level self-suction dredger
- SB center transmission of a double tube suction machine
- SB advection sedimentation pool pump suction dredge
- ZDX type center drive double pipe sand sucking machine
- HXS type mobile bridge dredger sand machine
Product Details
Place of Origin: | Shandong, China | Brand Name: | Jinhaosanyang | Model Number: | NC |
Packaging Details
export seaworthy package
container: 20GP, 40GP
Product Description

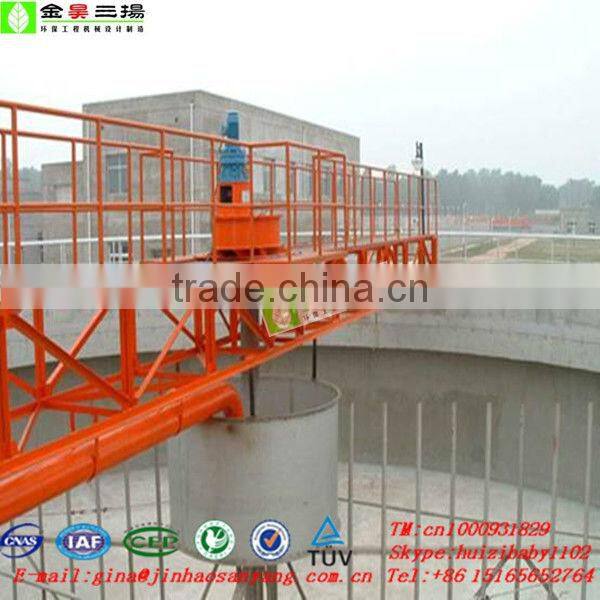

NC type automatic center drive sludge thickener
Brief introduction
Enrichment is a method to reduce the sludge volume, sludge treatment process, generally are based on the gravity concentration method as a form of pre-treatment of the sludge dewatering operation.
Our company is the largest domestic production concentrator, one of the earliest manufacturers, produced by the concentrator in the form, divided into central and peripheral drive for a wide range in the ten years of the production process, product structure and properties of continuous improvement, the majority of users.
Use
The NC1 light Center Drive concentrated activated sludge in municipal, light industry concentrated, NC2 heavy-duty applies to sewage treatment in the mining, smelting, steel and other industries than the major, sinking fast sludge concentration.
Work principle
The NC1 light center drive thickener using worm drive (D greater than 16m using the central rotary gear), the scraper arm is not vertical mixing trash rack, trash rack to play a stirring role when scraping the arm rotation, accelerated the sinking of the activated sludge scraper.The board outer edge of the wire-speed less than 3m/min scraper body can be adjusted manually 50mm or so.
Specification
spec model | spec | size(mm) | depth H(m) | Bottom slope(I) | |||||
power | speed | D | A | B | C | h | |||
NC1-4 | 0.37 | 0.85 | 4000 | 200 |
340 |
55 | 250 |
3.5 |
1:10 |
NC1-6 | 0.55 | 1.4 | 6000 | ||||||
NC1-8 | 1.76 | 8000 |
320 | 300 | |||||
NC1-10 |
0.75 | 1.3 | 10000 |
1:12 | |||||
NC1-12 | 1.56 | 12000 | 400 | ||||||
NC1-14 | 1.63 | 14000 |
450 | ||||||
NC1-15 |
1.5 | 2.46 | 15000 |
4.5 | |||||
NC1-16 | 2.62 | 16000 | |||||||
NC1-18 | 2.95 | 18000 | 474 |
We are professional manufacturer of various bar screen machine, wastewater treatment equipment, filter press, belt filter press, and vacuum filter, dissolved air floatation etc, and can supply you the most cost-effective products with best price!
Sludge thickener with good quality
Company Profile
Shandong Jinhaosanyang Environmental Protection Equipment Co., Ltd. is a new high-tech company. Our company is a prestigious, formal, large-scale and environmental protection machinery manufacturer in China, and has an absolute competitive strength in the field.
Our company has 300 employees, including technical and management staff members of more than 50. Our company has the advantages of processing technology, large-scale equipment, specialized personnel, design experience, and advanced technology force. We have cooperated with environmental experts and design professors in famous universities and institutions, independently developing production sewage treatment equipment, filtration equipment, pulping equipment and boiler dedusting equipment. We are a comprehensive mechanical equipment development enterprise.
Relying on existing conditions, we research and develop the internationally advanced technology. Our company has developed a variety of highly automated and reliable sewage treatment equipment. Products are sold throughout the world, such as Egypt, Vietnam, New Zealand, Finland, the Netherlands, Australia and other countries and regions.
Our company has implemented a science-oriented view of development, and consistently pursuing the tenet of "credibility first, quality first, being proactive, innovative and pioneering". We have made brilliant achievement in various industrial fields. We always adhere to the principle of "equality and mutual benefit, Quality First and Reliable Reputation". By joint efforts, we hope to promote both trade and friendship to our mutual advantage.
Zhucheng Jinhaosanyang Environmental Protection Equipment Co., Ltd. sincerely welcomes your visit. We hope to cooperate with international guests and friends to create the resplendence together!
