Specifications
screw conveyor1.Ttansportt capacity:0.9-40.0m3/h
2.Screw rate:20r/min
3.large torque,low energy consumption.

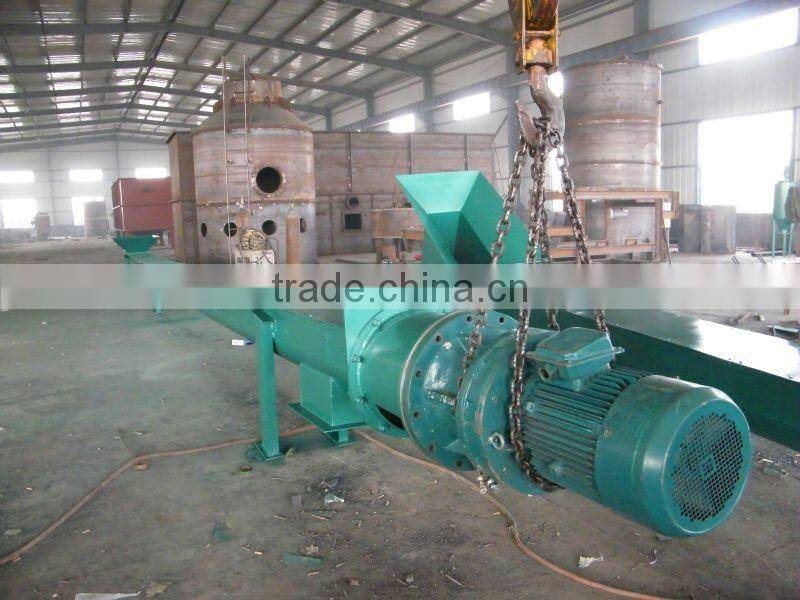

XLS Model Shaftless screw conveyor system
Main techmical date
Ttansportt capacity:3.2-15.4m3/h
Diameter of screw:260-420mm
Screw rate:20r/min
The XLS shaftless screw conveyor is an improved conveyor based on the LS,GX screw conveyor, which are used in building, chemical, electricity power, pharmaceutical, metallurgy and food industries. This mew mode in reality has overcome the disadvantages of he above said old models like:excessive milling, excessive glutinosity, easily agglomerating, easily form stuff jam during enwinding the material and unable to work when the suspension evenly conveying incompact glutinous as well as easily twisted materials with the max temperature of 4000°C and max obliquity of 20°.
Technical parameters:
Type |
Screw width(mm) |
|||||
40 |
60 |
80 |
100 |
120 |
150 |
|
XLS215 |
0.9 |
1.6 |
|
|
|
|
XLS240 |
1.2 |
2.4 |
3.6 |
|
|
|
XLS280 |
1.5 |
3.5 |
4.2 |
|
|
|
XLS320 |
|
4.2 |
5.2 |
7.0 |
|
|
XLS360 |
|
|
6.3 |
8.8 |
|
|
XLS420 |
|
|
8.0 |
11.0 |
14.0 |
|
XLS480 |
|
|
10.0 |
13.5 |
17.5 |
|
XLS540 |
|
|
|
16.0 |
21.0 |
29.0 |
XLS600 |
|
|
|
19.0 |
24.7 |
34.0 |
Remark : the gauge display is the conveying quantity under the rotating speed n=20circles/min.
Production flow
