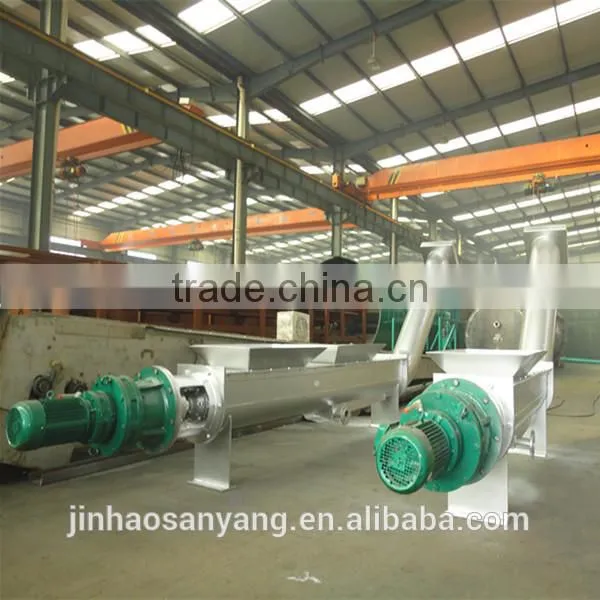

XLY type screw compactor for sludge dewatering and conveying
Application:

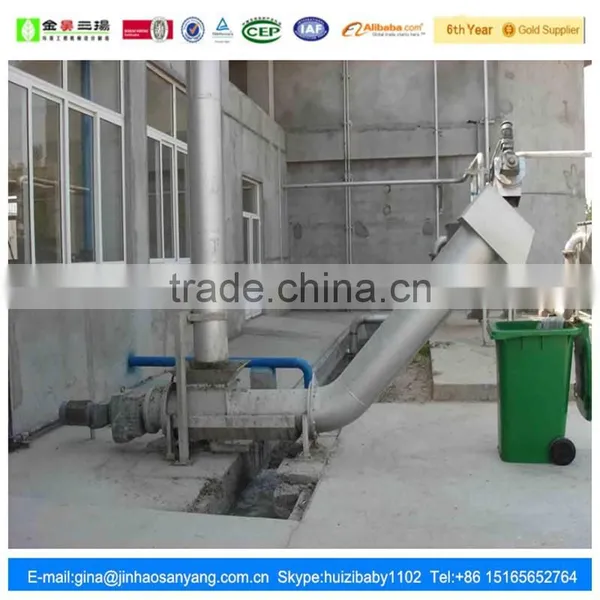

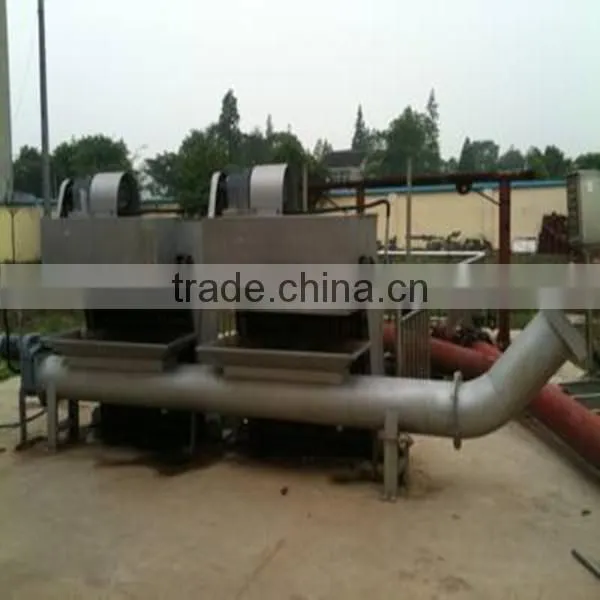

Screw compactor is the bar screen supporting facilities, screw press press the dirt carried by bar screen, in order to reduce the dirt moisture and reduce the volume of sewage.
Feature:
Simple structure, small cover area, easy installation and maintenance; In addition to the slag discharge mouth open, the rest parts can be enclosed stamped, will not spill material, reduce air pollution.
Structure:

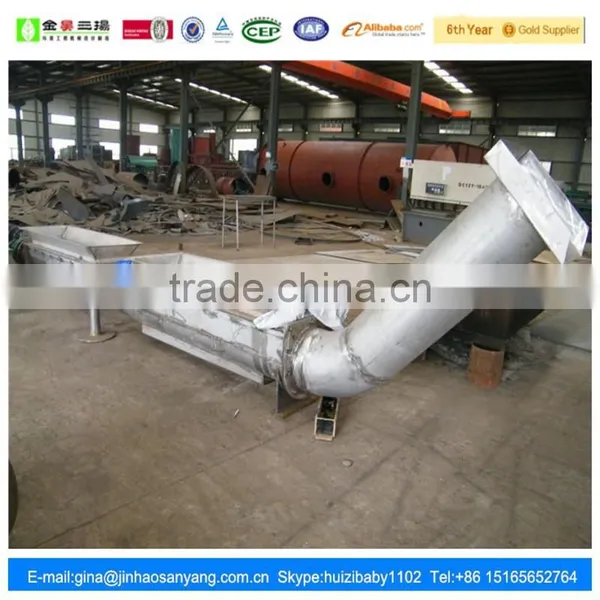

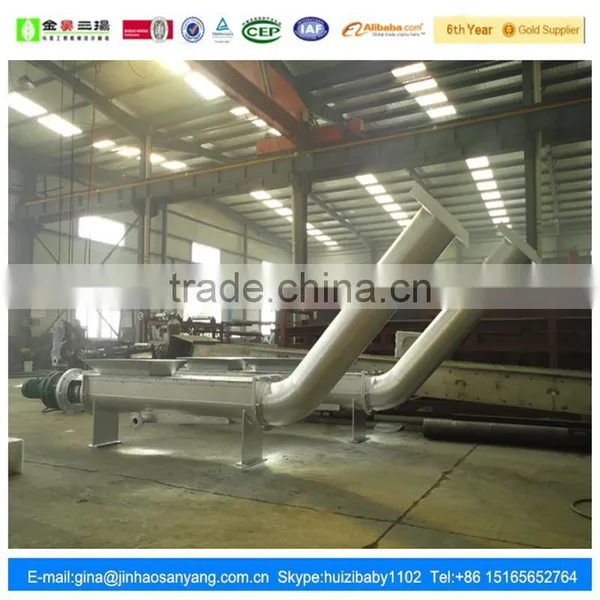

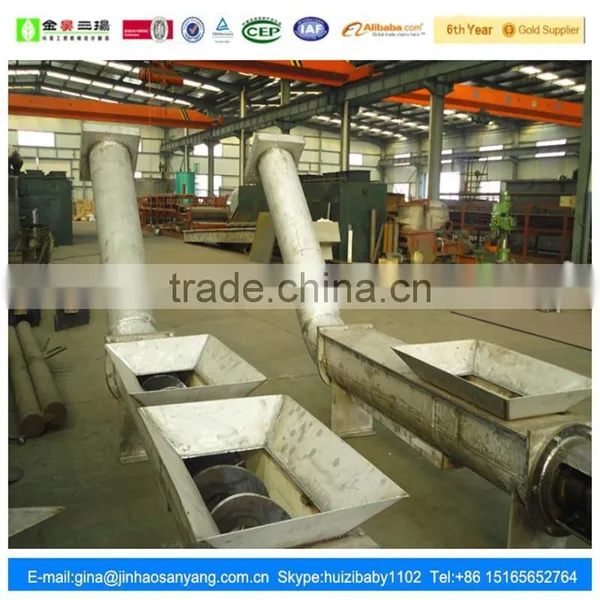

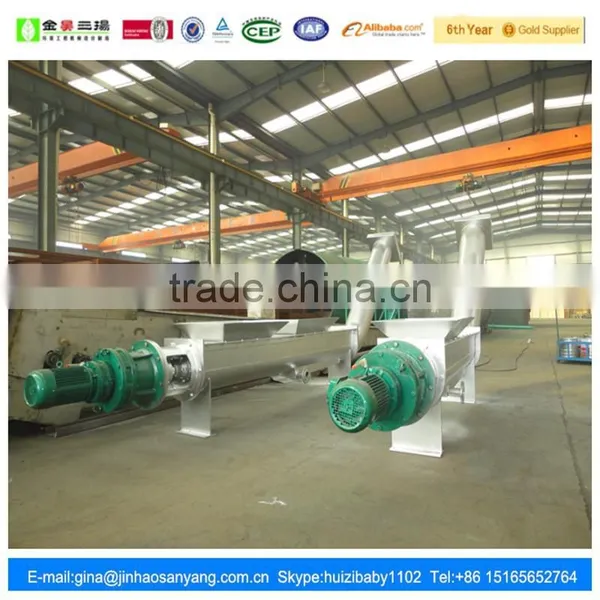

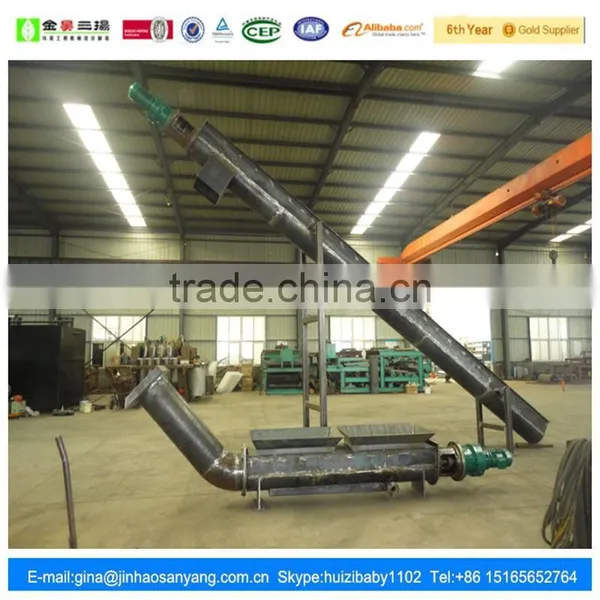

Screw compactor consist of press screw, screw pipe, transmission parts, feed hopper and discharge hopper. The dirt from the feed hopper into screw pipe, under the function of press screw, press, dewatering and conveying to the discharge mouth.
Working principle:
Drive shaft rotation speed reducer drive the blade, helix Angle to produce thrust forward to squeeze into the squeeze tube material, after extruding the material is being exhausted from port discharge, and waste water is separated into sink to achieve the purpose of separation.
Model |
Pipe Diameter |
A |
B |
C |
D |
E |
F |
G |
H |
Power Kw |
XLY219/6 |
219 |
400 |
380 |
1500 |
1030 |
400 |
540 |
422 |
1000 |
1.1 |
XLY219/9 |
219 |
400 |
2100 |
1570 |
400 |
1080 |
422 |
1000 |
1.1 |
|
XLY219/11 |
219 |
400 |
2500 |
193 |
400 |
1440 |
422 |
1000 |
1.1 |
|
XLY299/6 |
299 |
500 |
2150 |
1380 |
450 |
750 |
501 |
2000 |
3 |
|
XLY299/9 |
299 |
500 |
3050 |
2240 |
450 |
1500 |
501 |
1200 |
3 |
|
XLY299/11 |
299 |
500 |
3650 |
2740 |
450 |
2250 |
501 |
1200 |
3 |
|
XLY402/6 |
402 |
600 |
2700 |
1940 |
750 |
900 |
622 |
1350 |
5.5 |
|
XLY402/9 |
402 |
600 |
3900 |
2930 |
750 |
1980 |
622 |
1350 |
5.5 |
|
XLY402/11 |
402 |
600 |
4700 |
3590 |
750 |
2640 |
622 |
1350 |
5.5 |
We are professional manufacturer of various sewage treatment equipment, dissolved air floatation, bar screen machine, filter press, belt filter press, vacuum belt filter etc, and can supply you the most cost-effective products with best price!
Screw compactor with good quality!
