spare parts Ozone generator Describtion:
The series of unit utilize oxygen from the internal oxygen generator as gas source,and high concentration ozone is generated by the CD ozone generation technology. The equipment has integrated oil-free air compressor,filtering system , condenser,etc.
The ozone equipment is used heat-resistant HQG non-glass structure discahrge unit(Patent),the structure is extremely stable,long lifespan,high discharge efficiency,and not easy to damage in the case of back flow water.
1.The equipment utilize molecular sieve as adsorbent from the abroad company ,and pressure swing adsorption(PSA) process to separate oxygen and nitrogen and filters harmful substance from the air. The high level oxygen is created which meets the standard of medical oxygen.PSA oxygen generating equipment provide you with the purity of 85% ± 5 oxygen to meet all requirements;Installation and operation costs far less than cylinder or liquefied oxygen.
2.The equipment utilized large power IGBT modules,extremely stable,high efficiency ,long lifespan dehydroxylation enamel ozone tube structure ,water cooling parts ,world-class essential components and world-leading intelligent design.
3.Adjustable oxygen flow rate, which will change ozone output & concentration for meeting with different lines requirements.
4. With refrigerant dryer for cooling air which can protect the oxygen & ozone unit for long service life in good working condition
5. Ozone output adjustable,with low noise level
6. Standard 4~20mA signal control
Features of spare parts Ozone generator
1. This ozone generator has an internal oxygen generator, it converts the air into oxygen first, then use oxygen to produce Ozone. So the ozone density will be high and has alow attenuation of ozone.
2. Use inner & outer air-filled type enamel ozone generating tube technology. Low temperature rise and can work continuously, efficient and stable.
3. Adjustable. Use High frequency pulse modulation control variable power supply, can make accurate control of ozone output base on different demands.
4. Anti-oxygen and corrosion resistance material
5. Easy operate control panel. Control cabinet switch settings, can turn on/off regularly, easy operate and achieve the goal of no operator.
6. Configure intake flow switch
7. Configure a 5microns automatic drain filters, make sure the air source is clean.
8.Ozone generator are with block design of oxygen maker and ozone generator unit inside.
9 High quality components enhance machine's reliability amd low maintenance.

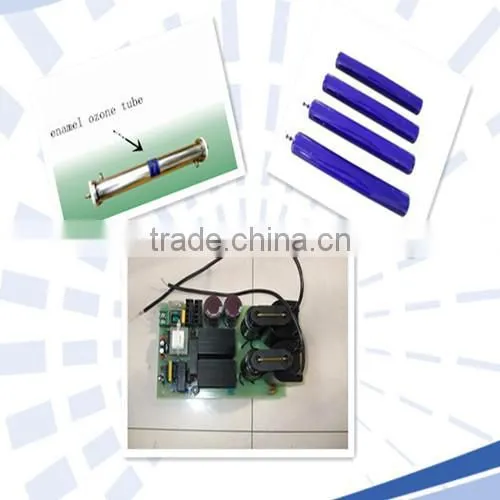

INNER PARTS OF spare parts Ozone generator
Control panel spare parts Ozone generator :
Ozone output adjuster, Voltmeter, Ampmeter, Ozone Ampmeter, Main switch, Power supply switch, Emergency stop, Working light, Power light,
Dew point of inlet source :- 45 °C
Inlet air temperature : 20°C
Working pressure : 0.05-0.15MPa
Ozone concentration :16-22mg/L
Inlet air flow : 45-65m3/hkgO3
Power Consumption : 16-18kW/kgO3
Cooling water flow : 3-4m3/hkgO3
Cooling water temperature : less than 30°C
Functions of spare parts Ozone generator:
·Laboratory: chemical oxidation for raw material of flavors and fragrances, small water treatment experiment
·Beverage process industry: such as pure water, spring water and any other water sterilization and disinfection
·Fruits & vegetables process industry: such us keep fresh, storage etc
·Food process industry: water, workshop, sterile room, equipments, tools
·Pharmaceutical industry: water, air conditioner, workshop, dressing room, sterile room etc
·Medical: ward, operating room, medical devices, sterile room etc
Why choosing us?
· Having 16 years production experienced .We are trusty business partner.
· Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
· We have serial products: ozone tube ,UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
· We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor or agent !
