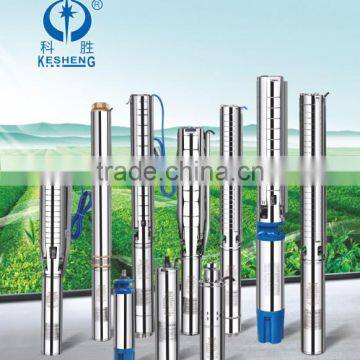

Solar Panel Power DC Solar Submersible Pump Centrifugal Type Stainless Steel Impeller

FOB Price

USD $441 - $441 / Set

1 Set(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port SHANGHAI/NINGBO
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Get lowest price Inquiry Basket

You May Like

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	SHUILISHI	Model Number:	4PSS5-3
Specification:	Normal	Application:	Commercial	Output Voltage (V):	DC 96V
Load Power (W):	750W	Solar Power (W):	1000W	Work Time (h):	8-24 HOURS

Product Description

solar water pump

Pump Application

Domestic water supply
Livestock watering
Gardens or fountains
Pond management
Irrigation in horticulture & agriculture
Small scale service industries
etc.

Solar pump technical data

4PSP Series( 4" plastic impeller pump with 4"water-filled motor)

MODEL								DELIVERY				n≈3450 1/min
	DC/V	KW	HP	Q	M³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.3
				Q	I/min	0	5	10	15	20	25	30	35	40	45	50	55
4PSP2-6	24	0.37	0.5			41	40	39	38	37	36	35	31	28	23	18	11
4PSP2-8	48	0.55	0.75			56	55	54	53	52	50	46	42	37	31	24	15
4PSP2-11	48	0.75	1			77	76	75	74	72	68	63	58	51	43	33	21
4PSP2-14	72	1.1	1.5			98	97	96	94	92	87	81	73	65	54	42	27
4PSP2-19	96	1.5	2	H(m)		134	132	130	128	125	118	109	100	88	74	57	36
4PSP2-25	156	2.2	3			176	174	172	168	165	155	144	131	116	97	75	48
4PSP2-33	216	3.0	4			232	230	228	226	217	205	190	173	153	128	99	63
4PSP2-44	276	4.0	5.5			309	307	305	302	290	273	253	231	204	170	132	84

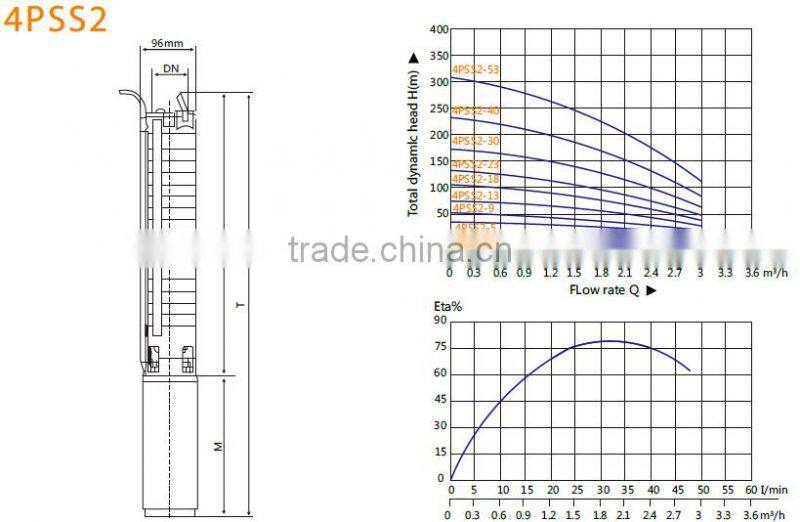

4PSS Series( 4" stainless steel impeller pump with 4"water-filled motor)

MODEL									DELIVERY				n≈3450 1/min
	DC/V	KW	HP	Q	M³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3
				Q	I/min	0	5	10	15	20	25	30	35	40	45	50
4PSS2-5	24	0.37	0.5			35	34	33	32	30	28	26	23	20	17	13
4PSS2-9	48	0.55	0.75			52	51	50	48	45	42	38	34	30	25	19
4PSS2-13	48	0.75	1			76	74	72	69	65	61	55	50	43	36	27
4PSS2-18	72	1.1	1.5		H(m)	105	103	100	95	90	84	77	69	60	50	38
4PSS2-23	96	1.5	2			134	131	127	122	115	107	98	88	77	64	48
4PSS2-30	156	2.2	3			174	170	165	159	150	140	127	115	100	85	64
4PSS2-40	216	3.0	4			233	228	222	212	201	186	170	153	134	111	84
4PSS2-53	276	4.0	5.5			310	305	298	285	270	255	228	203	178	148	112

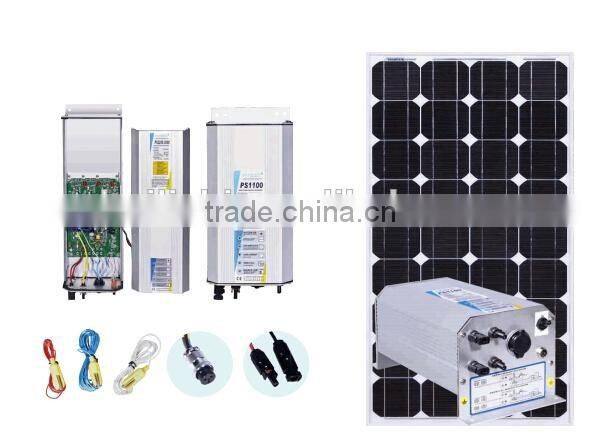

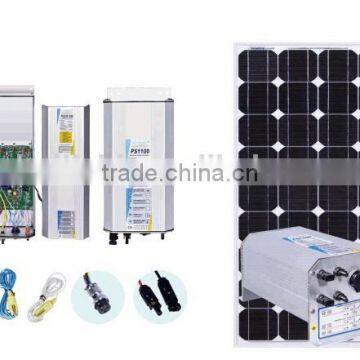

MPPT controller

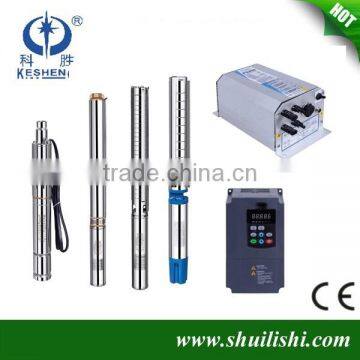

Accessories:

Packaging & Shipping

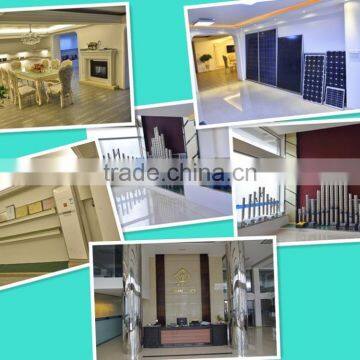

Company Information

Taizhou Donghai Fishery Machine & Electronics Co., Ltd. not only owns advanced process technology, automatic production flow and strict process control but also integrates the design, development, production, sales and service.

Its leading products include high-efficiency solar energy systems, solar water pumps, AC submersible pumps, solar swimming pool pumps, 304 stainless steel shield water-filled or oil-filled submersible motors, brushless energy-saving servo motors for industrial sewing machines, silicon rectification generators, high pressure blowers, etc. Products can also be re-designed and adjusted so as to satisfy the requirements of the customers.

In addition, the company has been certified to ISO Quality Management System and the products have passed the certifications of CE and RoHS. Its excellent brand image and good reputation have also received high praise from most of the customers. It is believed that only by grasping the core technology and innovating constantly can we produce more satisfying products.
