Short-introduce:

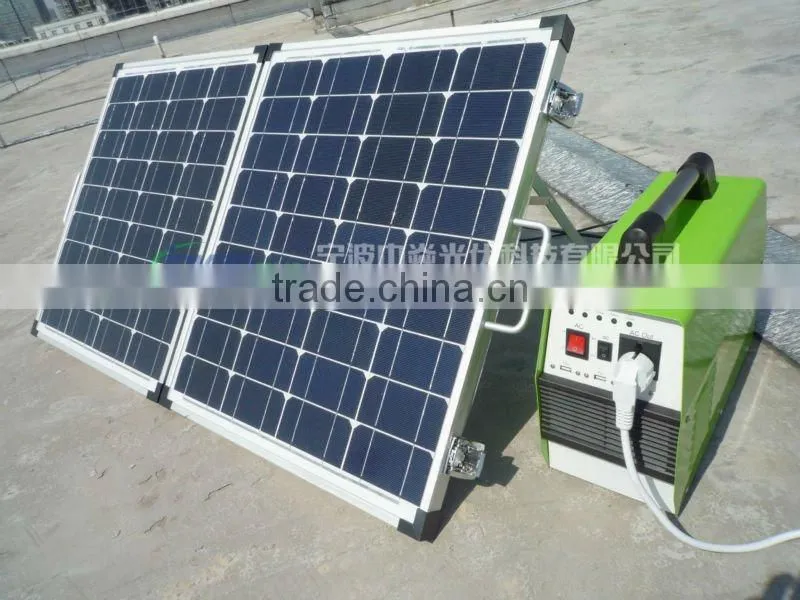

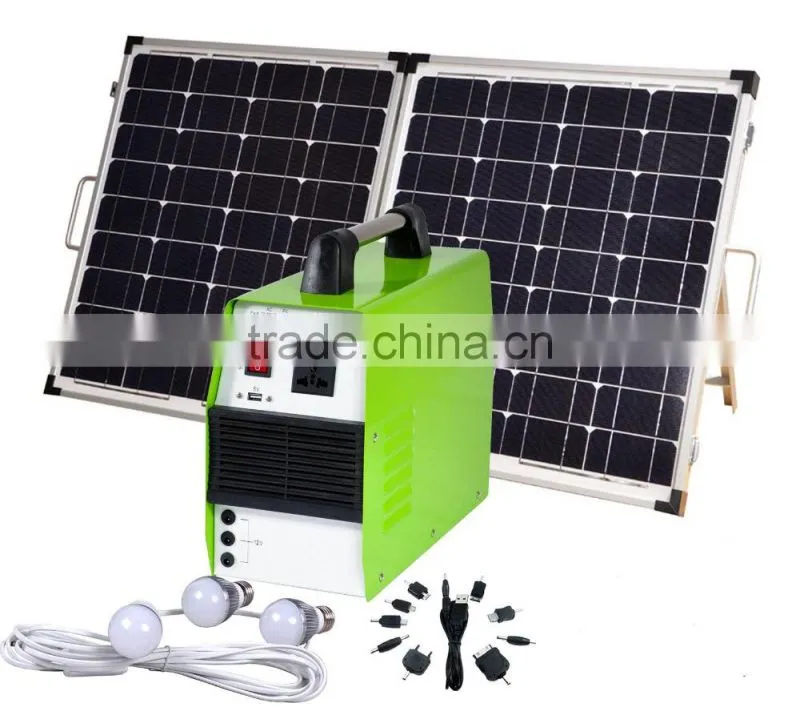

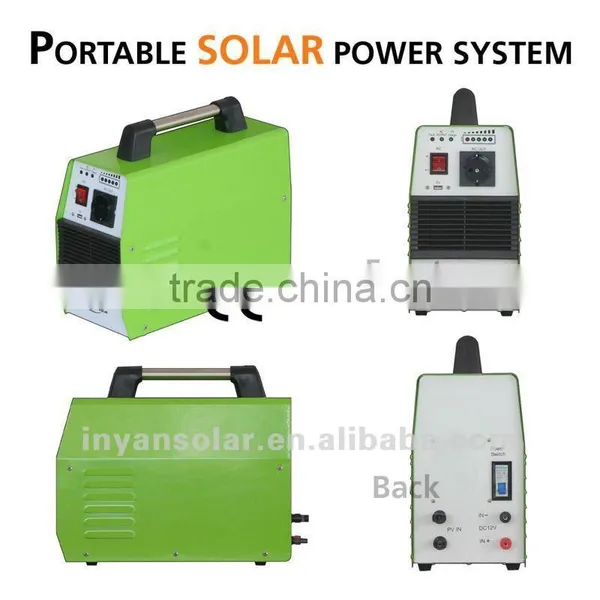

Portable Solar Power System includes solar panel, solar inverter, solar battery and solar controller. It can be applied to the villa, household, outdoor camping, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, villages, farm, hills, island, highway and any regions to generate electricity. Use very widely. It can charge led lamps, cell phones, notebook computers, lights, digital camera, fans, TV set, electric tools, music CDS, DVDS, electric power, such as voltage in DC 5V /AC110V&220V&230&50HZ&60HZ.
Specifications:

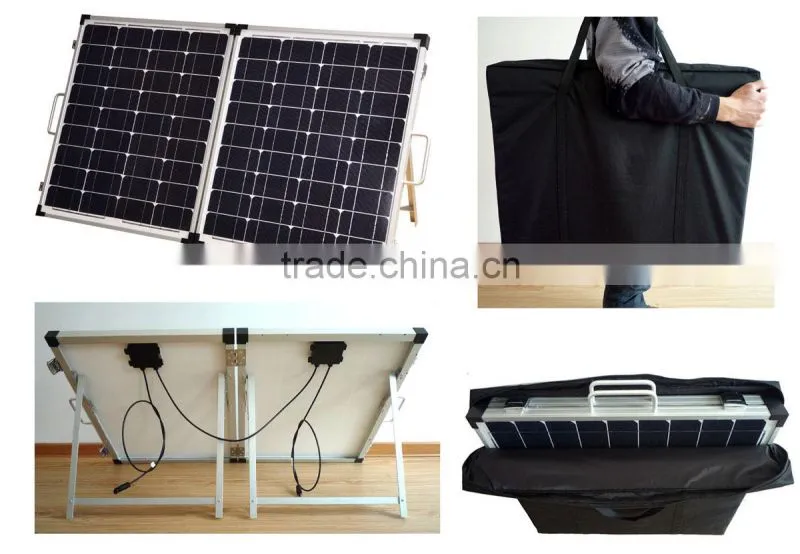

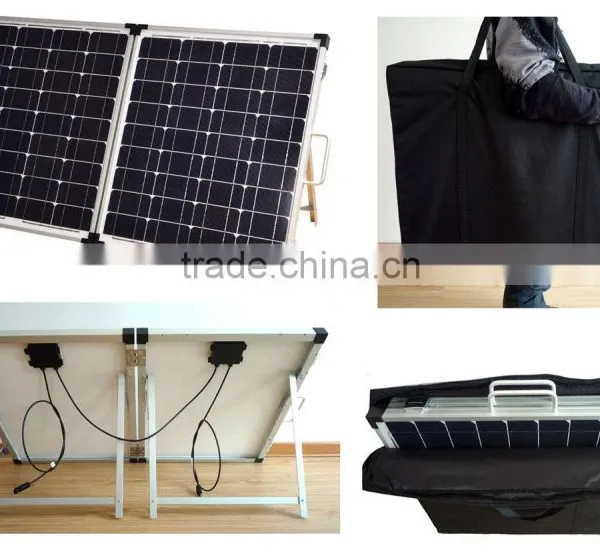

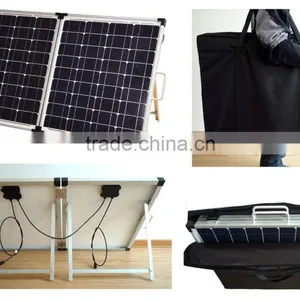

2) 18V 100W (2*50W) Foldable solar panel
3) 12V 33Ah battery
4) 1*110V/220V/230V 50HZ/60HZ AC Output
5) 3*12V DC&1*5V USB
6) Could connect extrnal battery
Technical Data:
Model |
ISS150F |
ISS300Z |
ISS500Z-D |
ISS500Z |
||
System Specification: | ||||||
Rated Output Power |
150W |
300W |
500W |
500W |
||
Solar Panel Power |
18V 50W(50W*1) |
18V 100W(50W*2) |
18V 100W(50W*2) |
18V 100W(50W*2) |
||
Solar Panel Charging Time |
5.5 hours effective sunlight |
3 hours effective sunlight |
5.5 hours effective sunlight |
4.5 hours effective sunlight |
||
Battery Capacity |
12V 33AH Lead acid battery |
12V 33AH Lead acid battery |
12V 33AH Lead acid battery |
12V 50AH Lithium battery |
||
AC Output |
AC 110V/220V/230V 50Hz/60Hz |
|||||
AC Output Waveform |
Modified sine wave |
Pure sine wave |
Pure sine wave |
Pure sine wave |
||
AC Output Socket |
Universal English German French Australian American |
|||||
DC Output |
3*12VDC outputs & 1*5V (500mA) USB output |
|||||
Peak Inverter Efficiency |
85% |
92% |
92% |
92% |
||
Overload Protection |
Yes |
Yes |
Yes |
Yes |
||
Under-voltage Alarm |
Yes |
Yes |
Yes |
Yes |
||
Overheat Protection |
Yes |
Yes |
Yes |
Yes |
||
Short-circuit Protection |
Yes |
Yes |
Yes |
Yes |
||
Battery Power Indicator |
Yes |
Yes |
Yes |
Yes |
||
External Battery Charger |
Yes |
Yes |
Yes |
Yes |
||
External Battery (12V) |
Yes |
Yes |
Yes |
No |
||
AC charging |
No |
No |
No |
Yes |
||
Certificate |
CE & RoHS |
|||||
Mechanical Data: | ||||||
System Box(mm) |
L375*W150*H320 |
L375*W150*H320 |
L375*W150*H320 |
L375*W150*H320 |
||
Net Weight of System Box |
15.7kg |
15.9kg |
16.5kg |
12.5kg |
||
Appearance Color |
White + Green |
White + Green |
White + Green |
White + Green |
||
Solar Panel (mm) |
L640*W540*H30 |
L640*W540*H60 |
L640*W540*H30 |
L640*W540*H60 |
||
Net Weight of Solar Panel |
4.5kg |
10.5kg |
4.5kg |
10.5kg |
||
Battery (mm) |
L196*W130*H162 (Total H175) |
L196*W130*H162 (Total H175) |
L196*W130*H162 (Total H175) |
L190*W140*H132 |
||
Net Weight of Battery |
10.5kg |
10.5kg |
10.5kg |
6.0kg |
||
Products guarantee:
Main machine guarantee time: 1 years limited warranty (lifetime: more 10years)
Battery guarantee time: 1 year (Lead acid battery lifetime: 2-3years; Lithium battery lifetime: 5-6years ;)
Solar panel guarantee time: 5 years (lifetime: around 25years, 90% output power at first 10 years, 80% output power at second 10 years)

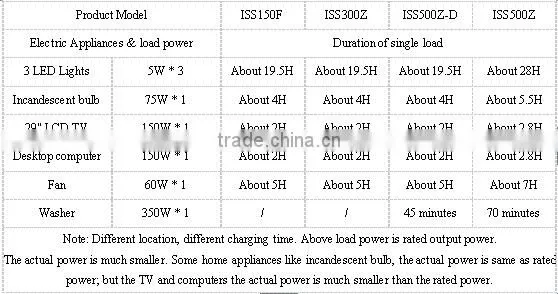

Loads and working time reference:
1.Standard export package:
1) Carton,Packing belt,Wrapping film.
2) Carton:445*215*375mm
2.Shipping:
1)Ocean for Quantity (LCL/FCL)
2)Courier or air for sample
Company name: Ningbo Inyan Solar Technology Co.,Ltd
Adress: No.190 Xinfu Road, Gaoqiao Town, Yinzhou District,Ningbo City, Zhejiang, China
