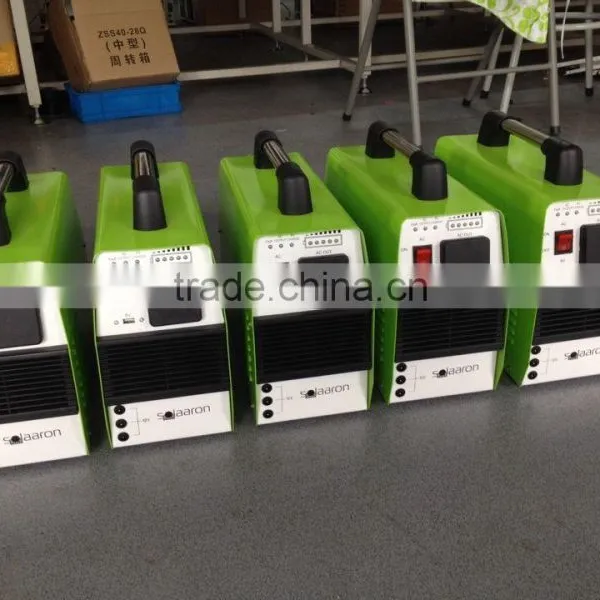

Help Center2015 Hot Sell Solar Power System 150W, Solar Power Generator 150W, Solar Energy System 150W
Related Products
-
2016 Cheap Solar Energy System 300WUS$ 250 - 300MOQ: 1 Set -
2015 Hot Sell Solar Power System 500W; Solar Energy System 500W;Solar Power Generator 500WUS$ 350 - 475MOQ: 1 Set
-
2016 Hot Sell 1000W Portable Solar Power SystemsUS$ 500 - 590MOQ: 1 Set
-
300W Solar Power System; 300w Solar Electricity Generating System for Home,;300W Solar Home System,300W Solar System for HomeUS$ 300 - 400MOQ: 100 Sets
-
Popular 1kw Solar System for HomeUS$ 520 - 580MOQ: 5 Sets
Short-introduce

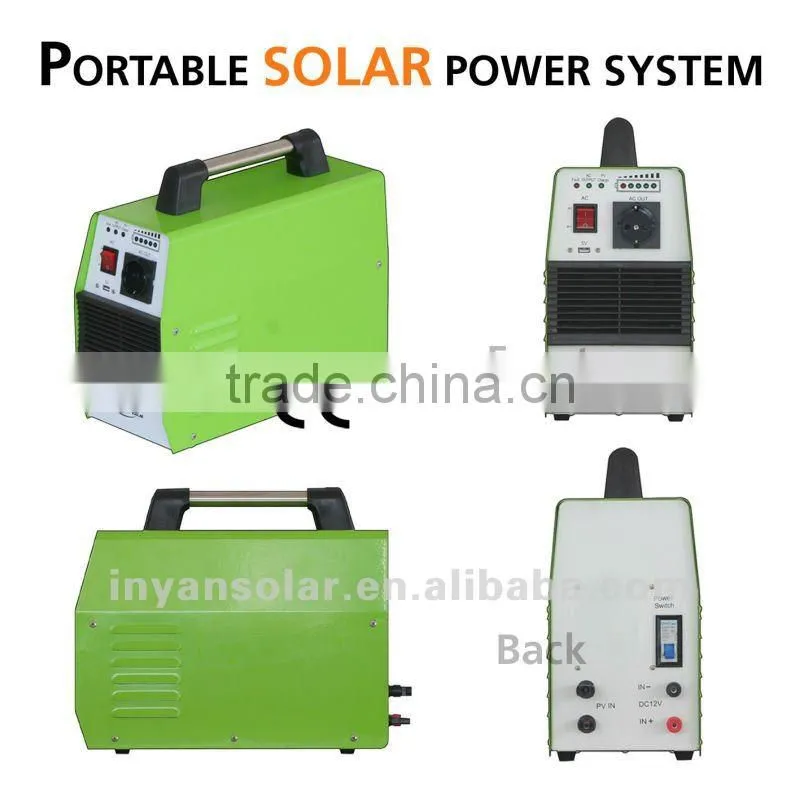

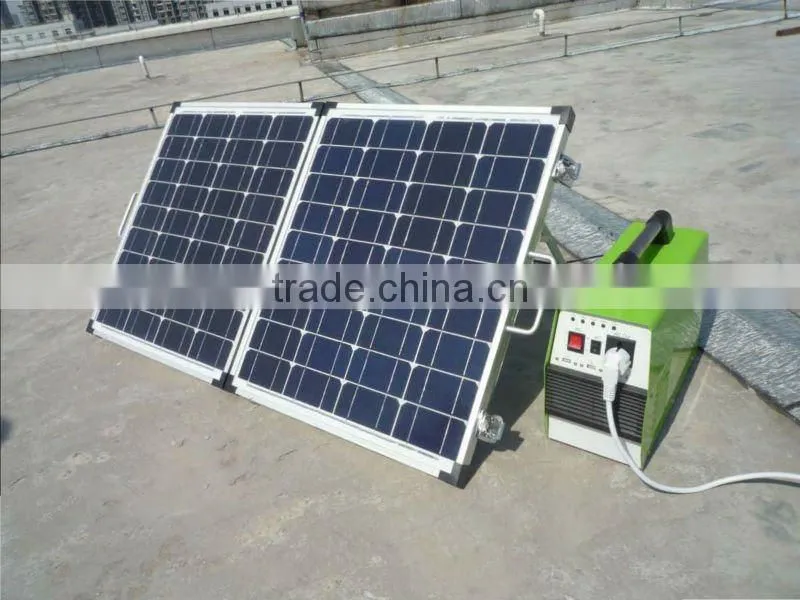

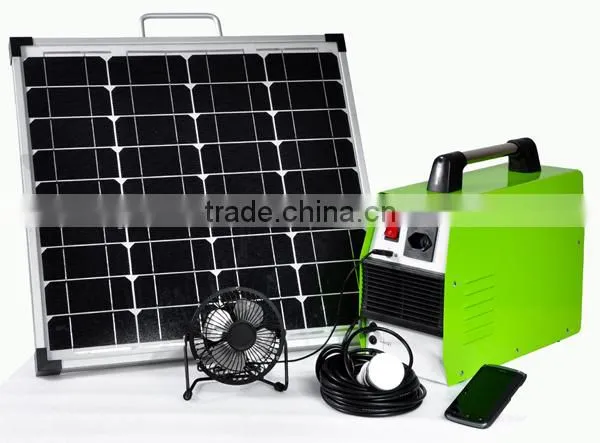

Portable Solar Power System includes solar panel, solar inverter, solar battery and solar controller. It can be applied to the villa, household, outdoor camping, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, villages, farm, hills, island, highway and any regions to generate electricity. Use very widely. It can charge led lamps, cell phones, notebook computers, lights, digital camera, fans, TV set, electric tools, music CDS, DVDS, electric power, such as voltage in DC 5V /AC110V&220V&230&50HZ&60HZ.
Specifications
2) 18V 50W Poly Solar Panel
3) 12V 33Ah SMF Lead-acid Battery
4) 1*110V/220V 50HZ/60HZ AC output
5) 3*12V DC&1*5V USB output
6) Could connect external battery
Main Functions:
1) Digital indication of working model
2) LED indicator of the working condition of charging and discharging
3) LED indicator of electric quantity
4) Overloading protection
5) Short cricuit protection
6) Reverse discharge protection
7) Reverse polarity connection protection
8) Over discharge protection
9) Over charge protection
10) AC and DC two way output
11) Suitable for household lighting, TV, fan, radio, computer and so on.
12) Not suitable for Capacitive load ,as electric motor, refrigerator, air conditioning, Microwave and ovens.
13) It can connect with automobile battery to start automobile.
14) Solar panels and public grid, two ways of charge to battery
Technical Data:
Model |
ISS150F |
ISS300Z |
ISS500Z-D |
ISS500Z |
||
System Specification: | ||||||
Rated Output Power |
150W |
300W |
500W |
500W |
||
Solar Panel Power |
18V 50W(50W*1) |
18V 100W(50W*2) |
18V 100W(50W*2) |
18V 100W(50W*2) |
||
Solar Panel Charging Time |
5.5 hours effective sunlight |
3 hours effective sunlight |
5.5 hours effective sunlight |
4.5 hours effective sunlight |
||
Battery Capacity |
12V 33AH Lead acid battery |
12V 33AH Lead acid battery |
12V 33AH Lead acid battery |
12V 50AH Lithium battery |
||
AC Output |
AC 110V/220V/230V 50Hz/60Hz |
|||||
AC Output Waveform |
Modified sine wave |
Pure sine wave |
Pure sine wave |
Pure sine wave |
||
AC Output Socket |
Universal English German French Australian American |
|||||
DC Output |
3*12VDC outputs & 1*5V (500mA) USB output |
|||||
Peak Inverter Efficiency |
85% |
92% |
92% |
92% |
||
Overload Protection |
Yes |
Yes |
Yes |
Yes |
||
Under-voltage Alarm |
Yes |
Yes |
Yes |
Yes |
||
Overheat Protection |
Yes |
Yes |
Yes |
Yes |
||
Short-circuit Protection |
Yes |
Yes |
Yes |
Yes |
||
Battery Power Indicator |
Yes |
Yes |
Yes |
Yes |
||
External Battery Charger |
Yes |
Yes |
Yes |
Yes |
||
External Battery (12V) |
Yes |
Yes |
Yes |
No |
||
AC charging |
No |
No |
No |
Yes |
||
Certificate |
CE & RoHS |
|||||
Mechanical Data: | ||||||
System Box(mm) |
L375*W150*H320 |
L375*W150*H320 |
L375*W150*H320 |
L375*W150*H320 |
||
Net Weight of System Box |
15.7kg |
15.9kg |
16.5kg |
12.5kg |
||
Appearance Color |
White + Green |
White + Green |
White + Green |
White + Green |
||
Solar Panel (mm) |
L640*W540*H30 |
L640*W540*H60 |
L640*W540*H30 |
L640*W540*H60 |
||
Net Weight of Solar Panel |
4.5kg |
10.5kg |
4.5kg |
10.5kg |
||
Battery (mm) |
L196*W130*H162 (Total H175) |
L196*W130*H162 (Total H175) |
L196*W130*H162 (Total H175) |
L190*W140*H132 |
||
Net Weight of Battery |
10.5kg |
10.5kg |
10.5kg |
6.0kg |
||
Products guarantee:
Main machine guarantee time: 1 years limited warranty (lifetime: more 10years)
Battery guarantee time: 1 year (Lead acid battery lifetime: 2-3years; Lithium battery lifetime: 5-6years ;)
Solar panel guarantee time: 5 years (lifetime: around 25years, 90% output power at first 10 years, 80% output power at second 10 years)
Loads and working time reference:
1.Standard export package:
1) Carton,Packing belt,Wrapping film.
2) Carton:445*215*375mm
2.Shipping:
1)Ocean for Quantity (LCL/FCL)
2)Courier or air for sample
Company name: Ningbo Inyan Solar Technology Co.,Ltd
Adress: No.190 Xinfu Road, Gaoqiao Town, Yinzhou District,Ningbo City, Zhejiang, China
