2015 Hot Sell Solar Power System 1500w, Solar Energy System 1500w, Solar Power Generator 1500w

2015 Hot Sell Solar Power System 1500w, Solar Energy System 1500w, Solar Power Generator 1500w photo-1

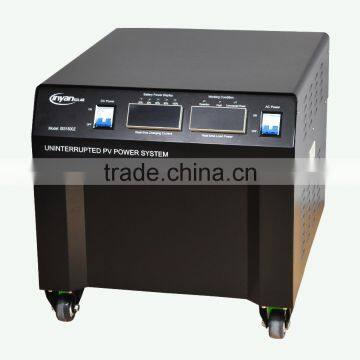

2015 Hot Sell Solar Power System 1500w, Solar Energy System 1500w, Solar Power Generator 1500w photo-2

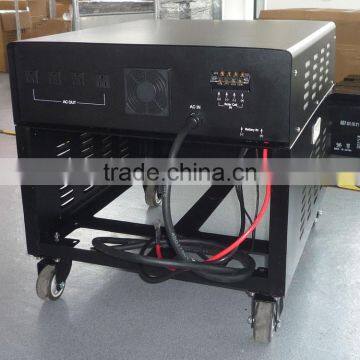

2015 Hot Sell Solar Power System 1500w, Solar Energy System 1500w, Solar Power Generator 1500w photo-3

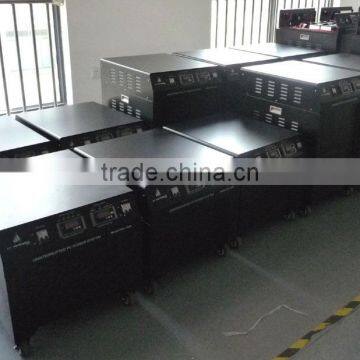

2015 Hot Sell Solar Power System 1500w, Solar Energy System 1500w, Solar Power Generator 1500w photo-4
US$ 1,500 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Inyan
Model Number:
ISS1500Z
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Inyan
Model Number ISS1500Z
Specification Normal
Application Home
Output Voltage (V) 110V/220V/230V/240V
Load Power (W) 1500W
Solar Power (W) 1000W
Work Time (h) According to the loading

Uninterrupted Solar Power system 1500W

      Uninterrupted Solar Power System is an all-in-one machine which includes solar inverter, solar battery, charge controller, battery cabinet and solar modules. The system can be applied to areas without grid-power network, villas, remote villages, island, no power supply areas and backup power for general families. Pure sine wave AC output 110V/220V/230V/380V, 50Hz/60Hz.



2015 hot sell solar power system 1500w, solar energy system 1500w, solar power generator 1500w



Product Features:



1) All-in-one high integrated off-grid solar system

2) Pure sine wave output

3) Battery power indicate

4) Digital indication for PV charging & load power

5) Automatic switch between PV generation and utility power

6) PV power generation always preferred

7) High-efficiency, easy-installation and reliable performance

8) Economic and environment-friendly



Products guarantee as below:



Solar panels:not less than 90% in 10 years and 80% in 25 years

Inverters and charge controllers: 1 years

Lead-acid batteries: 1 year (about 350 cycles, lifetime 2~3 years)

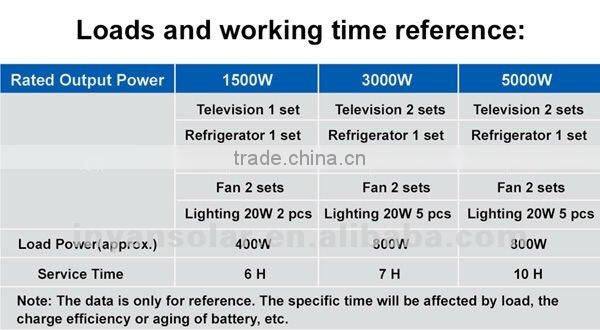

Loads and Working time as below:



2015 hot sell solar power system 1500w, solar energy system 1500w, solar power generator 1500w


Technical Data:






Model

ISS1500Z

ISS3000Z

ISS5000Z

Inverter Output Power

1500W

3000W

5000W

Output Waveform

Pure Sine Wave

Pure Sine Wave

Pure Sine Wave

Precision of Output Voltage

220V/230V/240V

220V/230V/240V

220V/230V/240V

Precision of Output Frequency

50Hz or 60Hz

50Hz or 60Hz

50Hz or 60Hz

Power factor

0.99

0.99

0.99

Overload ability

120%,30 seconds

120%,30 seconds

120%,30 seconds

Over Voltage Protection

> 27V±0.5V

> 54V±0.5V

> 54V±0.5V

Low Voltage Protection

< 20.5V±0.5V

< 40.5V±0.5V

< 40.5V±0.5V

Peak power efficiency

>92%

>92%

>92%

Switching time between PV & AC electricity

<20ms

<20ms

<20ms

Solar Panel

1000W

2000W

3000W

Solar Panel Charging Time

3 hours effective sunlight

3 hours effective sunlight

3 hours effective sunlight

Lead Acid Battery

24V 200Ah

(12V 400Ah)

48V 200Ah

(12V 800Ah)

48V 300Ah

(12V 1200Ah)

Solar Controller

1 x 24V 30A

2 x 48V 30A

3 x 48V 30A

Operational Environment:

Operating Temperature Range

-10 ~ 55

-10 ~ 55

-10 ~ 55

Relative Humidity

0 ~ 90%

0 ~ 90%

0 ~ 90%

Operating Altitude

0 ~ 1200m

0 ~ 1200m

0 ~ 1200m

Mechanical Data:

Assembled system box(mm):

L630*W545*H555

L630*W545*H835

L730*W690*H1115

Assembled system box(kg):

192kg

335kg

495kg

Assembled system box(wooden packing):

0.35cbm

0.49cbm

0.85cbm





If above systems do not meet your demand or want us customize for you, pls feel free to let us know the following answer and Our technology team will give you a good solution.



1. Which country and city the solar system will be set in?

2. What's power of the electric appliances and their working hour per day?

3. What output voltage and socket you need?

4. Please check your electricity bill and tell us what power consumption you take per day?

5. If you have any requirement on the system accessories, please tell us in detail.



 2015 hot sell solar power system 1500w, solar energy system 1500w, solar power generator 1500w

2015 hot sell solar power system 1500w, solar energy system 1500w, solar power generator 1500w



2015 hot sell solar power system 1500w, solar energy system 1500w, solar power generator 1500w





Packaging & Shipping



1.Standard export package:  Wooden Pallet or Carton,Packing belt,Wrapping film.



2.Shipping: Ocean



2015 hot sell solar power system 1500w, solar energy system 1500w, solar power generator 1500w
