Off-grid 1500W Solar Power Generator

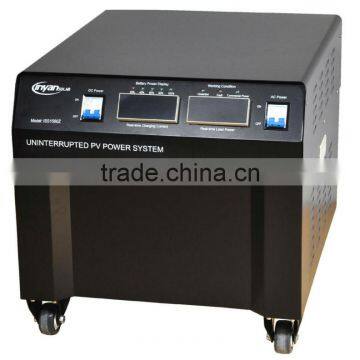

Off-grid 1500W Solar Power Generator photo-1
Off-grid 1500W Solar Power Generator photo-2
Off-grid 1500W Solar Power Generator photo-3
Off-grid 1500W Solar Power Generator photo-4
Off-grid 1500W Solar Power Generator photo-5
Off-grid 1500W Solar Power Generator photo-6
US$ 1,520 - 1,905 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
INYAN
Model Number:
ISS1500Z
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name INYAN
Model Number ISS1500Z
Specification Normal
Application Home
Output Voltage (V) 110V/220V/230V
Load Power (W) 1500W
Solar Power (W) 1000W
Work Time (h) according to the load



Uninterrupted Off-grid Solar Power system 1.5KW



       Uninterrupted PV Power System is an all-in-one machine which includes solar inverter, solar battery, charge controller, battery cabinet and solar modules. The system can be applied to areas without grid-power network, villas, remote villages, island, no power supply areas and backup power for general families. Pure sine wave AC output 110V/220V/230V, 50Hz/60Hz.



Product Features:



>> All-in-one high integrated off-grid solar system

>> Pure sine wave output

>> Battery power indicate

>> Digital indication for PV charging & load power

>> Automatic switch between PV generation and utility power

>> PV power generation always preferred

>> High-efficiency, easy-installation and reliable performance

>> Economic and environment-friendly





Specifications:

Model

ISS1500Z

ISS3000Z

ISS5000Z

Inverter Output Power

1500W

3000W

5000W

Output Waveform

Pure Sine Wave

Pure Sine Wave

Pure Sine Wave

Precision of Output Voltage

220V/230V/240V

220V/230V/240V

220V/230V/240V

Precision of Output Frequency

50Hz or 60Hz

50Hz or 60Hz

50Hz or 60Hz

Power factor

0.99

0.99

0.99

Overload ability

120%,30 seconds

120%,30 seconds

120%,30 seconds

Over Voltage Protection

> 52V±1V

> 52V±1V

> 84V±1V

Low Voltage Protection

< 44V±1V

< 44V±1V

< 66V±1V

Peak power efficiency

>92%

>92%

>92%

Switching time between PV & AC electricity

<20ms

<20ms

<30ms

Solar Panel

1000W

2000W

3000W

Solar Panel Charging Time

3 hours effective sunlight

3 hours effective sunlight

3.3 hours effective sunlight

Lead Acid Battery

48V 100Ah

(4x12V 100Ah)

48V 200Ah

(8x12V 100Ah)

72V 200Ah

(6x12V 200Ah)

Solar Controller

2 x 48V 30A

2 x 48V 30A

6 x 24V 30A

Operational Environment:

Operating Temperature Range

-10 ~ 55℃

-10 ~ 55℃

-10 ~ 55℃

Relative Humidity

0 ~ 90%

0 ~ 90%

0 ~ 90%

Operating Altitude

0 ~ 1200m

0 ~ 1200m

0 ~ 1200m

Mechanical Data:

Assembled system box(mm):

L630*W545*H555

L630*W545*H835

L630*W545*H1115

Assembled system box(kg):

192kg

335kg

480kg

Assembled system box(wooden packing):

0.35cbm

0.49cbm

0.75cbm

Frequency inverter(kg):

/

/

85kg

Frequency inverter(mm):

/

/

L450*W550*H760

Solar panels(kg):

128kg

220kg

315kg

Solar panels(wooden pallet):

0.70cbm

1.15cbm

1.62cbm







Products guarantee as below:

Solar panels: not less than 90% in 10 years and 80% in 25 years

Inverters and charge controllers: 2 years

Gel batteries: 1 year (about 350 cycles, lifetime 2~3 years)

Lead crystal batteries: 1 years (about 750 cycles, lifetime 5~6 years)



 Pls feel free to let us know the following answer. Our sales team will give you a good solution.

1. Which country and city the solar system will be set in?

2. What's power of the electric appliances and their working hour per day?

3. What output voltage you need?

4. Please check your electricity bill and tell us what power consumption you take per day?

5. If you have any requirement on the system accessories, please tell us in detail.off-grid 1500W solar power generatoroff-grid 1500W solar power generator

off-grid 1500W solar power generatoroff-grid 1500W solar power generatoroff-grid 1500W solar power generatoroff-grid 1500W solar power generatoroff-grid 1500W solar power generator
