concrete mixing plant,concrete mixing plant sale,dry mix concrete mixing plant
| Brief Introduction |

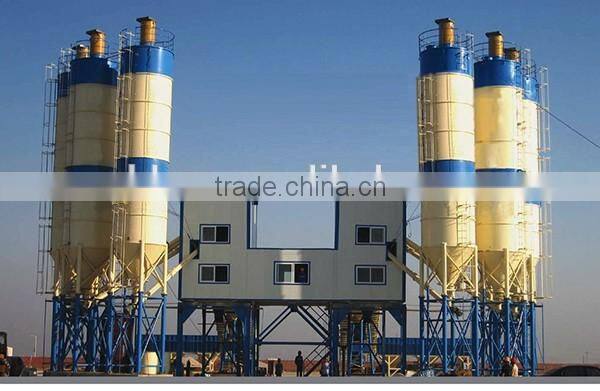

Stationary concrete mixing plant is one model of concrete batching plants in our factory. This type mixing plant is withcapacity 25-240m3 per hour.
Mobile concrete batching plant and stationary concrete mixing plant are all provided in our factory. The engineers will provide professional suggestions and plans for free if you have any requirements. The ready cement mixer plant is a combinational device used to batch concrete in centralized. There are many different types and components of stationary concrete mixing plant , the basic structure includes: feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments. They are used to transport, feed, store, batch, weigh, mix and discharge the concrete raw materials: cement, water, sand, crushed stone, admixture and additive.
| Technical Parameters |
Model |
HZS90 |
HZS120 |
HZS150 |
HZS180 |
HZS240 |
Productivity |
90m3/h |
120m3/h |
150m3/h |
180m3/h |
240m3/h |
Mixer |
JS1500 |
JS2000 |
JS3000 |
JS3000 |
JS4000 |
Power |
121Kw |
144Kw |
190Kw |
210Kw |
294Kw |
Aggregate Max Diameter |
80mm |
150mm |
150mm |
150mm |
150mm |
Aggregate batching machine |
PLD2400 |
PLD2400 |
PLD4000 |
PLD4800 |
PLD6400 |

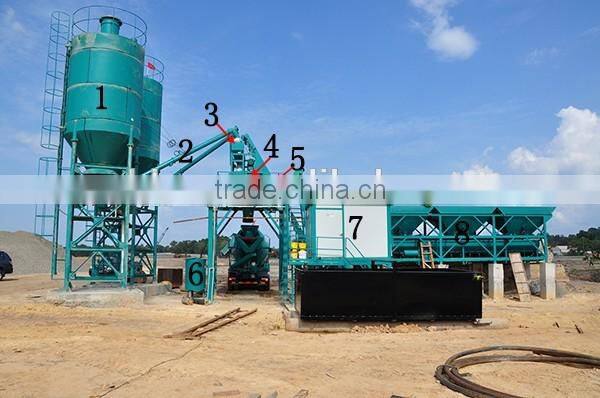

| Every part of stationary concrete batching plant |
1. Cement silo, bolted cement silo, horizontal frame cement silo, stackable cement silo, container cement silo, mobile wheel type cement silo,big bag cement silo.
2. Auger, screw conveyor, diameter from 168mm - 323mm. Length is from 3m - 14m
3. Scale, Cement scale, water scale, additive scale. Its accuracy is 70% higher than flow meter.
4. Mixer, JS / KTSA twin shaft mixer, Planetary Mixer are all provided.
5. Loading way: Skip lift and belt lift are all provided.
6. Water tank / Additive tank
7. Control room. SIEMENS Full automatic control room.
8. Batching Machine. Customized

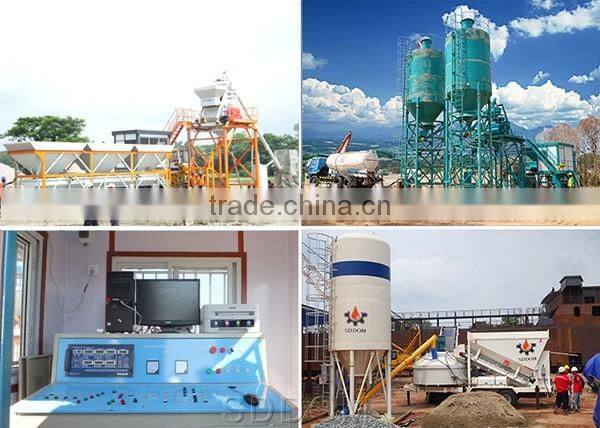

| Successful Project |
| Mobile concrete batching plant |
The mobile concrete batching plant is designed according to Europe Standard, certificated by CE
| About US |
SDDOM Our company is developing rapidly now. We have made CE certification qualification. We have clients all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc, and won the trust of the customers with high quality and good reputation.
Patent No. ZL201420493942.3
CE Certificate No. EC.1282.0E140523.SDMQS69
