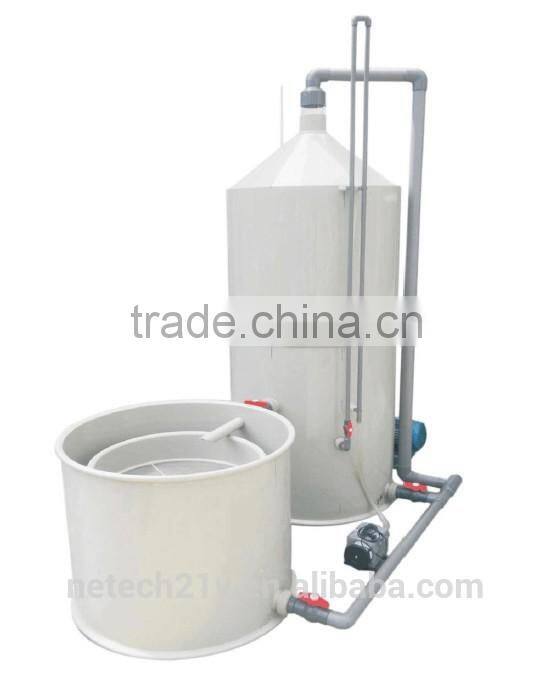

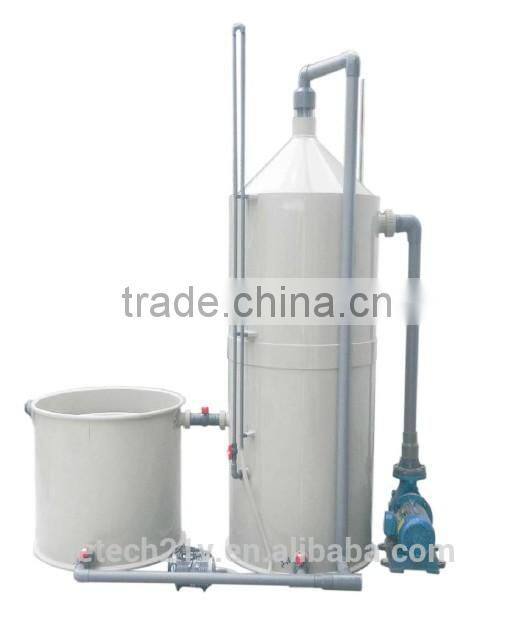

10T to 100T protein skimmer / aquarium protein skimmer / commercial protein skimmer
10T to 100T protein skimmer / aquarium protein skimmer / commercial protein skimmer
Introduction:

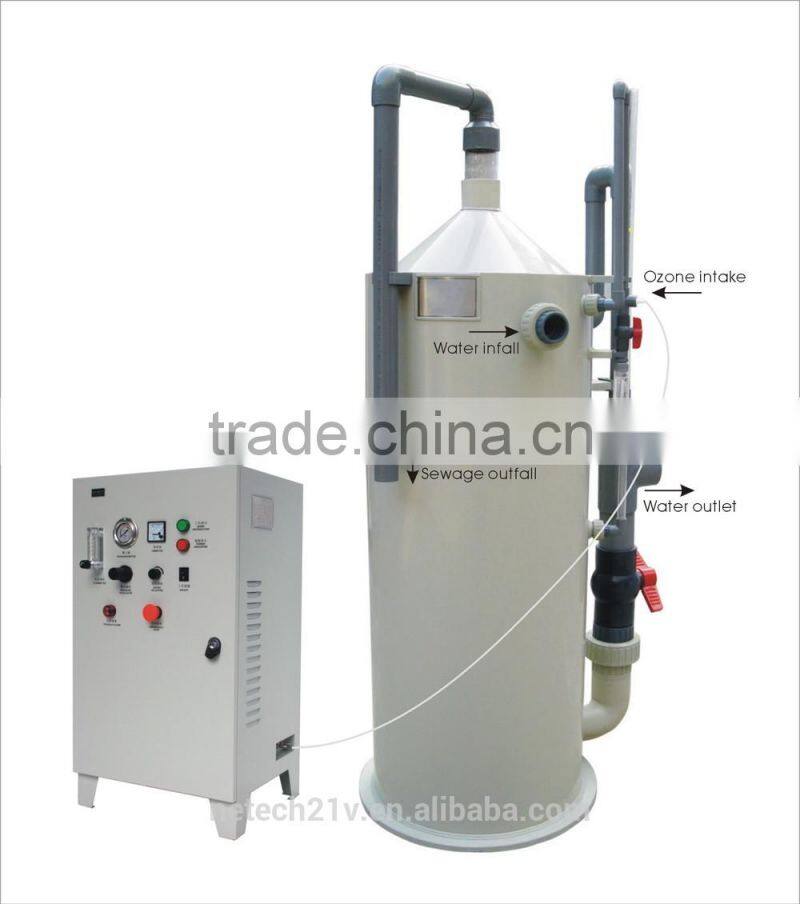

Huge Protein Skimmers is our latest product, which has special structure, low in energy consumption, high in efficiency. Its Material is engineering plastics PP .These series products can be used to reduce the physical and chemical gels. It used the role of adsorption of surface tension of the bubble to enrichment and separation organic, removal the colloidal suspension, cellulose, protein, bait and faces and other organics in the wastewater. Meanwhile, the protein separator can be used as an ozone mixing tower, which can separate protein and use ozone to do the disinfections.
10T to 100T protein skimmer / aquarium protein skimmer / commercial protein skimmer

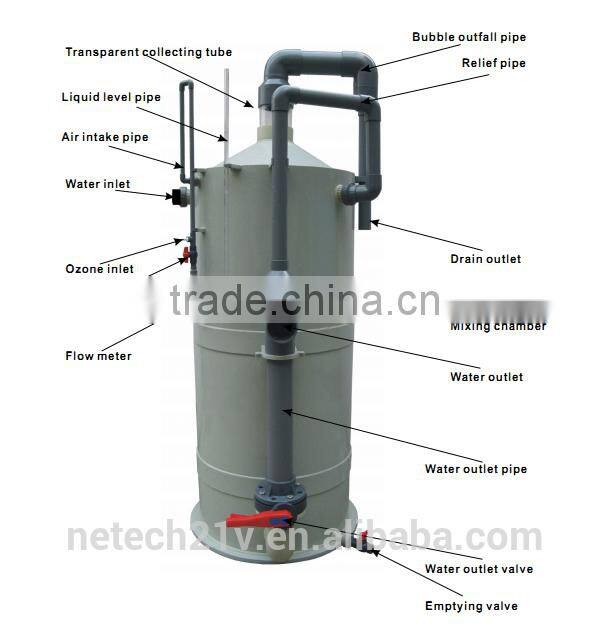

Product Features
Instead the using of Venturi, Booster pump, low power for saving energy.
Using the collecting pipe, no need to clean, for saving water.
PDO air intake device produces abundance air bubble, for high separate efficiency.
Using two ways water stream design, for high air-liquid mixing result, high separate efficiency.
Trouble-free design, long service life but free maintenance.
Specification:
Model |
Water flow (M3/Hr) |
Size (mm) |
Water Input /Output Size (mm) |
||
1min |
2min |
3min |
|||
NT-FPS-10 |
10 |
5 |
3 |
450×1650 |
50/90 |
NT-FPS-20 |
20 |
10 |
7 |
600×1700 |
63/110 |
NT-FPS-30 |
30 |
15 |
10 |
650×2100 |
63/110 |
NT-FPS-40 |
40 |
20 |
13 |
750×2100 |
63/140 |
NT-FPS-50 |
50 |
25 |
17 |
850×2200 |
75/140 |
NT-FPS-60 |
60 |
30 |
20 |
850×2450 |
75/160 |
NT-FPS-80 |
80 |
40 |
27 |
950×2600 |
90/160 |
NT-FPS-100 |
100 |
50 |
33 |
950×3050 |
110/200 |
NT-FPS-120 |
120 |
60 |
40 |
1200×2800 |
110/250 |
NT-FPS-140 |
140 |
70 |
47 |
1300×2700 |
140/250 |
NT-FPS-160 |
160 |
80 |
53 |
1300×2900 |
160/250 |
NT-FPS-180 |
180 |
90 |
60 |
1400×2900 |
160/250 |
NT-FPS-200 |
200 |
100 |
67 |
1500×3000 |
200/250 |
10T to 100T protein skimmer / aquarium protein skimmer / commercial protein skimmer

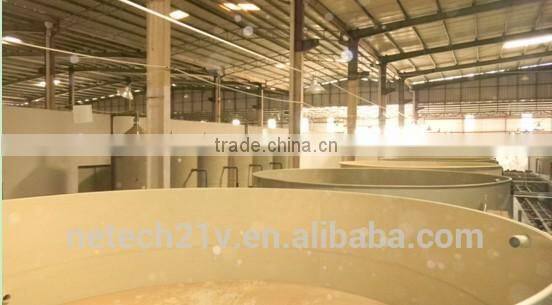

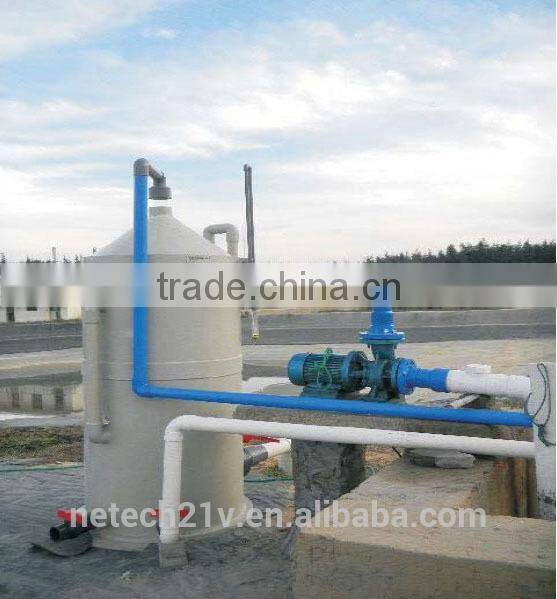

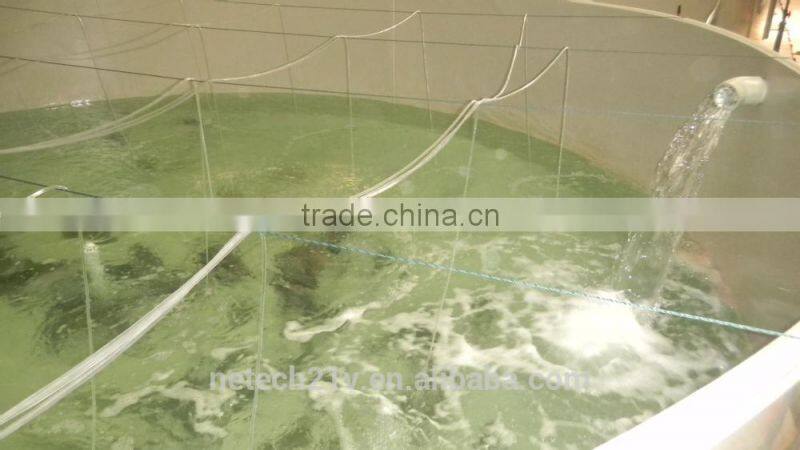

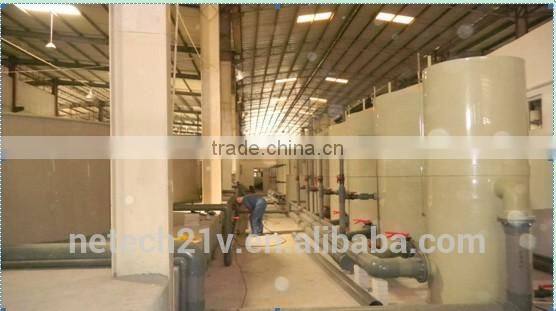

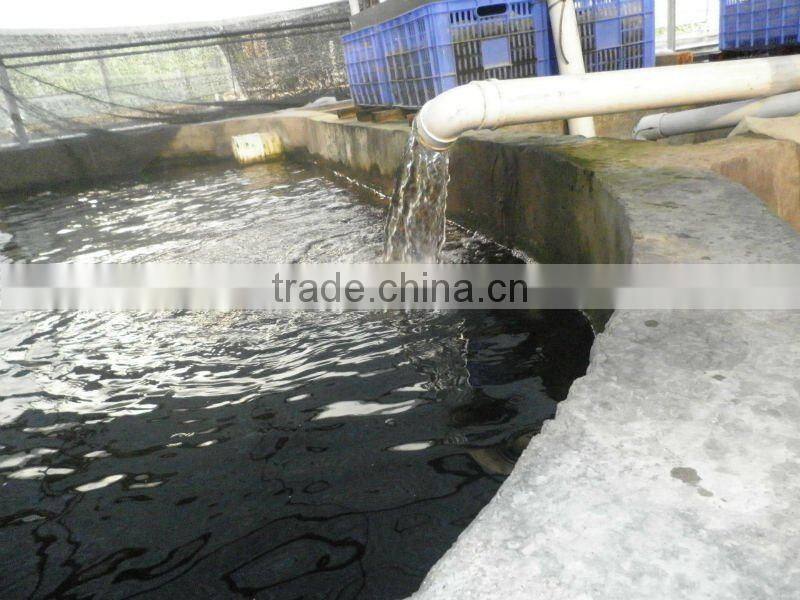

Application:
Fresh water & Seafood cultivating factory
Fresh water & Seawater hatcheries
Oceanopolis, aquarium ,aquaculture ,fishing farm etc
Swimming pool water treatment

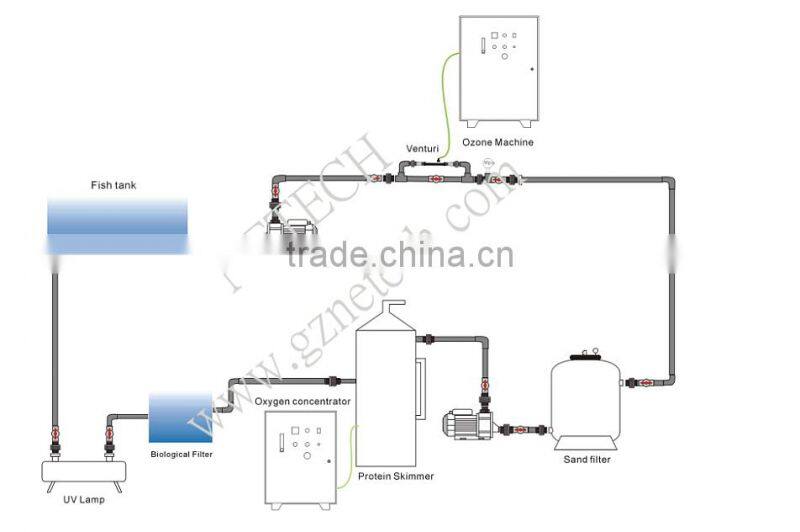

Sewage water treatment, and the lines used for ozone mixing in water
10T to 100T protein skimmer / aquarium protein skimmer / commercial protein skimmer
Quality Control:
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
