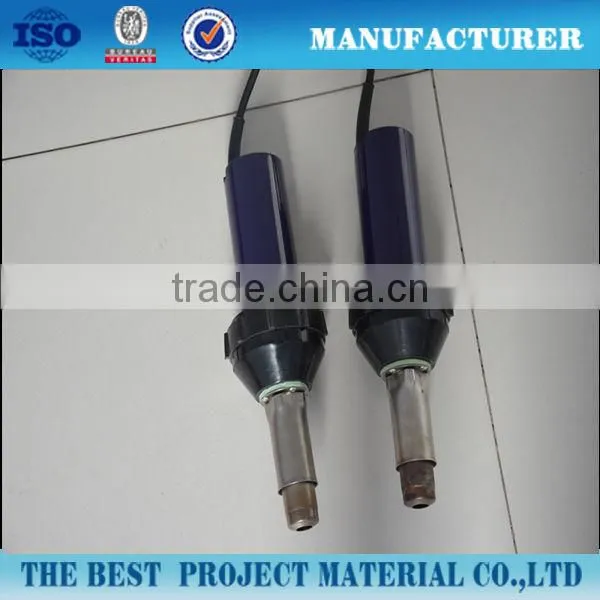

Hot Air Welding Gun Hot Air Tools Geomembrane Welding for 0.2mm-1mm

Hot Air Welding Gun Hot Air Tools Geomembrane Welding for 0.2mm-1mm thumbnail-1
Hot Air Welding Gun Hot Air Tools Geomembrane Welding for 0.2mm-1mm photo-1
US$ 98 - 120 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BPM welder/welding gun
Model Number:
BPM1600
Contact Supplier Request Quote Chat Now
The Best Project Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BPM welder/welding gun
Model Number BPM1600
Voltage 230V
Current 1600W
Rated Capacity 180L/Min
Rated Duty Cycle 50/60 Hz
Dimensions 320*105mm
Weight 2.5kg
Usage Welding and seaming
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

hot air welding gun hot air tools geomembrane welding
for 0.2mm-1mm
Welding of HDPE,LDPE,PVC,EVA
Delivery by DHL,UPS,TNT,Fed

      Hot sale hot air welding gun hot air tools geomembrane welding



Please read operating instructions carefully before use and keep it for further reference.











Product Welding machine/ hot wedge welder
Model BPM 1600
Description * Voltage:         230V
* Power:           1600W
* Frequency:     50/60 Hz
* Temperature: 20~700 °C distance adjustable
* Air volume :   Max 180L/Min
* Air pressure: 2600 pa
* Noise level : 65 db
* Net Weight:   1.05 KGS
* Size   :     41*15.5*12.5cm









Application>>>



l  Welding of thermoplastic materials as well as single-ply flexible plastics and modified bitumen in the

form of boards, tubes, profiles, lining membranes, coated materials, films, foams, tiles and sheets. The

following procedures are possible: overlap welding, welding with rod, with tape, butt welding and melt

welding.

l  For foaming, ending and sealing of the thermoplastic semi-finished materials and plastic granules.

l  Drying of water-damp surfaces.

l  Shrinking of heat-shrink sleeves, films, tapes, solder sleeves, preformed and mould part.

l  Soldering of copper pipes, solder joints and metal foils.

l  Defrosting of frozen water pipes.

l  Activating and dissolving of solvent free adhesive and fusion adhesives

l  Igniting of wood shavings, paper, coal or straw in furnaces











Readiness of working>>>



l  Fit appropriate nozzle as required

l  Connect tool to the line/mains

l  Adjust air temperature

l  Switch on main switch and heat up the tool for approximately 5 minutes.



Changeable nozzles>>>

Do not touch the hot nozzle and make sure to place it on a heat resistant surface because of the fire hazard..

Put the nozzle on the heater tube and secure the nozzle by the screw on the cap.

Use nozzles only.



Maintenance>>>

l  Clean polluted air filter with a small brush or replace it

l  Clean welding nozzle with a steel brush.

l  Check mains cable and plug for electrical and mechanical damage.



Service and repairs>>>

l  The motor switches off automatically when the brush reach their minimum length. Have the tool checked by

 your service center. The life of the brushes is about 800 hours.

l  Repairs should be carried out by authorized service centers only. They guarantee a specialized and reliable

service.

l  Sorry for not special notice in advance if there would be changes on parameters.







 Warning>>>





Unplug the tools before opening it.

Incorrect use of hot-air blowers can cause fire and explosion hazardous especially near combustible materials and

 explosive gases

Do not touch heater tube and nozzle when they are hot. They may cause burns. Do not point hot air flow in the direction

 of people or animals.

Caution>>>

The voltage rating stated on the tool must correspond to line/mains voltage.

For personal protecting on the building site, we strongly recommend the tool be connected to a GFCI(Ground Fault Circuit

 Interrupter)or a RCCB (Residual Current Circuit Breaker)

The tool much be operated with supervision. Heat can reach combustible materials which are out of sight.

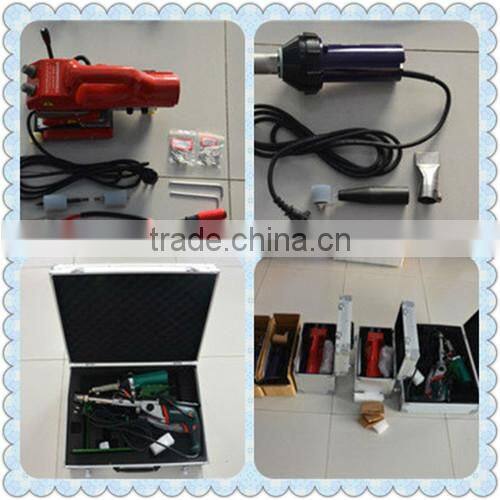

Packaging and shipping of hot air tool(welding gun)>>>

































               Welcome your inquiry and sample order
