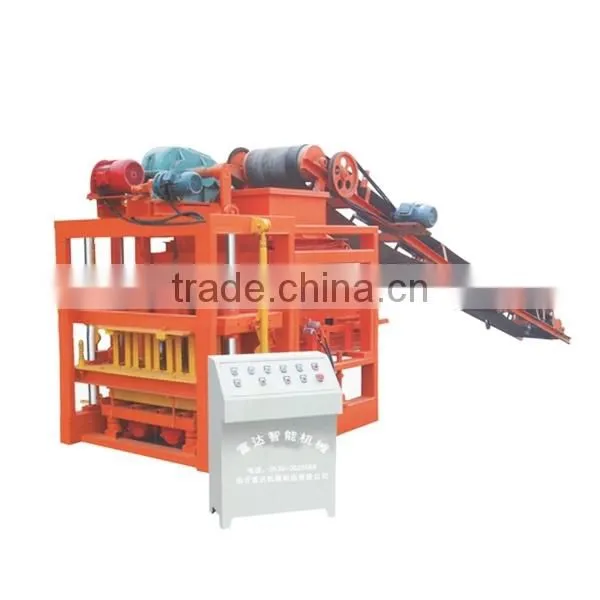

Automatic QT4-25 semi automatic block machine for cape verde
Technical characteristics of QT4-25 semi automatic block machine for cape verde.
A. the steel is national standard No.45 steel.the best in our country.
B. the welding is the best welding technology,anti-wear, aseismatic,anti Moist.
C. the mould of hollow block machine is high temperature carburizing heat treatment through 900 Degrees Celsius.
D. guide column:four guide column,use overlong guide design,the surface is chrome-plated,have good anti-wear and high anti-distortion, Long service life .
E. Multi-function:exchange moulds of concrete block machine can produce solid bricks,hollow blocks and porous block can make all kinds of blocks.
F. Under The vibration platform has two Super motors to drive the vibration box to vibrate and the up mould also has one motors to vibrate and so the forming way is vibration,so the blocks are High strength, the compactness of uniform.
1).Main Parameters of QT4-25 semi automatic block machine for cape verde.
| Main parameter | QT4-25 |
Control style |
Electrical control system |
| Molding cycle | 25-30s |
| Production capacity | 4000-5000 blocks/shift(8h) |
| Vibration frequency | 2800-4500r/min |
| Vibration force | 35.5KN |
| Power of host machine |
17KW |
| Overall power | 22.5KW |
Voltage |
220/240/380/440V |
| Host machine size | 3000*1600*2500mm |
| Molding form | Vibration and Pressure |
| Main vibration form | Electric vibration |
Weight of host machine |
3.0T |
Size of pallet |
850*550*30mm |
|
1.Theoretical workshop area :160m2 , need about 3-4workers. 2.The office , curing area and stacking area to arrange according your fact status. | |
2).Productivity of QT4-25 semi automatic block machine for cape verde.
| Size(mm) | Qty/mould | Cycle molding | PCS/Hour | PCS/8hours(shift) |
| 400*250*200 | 3 |
25-30s | 432 | 3456 |
| 400*200*200 |
4 | 25-30s | 576 |
4608 |
| 400*150*200 |
5 | 25-30s | 720 |
5760 |
| 400*100*200 | 7 |
25-30s | 1008 |
8064 |
| 240*115*52 | 24 |
25-30s | 3456 |
27648 |
| Can make all kinds of hollow and solid block. | ||||
3).Complete equipemnt of QT4-25 semi automatic block machine for cape verde.
Device |
Specification |
Power (KW) |
Unit |
Quantity |
Block machine |
QT4-25 |
17 |
Set |
1 |
Mixer |
JQ500 |
11 |
Set |
1 |
PLC control box |
Set |
1 |
||
Belt conveyer |
L=6M |
1.1 |
Set |
1 |
Mould |
Free |
|
Set |
2 |
Block trolley |
|
|
Set |
2 |
Spare parts and tools |
|
|
Set |
1 |
1).Raw material.
8-10% cement, 30-40% sand, 50-60% crushed stone ( you can add some other material by local situation).
2).JQ500 concrete mixer.
3).Conveyor belt.
4).PLC control box.
1.Adopt the latest technology,very easy to operate.
2.Can warning the faults and displaying the faults place,assure stable and high-efficiency working status.
5).Blocks/Bricks for reference.
Inquiry service
Accept user’s enquiries by all kinds of ways and establish user’s product cognition.Provide all kinds of product data and let customer understand characteristics of product.
Pre-sale service
Accept inquiry of customers ,confirmation of investment advice of choice of product ,assist the customers to design the workshop.
In-sale service
Sale of product,help customers build the base ,technical training of customers’ workers ,practice of operation ,help to install ,train the operators in the workshop.
After-sale service
24 hours service of technology inquiry, instant components supply, regularly technical service guidance of maintain,long distance malfunction control.
Unique service
System up-grade,special design according to the customers’ requirement, mould renew ,supply new technology and products information.
I'm Crease You from Yingcheng International Trade Co.,Ltd, manufacture all kinds of block making machines. Call me, let's talk details !
