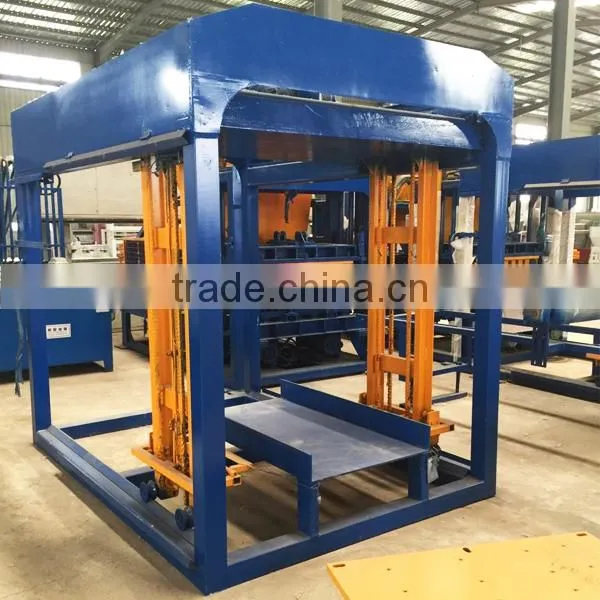

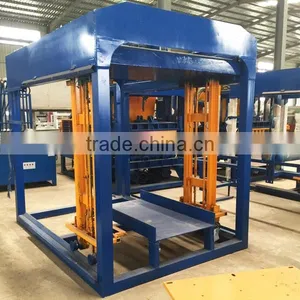

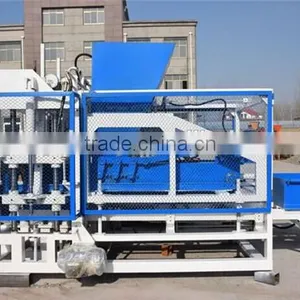

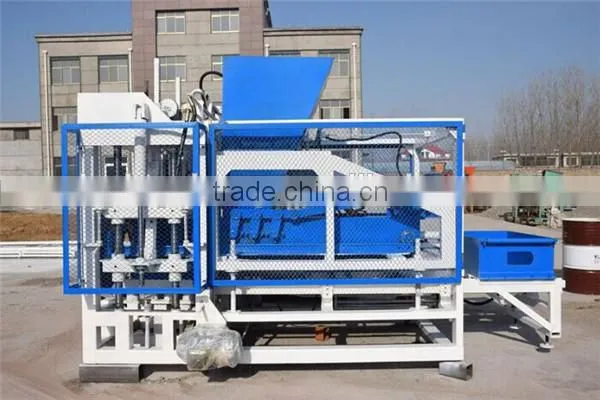

Cheap hydraluic blokc machine QT4-18 hollow block and solid block making machine/cement blocks machines
1.The machine adopts three poles to pressurize and once form,Stacking immediately after forming, it is the latest bricks model at home.
2. Electrical system adopts programmable controller PLC to control the data output and input.
3. Imported computer appliance seals, hydraulic components use high dynamic performance proportional valves, to accurately control the key components’ action.
4. The machine adopts high precision, high strength steel castings, special welding technology and materials to manufacture. With good rigidity, vibration resistance, long life.
5. This machine adopts four stem guide ways; ensure the accurate movement of pressure head and mould.
6. A multi-purpose machine, it can produce different specifications brick, hollow block, road edge brick, brick, pavers and tree planting grass brick, brick flower box and other cement products.
1).Main Parameters of QT4-18 hollow block and solid block making machine/cement blocks machines.
| Main parameter | QT4-18 |
Control style |
Electrical control system |
| Molding cycle | 15-20s |
| Production capacity | 6000-7000 blocks/shift(8h),30000-40000 bricks/shift(8h) |
| Vibration frequency | 2800-4500r/min |
| Vibration force | 60KN |
| Overall power | 30.5KW |
Voltage |
220/240/380/440V |
| Host machine size | 3000*1600*2500mm |
| Molding form | Vibration and Pressure |
| Main vibration form | Hydraulic Pressure |
Weight of host machine |
4.0T |
Size of pallet |
850*550*30mm |
|
1.Theoretical workshop area : 60m2 , need about 3-4workers. 2.The office , curing area and stacking area to arrange according your fact status. | |
2).Productivity of QT4-18 hollow block and solid block making machine/cement blocks machines.
| Size(mm) | Qty/mould | Cycle molding | PCS/Hour | PCS/8hours(shift) |
| 400*250*200 | 3 | 15-20s | 540 | 4320 |
| 400*200*200 | 4 | 15-20s | 720 |
5760 |
| 400*150*200 | 5 | 15-20s | 1080 |
8640 |
| 400*100*200 | 7 | 15-20s | 1440 |
11520 |
| 240*115*52 | 26 | 15-20s | 4680 |
37740 |
| Can make all kinds of hollow and solid block. | ||||
3).Complete equipment of QT4-18 hollow block and solid block making machine/cement blocks machines.
Device |
Specification |
Power (KW) |
Unit |
Quantity |
Block machine |
QT4-24B |
17 |
Set |
1 |
Mixer |
JS500 |
11 |
Set |
1 |
Hydraulic station |
Set |
1 |
||
Electric control box |
Set |
1 |
||
Belt conveyer |
L=6M |
1.1 |
Set |
1 |
Mould |
Free |
|
Set |
2 |
Block trolley |
|
|
Set |
2 |
Spare parts and tools |
|
|
Set |
1 |
1).Raw material.
8-10% cement, 30-40% sand, 50-60% crushed stone ( you can add some other material by local situation).

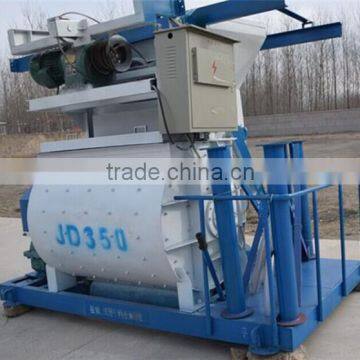

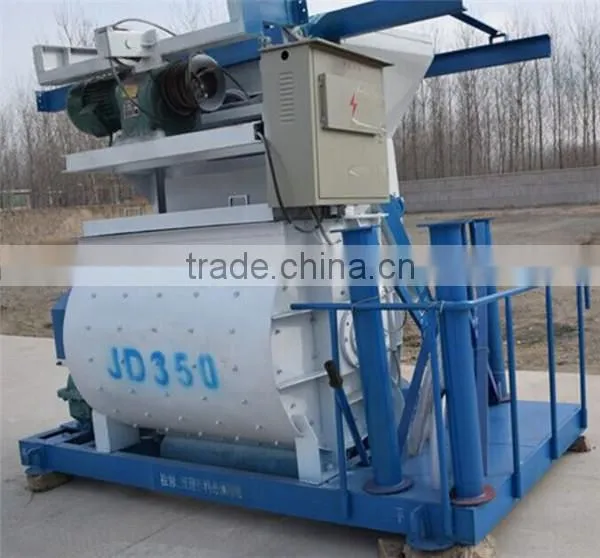

2).JS500 concrete mixer.
3).Conveyor belt.
4).Hydraulic station.
1.Hydraulic station use import Electro-hydraulic,double proportional control valve.
2.The pressures and speeds can be adjusted,according to machine requirements.
3. Power saving: 30%.
5).PLC control box.
1.Adopt the latest technology,very easy to operate.
2.Can warning the faults and displaying the faults place,assure stable and high-efficiency working status.

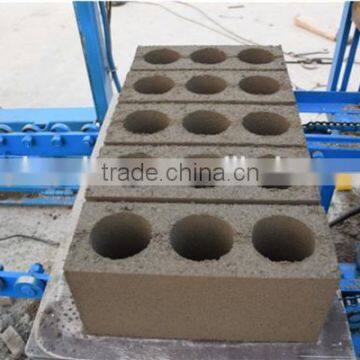

6).Blocks/Bricks for reference.
Inquiry service
Accept user’s enquiries by all kinds of ways and establish user’s product cognition.Provide all kinds of product data and let customer understand characteristics of product.
Pre-sale service
Accept inquiry of customers ,confirmation of investment advice of choice of product ,assist the customers to design the workshop.
In-sale service
Sale of product,help customers build the base ,technical training of customers’ workers ,practice of operation ,help to install ,train the operators in the workshop.
After-sale service
24 hours service of technology inquiry, instant components supply, regularly technical service guidance of maintain,long distance malfunction control.
Unique service
System up-grade,special design according to the customers’ requirement, mould renew ,supply new technology and products information.
I'm Crease You from Yingcheng International Trade Co.,Ltd, manufacture all kinds of block making machines. Call me, let's talk details !
Any question about concret brick making machine ,contact with us please,sincere service for you!
