Pakistan Water Cooled Water Chiller 80 Ton

Pakistan Water Cooled Water Chiller 80 Ton thumbnail-1
Pakistan Water Cooled Water Chiller 80 Ton thumbnail-2
Pakistan Water Cooled Water Chiller 80 Ton thumbnail-3
Pakistan Water Cooled Water Chiller 80 Ton thumbnail-4
Pakistan Water Cooled Water Chiller 80 Ton thumbnail-5

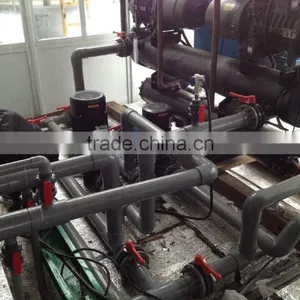

Pakistan Water Cooled Water Chiller 80 Ton thumbnail-6
Pakistan Water Cooled Water Chiller 80 Ton photo-1
Pakistan Water Cooled Water Chiller 80 Ton photo-2

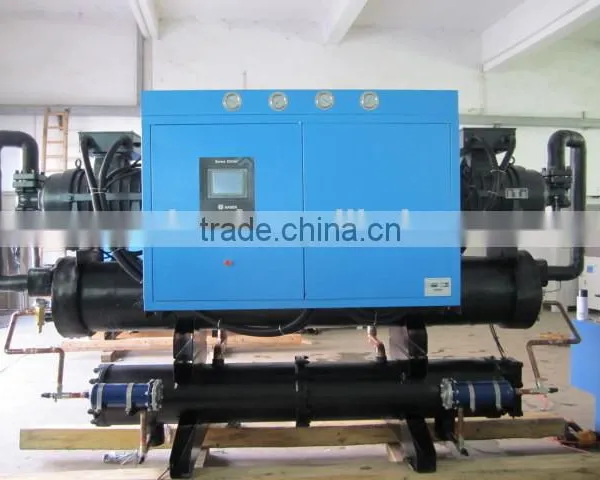

Pakistan Water Cooled Water Chiller 80 Ton photo-3

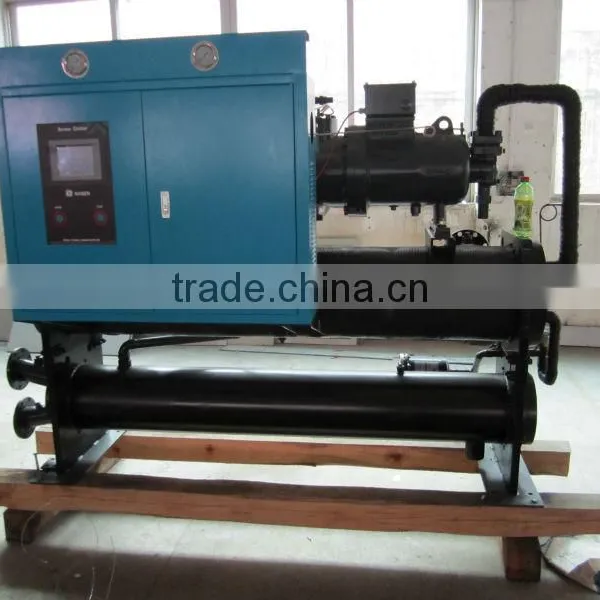

Pakistan Water Cooled Water Chiller 80 Ton photo-4
Pakistan Water Cooled Water Chiller 80 Ton photo-5

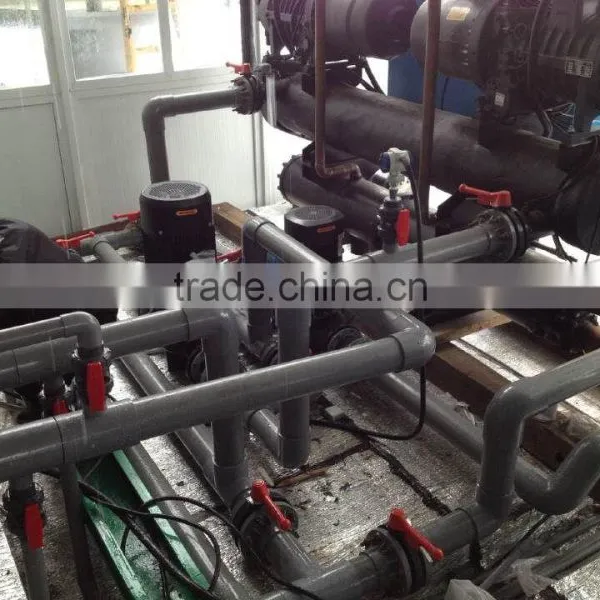

Pakistan Water Cooled Water Chiller 80 Ton photo-6
US$ 15,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Water-Cooled
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Dongguan Naser Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Water-Cooled
Place of Origin Guangdong, China
Brand Name NASER
Model Number NWS-100WSCD
Cooling Capability(kw) 72.4KW
Voltage 380V/50HZ/3 Phase
Dimension(L*W*H) 2900*1100*1500MM
Weight 2200
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas



Pakistan water cooled water chiller 80 ton



Model:NWS-100WSCD
A. Taiwan Hanbell Semi-enclosed Screw Compressor /2 Piece
 Voltage:380V/3Phase/50Hz
 Rated Cooling Capacity:296.4KW 254904Kcal/h 84.27USRT
 Compressor Power: 36.2KW*2
B.Condenser:Efficient external thread copper shell and tube/1 Set
   Cooling water flow: 61m³/h.
   Diameter: DN100
C.Control panel: Man-machine interface touch screen
D.High/Low Switch,Exhausting Overheat Protect,Fusible Plug,Overcurrent Relay,Sequence Protector/Lack Phase Protector
E.Schneider Electric, Italy temperature control/ 1 set
F. Evaporator: Efficient internal thread copper shell and tube/1 set
   Standard Flow of Freezing Water: 50.9m³/h
   Inlet and outlet pipe diameter: DN100
G: Volume control: 0%-33%-66%-100%
H.Machine Weight:2200KG
I:Machine measure: L2900mm*W1100mm*H1500mm
J.Refrigreant: R407C

 Note:Capacity is based on freezing water inlet temperature 12℃,outlet 7℃



Product Description

Double screw compressor chiller
NWS-WSCD series industrial chillers are widely used in many industries like plastic and rubber manufacturing, electronics productions, electroplating medical chemistry, ultrasonic cooling and printing business etc. It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality.NASER  industrial chiller are with simple operation reasonable design and superior quality for more than one hundred different models ,which are the best choice for modern industries.

Regarding to high power industrial chiller, screw type chiller is available.Screw type chiller adopts screw compressor, high efficiency, low noise, durable service, reliable operation.
1.Power supply:3PH-200V/220V/380V/415V-50HZ/60HZ (optional )

2.Refrigerant  R22/R407C/R410A/R134A/R404A(optional )

3.Set temperature range: From 0 °C  to +50°C

4.Cooling capacity: 80HP-480HP (85tons-475tons)

5.Compressor type:Semi-hermetic Screw type

6.Compressor brand: COPELAND, DANFOSS, HANBELL.BITZER

7. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.

Picture of screw chiller:



Pakistan water cooled water chiller 80 ton

operation schematic diagram for Industial Screw Water Chiller



Pakistan water cooled water chiller 80 ton



Packing pictures:

Pakistan water cooled water chiller 80 ton



Specifications:



Type Double Screw Water Chiller
Model NWS-80
WSCD		 NWS-100
WSCD		 NWS-120
WSCD		 NWS-140
WSCD		 NWS-160
WSCD		 NWS-200
WSCD		 NWS-220
WSCD		 NWS-240
WSCD		 NWS-280
WSCD		 NWS-320
WSCD		 NWS-360
WSCD		 NWS-400
WSCD		 NWS-440
WSCD		 NWS-480
WSCD
norminal
output		 50HZ Btu/h 1027614 1306879 1413396 1639403 1894770 2329714 2591909 2805625 3342306 3734916 4233360 4664890 4980343 5705477
KW 301 382.8 414 480.2 555 682.4 759.2 821.8 979 1094 1240 1366.4 1458.8 1671.2
Kcal/h 258860 329208 356040 412972 477300 586864 652912 706748 841940 940840 1066400 1175104 1254568 1437232
USRT 85.6 108.8 117.7 136.5 157.8 194 215.9 233.7 278.4 311.1 352.6 388.5 414.8 475.2
Power Input   380V/3P/50HZ
Compressor Power KW 60 75 90 105 120 150 164 180 210 240 270 300 328 358
Quantity Piece 40HP*2 50HP*2 60HP*2 70HP*2 80HP*2 100HP*2 110HP*2 120HP*2 140HP*2 160HP*2 180HP*2 200HP*2 220HP*2 240HP*2
Flow regulator Termoexpension valve
Retrigreant R22 /R407C/R134A
condenser style Hub pipe type
water flow m3/h 62.11 78.99 85.4 99.09 114.53 140.82 156.66 169.58 202.02 225.75 255.88 281.96 301.03 344.86
diamater
of nipple		 DN 100 100 125 125 125 100x2 100x2 100x2 100x2 125x2 125x2 125x2 125x2 125x2
evaporator style Efficient international thread copper shell and tube / stainless steel plate evaporator
standard freezing
water flow		 m3/h 51.76 65.83 71.19 82.58 95.44 117.35 130.55 141.32 168.35 188.13 213.23 243.97 250.86 287.38
diameter of
standard nipple		 DN 100 100 125 125 125 150 150 150 150 200 200 200 200 200
Machine
Size		 Length mm 2800 2950 3150 3480 3480 3650 3650 3750 4230 4230 4350 4350 4420 4500
Width mm 780 810 850 875 895 1120 1220 1300 1380 1480 1450 1560 1650 1650
Height mm 1650 1650 1750 1850 1850 1950 1950 2100 2150 2250 2250 2300 2450 2550
machine weight KG 1600 1800 2200 2700 3000 3200 3500 3700 3920 4100 5200 5600 5800 6500



Buyer Feedback

Pakistan water cooled water chiller 80 ton

Our Services

1.Free repair within 1 year of guarantee on the condition of operate the machine in the right way
2. Our factory provide machine testing when customer come to our factory to see this machine.
3.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings
4.We can provide engineers to customer's factory to help installation and training workers if customer required.
5.Standard voltage is 380V/3Phase/50Hz, or other voltage according to client's requirement.

Company Information





Pakistan water cooled water chiller 80 ton

Pakistan water cooled water chiller 80 ton



Naser Products:

Pakistan water cooled water chiller 80 ton



Before quote you, Pls kindly offer the following information:

1)Water flow or Cooling capacity for Water Chiller

 2) Water temperature before cooling and after cooling

 3) Refrigerant: we have R22/R134A/R407C for you to choose.

 4)Voltage/Frquency
 5)Destination port



More informations, please contact:

Pakistan water cooled water chiller 80 ton
