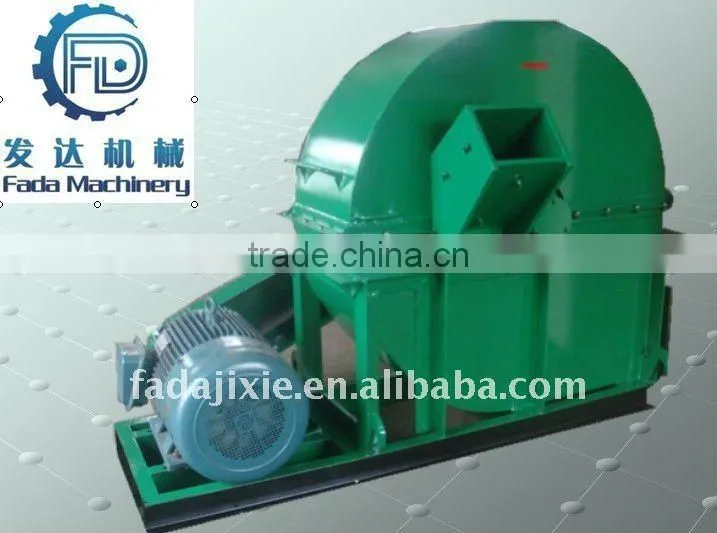

CE Approved Biomass Wood Crusher 1000

Name: CE Approved Biomass Wood Crusher 1000
Brand: Fada
SKU: 139500737
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Hammer Crusher

Capacity(t/h):

400/600/1000/1500-2000kg/h

Zhangqiu Fada Pellet Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Hammer Crusher

Capacity(t/h) 400/600/1000/1500-2000kg/h

Place of Origin Shandong, China

Brand Name Fada

Model Number 400/600/800/1000

Certification CE&ISO9001:2008

Warranty 5 yesrs

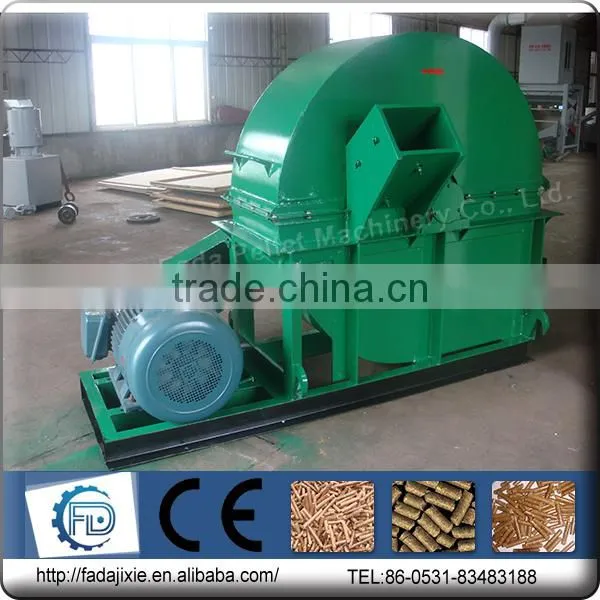

Wood crusher:

Function: a grind machine . Mainly used to grind wood trunk ,fork , wood chips into sawdust or powder in one process.

Advantages: 1.low noise,

2.Less investment,good economic return

3.low energy consumption, high productiivity.

The technical parameter as below:

Model no.	400	600	800	1000
Cutter diameter(mm)	400	600	800	1000
Main shaft speed (r/min)	2600	2600	2300	2000
No. of cutting tip	4	4	6	4-6
Length of cutting tip(mm)	95	180	240	300
Style of feeding	tilt	tilt	tilt	tilt
Oriface diameter(kg/h)	*180200**	*200250**	*250300**	*400500**
Output(kg/h)	300	600	1500	1500-2000
Motor power(kw)	11	15	30	45
Cutting wood’s maximum diameter(mm)	40	60	100	150
Style of diacharging	Up	Up	Up	Up
Weight(kg)	350	400	1500	1800
*Size(lengthwidenheigh)(m)*	*1.20.850.9*	*1.51.01.1*	*2.11.11.3*	*2.61.11.5*
