CE certificated biomass wood pellet mill with output 1-1.5t/h from taichang(008618888342366)

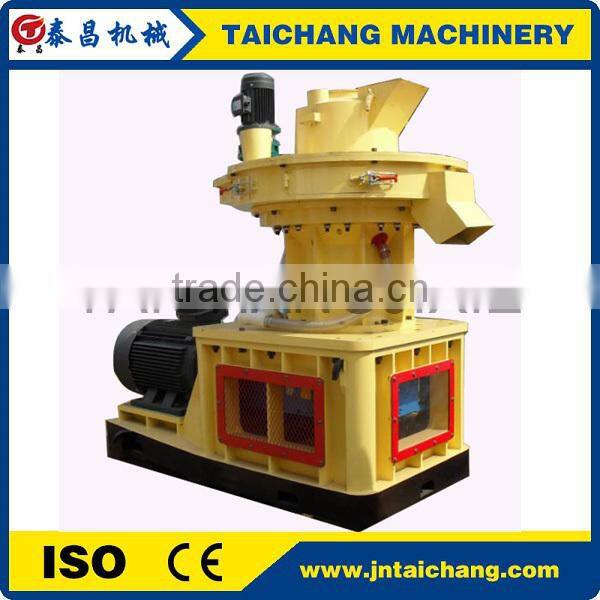

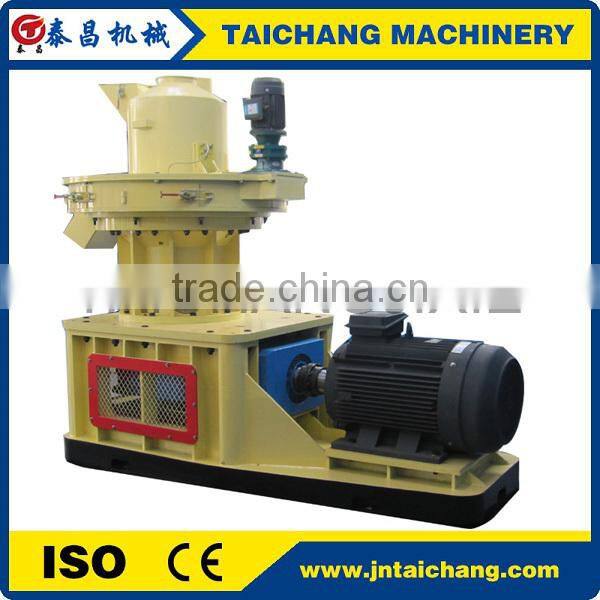

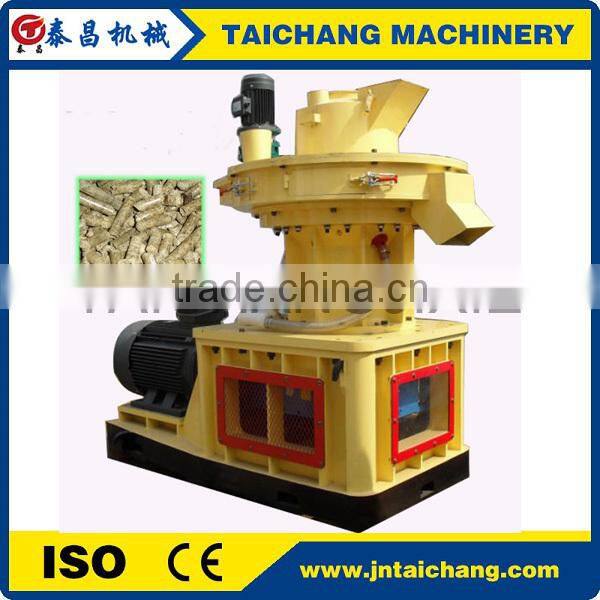

Description of biomass wood pellet machine:
This kind of pellet making machine is researched and developed by ourselves .It is mainly used for the renewable or cycle of organic matter. It mainly includes crops, Trees and other plants and livestock and poultry droppings organic waste resources of the density, Can also be used to the density of the forage shaping . It can make fuel pellets.
Advantage points of biomass pelllet mill:
1. The structure is simple, adaptable, small footprint and low noise.
2.Powder feed, meal generally granulation can be carried out without additive.
Therefore, the moisture content of pellets before the basic material for the
granulation moisture content. More conducive to storage.
Raw Materials for Biomass Pellet Machine:
Sawdust, rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, biomass, sawdust pellet with all kinds of sawdust, rice husk, paddy straw, sunflower stalk, hulls, forestry wastes, wood chips, chemical waste and many other wastes or solid powder materials. especially low-bonding and unformed materials.
Working principle of the biomass pellet machine:
TCZL series machine between the mould and roller extrusion die and friction interaction principle,
make the molding material to be acquired . Material need not add any additives or binder in the machining process, Straw materials contain a certain number of cellulose and lignin, The lignin is the material structure of the monomer, belongs to the benzene propane type polymer compounds. Can strengthen the cell wall, together with the role of the cellulose, Lignin belong to amorphous,does not dissolve in any solvent at room temperature, without melting point, but there have softening point. When the temperature reaches a certain, the lignin to soften the cohesive force, and under certain pressure, make its cellulose molecular mass displacement and deformation and extension, Biomass particles within adjacent to connect each other, reassembled and pressure molding.
Biomass wood Pellet Machine diameter:
| Modle | Power(KW) | Capacity(T) | Weight(T) | Diameter(mm) |
| TCZL560 | 90 | 1-1.5 | 6 | 1850*1050*1800 |
| TCZL650 | 160 | 1.5-2 | 10 | 2150*1180*1950 |
| TCZL850 | 220 | 2.5-3 | 14 | 2430*1380*2100 |
| TCZL960 | 315 | 3-4.5 | 18 | 2800*1500*2500 |
1. We treat customers as gods, and provide considerate services from shipment to maintenance, including professional free training, guidance, installation,and debugging.
2. After sale, we provide one year's warranty. we will help to solve any mechanical problems in time. Also engineers are available to service overseas
In order to offer you the reasonable machines,we need more details as followings:
1.The raw materials and the size you used.
2. Moisture content of the raw materials or give me the picture of raw materials.
3.The size of pellet you needed.
4.The voltage frequency in your country.
5.The output you needed in one hour.
