Sinking Fish Feed Poultry Feed Pellet Machinery

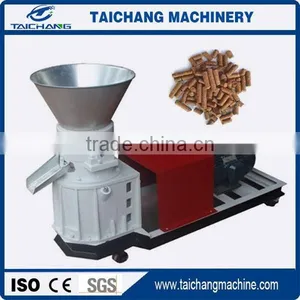

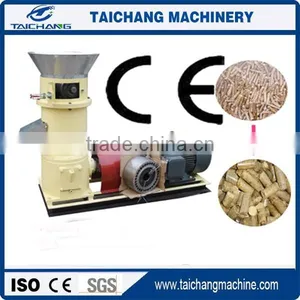

Sinking Fish Feed Poultry Feed Pellet Machinery photo-1

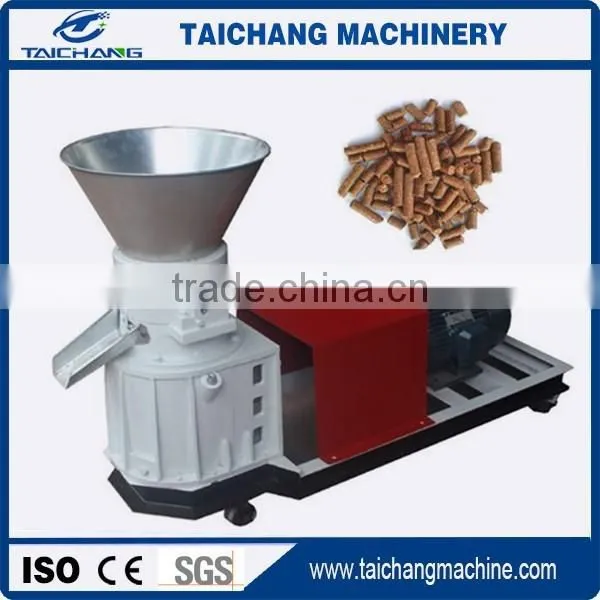

Sinking Fish Feed Poultry Feed Pellet Machinery photo-2
US$ 550 - 950 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TAICHANG
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name TAICHANG
Model Number TCZL120
Voltage 380v, 380v
Power(W) 3kw
Dimension(L*W*H) 1200x1320x850mm
Weight 110kg, 50kg
Certification CE &BV
Warranty one year, one year
After-sales Service Provided Engineers available to service machinery overseas

   Sinking fish feed poultry feed pellet machinery





Sinking fish feed poultry feed pellet machinery

TCZL(120,150,200,250) series of feed pellet making machine as your optional

Animal feed pellet machine

Power:3kw

Capacity:70-100kg/h

weight:110kg

Pellet diameter:2-6mm or adjusted as your request



Main parameter-------feed pellet machine

Model capacity(kg/h) size(mm) weight(kg) power(kw) pellet diameter(mm)
TCZL120 70-100kg/h 750x400x650mm 110kg 3 2-6mm
TCZL150 100-150kg/h 1280x480x820mm 210kg 7.5 2-6mm
TCZL200 150-210kg/h 1300x500x850mm 350kg 11 2-6mm
TCZL250 200-350kg/h 1450x650x950mm 550kg 15 2-6mm



Production description------- feed pellet machine



Our  feed pellet machine(TCZL series)can produce biomass or feedstuff pellet well. It may also be applicable to biological fertilizer, organic manure as well as fertilizer for low-temperature granulation.

The raw material: sawdust, rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially low-bonding and unformed materials.



The moisture of raw materials is less than the national standard of 13%. If not, the raw material must be dried.



Working principle-------feed pellet machine



The main parts are made of alloy steel to be quite strong and malleable.

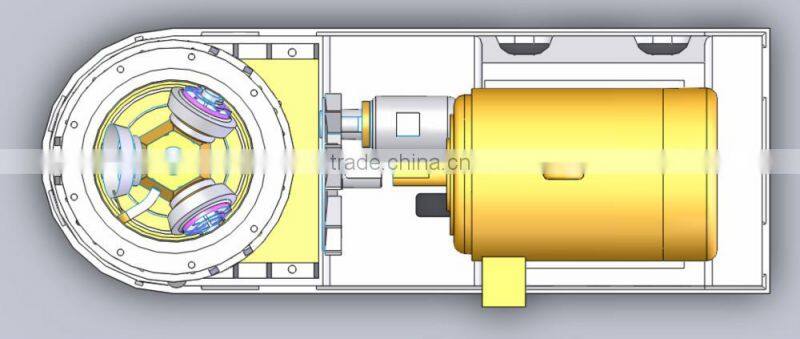

  The main shaft and flat die in the effect of friction drive the compression roller rotating itself. The temperature will rise between the compression roller and mould disk, then the high temperature will ripen the starch, make the protein denaturation and solidification. Finally the raw materials will discharged from the mould holes. Then the pellets can be get out of the machine through the throwing disk. We can control the length of the pellets according to adjust the angle of cutting knives.

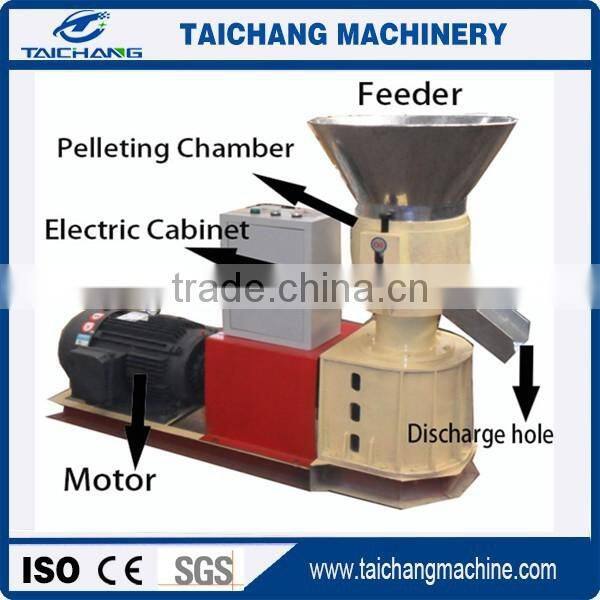

Pictures shows-------- feed pellet machine

 Sinking fish feed poultry feed pellet machinery

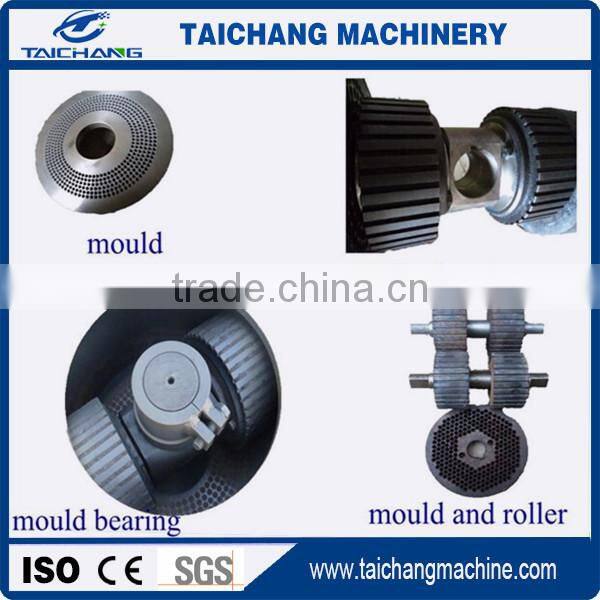

Details, spare parts and tools------- feed pellet machine

Sinking fish feed poultry feed pellet machinery

Sample raw material show-------feed pellet machine

Sinking fish feed poultry feed pellet machinery

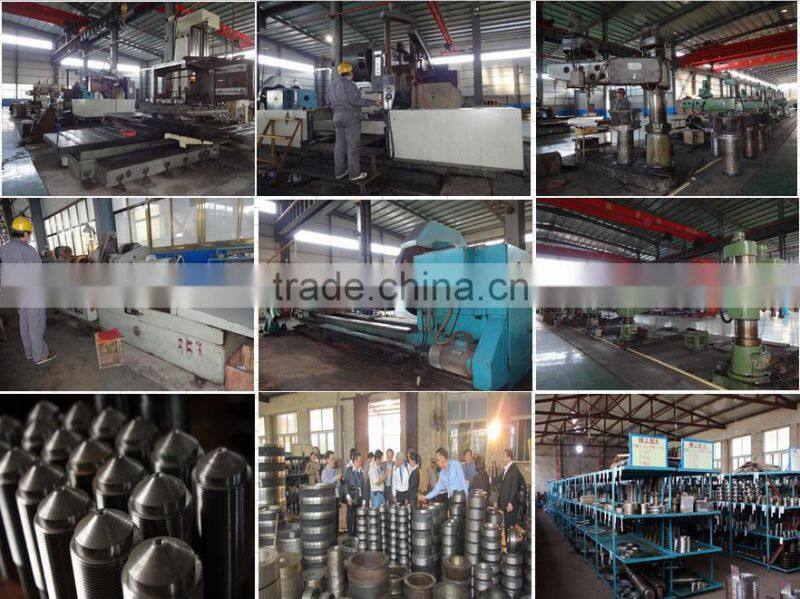

Production process in workshop-------- feed pellet machine

Sinking fish feed poultry feed pellet machinery

  Technical data---------feed pellet machine
The main spare part: Die and Roller
The moisture of raw material: between 15-20%
The size of raw materials: Less than 5mm
Pellet density: 1100-1200kg/m³
Pellet moisture: 10%
Pellet diameter: 1.5-6mm
Pellet length: adjustable

Features-------feed pellet machine
1. Our Pelletizers are used for making wood and feedstuff pellets.
2. We have be approved by European ,SGS.
3. Advanced and reliable technology.
4. High throughput capacity and high quality pellets.
5. Low-maintenance and service-friendly.
6. Cost-efficient and space-saving.

 Sinking fish feed poultry feed pellet machinery

Application-------- feed pellet machine

They are widely used in household ,small farm , feed factories, organic fertilizer factories,chemical factory ,breed aquatics factories, and China traditional medicine factories, etc.



Now this feed pellet machine is mainly used to make feed pellets for dog,cat ,cow,chicken,sheep,rabbit, pigeXon, layer chicken, broiler, duck, goose, fish, pig ,pets and so on.

Sinking fish feed poultry feed pellet machinery



Dynamic--------- feed pellet machine

This series feed pellet machine can be driven by motor,diesel engine, tractor(PTO),gasoline engine,it just depends on your need.


Service-------feed pellet machine
1). We take customers as our gods. We devote to all-round service of all the products from shipment to maintenance.
2). After selling, we provide the warranty of one year.
3). If you have any problems, we will help to solve on line at first time.
4). Our products have CE certificate, they are of good quality with good price.



 Sinking fish feed poultry feed pellet machinery

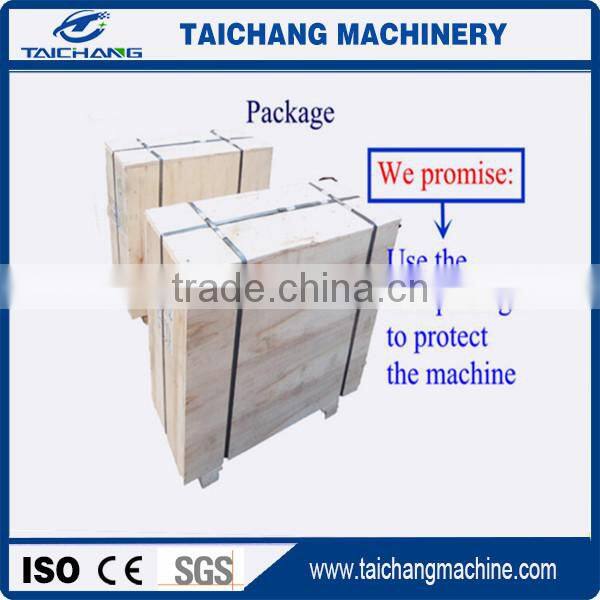

Packing--------feed pellet machine
1. According to specific size of each equipment, we twine thick plastic coating for each machine.
2. Tight the equipment in the truck without space to ensure no rubbing during the transportation.



3. High density fiberboard,wooden case

Sinking fish feed poultry feed pellet machinery

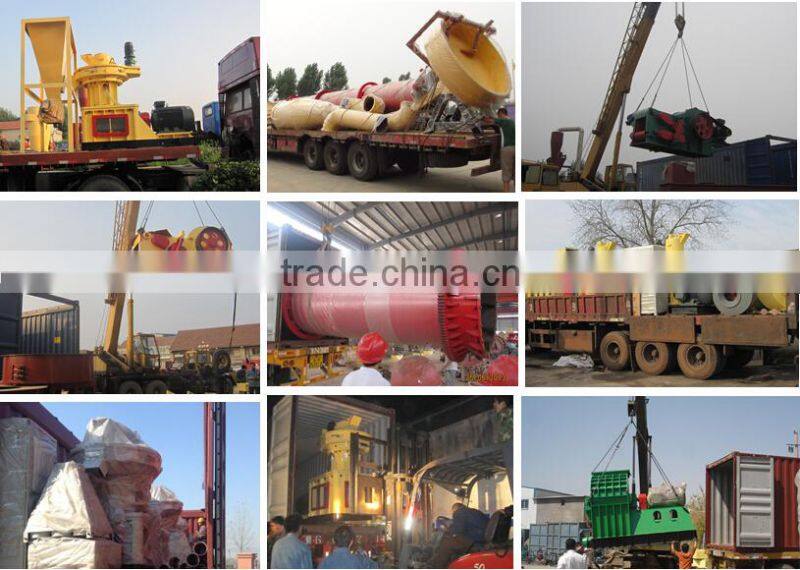

 Delivery

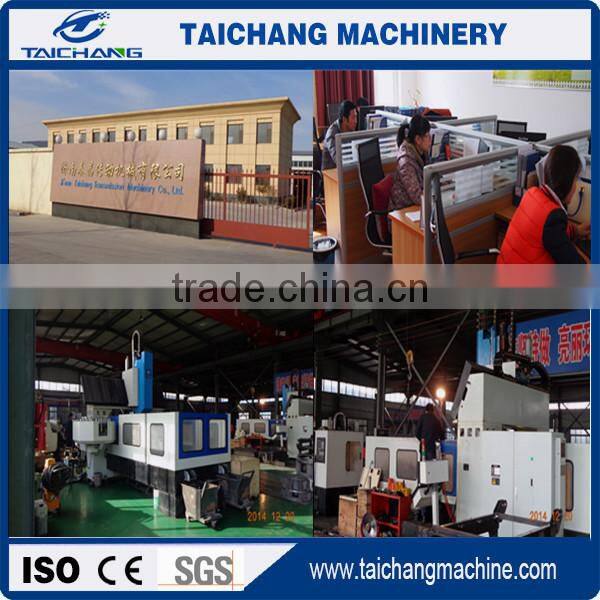

Our factory

Sinking fish feed poultry feed pellet machinery

Welcome to visit our company



Sinking fish feed poultry feed pellet machinery

About US

Jinan taichang transmission Machinery CO.,LTD is a comprehensive manufacturer of bio-energy machinery,feed machinery,organic fertilizer machinery and production lines. located in Xusheng industrial park,Zhangqiu, Jinan city ,Shandong province. The company coverd 2.47 acre area, with more than usd 6.5million turnover, is the leading company in this field.Our main products are pellet machine, hammer mill, dryer, cooler as well as the auxiliary equipment. We are dedicated to develop and supply high quality products for domestic and overseas customers. and has wined an outstanding reputation in international market.



FAQ:

 1.  There are too many models, i don't know which one to choose.

A: Welcome to contact us through TradeManager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours

2.How long is your guarantee?

A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.

3. Will you send engineers to install the plant?

yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
