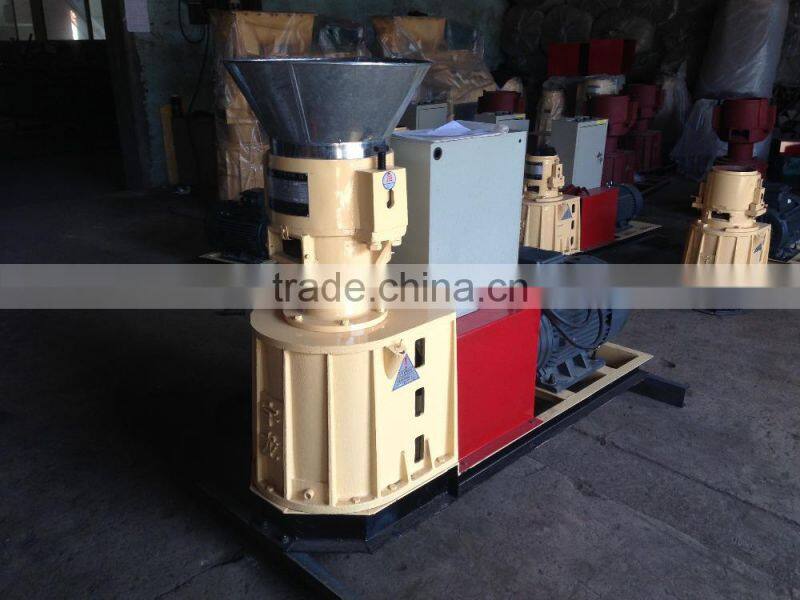

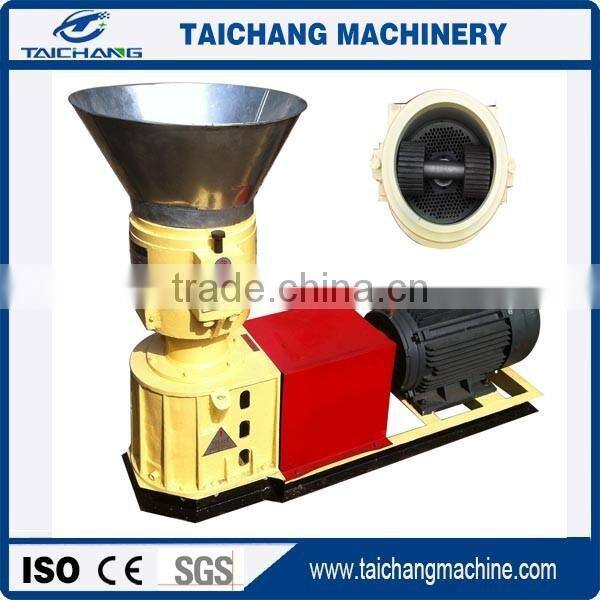

poultry manure pellet making machine
TCZL(120,150,200,250) series of feed pellet making machine as your optional
Main technical parameter of pelleting press machine
| Model | capacity(kg/h) | size(mm) | weight(kg) | power(kw) | pellet diameter(mm) |
| TCZL120 | 70-100kg/h | 750x400x650mm | 110kg | 3 | 2-4mm |
| TCZL150 | 100-150kg/h | 1280x480x820mm | 210kg | 7.5 | 2-4mm |
| TCZL200 | 150-210kg/h | 1300x500x850mm | 350kg | 11 | 2-8mm |
| TCZL250 | 200-350kg/h | 1450x650x950mm | 550kg | 15 | 2-8mm |
Function of pelleting press machine
The machine based on the foreign advanced technology, our machine adopt inlaid type rotating roller, pressure roller is adjusted, the function has reached the international advanced level. it use of forced-feeding, and is equipped with overload protection device, equably feeding, low noise, making its operation more secure and reliable.
it using large conditioner , so that materials ripen more fully,pellets more smooth, moderate hardness, pellet rate of 98%, and wear rates reduced to minimum
Features of pelleting press machine
1. Main driving is high accuracy gearbox and high output.
2. It belongs to the feed making machine.The raw material can be corn, the soybean, the straw, the rice husk and any other agriculture materials, which is one equipment of the feed pellet mill.
3. It is widely used for pelletizing high rank poultry and livestock products.
4. It is widely used in large,middle, small scale aquatic. food and feed processing factory, livestock farm, poultry farm, individual raisers, middle and small farm.
5. It is widely used in large, middle, small scale aquatic, food and feed processing factory, livestock farm, poultry farm, individual raisers, middle and small farm.

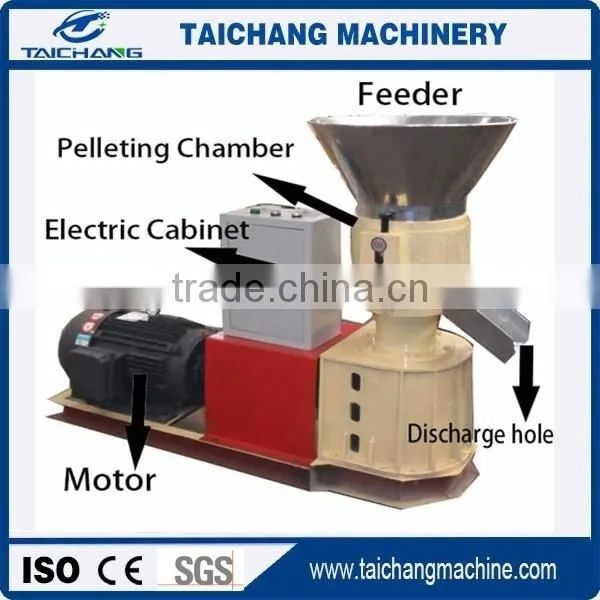

Working Principles of pelleting press machine
The main shaft and flat die in the effect of friction drives the pressing roller rotating itself. The temperature will rise between the pressing roller and mould disk, then the high temperature will ripening the starch, make the protein denaturation and solidification. Finally the raw materials will discharged from the mould holes. Then the pellets can be get out of the machine through the throwing disk. We can control the length of the pellets according to adjust the angle of cutting knives.
| Model | Photo | Remark |

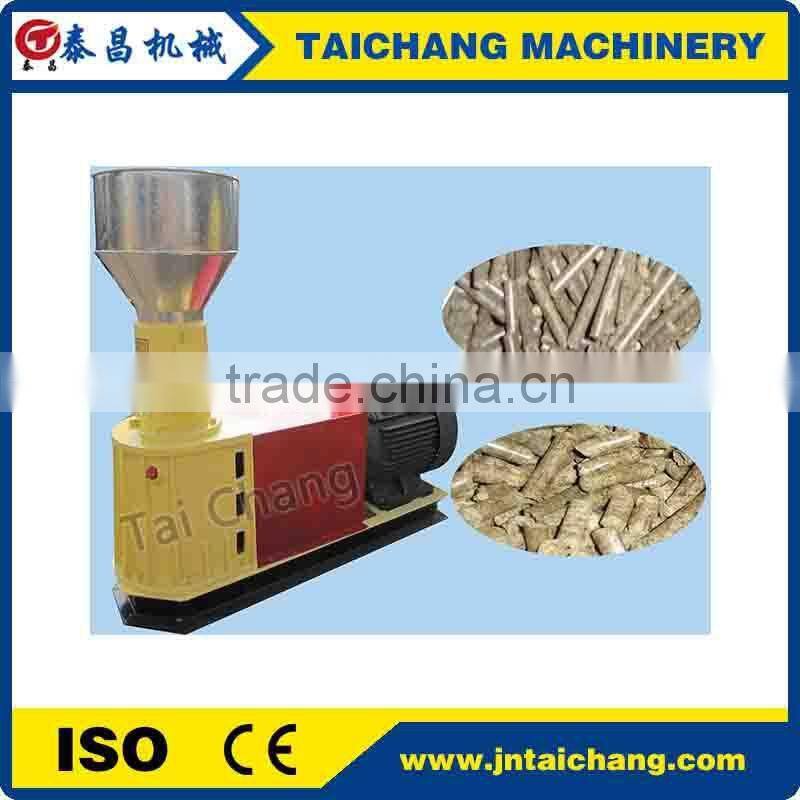

| TCZL120 Feed Pellet Machine | |
1.Power:3kw 380v 50HZ 2.Output: 70-100kg/h 3.Pellet Size:2-6mm 4.Weight:50kg 5.Usage:Widely used in family and small scale farm,the compressed feed pellet is good fooder for poultry and livestock,such as chicken,pig,cattle,sheep,rabbit etc. |

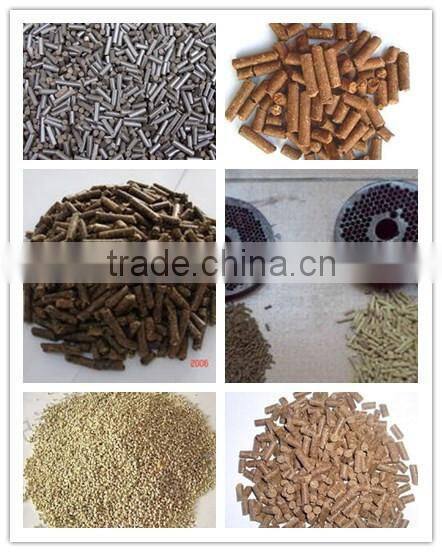

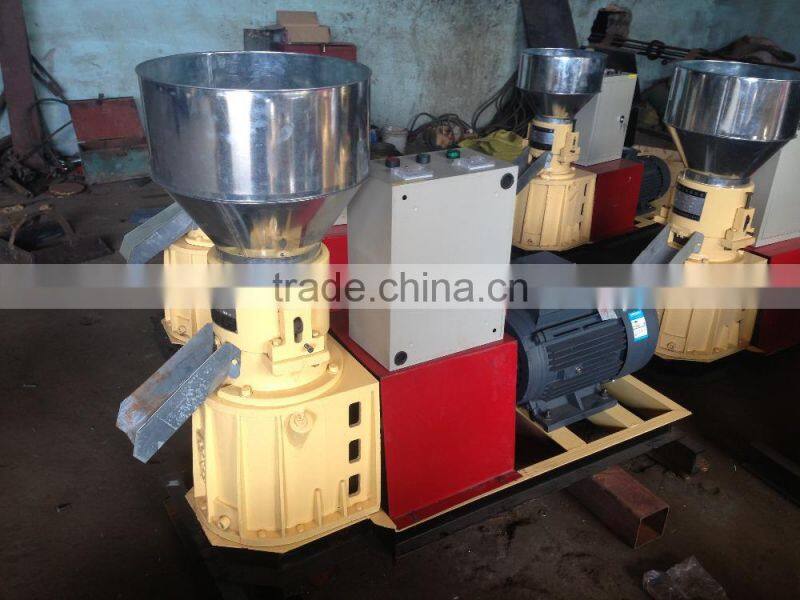

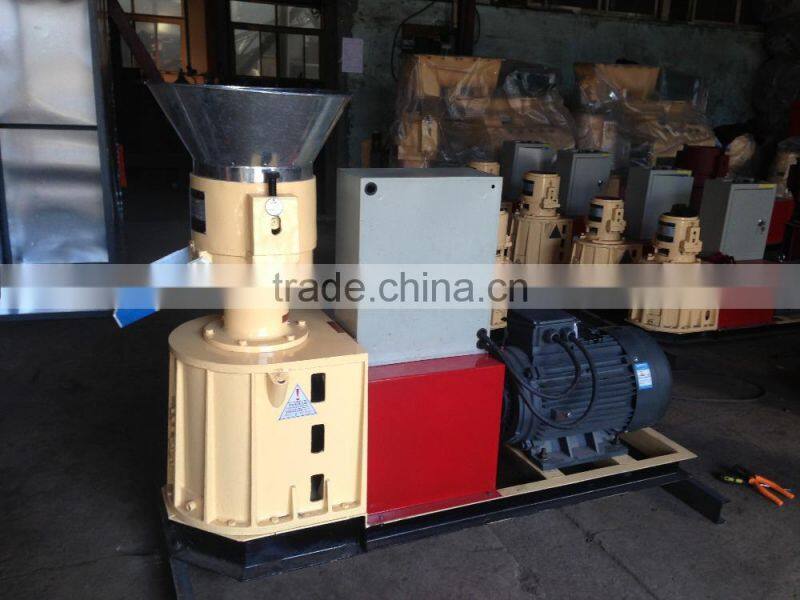

Products Show of pelleting press machine
Delivery

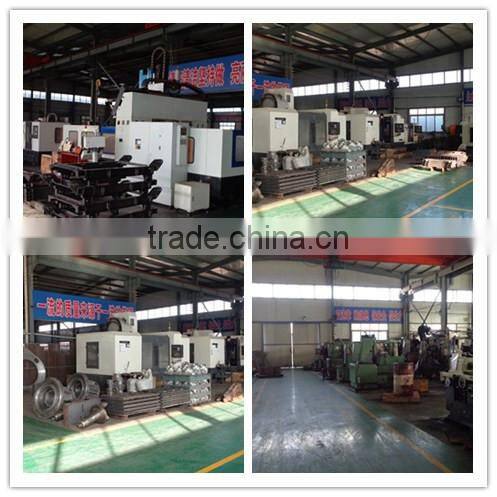

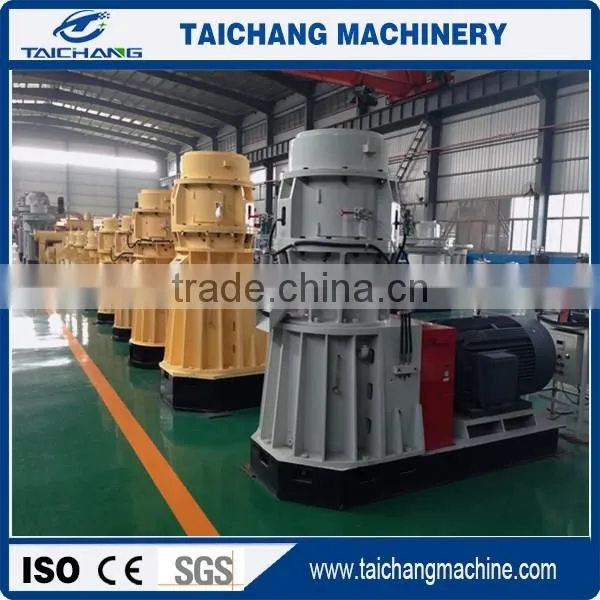

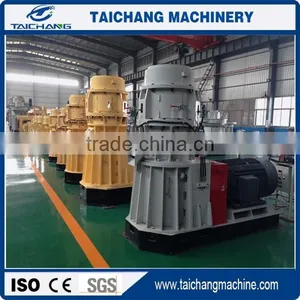

Our factory
Welcome to visit our company
About US
Jinan taichang transmission Machinery CO.,LTD is a comprehensive manufacturer of bio-energy machinery,feed machinery,organic fertilizer machinery and production lines. located in Xusheng industrial park,Zhangqiu, Jinan city ,Shandong province. The company coverd 2.47 acre area, with more than usd 6.5million turnover, is the leading company in this field.Our main products are pellet machine, hammer mill, dryer, cooler as well as the auxiliary equipment. We are dedicated to develop and supply high quality products for domestic and overseas customers. and has wined an outstanding reputation in international market.
FAQ:
1. There are too many models, i don't know which one to choose.
A: Welcome to contact us through TradeManager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours
2.How long is your guarantee?
A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.
3. Will you send engineers to install the plant?
yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
