Easy to apply flat die pet food feed pellet machine
TCZL sereis (120,150,200,250,280,300,350,450,550)
Many models of feed pellet making machine as your optional
Animal feed pellet machine
Power:15kw
Capacity:400-700kg/h
weight:560kg
Pellet diameter:2-6mm or adjusted as your request
Flat die pellet machine is the rise in recent years, the characteristic is suitable for all levels of customers to use, low fault rate and the operating personnel on competitors, compressed into products of high compactness.
The flat-die pellet machine is suitable for home using or small enterprises producing biomass pellet fuel or feed ,
The flat-die pellet machine can be configured to diesel engine or electricity motor , it is mobile flexible and simple to operate;
The flat-die pellet machine is not only can make pellet for fuel, but also can make fodder for animals such as fish, chicken, duck,pig,cow,horse,sheep and others.
>Main features of flat die animal feed pellet machinery
1) With wide rage of the raw materials, such as the sawdust, leaf, straw and many other agricultural waste
2) Stable performance, high output, and low consumption. Easy for maintance, low failure rate, and easy operation.
3) The whole body with strong structure,the flat die and rollers is Wear-resisting, heat-resistant
4) High molding rate, high density
5) The diameter is from 2-8mm, can make according to customers’ need.
6) The machine is made up of the speed changing box, the flat die, the rollers, lubricating system; the flat die can be the alloy steel and the stainless steel.
>Technical Parameter of flat die animals feed pellet machinery
Model |
Power (kw) |
Capacity (kg/h) |
Weight (kg) |
Dimension (mm) |
Pellet diameter (mm) |
TCZL120 |
3 |
70-100 |
110 |
1150*300*550 |
2-6 |
TCZL150 |
7.5 |
100-300 |
210 |
1280*480*820 |
|
TCZL200 |
11 |
300-500 |
350 |
1300*500*850 |
|
TCZL250 |
15 |
400-700 |
550 |
1400*600*1000 |
|
TCZL280 |
22 |
500-800 |
700 |
1720*600*1200 |
2-8 |
TCZL300 |
30 |
600-1000 |
760 |
1800*670*1600 |
|
TCZL350 |
37 |
700-1200 |
2200 |
1900*850*1750 |
2-10 |
TCZL450 |
55 |
1000-2000 |
4300 |
2300*1100*1900 |
|
TCZL550 |
90 |
2000-3000 |
5500 |
2350*1000*2050 |
Widely used in family and small scale farm,the compressed feed pellet is good fooder for poultry and livestock,such as chicken,pig,cattle,sheep,rabbit etc.

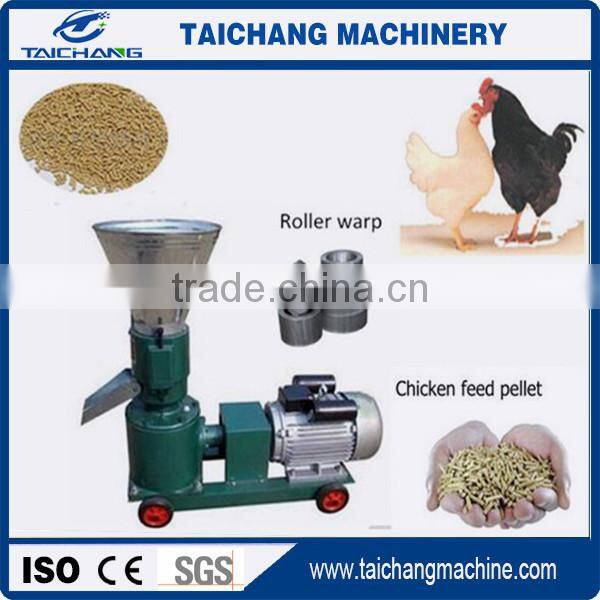

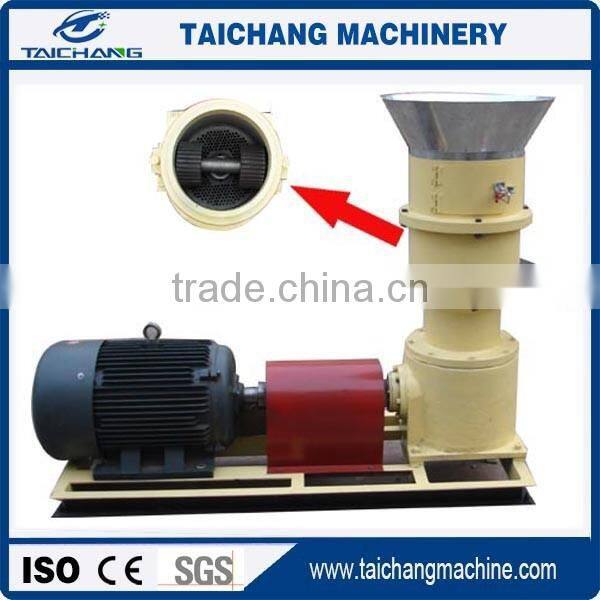

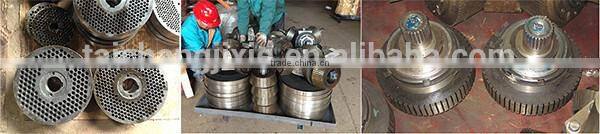

>Pictures show about flat die animals feed pellet machiney

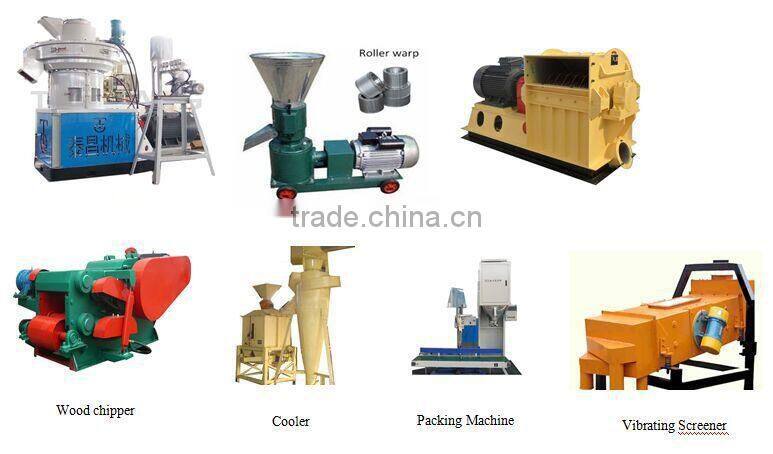

> Related Equipment about pellet mill
1.Caring service, carefully manufacture and desirable price make customers at ease.
2."Customer-oriented", providing customers with whole considerate services;
3."Service as core," providing the most suitable products to customers;
4."Quality-centered," All-round services to every customers!
5.Technical support: on-site technical training and technical advice available.

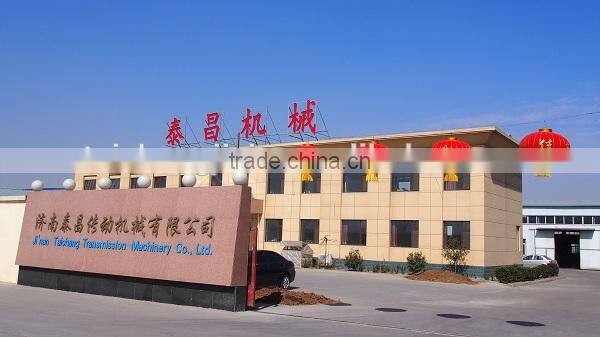

Jinan Taichang Transmission Machinery Co.,Ltd located in Shandong province,China. Our factory is a professional manufacturer of biomass pellet machine for agriculture, forest, pasturage,fishery for many years.
Our company has passed ISO9001-2008 quality certification and CE certification.

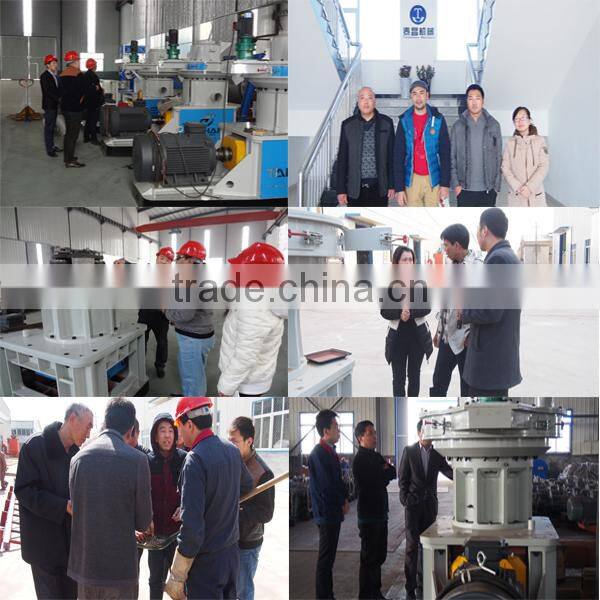

>Customer Visit Our Company
>Certification of feed pellet machine
1. There are too many models, i don't know which one to choose.
A: Welcome to contact us through TradeManager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours
2.How long is your guarantee?
A: One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.
