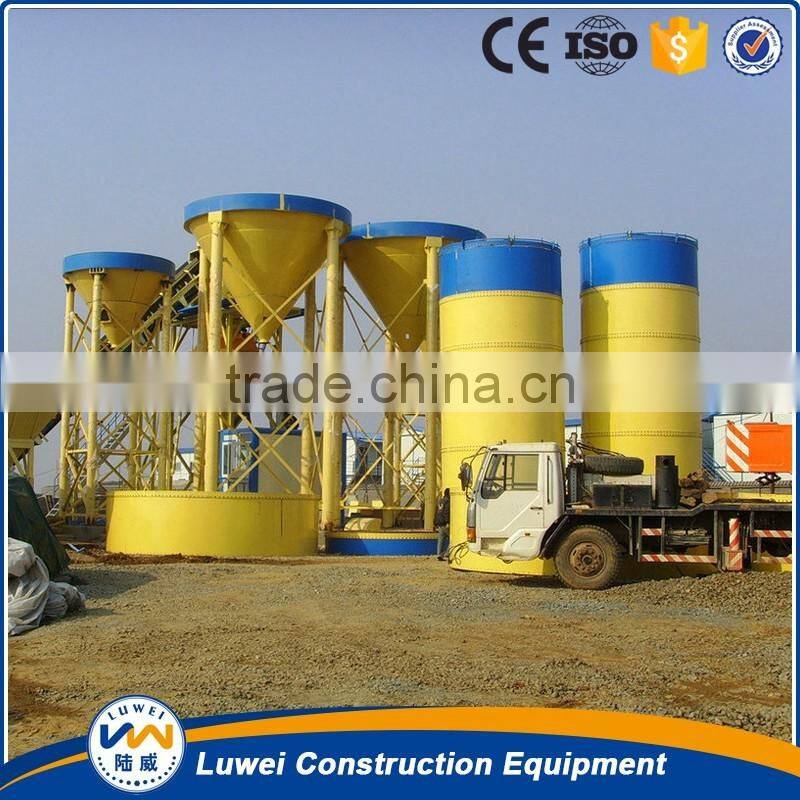

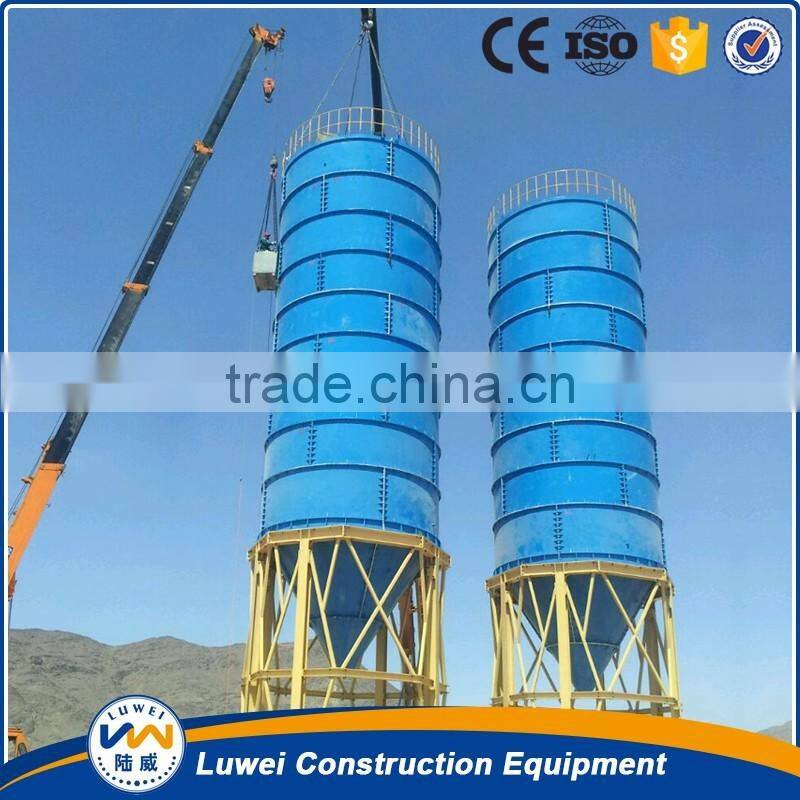

cement storage silos for brick making machine

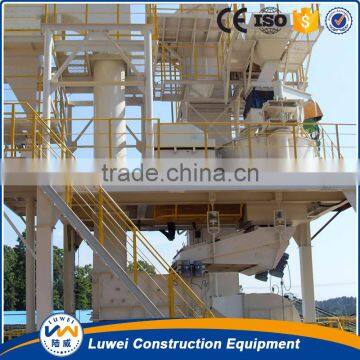

This kind of silo is to focus on storage of bulk cement, fly ash, and other things mixed agent powder special equipment, and is a kind of supplementary equipment of the concrete mixing station, mixing station buildings and roadbed materials. We also have national patent in Bolted-type Silos (Patent NO: 201020649684.5).This kind of silo enjoys high reputation for easy transportation, installation and dismantlement.
Professional data calculated by TJU (Tongji University)
All the data of silos is provided by TJU, it considers strength of silo, resistance coefficient of the typhoon and bending resistance coefficient.
Manufactured Technology of Cement Silo
The parts of the cement silos are manufactured by special cutting and drilling technologies and they are implemented by special surface cleaning procedure. The parts of the cement silos also are manufactured in sensitive production facilities with special equipments and they are painted with prime coating and final coating.
Super fast production delivery method
1. The silo is in standard modular manufacture and can be freely separated or combined. The product is in reasonable design and easy adjustment. The short production cycle can be significantly shortened the delivery cycle. Most parts of standard products have the stock order, so we can make zero delivery time.
2. All the manufacturing process are in our factory, so the installation time on the construction site is brief. You just need to assemble the parts of silos when you buy it.
Reliable seal structure
1. The compaction degree of special sealing strip is from 5 mm to 1 mm. The strong elasticity effect fill in the full of all possible apertures after the screw bolts are fastened. It can withstand 200 degree heat. Even in the field environment, it can maintain long-term sealing effectiveness.
2. It will leave some tiny gap after condensing the special sealing strips. However, our silo has the clever design which has the perfect sealing affection: when the materials are input to the silo for the first time, the fine dust of material will automatically drill into the gap.
3. The liquid glue is placed outside the special sealing strip; it will extend the service life of the article seal and prevent long time moisture infiltration in the rainy season.
Transportation Program

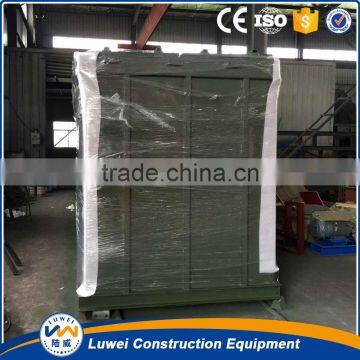

1. All parts of silos can be packed into bundles with short loading time and little space.
2. The silos can be transported regardless of size. It can greatly reduce the transportation cost because more than one silo may be carried by one truck or container.
3. Bolted-type silos are easily packed into container to the world and it no longer uses the conventional way of break-bulk cargo transportation.

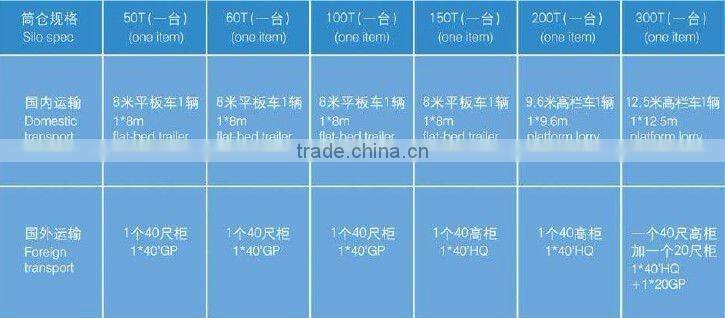

Transportation methods
Type of shipping: flat-bed trailer for domestic market; container for international market. (Type of shipping just for reference, not include accessories)

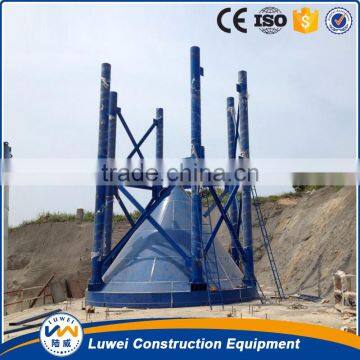

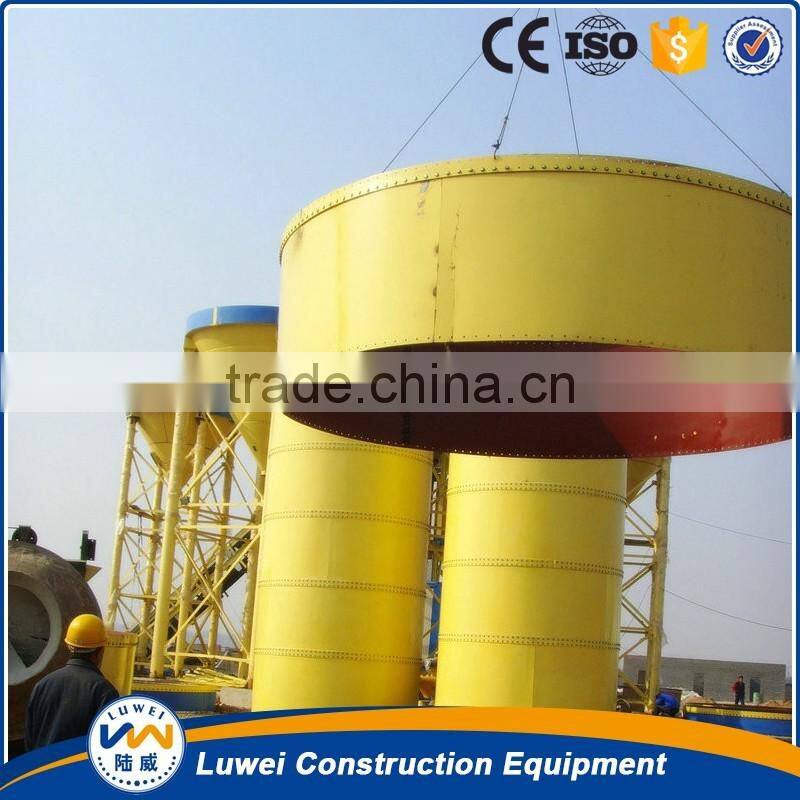

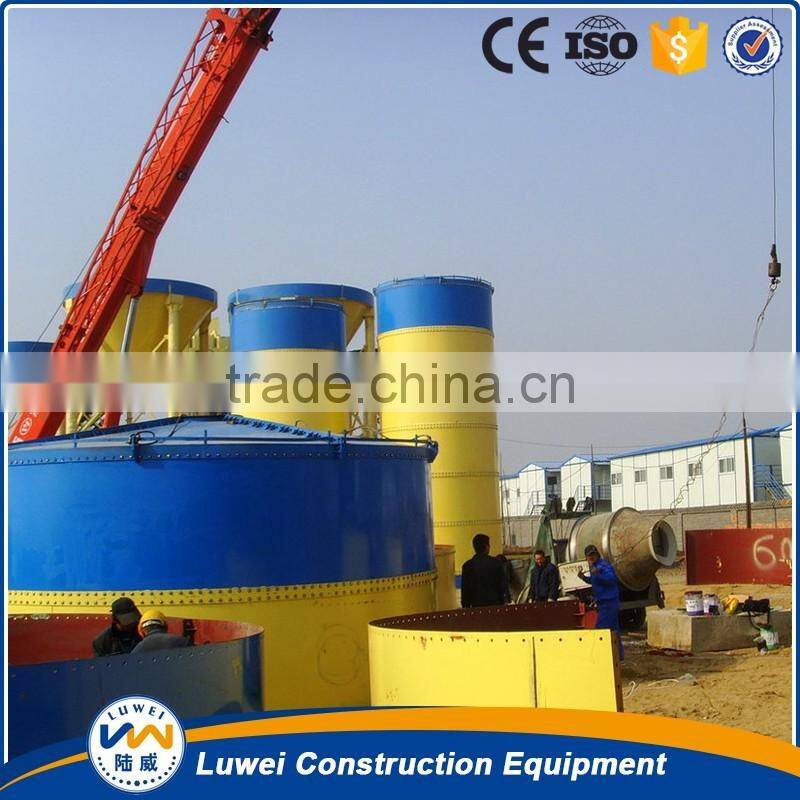

Easy assembly of bolted-type powder silo
Standard components, efficient and safe construction (with English and Chinese installation)

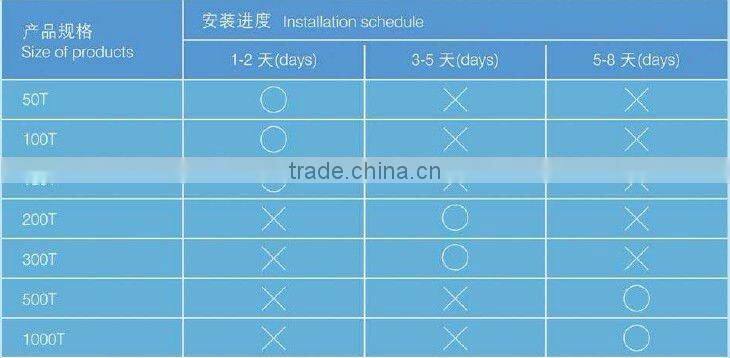

Installation schedule (for reference)
Technical index (just for reference)
Serial number |
Model and size |
Diameter (mm) |
Number of layers |
Leg distance (mm) |
Theoretical capacity (M3) |
1 |
PG50T |
3100 |
3 |
2020 |
40.67 |
2 |
PG60T |
3100 |
4 |
2020 |
52.13 |
3 |
PG100T |
3100 |
7 |
2020 |
86.52 |
4 |
PG150T |
3300/3800 |
6/8 |
2180/2570 |
111.74/114.96 |
5 |
PG200T |
4500 |
6 |
3010 |
164.27 |
6 |
PG300T |
5000 |
7 |
3290 |
234.85 |
7 |
PG400T |
5700 |
8 |
2640 |
348.14 |
8 |
PG500T |
6500 |
8 |
3015 |
458.36 |
9 |
PG800T |
8000 |
8 |
3660 |
700 |
Note: The above sizes are just for reference. We can design and manufacture according to the fact condition as well as the clients’ requirements.
Luwei company is a professional manufacturer in producing bolted-type silo, which has it own national patent certificate for ‘Bolted-type Powder Silos’ (Patent No.201020649684.5). It covers an area of 8000 square meter which integrates research, development, manufacture and sales into a whole. It can supply 100 sets of silos every month. The annual sales value reaches five million dollars.

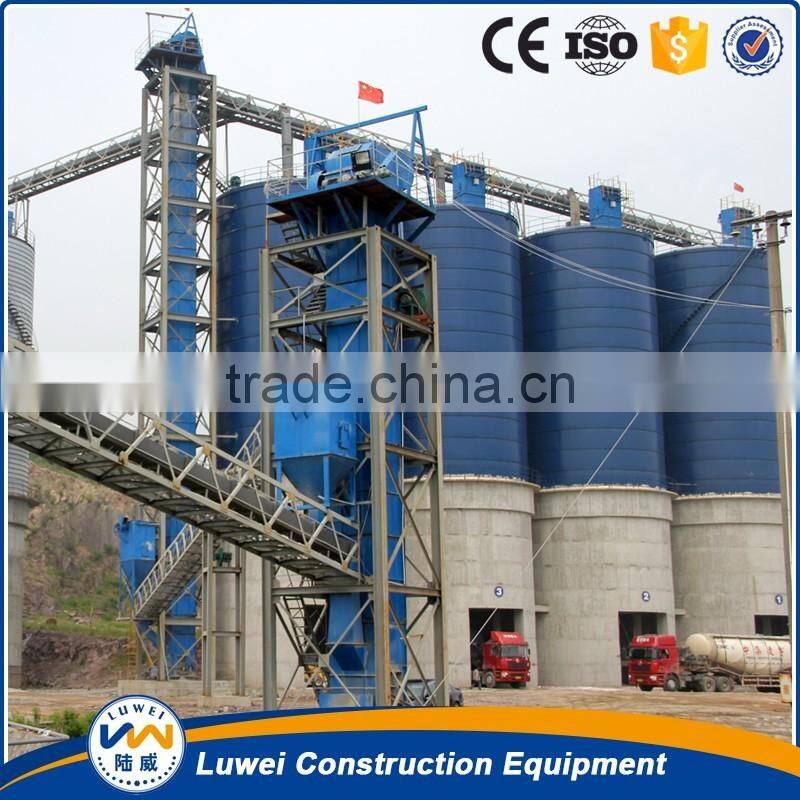

Luwei bolted-type silo is used for storing bulk materials such as cement, powder, lime, gypsum, fly ash, different binder materials, gravel, limestone, sand and different chippings. Luwei bolted-type silo is mainly used in many areas, such as construction material, chemical engineering, energy resources, environmental protection and foodstuff, like loading and unloading plants, dosing-weighing and mixing plants, batching plant etc.
