Specifications
Activated Carbon Filter YonglidaMain operation is by activated carbon bed
Activated Carbon Filter Yonglida
YGL series Activated Carbon Filter
Main operation is by activated carbon bed, granule of activated carbon in carbon bed has lots of micro-hole and big surface with big Physical adsorption capacity.
The organic Pollutant in water is adsorbed by activated carbon.
Capacity m3/h |
2-4 |
5-8 |
10-15 |
25-36 |
36-45 |
45-56 |
56-80 |
Outer dia. mm |
516 |
1016 |
1516 |
2020 |
2524 |
3024 |
3224 |
Max outer dia. mm |
710 |
1400 |
1900 |
2450 |
3000 |
3550 |
3900 |
Height mm |
2800 |
3000 |
3800 |
4100 |
4720 |
4980 |
5150 |
Working pressure Mpa |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
Max pressure Mpa |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Filtrating speed m/h |
6-10 |
6-10 |
6-10 |
6-10 |
6-10 |
6-10 |
6-10 |
Water backwash strength L/s.m2 |
10-15 |
10-15 |
10-15 |
10-15 |
10-15 |
10-15 |
10-15 |
Air backwash strength L/s.m2 |
15-18 |
15-18 |
15-18 |
15-18 |
15-18 |
15-18 |
15-18 |
|
|
What we can service
1.Pre-sales Service
--General technical advice and business consultation.
--Suitable scheme and equipment as order.
--Designing as special requirement.
--Complete plan with technology and production line equipment.
2. After-sales Service
--One year warranty.
--Inspecting equipments in every working procedure.
--Assisting foundation construction.
--Dispatching engineer to install and debug.
--Training the first-line worker on site;
--Visiting clients and solving production problem.
--Life-long maintenance service.
--Technical exchanging.

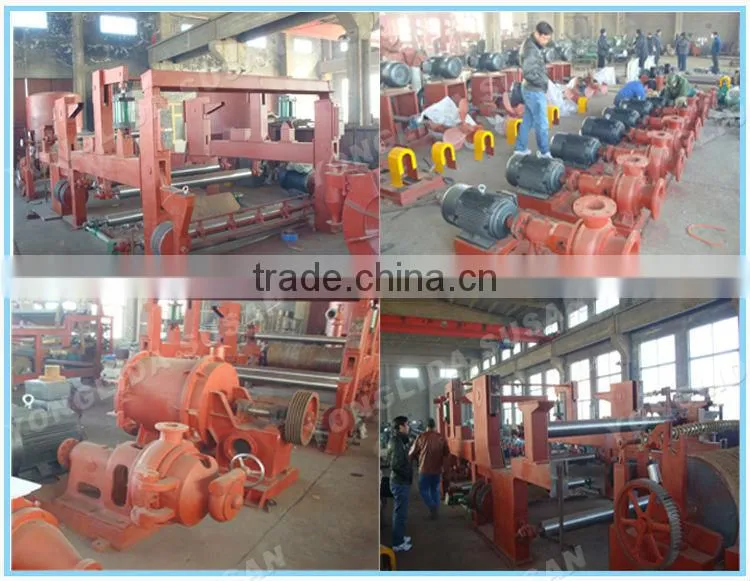

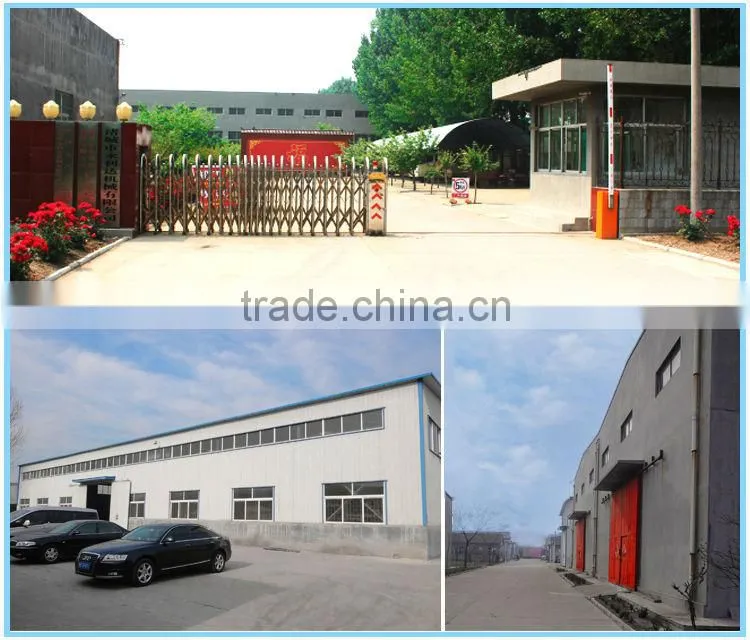

Zhucheng Yonglida Machinery Limited Company is located in Zhucheng city, Shandong province, China and founded in 1993 covering an area of 30,000 square meters. It is the high technology factory combined with design, development, production and technical service and leads the papermaking equipment and environmental protection equipment industry in China.
Main products: Toilet paper making machine, cardboard paper making machine, corrugated paper making machine, craft papermaking machine, environmental protection equipment, daily and city waste water and daily garbage treatment equipment, industry waste water and garbage treatment equipment, paper making, printing, starch, medical and mine industry waste water treatment equipment, etc.
Yonglida has operated several papermaking system and environment protection project domestic and foreign, including Russia, Egypt middle east, etc. We can also make the proper project plan as customer’s requirement.
Welcome to visit our factory, hope we could have a long cooperation relationship and business win win.
|
|
