Specifications
lightweight wall panel machine1) 1.6m/min
2) 1 year guarantee
3) CE, ISO
4) alloy parts, ensure long life of machine
hot sell wall panel extrusion machine wall panel machine
- The machine uses hydraulic lifting system, easy to revolve. It can reduce labor intensity and improve production efficiency.
- Machine body adopts anti-rust technology. Key parts, like hopper are welded by stainless steel. Waring parts like reamers, side form, vibration board, stock guide and other parts are all welded with alloy.
- Both sides of the wall panels can put reinforcement wires, diameter can reach 6mm.
- Work area, orbital or no orbital.
- Panel material. According to the specialty of clients’ local materials, we provide matching method to insure clients produce standard panel(general materials: fly ash, slag, ceramsite, ciders, cinerite, pumice, vermiculite and so on).
- Reduce the overall cost of the building, increase indoor usable space.
- High production efficiency, annual output above 150,000 square meters.
Main specifications
Model(mm) |
HQJ80X600 |
HQJ90X600 |
HQJ100X600 |
HQJ120X600 |
HQJ200X600 |
HQJ240X280X2 |
Panel width |
595±2 |
595±2 |
595±2 |
595±2 |
595±2 |
280±2 |
Thickness(mm) |
78±1 |
88±1 |
88±1 |
118±1 |
198±1 |
238±1 |
No. of hole & diameter (mm) |
8Xφ43 |
7Xφ58 |
7Xφ62 |
5Xφ80 |
3Xφ145 |
1Xφ160 |
Forming speed(mm/min) |
1600 |
1600 |
1600 |
1600 |
1600 |
1600 |
Main power(KW) |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
Vibration power(KW) |
0.8 |
0.8 |
0.8 |
0.8 |
3 |
3 |
Dimensions(mm) |
2500X950X750 |
2500X950X700 |
2500X950X750 |
2550X950X750 |
2650X1000X850 |
2650X1000X900 |
Weight(kg) |
1010 |
1010 |
1035 |
1650 |
1680 |
1740 |

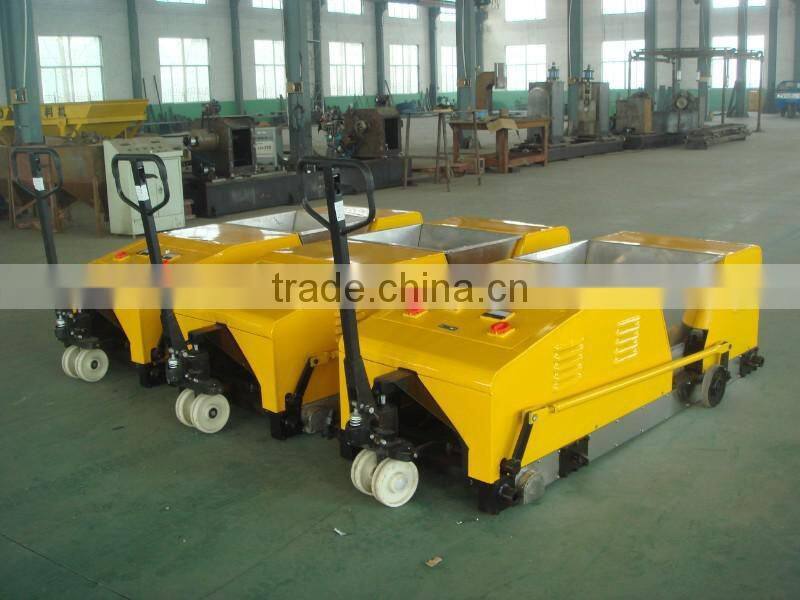

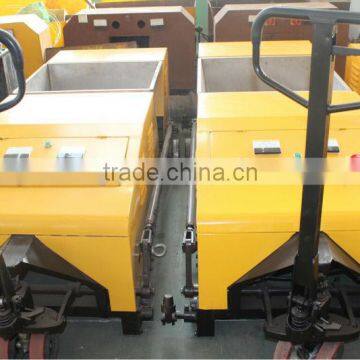

Machine picture

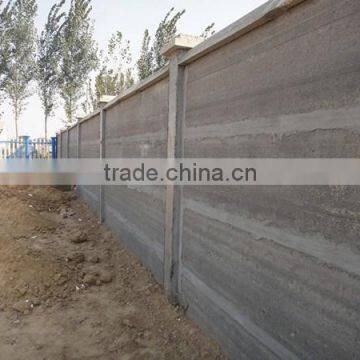

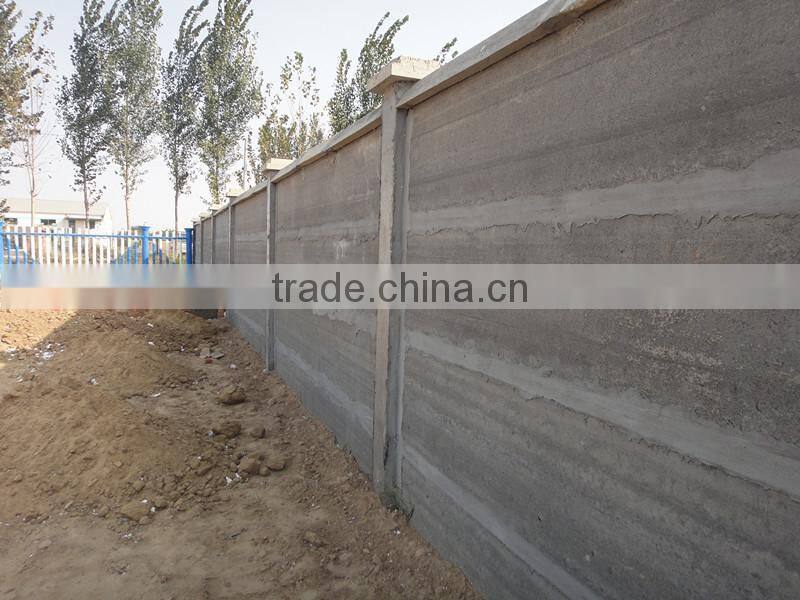

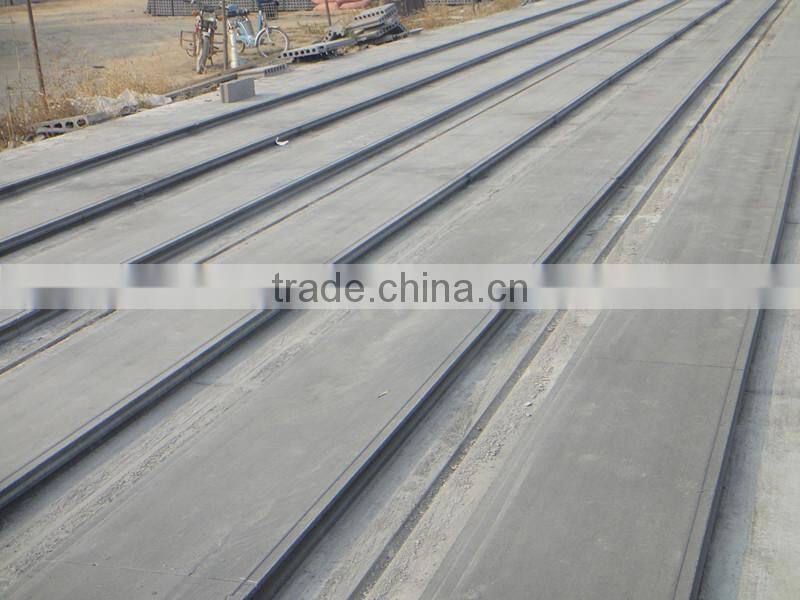

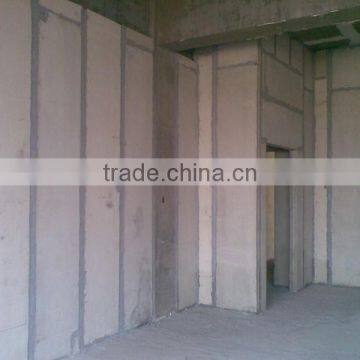

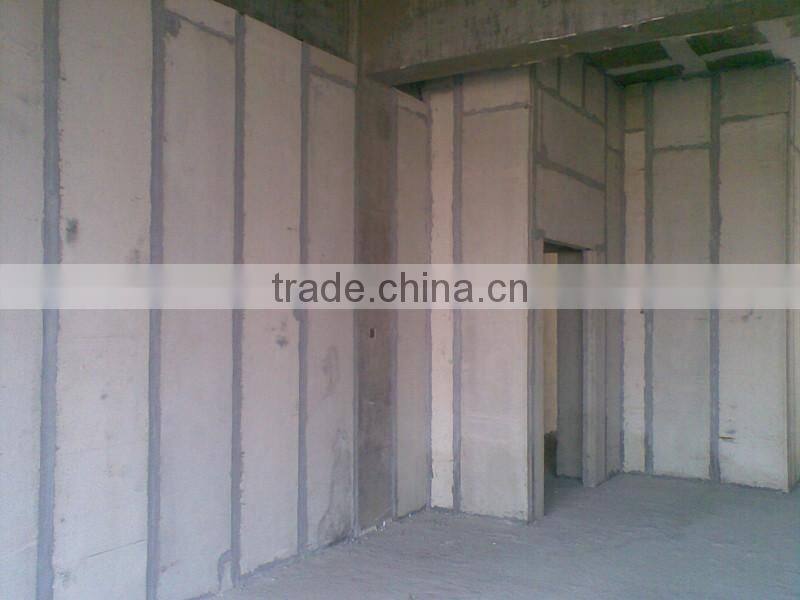

Wall panel sample and application
1. We offer turnkey service to your project. OEM & ODM
2. One year guarantee and life-time maintenance service.
3. Consultation service before, during, and after sales.
4. Project planning and design services.
5. Debugging of machines until all are functional.
6. Training the customers how to operate and maintain the machines correctly.
7. Offer new product techniques and recipes timely.
8. Professional international trade team, ensuring you will get your machine safely in time!
Customers

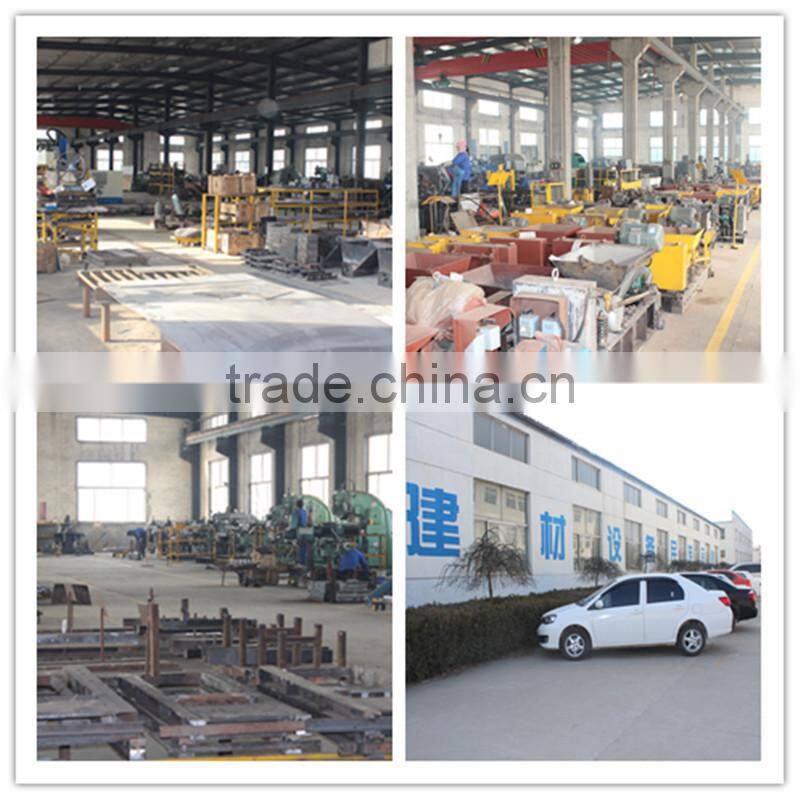

We are specialized in researching and manufacturing series of precast concrete components forming machinery. The company has established an international research and development center by domestic senior technical staff and European R & D team. And established an Institute of precast concrete equipment in Italy, mainly on research and development of Industry construction equipments, and prefabricated factory overall solution guidance and promotion. The company is Asia's first technology companies with the ability to research, develop and manufacture multi-functional prefabricate board production line. The company has acquired more than twenty kinds of proprietary technologies certificates. We get ISO9001 Quality certificate, CE certificate, which prove our precast machine can stand up to the most rigorous test. We are also the Vice president enterprise of "Precast Concrete and Cement products Association".
Main products
1. PC Industrial Residential Production Line
2. Precast Elements Slipformer Production Line
3. HLJ Vertical type Wall Panel Molding Machine
4. HFJ Composite Insulation Wall Panel/Insulation Block Production Line
5. HQJ Lightweight Wall Panel Extrusion Machine
6. TW/HTY Series Hollow Core Slab Production Line
7. Accessory equipments: Concrete Cutter, Prestress Tensile Machine, Heading Machine and Anchor Grips.
If you are interested, please don’t hesitated to contact us! We’ll be very pleased to offer professional service! Thanks for your time!
