Specifications
concrete hollow core slab making machine1.1.4m/min molding speed
2only 2 to 4 workers needed
3.strong weght capacity

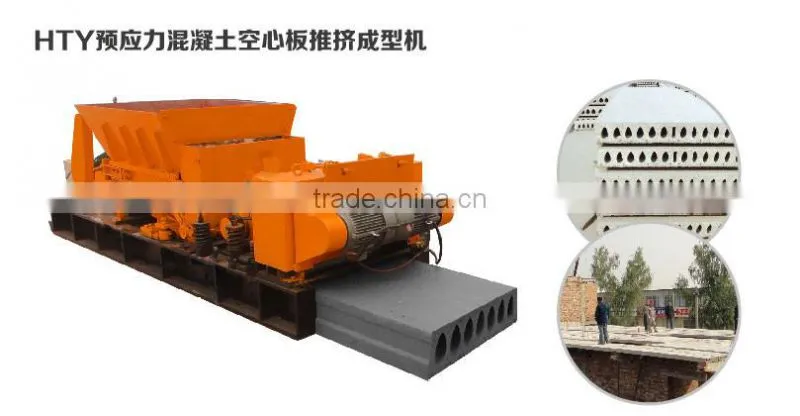

Precast Concrete Slab Forming Machine HTY180*1200
The products: The concrete hollow core board can be used as the floor in the buildings. They are stout with many steels inside. The peach shape holes make it have better weight capacity than ordinary slabs.With smooth surface, solid construction, high strength and precise dimension, the hollow core slab meets all the national specification requirements.
The machine: The precast cncrete slab machine produced in Haitian is the best concrete components with top technique in China. It can be used to produce big concrete slabs. There is the vibration set inside the machine which can help form slabs faster. The precast concrete slab forming machine is well designed, easy to control, maintain and repair.
The company: Haitian is a professional producer of Precast Concrete Slab Forming Machine. Our company can design and manufacture various kinds of concrete structures molding equipment according to customers' demand.
Working Principle:
Powered by the motor, the precast concrete slab machine works on the concrete flat platform. The incompact materials are pushed into the forming part by the speed reducing convening and the slider’s repeatedly moving on straight, then the materials push each other to air out.
The continuously working of vibration plate will highly plastify the concrete. At the same time, the slider is pushing the materials backwards, which forced the machine go along with the steel wire overcoming the frictional resistance. The concrete slab is forming during the process behind the machine. After a few days' maintenance, it can be cut in to concrete slabs of differerent lengths.
Configuration of the Concrete Slab Forming Machine:
Type: HTY180x1200
Thickness of Slab: 180mm
Width of Slab: 1200mm
Molding Speed: 1-1.2m/min
Number of Holes: 11pecs
Slab Weight: 320kg/m
Steel Diameter: Φ7mm
Number of Steels: 11pecs
Hole Shape: peach shape
Motor Power: 11kw
Vibration Power: 2*3.0kw
Machine Dimension: 2400*1550*950mm
Machine Weight: 2.37Tons
