DMC pulse bag dust collector
Brief introduction of DMC Pulse Bag Dust Collector
DMC Pulse Dust Collector is a kind of highly efficient collector which is designed on the base of overseas advanced technology. It combines advantage of locellus blowback dust collector and jetting pulse cleaning dust collector, avoids less strength of locellus blowback and simultaneous re-absorbing of jetting pulse cleaning dust and filter. It adopts highly efficient off-line method, so it can clean dust with larger capacity, higher efficiency, lower system resistance, longer life of filter-bag, etc. It is widely used to collect dust in grinder, crusher, packing machine, silo top, matching materials of cement industry. It can clean not only air with common dust, but air with high density (even 1300g/Nm³), so it can collect final product of vertical mill and 0-sepa separator. It can be also widely used in grain, light industry, electric power, chemical industry, metallurgy, etc.
Features of DMC Pulse Bag Dust Collector
1. Off-line method cleans dust and dust collecting efficiency can reach 99.99%, there is no second dust absorbing, so it is suitable to deal with smoke with high density, and can directly collect product with high density.
2. Filter material with high quality can meet any working condition.
3. PLC intelligent controlling system can be operated easily, precisely and reliably.
4. Gas tank structure and module manufacturing make installation much easier.
5. Advanced balancing wind design reduces operating resistance of dust collector.
Technical parameters of DMC Pulse Bag Dust Collector
model |
Total filter area (m2) |
Filtering wind speed (m/min) |
Input air (m3/h) |
No. of filter bag (PC) |
Specification of filter bag (mm) |
Air consumption(m3/h) |
Density of inlet (g/m3) |
Density of outlet (mg/m3) |
DMC-32 |
24 |
1.04-1.67 |
1500-2400 |
32 |
120x2000 |
0.032 |
200 |
50 |
DMC-48 |
36 |
1.15-1.62 |
2500-3500 |
48 |
0.048 |
|||
DMC-64 |
48 |
1.21-1.74
|
3500-5000 |
64 |
0.064 |
|||
DMC-80 |
60 |
1.25-1.67 |
4500-6000 |
80 |
0.08 |
|||
DMC-96 |
72 |
1.27-1.62 |
5500-7000 |
96 |
0.096 |
|||
DMC-112 |
84 |
1.28-1.68 |
6500-8500 |
112 |
0.11 |
Techincal Parameters for Bag Filter Dust Collector:
HCMC
Model |
Weight(kg) |
Filtering area(m2) |
Dimension(mm) |
Air volume m3/h |
HCMC-1.5x32 |
1264 |
20.352 |
1626x1277x4176 |
1831.68 |
HCMC-1.5x50 |
1678 |
31.8 |
1986x1457x3776 |
2862 |
HCMC-1.5x72 |
1972 |
45.792 |
2346x1687x4171 |
4121.28 |
HCMC-1.5x98 |
2233 |
62.328 |
2706x1917x4171 |
5609.52 |
HCMC-1.5x128 |
2456 |
81.408 |
3066x2117x4171 |
7326.72 |
HCMC-1.5x162 |
3466 |
103.032 |
3516x2297x4671 |
9272.88 |
HCMC-1.5x200 |
3598 |
127.2 |
3876x2477x4671 |
11448 |
HCMC-1.5x242 |
4527 |
153.912 |
4427x2677x4751 |
13852.08 |
HCMC-1.5x288 |
5016 |
183.168 |
4787x2907x4971 |
16485.12 |
HCMC-1.5x338 |
5414 |
214.968 |
5147x3147x5271 |
19347.12 |
HCMC-2.5x98 |
2489 |
103.88 |
2706x1917x5171 |
9349 |

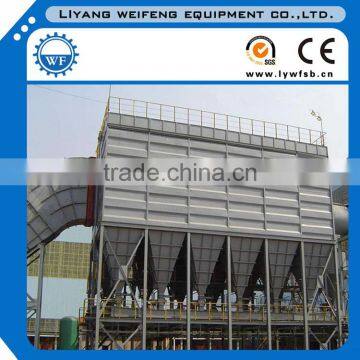

Photos for Bag Filter Dust Collector:

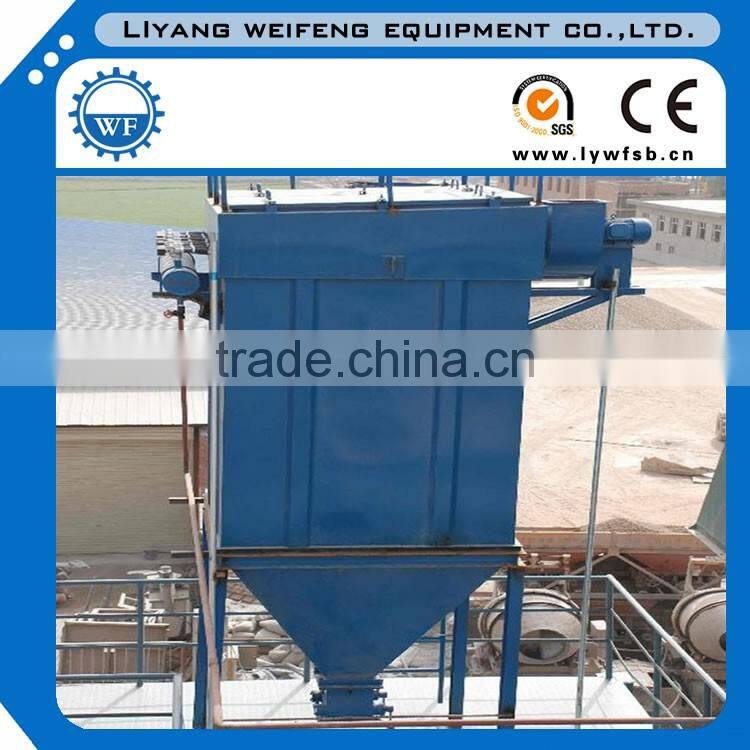

1.Steel Industry Bag Filter Dust Collector

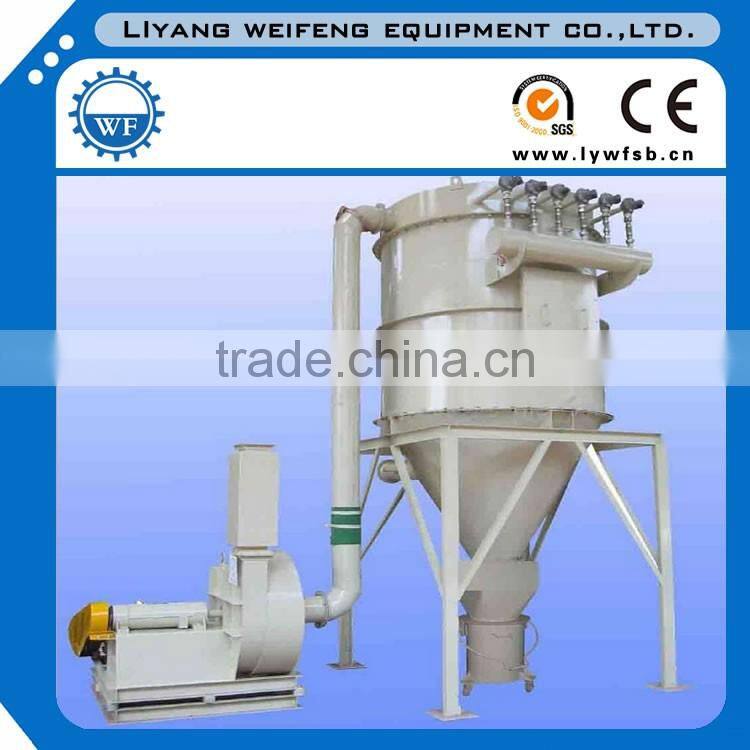

2.Cement Industry Bag Filter Dust Collector

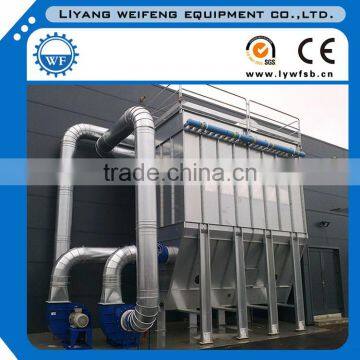

3 Wood Industry Bag Filter Dust Collector
Our service
4. We can provide customers with free English foundation drawing, installat
ion drawings, manuals, maintenance manuals and parts drawings.
