Specifications
Pulse Dust Collector:1.Model:DMC series;
2.CE,ISO9001:2000;
3.Dust collecting can be up to 99.99%;
4.Long service life.

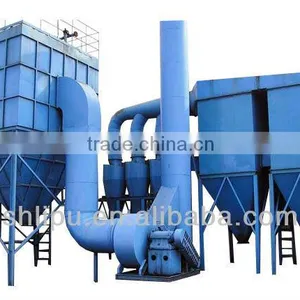

Brief Introduction of Pulse Dust Collector:
DMC pulse dust collector is a kind of highly efficient collector which is designed on the base of overseas advanced technology. It combines advantage of locellus blowback dust collector and jetting pulse cleaning dust and filter. It adopts highly efficient off-line method, so it can clean dust with larger capacity, higher efficiency, low system resistance , longer life of fliter-bag, etc. It iswidely used to collect dust in grinder, crusher, packing machine,silo top, matching materials of cement industry. It can clean not only air with common dust, but air with high density( even 1300g/Nm3), so it can collect final product of vertical mill and 0-separator. It can be also widely used in grain, light industry, elecric power, chemical industry, metallurgy, etc.
Features of Pulse Dust Collector:
1.off-line method cleans dust and dust collecting efficiency can reach 99.99%, there is no second dust absorbing, so i is suitable to deal with smoke with high density, and it can directly collect product with high density;
2.Fliter material with high quality can meet any working condition;
3.PLC intelligent controlling system can be operated easily, precisely and reliably;
4.Gas tank structure and module manufacturing makes installation much easier;
5.Advanced balancing wind design reduces operating resistance of dust collector.
Technical Parameter of Pulse Dust Collector:
| Model | Total Fliter Aera(m²) | Flitering Wind Speed(m/min) | Input Air(m3/h) | No.of fliter bag(pc) | Specification of fliter bag(mm) | Consumption(m3/h) | Density of inlet(g/m3) | Density of outlet(mg/m3) |
| DMC-32 | 24 | 1.04-1.67 | 1500-2400 | 32 | Φ120x2000 | 0.032 | 200 | 50 |
| DMC-48 | 36 | 1.15-1.62 | 2500-3500 | 48 | Φ 120x2000 | 0.048 | 200 | 50 |
| DMC-64 | 48 | 1.21-1.74 | 3500-5000 | 64 | Φ120x2000 | 0.064 | 200 | 50 |
| DMC-80 | 60 | 1.25-1.67 | 4500-6000 | 80 | Φ 120x2000 | 0.08 | 200 | 50 |
| DMC-96 | 72 | 1.27-1.62 | 5500-7000 | 96 | Φ 120x2000 | 0.096 | 200 | 50 |
| DMC-112 | 84 | 1.28-1.68 | 6500-8500 | 112 | Φ 120x2000 | 0.11 | 200 | 50 |
| DMC-120 | 90 | 1.3-1.76 | 7500-9500 | 120 | Φ 120x2000 | 0.12 | 200 | 50 |
| DMC-168 | 126 | 2.54-2.87 | 9500-10500 | 168 | Φ 120x2000 | 0.168 | 200 | 50 |
After-Sale Service:
Erection and Commissioning
Operator Training
Spare Parts Supply
Warranty Terms: More than 12 months
Delivery Time:25~30 days after receiving advanced payment
Products Certificate: CE, ISO9001:2000
We(Shanghai LIPU Heavy Industry Co.,Ltd) believe that you can rely on us as we provide you quite satisfactory ervice and products with best quality at most competitive price in the world. We are very happy if you do not hesitate to send us any of your inquiries and we will always give satisfactory services.
Looking forward to hearing from you at your convenience!

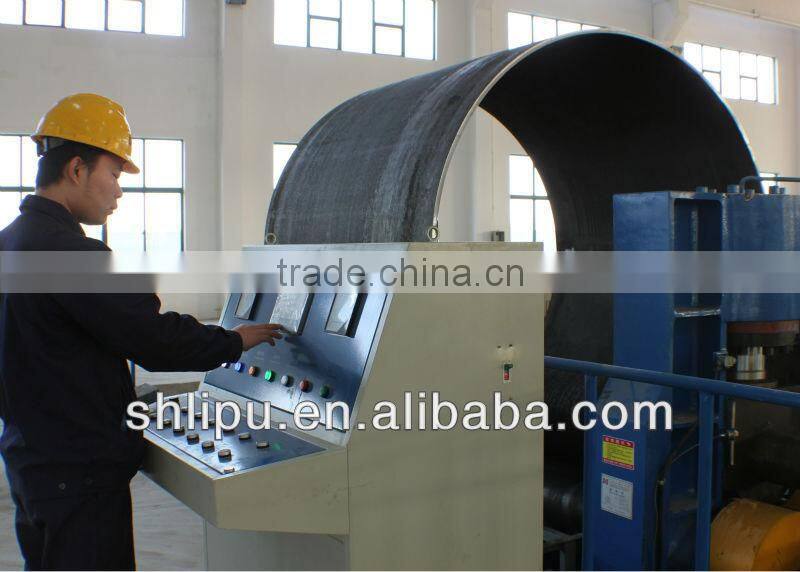

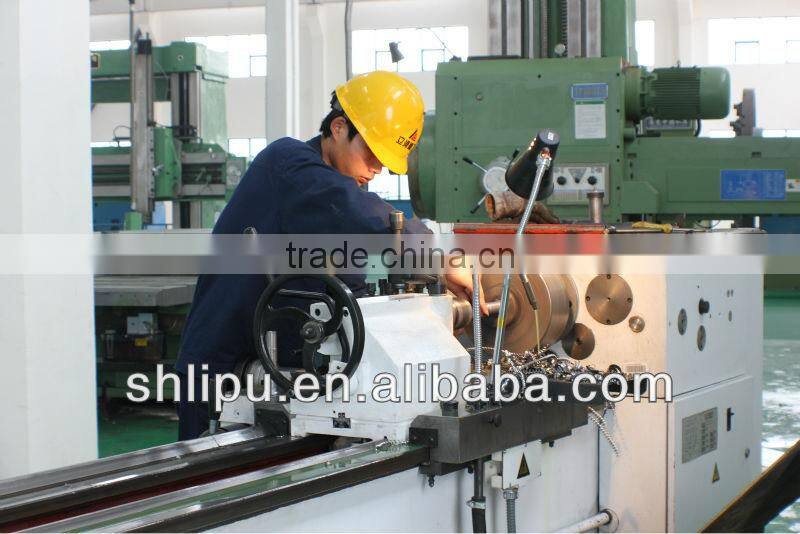

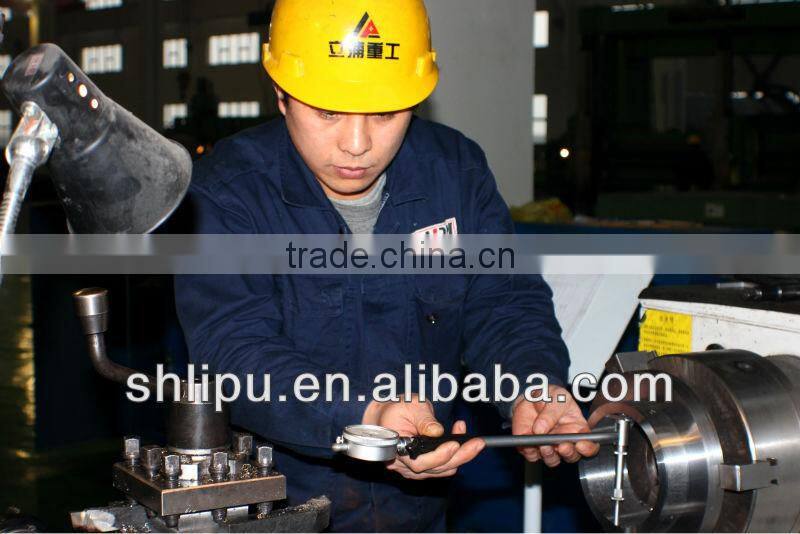

Professional Team
