bag filter pulse industrial dust collector dust collector system
- 10 Set / Sets per Month
- shanghai
- T/T L/C Credit Card PayPal
- Best selling oil mist collection centrifugal oil mist collector for CNC machines
- Ventilation cleaning equipment, negative pressure cyclone dust collector
- LIVTER Factory High Power Wood Dust Collector Industrial Dust Sawdust Collector Engraving Machine Dust
- LIVTER Dust Collector Bag Industrial Woodworking Dust Collector Cyclone
- LIVTER Cyclone Dust Separator With Filter Bag Dust Collector Woodworking Wood Dust Collector
- LIVTER Industrial Cyclone Cartridge Dust Collector For Woodworking Machine
Product Details
Condition: | New | Type: | Fabric Dust Collector | Efficiency: | 99.9% |
Minimum Particle Size: | 0.5 Micron | Place of Origin: | Jiangsu, China | Brand Name: | WEIFENG |
Model Number: | DMC | Dimension(L*W*H): | Model | Weight: | 1~84ton |
Certification: | CE,ISO,ISO9001,ROHS | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Industry Dust Collector Dust Collector Machine
Production Description :
The baghouse dust collector is a kind of dry dust filtering device. It applies to capture fine, dry, non-fibrous dust. Baghouses (also called pulse jet baghouse, pulsejet dust collectors, etc...) are self contained, fully automated where needed. We also supply and install ducting, access platforms, ventilation and instrumentation. Baghouses are engineered for dusts of 3 microns and larger, in the following applications:
- Woodworking
- Cement production
- Powder processing
- Steel melting
- Material handling
- Primary metals, including steel-making
- Metals fabrication: grinding, sawing, sanding, polishing
- Papermaking
- Mixing and blending options
- Mining
- Foundries
- Glass Plants
- Battery Plants
- Universities
- ......
We offer a full range of collector designs and media choices to solve the toughest pollution control problems involving high temperatures, pressures and corrosives.
Techincal Parameters Industry Dust Collector Dust Collector Machine:
HCMC
Model | Weight(kg) | Filtering area(m2) | Dimension(mm) | Air volume m3/h |
HCMC-1.5x32 | 1264 | 20.352 | 1626x1277x4176 | 1831.68 |
HCMC-1.5x50 | 1678 | 31.8 | 1986x1457x3776 | 2862 |
HCMC-1.5x72 | 1972 | 45.792 | 2346x1687x4171 | 4121.28 |
HCMC-1.5x98 | 2233 | 62.328 | 2706x1917x4171 | 5609.52 |
HCMC-1.5x128 | 2456 | 81.408 | 3066x2117x4171 | 7326.72 |
HCMC-1.5x162 | 3466 | 103.032 | 3516x2297x4671 | 9272.88 |
HCMC-1.5x200 | 3598 | 127.2 | 3876x2477x4671 | 11448 |
HCMC-1.5x242 | 4527 | 153.912 | 4427x2677x4751 | 13852.08 |
HCMC-1.5x288 | 5016 | 183.168 | 4787x2907x4971 | 16485.12 |
HCMC-1.5x338 | 5414 | 214.968 | 5147x3147x5271 | 19347.12 |
HCMC-2.5x98 | 2489 | 103.88 | 2706x1917x5171 | 9349 |
LDMC--A type:
Specification Item | 1 | 2 | 3 | 4 | 6 | 7 | 8 | 9 |
Air flow (m³/h) | 65000 | 97500 | 130000 | 130000 | 195000 | 260000 | 325000 | 390000 |
Filter area (m²) | 1084 | 1626 | 2168 | 2168 | 3252 | 4336 | 5420 | 6504 |
Number of baghouse | 2 | 3 | 4 | 4 | 6 | 8 | 10 | 12 |
Specification of filter | Ø160×6000 | |||||||
Number of baghouse filter | 360 | 540 | 720 | 720 | 1080 | 1440 | 1800 | 2160 |
Outside size(m) L×W×H | 6.3 ×5.7 ×13.8 | 9.3 ×5.7 ×13.8 | 12.3 ×5.7 ×13.8 | 6.3 ×11.4 ×13.8 | 9.3 ×11.4 ×13.8 | 12.3 ×11.4 ×13.8 | 15.3 ×11.4 ×13.8 | 18.3 ×11.4 ×13.8 |
LDMC--B type:
Specification Item | 1 | 2 | 3 | 4 | 6 | 7 | 8 | 9 |
Air flow (m³/h) | 81200 | 121900 | 162500 | 162500 | 243800 | 325000 | 406350 | 487620 |
Filter area (m²) | 1355 | 2030 | 2710 | 2710 | 4064 | 5418 | 6772 | 8127 |
Number of baghouse | 2 | 3 | 4 | 4 | 6 | 8 | 10 | 12 |
Specification of filter | Ø160×7500 | |||||||
Number of baghouse filter | 360 | 540 | 720 | 720 | 1080 | 1440 | 1800 | 2160 |
Outside size(m) L×W×H | 6.3 ×5.7 ×15.3 | 9.3 ×5.7 ×15.3 | 12.3 ×5.7 ×15.3 | 6.3 ×11.4 ×15.3 | 9.3 ×11.4 ×15.3 | 12.3 ×11.4 ×15.3 | 15.3 ×11.4 ×15.3 | 18.3 ×11.4 ×15.3 |
(It's only for your reference, detailed dust collector will be designed according to your condition, so if you're interested, please do not hesitate to contact me. )

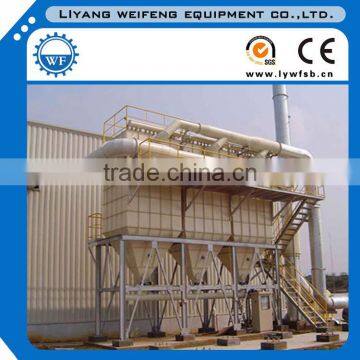

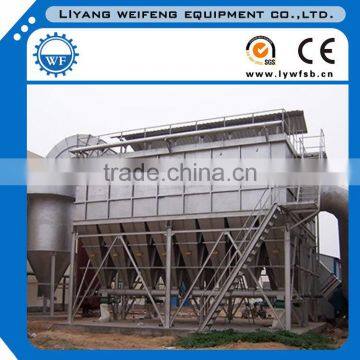

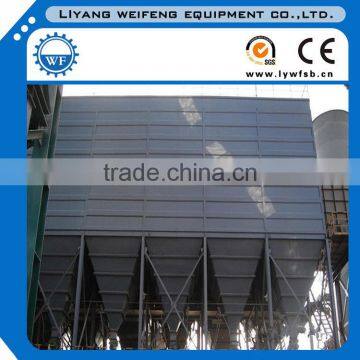

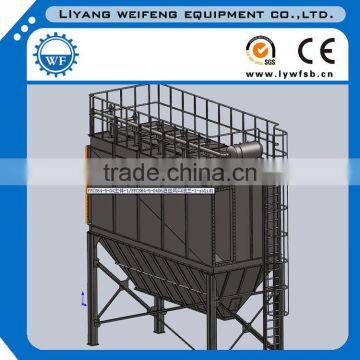

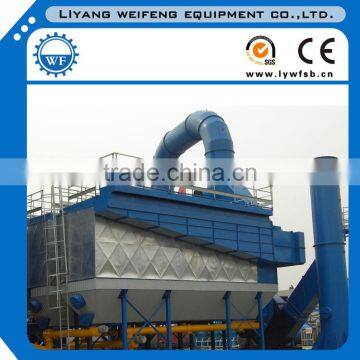

Photos of Industry Dust Collector Dust Collector Machine:
Our service for Industry Dust Collector Dust Collector Machine:
4. We can provide customers with free English foundation drawing, installation drawings, manuals, maintenance manuals and parts drawings.
