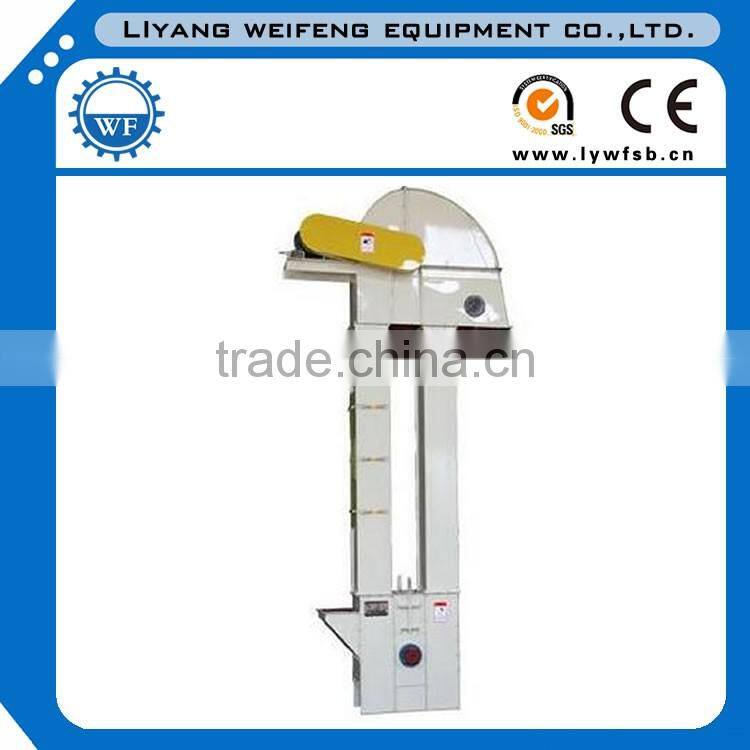

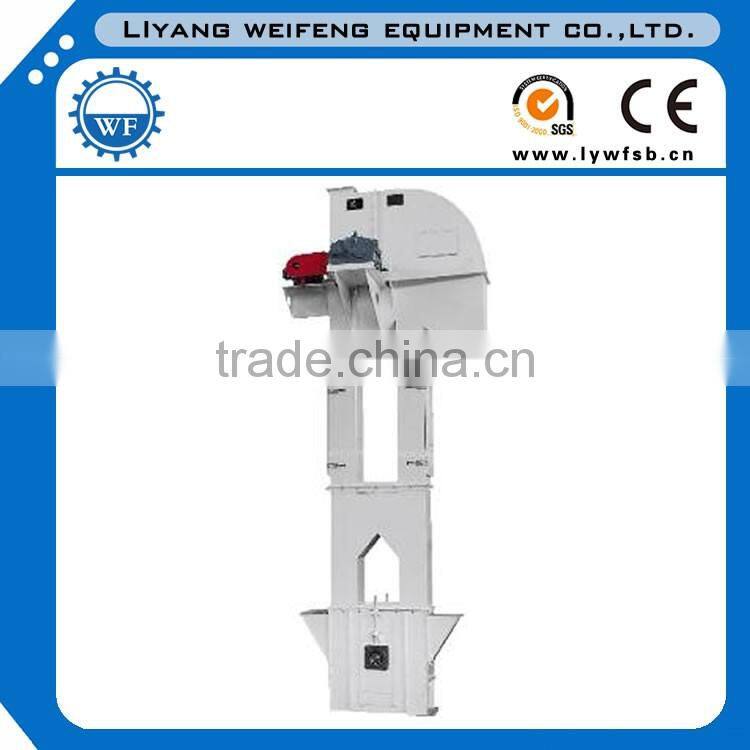

TDTG series bulk grain handling bucket elevator
General Introduction
TDTG Series Bucket Elevator is applicable for continuous and vertical elevating of materials in shape of powder, granule and small piece. It can be widely used in the industries of feed, cereal, oil, food, chemicals, building materials, grain depot, port and pier.
Main Performance Features
1.1.1 The structure is compact and overall dimension of cross section is small, thus floor space can be saved remarkably;
1.1.2 Elevator foot can be fitted with direct and converse feeding hopper for users’ selection according to requirement;
1.1.3 Rubber-covering technology is used for head pulley and tail pulley so as to increase the friction coefficient and improve the driving efficiency;
1.1.4 A transition section is added under the head pulley and fitted with outlet adjusting plate and buffer chamber so as to reduce the return of materials and improve the capacity;
1.1.5 Elevator head is fitted with changeable wearproof plate;
1.1.6 Explosionproof elevator housing is available and can effectively prevent the explosion of dust;
1.1.7 Tensioner is fitted with spring buffer device so as to reduce the vibration and prevent belt from breaking caused by sudden overload;
1.1.8 The tensioning plate is fitted with two layers of seal so as to overcome the leakage of dust and materials from the adjusting plate;
1.1.9 Speed detector and offset alarm can be used according to users’ requirement so as to ensure safe and normal production;
1.1.10 Anti-reverse device can be used to prevent the machine from being blocked due to power failure;
1.1.11 The installation height is optional, but heights in Table 1 must not be exceeded.
Main technical parameter for TDTG series bucket elevator
|
Parameters
Model |
Head Pulley Dia. (mm) |
Conveying Amount |
Bucket Number (pc/m) |
Rotational Speed (rpm) |
Max. Elevating Height (m) |
|
|
|
Granular Materials(t/h) |
Powder Materials(t/h) |
|
|
|
TDTG40/18 |
φ400 |
14.5 |
8 |
4 |
80 |
<25 |
TDTG40/23 |
φ400 |
26 |
11 |
4 |
80 |
<25 |
TDTG40/28 |
φ400 |
30 |
18 |
4 |
80 |
<25 |
TDTG50/18 |
φ500 |
35 |
14 |
5 |
84 |
<45 |
TDTG50/23 |
φ500 |
62 |
24 |
5 |
84 |
<45 |
TDTG50/28 |
φ500 |
76 |
30 |
5 |
84 |
<45 |
Liyang Weifeng Equipment Co., Ltd. is a professional manufacturer of turn key biomass pellet production line and poultry feed production line. We are specialized in designing, developing, producing, maketing, installing, testing top-calss equipments.
We had built 1-30t/h feed pellet production lines in Russia,Romania, Thailand, Malaysia,Ukraine, Iraq, Algeriaand so on.
Welcome to contact us to get details!
