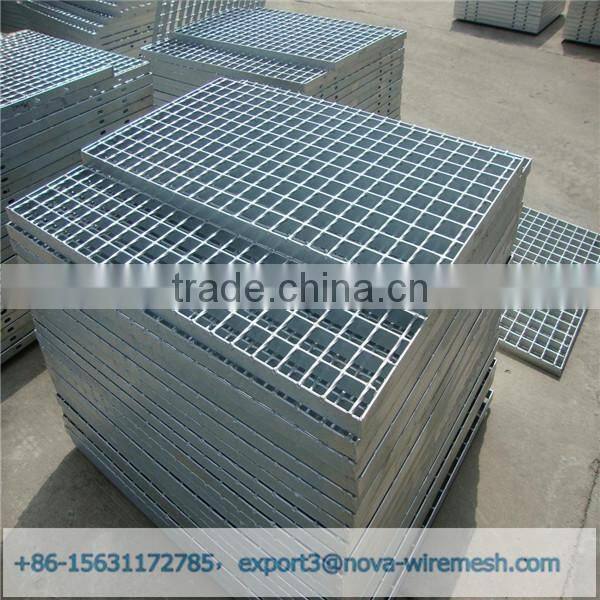

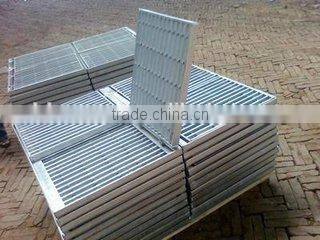

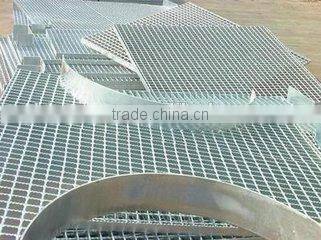

Low cost galvanized steel grating for sale

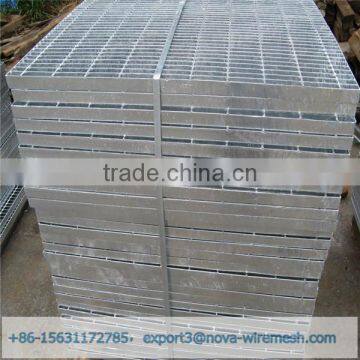

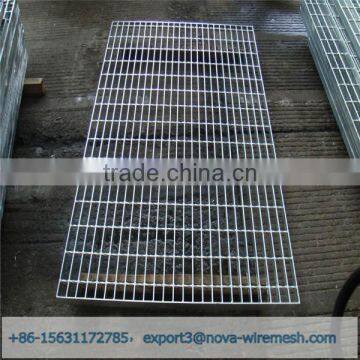

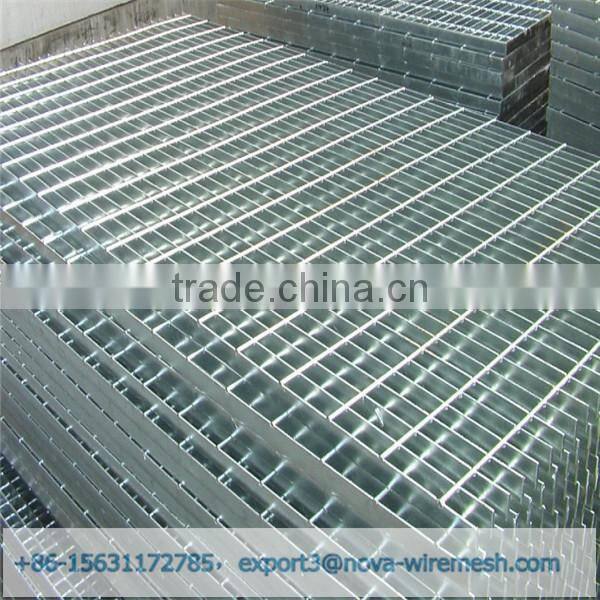

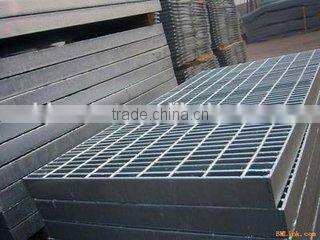

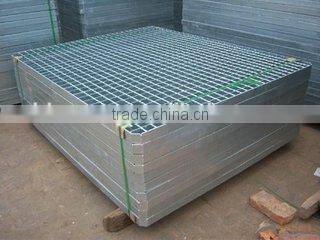

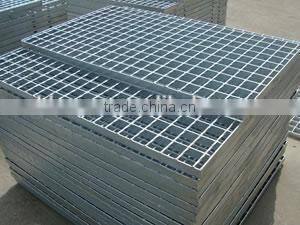

Galvanized Steel Grating

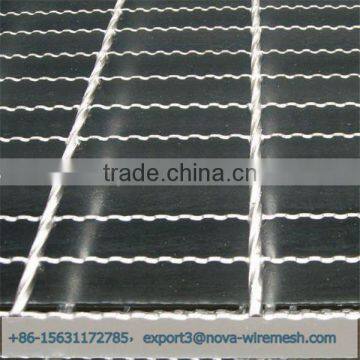

Galvanized steel grating is an ideal product for wet, slippery situation where corrosion resistance is vital. The mild steel gratings are hot dipped galvanized in the galvanizing bath. The galvanizing bath has got 7 tank surface cleaning process, the purity of the zinc used for hot dipped galvanizing shall be 99.95 % pure. The galvanized coating shall be as per IS-3202/IS–4759 / IS–2629/IS – 2633/IS–6745, ASTM –A -123 or equivalent to international standards. The appearance of surface is plain or serrated

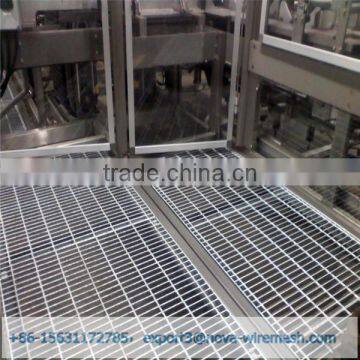

Galvanized steel grating is widely used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates. It is also ideal for use as mezzanine decking since it supports the same loads as comparable solid flooring. More than that, its cost saving openness maximizes the circulation of air, light, heat, water and sound, while promoting cleanliness.
Material: carbon steel
Surface treatment: hot-dipped galvanized
Widths: 2'or 3'
Lengths: 20' or 24'
Galvanized steel grating is available in: Grade 2 (Medium) or Grade 3 (Coarse)
Available in light duty and heavy duty
Available in welded, press-locked, swaged lock or flush mount construction
Features:
* Can be purchased in stock sizes or custom fabricated to meet the project specifications.
* Excellent load bearing capabilities
* Ventilation of air, light, sound
* Don’t collect Liquid and debris
* Long service life
* Wide range of open areas
* Galvanized steel grating has an unmatched surface. It is also a permanent replacement for slippery serrated and plain grating.
* It's available in many different styles and spacing options to meet a variety of needs and applications.
* Anti-theft design: the cover and the frame is joint with hinge offering security, safety and open convenience.
* High strength: the strength and the toughness are much higher than cast iron. It can be used for terminals, airport, other large-span and heavy loading condition.
Product Applications:
* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Waste water treatment plant grating
* Stair treads
|
Galvanized Steel Grating |
Galvanized Steel Grating |
|
Galvanized Steel Grating |
Galvanized Steel Grating |
steel galvanized grating,galvanized stock grating.serrated bar grating,galv standard grating panel
FOB Price: |
US $10.98 - 299.98 / Piece Get Latest Price |
Min.Order Quantity: |
2 Ton/Tons 10pcs |
Supply Ability: |
100 Ton/Tons per Day |
Port: |
NINGBO, China |
Payment Terms: |
T/T,Western Union,MoneyGram |
Quick Details
Place of Origin: |
China (Mainland) |
Brand Name: |
nova |
Model Number: |
steel galvanized grating |
Material: |
Steel,low carbon steel |
Application: |
Machinery industry, port engineering, steel industry etc |
Surface treatment:: |
Galvanizing,black |
Certification: |
ISO |
usage: |
Platform,sidwalk etc |
steel product standards: |
CN:GB700-88,USA:ASTM-A36,UK:BS4360-43A |
Style: |
Plain ,Serrated,I-bar |
Tolerance: |
within ±5mm |
Steel grating standards: |
YB/T4001,AMSI,BS4592 |
Hot galvanizing standards: |
GB/T13912,ASTM(A123),BS729 |
|
|
|
|
Packaging & Delivery
Packaging Detail: |
pallets in container |
Delivery Detail: |
8-20 DAYS |
Specifications
steel galvanized grating
stock grating
standard grating panel
Surface:HDGalvanizing,Black
ISO9001-2008
Product description
1) material: carbon steel or stainless steel;
2) cross bar pitches: maybe 24-200mm, of which 50mm, 76mm and 100mm are recommended;
3) Steel grating is made by the world first-class equipment, which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance welding ring which is controlled by we can produce high quality gratings with firm welding, smooth surface and high strength.
Specification
|
Item No. |
Bearing Bar Pitch |
Cross Bar Pitch |
Specification of bearing bar load( width × thickness ) |
|||||
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
|||
1 |
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
||
2 |
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
||
3 |
60 |
50 |
|
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
