Factory price highway guadrail traffic barrier
Highway guardrail include W-beam guardrail, thrie beam guardrail, cable barrier systems, etc.

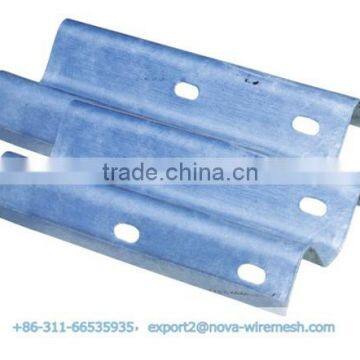

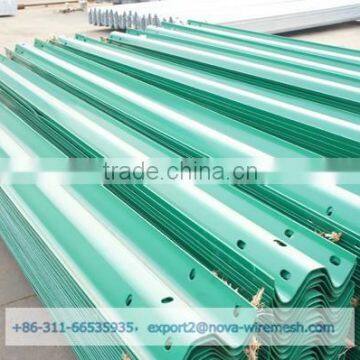

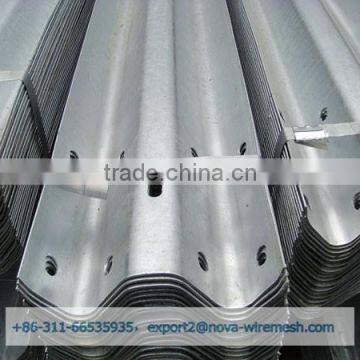

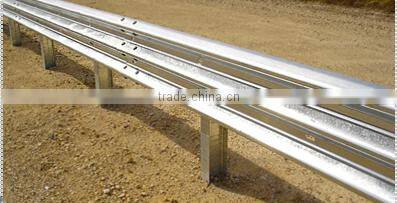

W-Beam Guardrail
W-Beam guardrail is produced in standard AASHTO 12'-6" or 25'-0" lengths. Custom lengths and custom post-hole spacing are available on request. Gregory W-Beam guardrail is offered in 10-gauge or 12-gauge steel, four types of finishes, and in pre-curved shapes as part of our commitment to value.
Nova begins with prime steel that matches requirements for quality, physical properties, and chemistry. A multi-stage cleaning process prepares the metal for galvanizing on Gregory's own Modified Sendzimer Continuous Galvanizing Line. Production then pierces the steel with holes and/or slots (to either industry standards or project specifications) and then roll-forms it into the W-Beam profile in one continuous process.
Nova continuously galvanized steel assures a consistent finish while eliminating sharp points and uneven zinc build-up that is typically found in hot-dip galvanized products. While most guardrail is supplied in galvanized finish, it is also available in black, painted epoxy coatings, or weathered steel as alternative finishes for aesthetic applications.

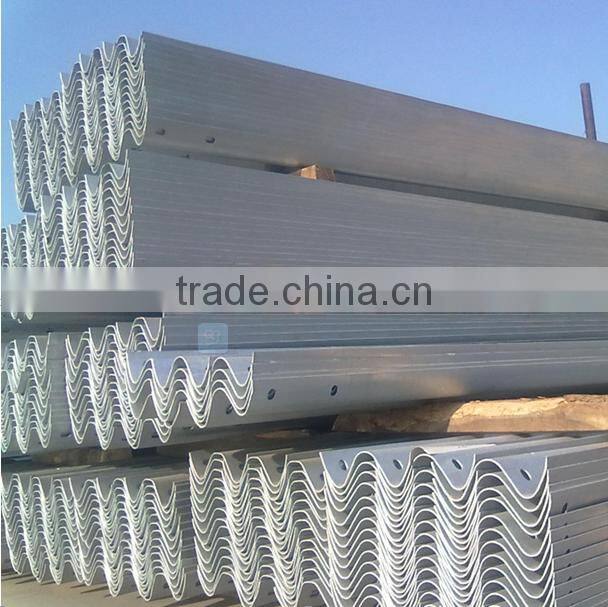

Thrie-Beam Guardrail
Thrie-Beam guardrail is produced in standard AASHTO 12'-6" or 25'-0" lengths. Custom lengths and custom post-hole spacing are available on request. Gregory Thrie-Beam guardrail is offered in 10-gauge or 12-gauge steel, four types of finishes, and in pre-curved shapes as part of our commitment to value.
Nova begins with prime steel that matches requirements for quality, physical properties, and chemistry. A multi-stage cleaning process prepares the metal for galvanizing on Gregory's own Modified Sendzimer Continuous Galvanizing Line. Production then pierces the steel with holes and/or slots (to either industry standards or project specifications) and then roll-forms it into the Thrie-Beam profile in one continuous process.
Nova continuously galvanized steel assures a consistent finish while eliminating sharp points and uneven zinc build-up that is typically found in hot-dip galvanized products. While most guardrail is supplied in galvanized finish, it is also available in black, painted epoxy coatings, or weathered steel as alternative finishes for aesthetic applications.
Cable barrier system
The effectiveness and safety benefits of cable barriers have been proven in China , Europe and much of the United States to help prevent the most serious of injuries from cross-median crashes. Approximately 13% of these cross-median crashes in Nevada are fatal, while over 50% of cross-median crashes result in injury.
DESIGN
The basic design of cable barriers consists of heavy-duty cables strung along a row of posts. The cables are tensioned to provide enough strength and give to safely catch misguided vehicles like a net, thus avoiding head-on collisions. Approximately 30 inches tall, the cable barriers are positioned low to efficiently catch most misguided vehicles around the vehicle chassis, grill and/or bumper and safely redirect them away from opposing traffic.
BENEFITS
- Cable barrier rails can help prevent head-on collisions by catching misguided vehicles like a net and redirecting them in the median area.
- The design of cable barrier is more flexible than concrete barriers when struck, helping to diffuse the crash impact felt by vehicle occupants.
- If hit, cable barrier rails are relatively fast and easy to repair, allowing the Nevada Department of Transportation to quickly and cost-effectively return the roadway to its original condition.
- Immediately following an accident, and even prior to repairs, cable barriers often continue to provide protection against further head-on collisions.
- In the event of a crash that closes the roadway, cable barriers more easily allow for traffic to be re-routed through the median. This can help prevent roadside delays following traffic crashes.
- Cable barriers allow for proper roadside drainage.
- Cable barriers are often less expensive to install than other barriers, providing an effective transportation safety solution at less cost.
Our commitment to customer service begins with centralized scheduling, complete inventories, significant manufacturing capability and flexibility to efficiently respond to the industry's needs.
We offer a full range of products to meet most highway barrier requirements, including W-beam, box beam, Thrie-beam, cable barrier and bridge rail. From complete roadside barrier systems to individual custom fabricated parts, Trinity is capable and ready to supply the parts you need.
