Home > Products > Grating series > Low Cost Fiberglass Grating for Sale
Low Cost Fiberglass Grating for Sale
- Xingang China
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Galvanized Steel Wire | |
| Type | Welded Mesh | Application | Other, Farm Fence, walkway,platform,trench cover,fence | |
| Weave Style | Plain Weave | Wire Diameter | 25mm to 65mm | |
| Technique | Welded Mesh | Model Number | fgn-2-25 | |
| Brand Name | nova |
Product Description

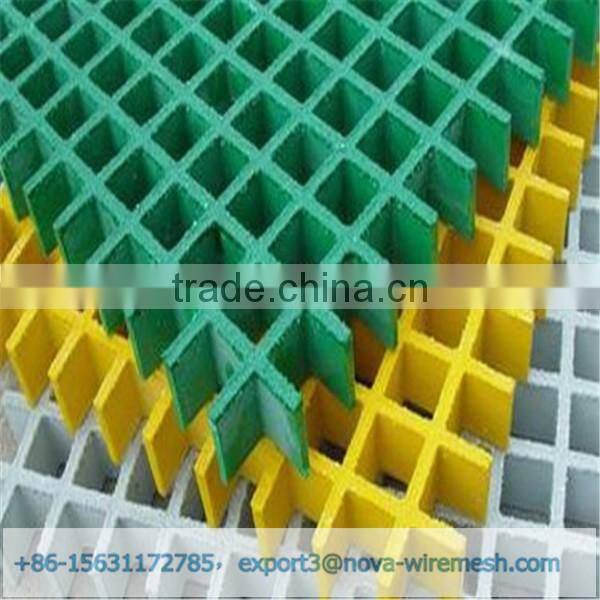

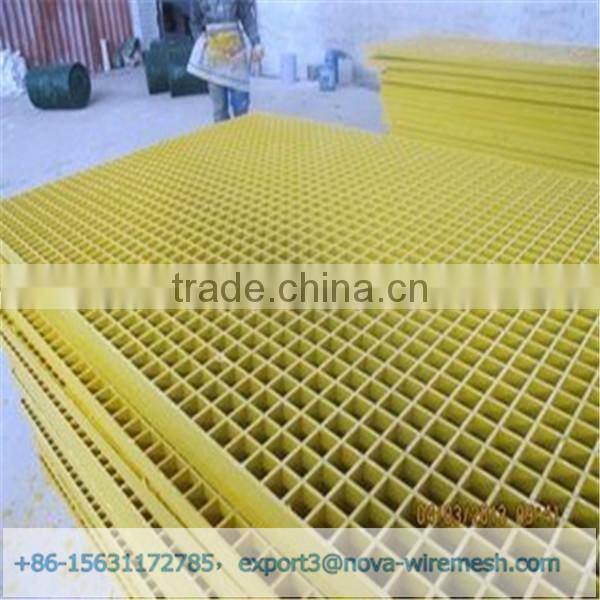

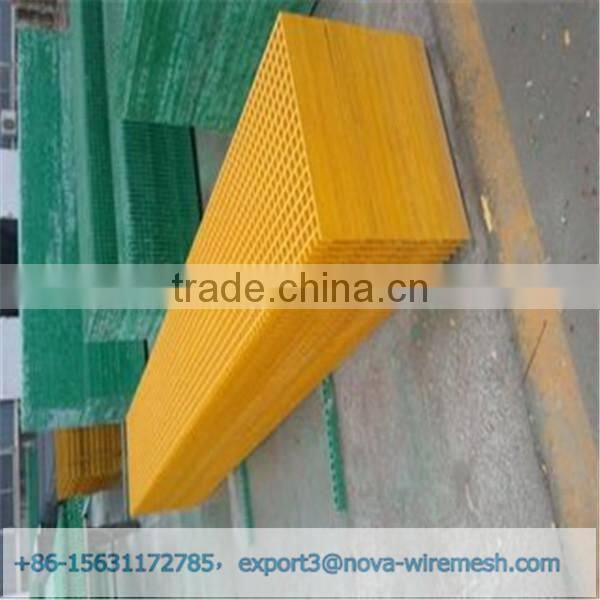

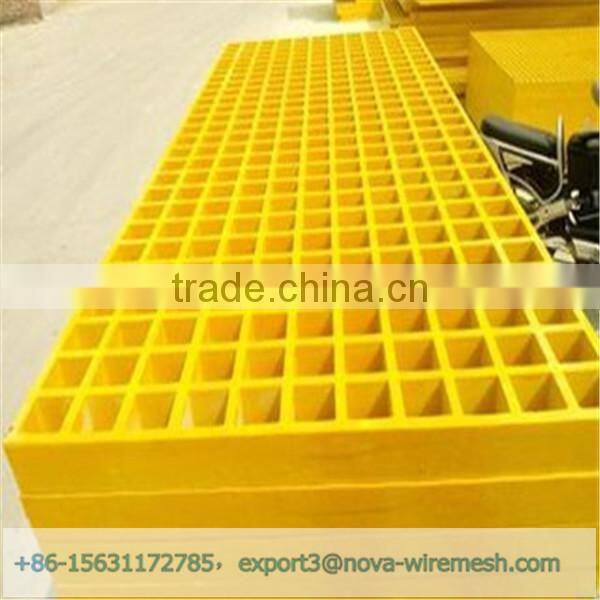

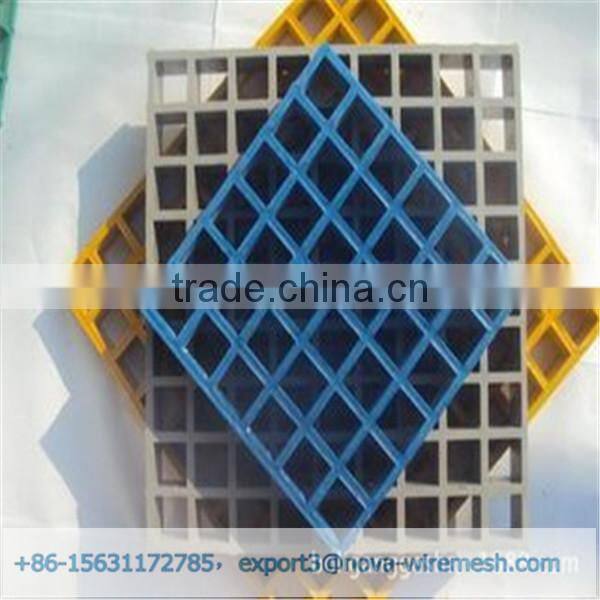

Low cost fiberglass grating for sale
Packaging & Delivery
Packaging Detail: | bags, boxes, pallets etc. |
Delivery Detail: | within 30 days or according to customer's requirement |
Specifications
FIBERGLASS GRATING
HIGH QUALITY
GOOD PRICE
FRP Grating The Features of WANT FIBERGLASS GRATING Corrosion Resistant, Light Weight& High Strength, Fire Retardant, Non-Conductive & Non-Sparking, Anti-Skid, anti-aging and anti- fatigue. Easy Installation, Low Maintenance, Adjustable size, Good-appearance etc. It can be fabricated according to different specifications and sizes required by the customers. WANT FRP gratings are widely used for chemical & petroleum, printing & dyeing, marine power, pharmaceutical, metallurgical, transportation, shipyard, decoration, water treatment etc.
Specification of WANT FRP Molded Gratings
Code | Length×Width (mm) | Thickness (mm) | Mesh (mm) | Open area % | Weight (kg/piece) |
|
| ||||||
WT001 | 1220×3660 | 25 | 38×38 | 69 | 55 |
|
WT002 | 1220×3660 | 30 | 38×38 | 69 | 65 |
|
WT003 | 1220×3660 | 38 | 38×38 | 69 | 83 |
|
WT004 | 1000×2000 | 25 | 38×38 | 69 | 25 |
|
WT005 | 1000×2000 | 30 | 38×38 | 69 | 29 |
|
WT006 | 1000×2000 | 38 | 38×38 | 69 | 37 |
|
WT007 | 1000×4000 | 25 | 38×38 | 69 | 50 |
|
WT008 | 1000×4000 | 30 | 38×38 | 69 | 58 |
|
WT009 | 1000×4000 | 38 | 38×38 | 69 | 74 |
|
WT011 | 1220×3660 | 50 | 50×50 | 72 | 96 |
|
WT012 | 1007×3007 | 13 | 38×38 | 69 | 19 |
|
WT013 | 1007×3007 | 40 | 40×40 | 64 | 58 |
|
WT014 | 1007×3007 | 25 | 40×40 | 64 | 36 |
|
WT015 | 1007×2007 | 25 | 40×40 | 64 | 24 |
|
WT016 | 1007×2007 | 40 | 40×40 | 64 | 39 |
|
WT019 | 1007×4007 | 25 | 40×40 | 64 | 48 |
|
WT020 | 1007×4007 | 40 | 40×40 | 64 | 77 |
|
WT021 | 1007×3007 | 25 | 100×25 | 66/50 | 42/58 |
|
WT022 | 1220×3660 | 38 | 19×19 | 42 | 110 |
|
The above is the specifications of the standard molded panels at present. We can also meet customers requirements for smaller sizes or thickness than the above by cutting or short pouring. And we have various types of molded grating covers for your selection.
FIBERGLASS GRATING
Fiberglass Pultruded Grating
FOB Price: | US $9.6 - 45.8 / Square Meter Get Latest Price |
Min.Order Quantity: | 100 Square Meter/Square Meters |
Supply Ability: | 7000 Square Meter/Square Meters per Month |
Port: | tianjin or guangzhou |
Payment Terms: | T/T,Western Union |
Quick Details
Place of Origin: | China (Mainland) | Brand Name: | nova | Model Number: | NF-FG-032 |
Application: | walkway,platform,trench cover,fence | Surface Treatment: | galvanized | Technique: | molded |
Dimensions: | various sizes,25mm to 65mm thick | color: | green,yellow,blue,grey ,red ect | material: | Fibreglass reinforced plastic |
size: | as you custom | Certification: | ISO9001:2008 | Resin: | unsaturated polyester resin |
profile density: | 1.8g/cm³~2.0g/cm³ | delivery time: | 15-25 days | packing: | plywood pallets |
OEM: | accepted |
|
|
|
|
Packaging & Delivery
Packaging Detail: | Wood pallets;Iron pallet ;Carton;Plastic film ;Customize accepted |
Delivery Detail: | with in 15-25 days after receipt your deposit |
Specifications
Fiberglass Pultruded Grating
1.anti-corrosion,high strength but lightweight
2.never rusty anti-slip easy installing
Fiberglass Pultruded Grating
FRP floor grating is built with a much stronger process, and can carry a far superior load, and handle much greater impacts than molded grate.
long-term durability, offers the strength of steel at a fraction of the weight, plus it won’t corrode, spark or conduct electricity. Because it weighs less, it’s easier to install. And the color is molded all the way through.
1). Characteristics:light weight and high strength, corrosion resistance, fire resistance and anti-skid;
2). Colours: red, yellow, blue, orange, ultramarine, green, purple;
3). Surface: meniscus, grit, smooth, chequer plate cover,smooth cover, and grit cover.
FRP Grating, fiberglass grating, fiberglass product,FRP Grating,fiberglass grating,fiberglass product.
Detail of Fiberglass Pultruded Grating
Part of Fiberglass Pultruded Grating Size as below
For more size information,pls contact with us.
Mesh(mm) | Standard Panel Size(mm) | Thickness | Kg Per Sq.m | Open Area | |
20*20 | 1007*4047 | 30 | 15.9 | 40% | |
38*38 |
| 25 | 11.6 | 69% | |
38 | 19.0 | 69% | |||
40*40 | 1007*3007 | 25 | 10.8 | 64% | |
40 | 19.8 | 64% | |||
50*50 | 1220*3660 | 50 | 22.3 | 72% | |
15 | 6.2 | 72% | |||
100*25 | 1007*3007 | 25 | 11.5 | 66% | |
Usage
1)walkway grating
2)floor grating
3)drainage cover grating
4)decking grating
5)wall grating
6)car wash station grating
7)tree grating
8)livestock grating
9)industry grating
10)construction grating and so on
Contact Us
- Hebei Nova Metal Wire Mesh Products Co., Ltd.
- Contact nameZhao Pearl Chat Now
- Phone86-311-66535935
- AddressJianqiang Road, Hengshui, Hebei
