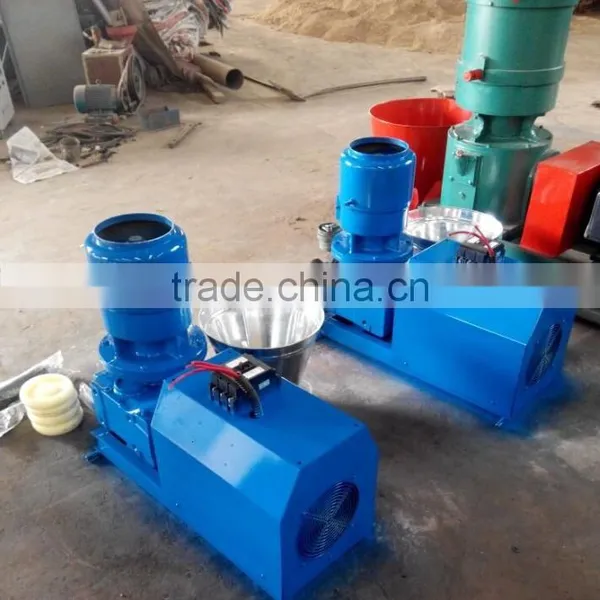

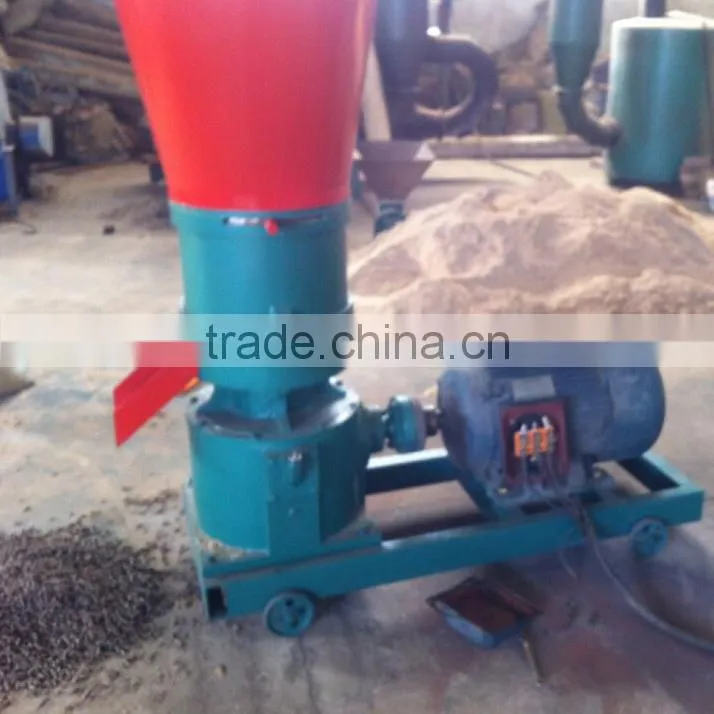

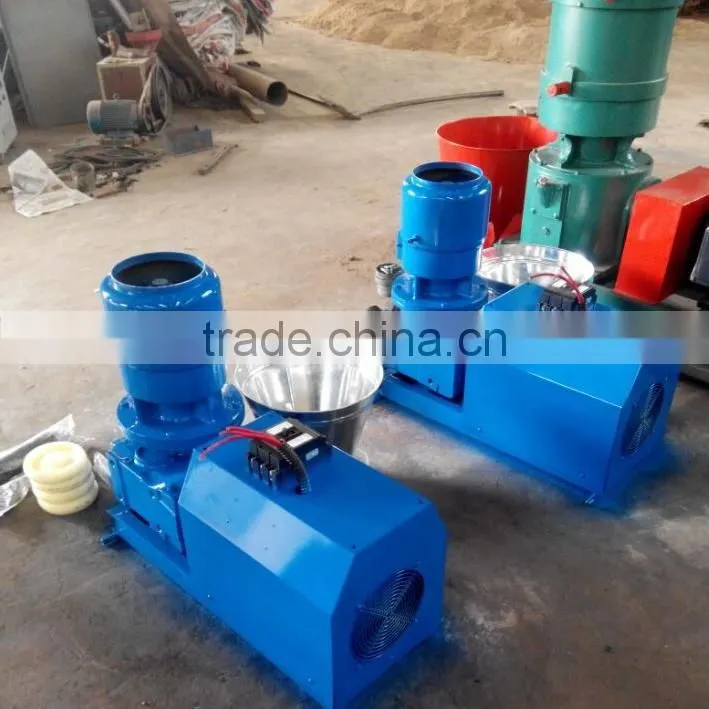

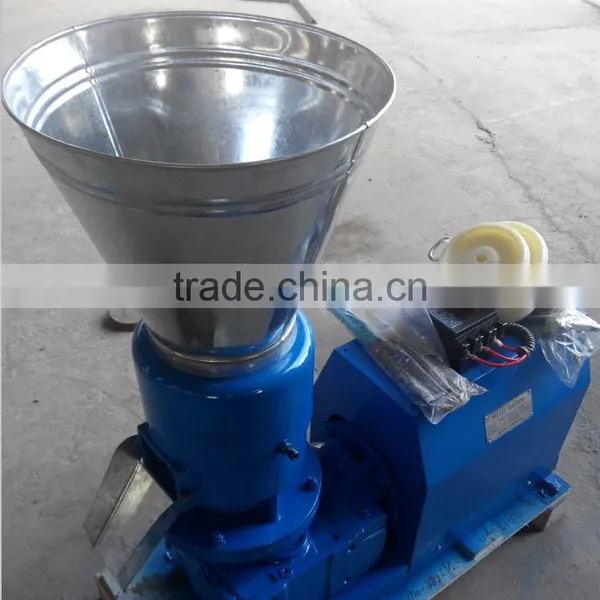

China famous brand animal dung pellet mill
Wood Pellets is mainly made of any wood waste and biomass particles, such as wood sawdust, wood shavings, wood chips, wood logs, straw, rice husk, coffee husk etc. At a wood pellet plant, raw material need to be well prepared before pelletizing, then get dried, compressed, and formed into small eraser-sized bits, the wood pellets get from wood pellet plant are clean, pleasant smelling and smooth to touch.

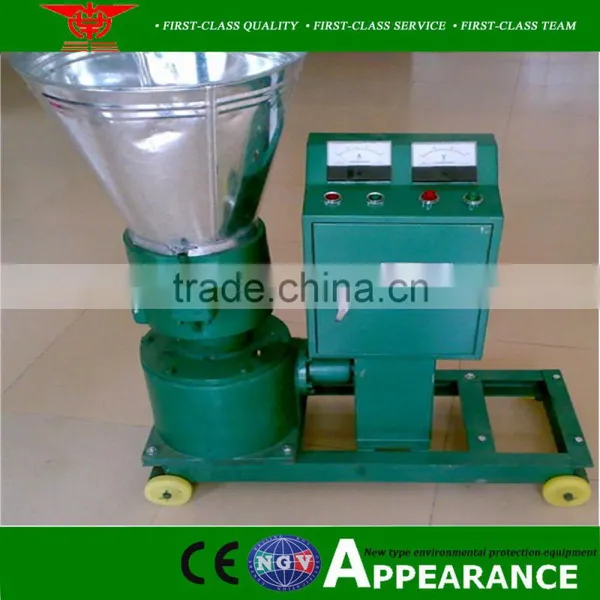

Mill machine for make pellet wood is the heart of the pellet machine production line. The Pellet machine is widely used in compacting of wood, straw, other biomass sources into pellet. Capacity ranges from 1T to 10T per hour. Our pellet mill adopt SKF bearings from Sweden and NSK bearings from Japan, the motors in the wood pellet is from Siemens, high quality components make the pellet mill more efficient and durable.
1. Main drive adopts high accurate gear drive, with an output of about 20% higher than belt drive, and the die adopts the quick removing clamps.
2. The drive part of the machine including motor optimize the high quality world famous bearings, which ensure high efficient and steady driving with low noise.
3. The imperative feeder device is adopted, which making the machine operate smoothly as the material like wood sawdust, rice straw is very light, so they are needed to be pushed into pelletizing chamber by force.
4. The feeder adopts the frequency-conversion speed regulating control to guarantee the quality of wood pellet.
5. The alloy steel die is made by international advanced German gun drill and American vacuum furnace, has long service life and ensure smoothly pelletizing and high quality.
6. The international advanced compensation type flexible coupling is of novel and compact structure, safety, low noise and less trouble.
7. Permanent magnet device can remove impurities in the pelletizing process.
Model |
NYPM-120B-1 |
NYPM-120B-1 |
NYPM-150A |
Power |
4 kw, 3 phase |
2.2 kw, single phase |
4 kw, 3 phase |
Capacity |
100-200 kg/h |
75-100 kg/h |
100-200 kg/h |
Pellets diameter |
4-6 mm |
4-6 mm |
4-6 mm |
Applicable materials |
rice husk, stalks, straw, etc. |
sawdust, corn, grain, wheat, etc. |
corn, grain, bean, wheat, etc. |
Pellets density |
1100-1200 kg/m3 |
1100-1200 kg/m3 |
1100-1200 kg/m3 |
Pellets moisture |
10 % |
10 % |
10 % |
Heating value |
4000-4500 Kcal |
4000-4500 Kcal |
4000-4500 Kcal |
Ash content |
8 % |
8 % |
8 % |
Use |
feed pellets, fuel pellets |
feed pellets, fuel pellets |
feed pellets, fuel pellets |

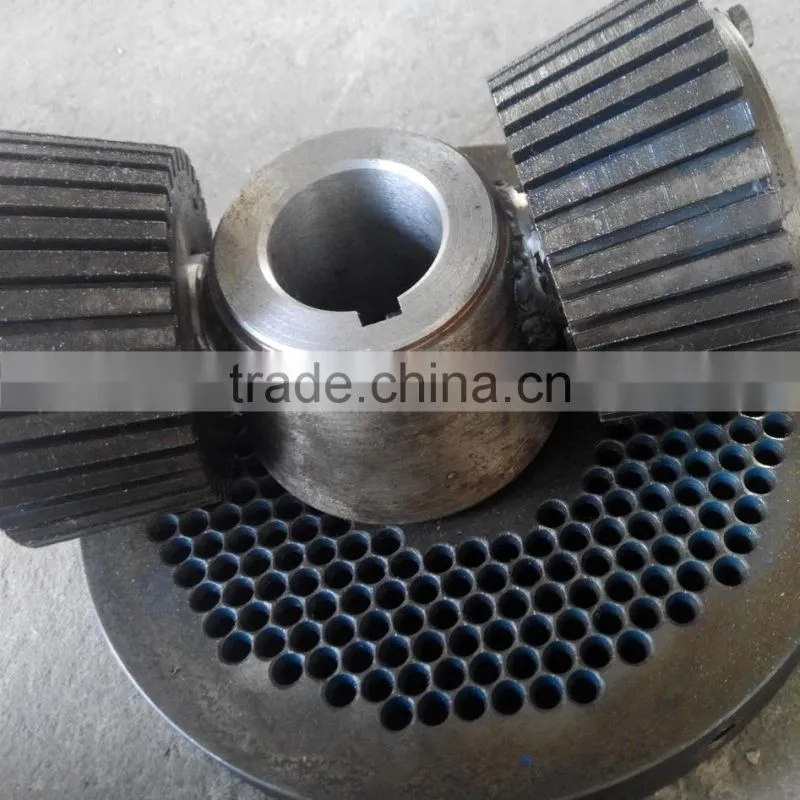

Rollers |
2, Die: 1 |
2, Die: 1 |
2, Die: 1 |
Pressure type |
flat die |
flat die |
flat die |
Weight |
80/100 kg |
80/100 kg |
95/115 kg |
Widely used mini animal poultry feed hops pellt making machine rabbit goat cattle anime rape pellet machine
Our company depend on experience advantages and technological innovation ideas we make research on new type and high efficiency rotary dryers, vertical dryers, multiplexing drum dryers, i ndirect dryers for high humidity and viscosity materials such as raw coal, coal slime, lignite, sludge, waste, fly ash, gypsum, manure, lees, mine slime, etc. and matching equipments such as forming machines, grinding machines, and milling machines, etc. on the basis of years of designing, Researching, developing and producing various types of dryers. Our product won the "Chinese famous brand", "Chinese famous quality products", Our Product exported to Indonesia, Russia, Syria, Vietnam, north Korea, Egypt, azerbaijan and other countries, which have received a lot of praises of our customers.
Nanyang Machinery Factory has a professional installation team, who are industrious, brave and hard learning in the aspect of innovation. So far, they have successfully completed the installation and debugging tasks for thousands of large and small projects. In addition, Nanyang Machinery Factory installation team can also help our customers to train their staff until they can be independent on operating machine. We hereby promise that we will provide first-class products and first-class service to our customers.
1). If any interest in our machine, please feel free to contact me and let me know your requirement on capacity and material size.
2). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3). Whole plant design and drawings are free after ordering.
4). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5). If you need, we will dispatch professional engineer for installation, trail and worker training.
Question: Do you have videos of this machine, so I can understand well of how it working?
Answer: Yes, but videos can not upload on this sit, please send inquiry to us, we shall reply with videos of your machines
Question: How can I buy this machine from your factory?
Answer: We provide door to door service to many foreign countries, usually, 30% deposit will be required to start the manufacturing, and the balance be paid when delivery. If you need door to door service, please let us know your address, we will ask our shipping agent to check the cost to your address.
Question: What services will I got from the purchasing?
Answer: We provide 1 year free warranty of all the machines which have been sold, and whole-life service with reasonable price cost.
Any of your inquiry will be responsed in 8 hours, please feel free to contact us.
