biomass wood pellet machine/iron ore pellet machine/machine per pellet
Raw material application
1. Crop stalks (including cornstalks cotton stalks ),grain shell(rice husk ) ,peanut shell and stalks, cotton stalks, sawdust,branch,bark ,bamboo powder, furfural residue(could be mixed used), Wood scraps ,Forest harvesting slash, household refuse,scraps produced by paper making factory,all of these could be smashed and briquetting .
2. Notice : The moisture of raw material have to be kept at around 15%, and the length must within 10mm.
Biomass briquette Production Flow:
Raw material Smash → Drying(moisture 15%) → Enter molding machine→Curing
and shaping under high temperature and high pressure → Product cooling →
Packaging and sealing → Delivery
Cost of production
Cost of production/T=Electric charge of 40kw/T+labor cost(2workers)/T + Mechanical loss cost ( 0.16-0.83USD )/T
Principle of forming
The machine get reciprocating motion by pulley driven by eccentric wheel, and then the feeder machine will start to feeding. Then the raw material go through distributor to get into the feeding box on the briquetting machine, and the next step is from feeding box to molding machine by the appending machine from two sides . Under the pressure caused by punch and molding die ,the raw material become heating up and softened ,and the volume become smaller. Then the raw material get solid and being extruded by molding die with reducing taper due to repeated impact .
Pellet shaping process is effected by pressure and temperature ,so the operation principle is punch principle ,the machine carry punch 280 times /min when it works normally. The pressure will up to 300T and the temperature is 150200°C, so the equipment could be used widely for so many kinds of raw material and enjoying a excellent forming density. In addition ,all parts of the equipment lubricated forced by the Oil pump
lubrication system to ensure the equipment enjoy a longer service time.
Detail picture:

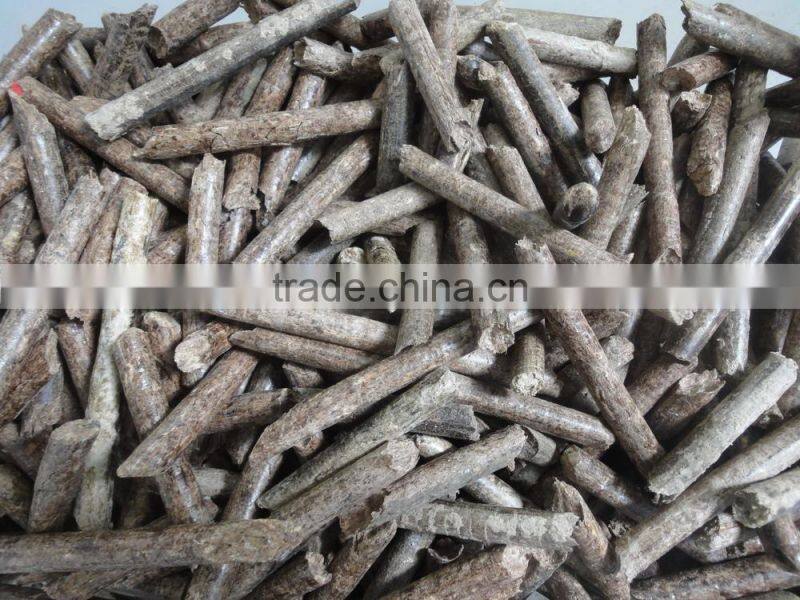

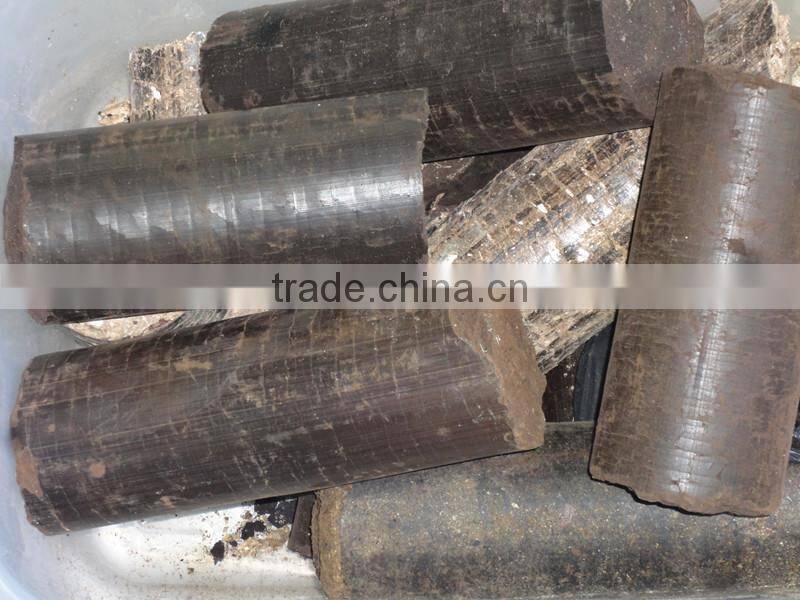

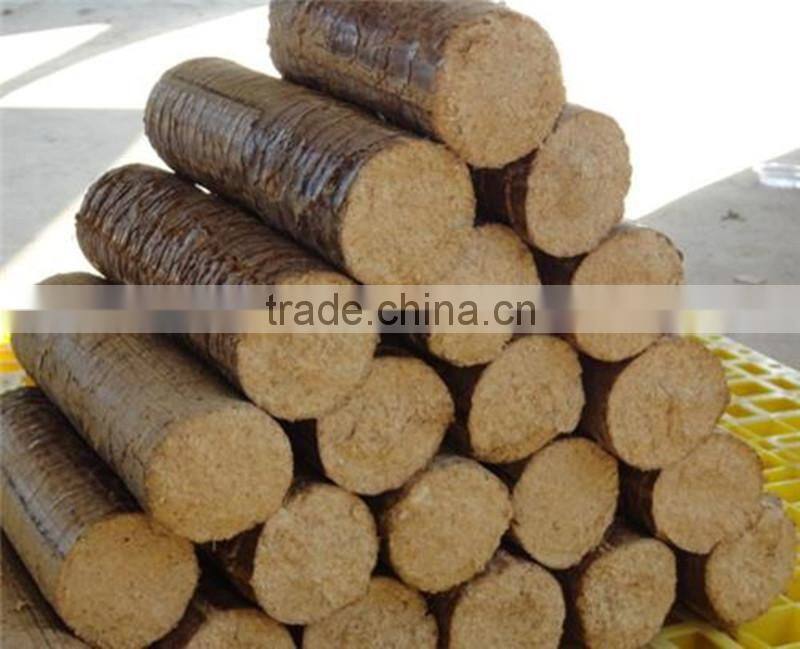

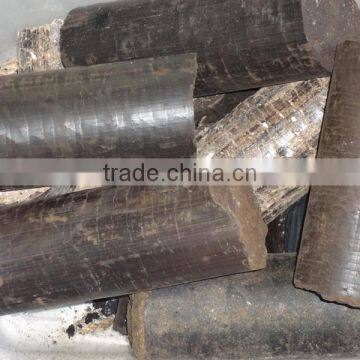

Final products pictures:
Certificate and patent:
Consulting & Training & After-sale service
1.Pre-sale service
Product introduction ,technical scheme, design scheme, quality certification could be provided to the customer, if any other documents you need, just keep us posted .
2.Service in the sale
1) During the equipment applied period , the company will arrange staffs to get the feedback and suggestions about the quality and other usage conditions to improve the quality and comprehensive performance.
2) The company will arrange engineer to train the workers about adjusting the equipment ,disposing of the trouble maybe happen and maintenance of the machine ,after training ,the workers will get work license we distribute.
3.After-sale service
1) within the warranty period, we promise to provide maintenance ,exchange ,return the product if quality problems happens . The warranty period of the entire equipment is 6 months except for the easily damaged parts .
2) Quickly reaction will be taken when complains case happens, after-sale service workers could be sent to the job site within 8 hours in city ,24 hours within province , 48 hours in domestic and 72 hours for the abroad business.
Related equipment for your reference.
1)Cooling equipment
2)Wood sawdust crusher
3) Dryer and air flow cooler --used to drying the raw material and cool the finished product.
If you are interested in our biomass briquette machine,Kindly contact Ms.Vivien.
Youcan import&export trade company
Add: Add:5 Floor,Sanjiang Building,Nanyang Road,Zhengzhou,China
Tel:086-0371-63300228
Fax:086-0371-60936230
Mobile:+86-15981900215
