Specifications
freeze dryer /lyophlizer
Top-press/ Gland-type /capping type lyophlizer
condenser temp.-50 or -80 centigrade
with stopper device and manifold ports
Big LCD display, drying curve could be shown and stored
Easy operation
full range for choose
TOPT-10B Capping type Vacuum Freeze Dryer/ Lyophilizer
Brief introduction of Vacuum Freeze Dryer:
TOPT-10B Freezing dryer is a new desktop Freezing dryer device, suit for freeze-dring experiment in laboratory and a small amount production.
The series include: common type, capping type, branch manifold common type, branch manifold capping type.
TOPT-10B Lyophilizer / Vacuum Freeze Dryer Details:
1. TOPT -10B Vacuum Freeze Dryer (LCD display)
2. Freeze Drying Area: 0.08m2
3. Cold trap temp: -50°C( -50°C with dual condenser could be done)
4. Vacuum: <10 Pa
5. Water-capture capacity: 3~4 Kg/24h
6. Material tray: ¢180 mm
7. Tray number: 3
8. Whole power: 970 W
9. Main frame size: 425*615*(370+445) mm
10. Main frame weight: 40 Kg
11. Liquid capacity: 0.9 L
12. Penicillin bottles ¢ 22mm: about 150 pcs (total)
13. LCD display, drying curve being displayed
Characteristics of Lyophilizer / Vacuum Freeze Dryer TOPT-10B:
1. Green environment-friendly product to conform to international standard
2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of precooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;
5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and
6. The organic glass cover can help you observe the whole freeze drying process.
7. Stainless steel sample shelf, the space of common sample tray can be adjusted;
8. Electric defrost function
Material Tray of Lyophilizer / Vacuum Freeze Dryer TOPT-10B:
Top-press: diameter of material-dry tray is diameter 180mm, three layers; material thickness 10mm,
or placed 135 bottles with diameter of 22mm.
Time of freeze-drying:when the depth of material under 10mm, the time of drying in general is 24 h
or so
Advantages of TOPT Vacuum Freeze Dryer:
Struction of vacuum Freeze Dryer:

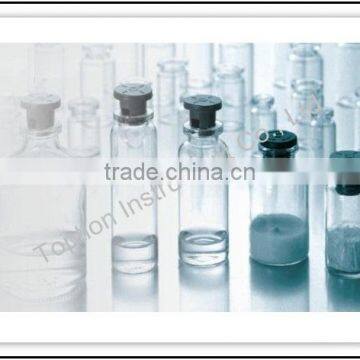

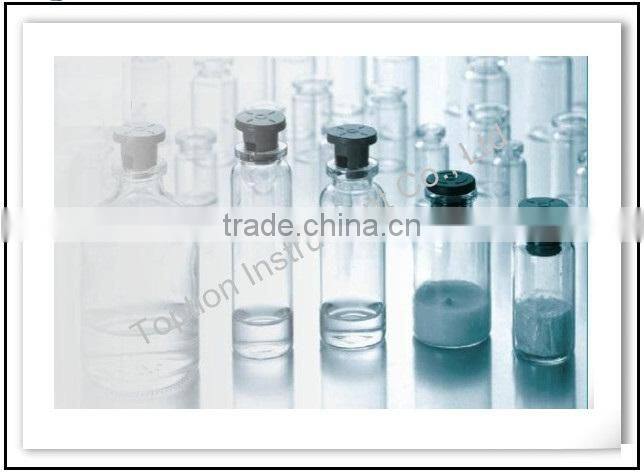

Penicillin bottles suitable for TOPT-10B Capping Vacuum Freeze Dryer:

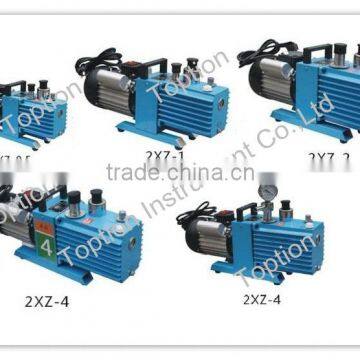

Spare parts of vacuum Freeze Dryer:
Application of vacuum Freeze Dryer:
Packing of vacuum Freeze Dryer:
CE & ISO Certificate of Vacuum Freeze Dryer:
Vacuum Freeze Dryer Trade Terms:
