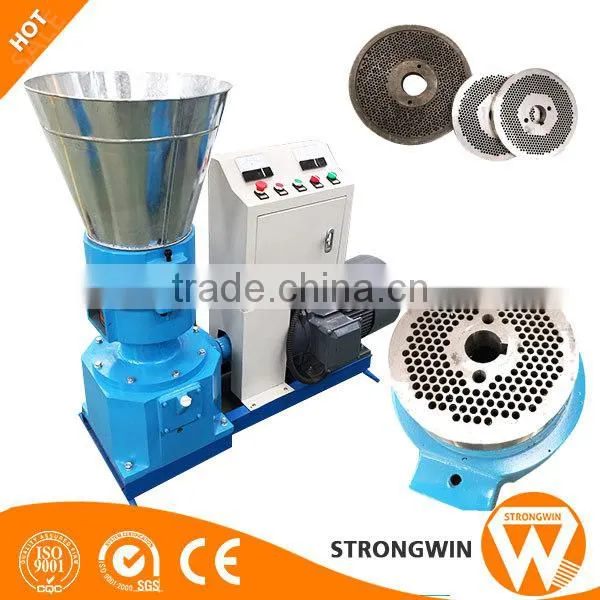

CE And SGS Approved Pellet Mill Machine 5Ton Per Hour Supplier
1.Introduction of small feed pellet mill machine :
Because such pellet machine works on the base of the friction and pressure between the roller and the mounted die,flat die wood sawdust pellet machine is also known as flat die pellet press. Flat die pellet machine are the simplest design of animal feed pelletizer, this kind of manure pellet machine had been originally applied mainly in the animal feed market,which was the situation up to the 1970's, Flat die pellet equipment works on a vertical design, using gravity as the main force for feeding the material through the machine. Flat die wood pellet mill have a horizontal die, with a series of rollers sitting on the die. When material goes in from the top feed inlet, it is compressed between the rollers and die.
Generally,There are two different designs of pelletizer, with two key differences. One design of feed pelletizer have a rotating die with a mounted roller shaft, and others have a mounted die with a rotating roller shaft. The second design is becoming more and more popular for larger fertilizer pelletizer. In general however due to their simple design and lighter weight, flat die pelletizer are normally used in small scale pellet production
2.Advantages of animal feed pellet mill machine:
1. Simple structure.
2. Easy to clean and maintain.
3. Spare parts are also easy to change, less cost for rollers and dies.
4. Simple operating, just 1 or 2 workers are OK.
5. The sort of pelletizer is easier to clean than the ring die pellet machine
5. Be able to change new die and rollers faster to save time to produce pellets.
6. Small and light weight, which can be used in home,small farm,and light industrial.
7. Visibility to viewing the material during pelleting is the best way to fix problems
3. feed pellet mill Main Data:
Flat Die Feed Pellet Machine | ||||
Model |
Motor Power |
Capacity |
Weight |
Dimension |
ZLSP-120A |
8 HP diesel engine (hand) |
75-100kg/h |
120kg/140kg |
900*440*730mm |
ZLSP-120B |
3phase 3KW / single phase 2.2KW |
75-100kg/h |
210kg |
670*390*910mm |
ZLSP-150A |
8 HP diesel engine (hand/electric) |
100-150kg/h |
180kg/220kg |
870*440*700mm |
ZLSP-150B |
3phase 4KW |
90-120kg/h |
95kg/110kg |
700*350*650mm |
ZLSP-200A |
15 HP diesel engine (hand/electric) |
250-350kg/h |
210kg/240kg |
1000*460*900mm |
ZLSP-200B |
3phase 7.5KW |
200-300kg/h |
200kg/230kg |
900*430*950mm |
ZLSP-200C |
3phase 7.5KW |
200-300kg/h |
200kg/230kg |
900*430*950mm |
ZLSP-230A |
22 HP diesel engine (hand/electric) |
300-400kg/h |
280kg/310kg |
1180*560*1020mm |
ZLSP-230B |
3phase 11KW |
300-400kg/h |
290kg/320kg |
1140*470*970mm |
ZLSP-230C |
3phase 11KW |
300-400kg/h |
290kg/320kg |
1140*470*970mm |
ZLSP-260A |
30 HP diesel engine (electric) |
400-600kg/h |
330kg/360kg |
1200*500*1070mm |
ZLSP-260B |
3phase 15KW |
400-600kg/h |
320kg/360kg |
1120*490*1070mm |
ZLSP-260C |
3phase 15KW |
400-600kg/h |
320kg/360kg |
1120*490*1070mm |
ZLSP-300A |
55 HP diesel engine (electric) |
600-800kg/h |
410kg/450kg |
1220*600*1000mm |
ZLSP-300B |
3phase 22KW |
600-800kg/h |
480kg |
1170*520*1070mm |
ZLSP-300C |
3phase 22KW |
600-800kg/h |
480kg |
1170*520*1070mm |
4. small animal feed pellet mill machine some pictures

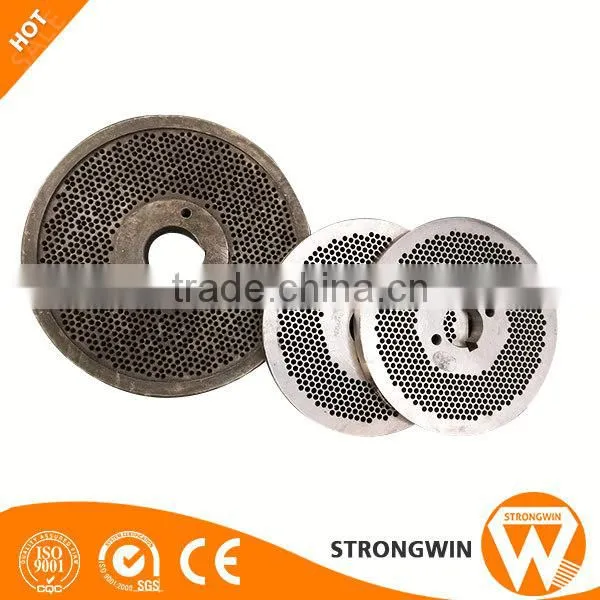

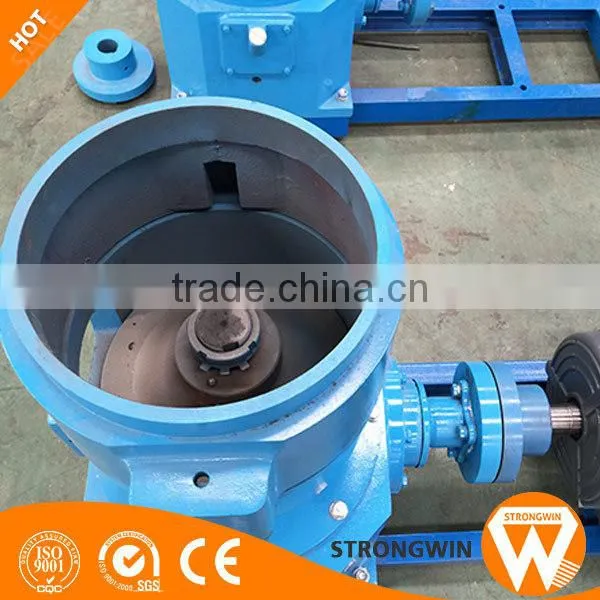

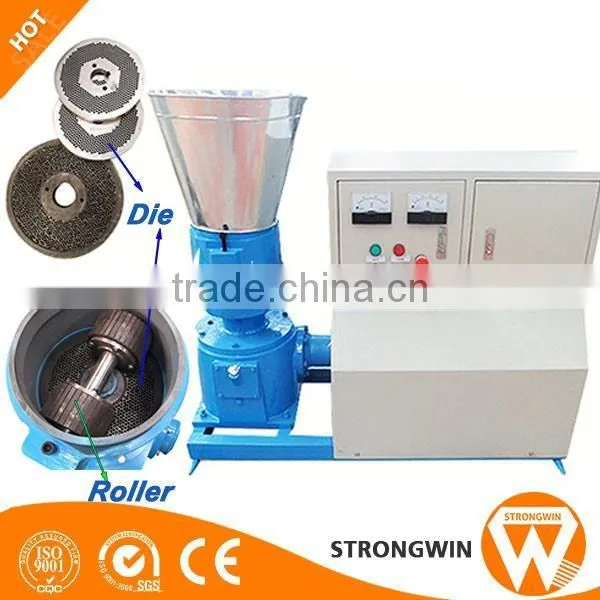

The spare parts flat die of the small animal feed pellet mill machine

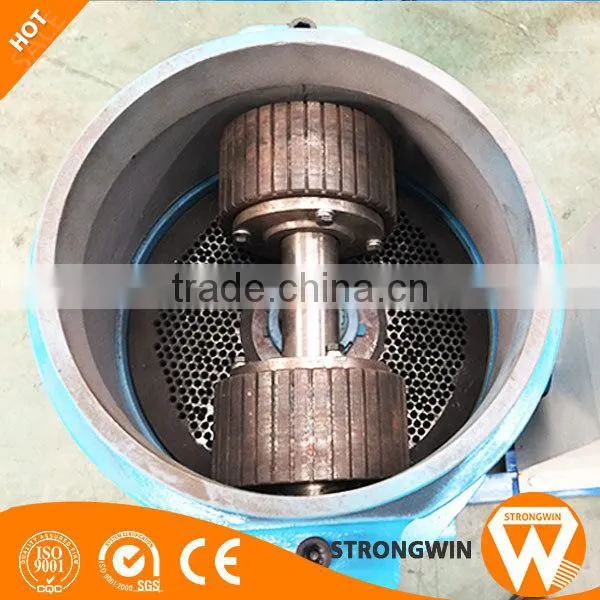

The spare parts roller of the small animal feed pellet mill machine

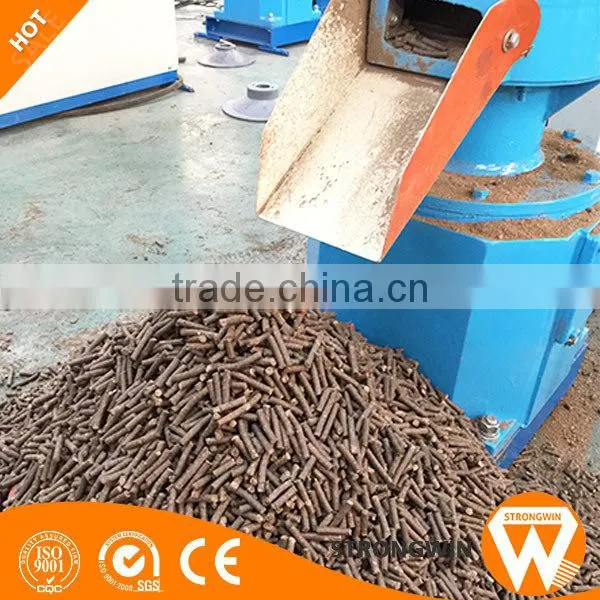

The finished feed pellet made by our feed pellet mill machine

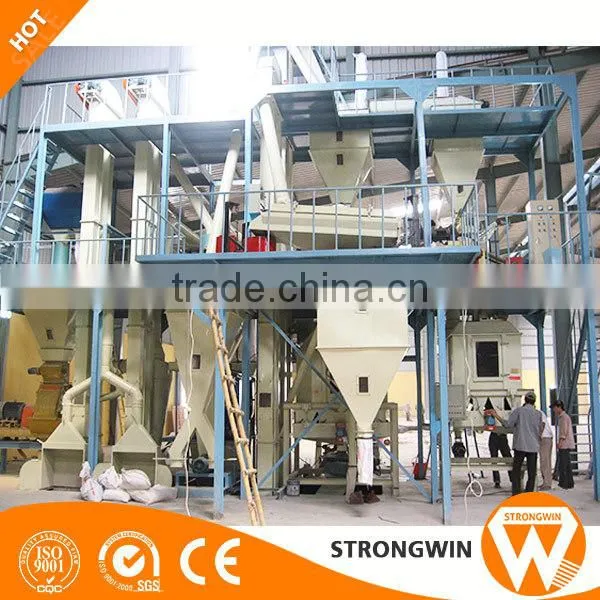

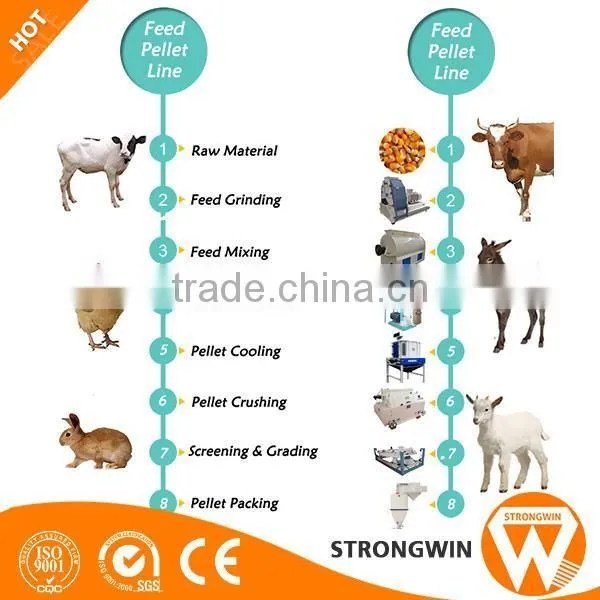

5. We also provide complete feed production line for you.
6. feed pellet mill Certification
THE REASONS WHY YOU CHOOSE OUR COMPANY
ONE: Pursue the highest level of Feed Processing Machinery in China,encourage customer to inspect machineries by caliper and calculator. Select Siemens Motor,Choose Swedish SKF Bearing.
TWO: Transform factory into university,build the most professional training & trusteeship team in Chinese feed industry,Ensuring that Strongwin Machinery can be running in a healthy condition by remote supervisory control and nanny trusteeship service.
THREE: Material thickness of main equipment is more than feed machinery standard 2mm,you can weigh and contrast -- Please pick up the caliper and calculator to inspect.
Our feed pelletizing solutions feature great flexibility. According to different feed types, different output configuration can be customized. There are great after-service and pelletizing solutions. If you are intended to start your business to make feed pellets in small or large scale, please do not hesitate to contact us for details.
Looking forward to cooperating with Friends all over the world.
| 100kg/h---10t/h animal feed pellet milling machine pellet machine of animal feed |
