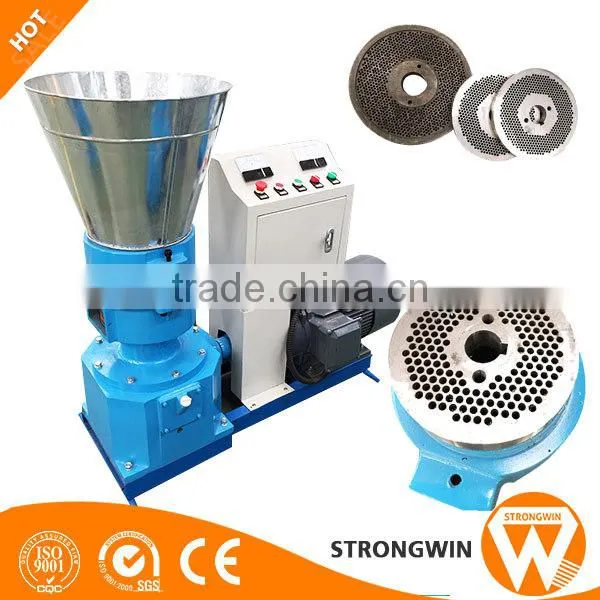

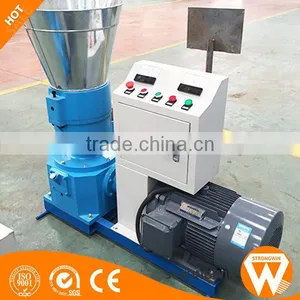

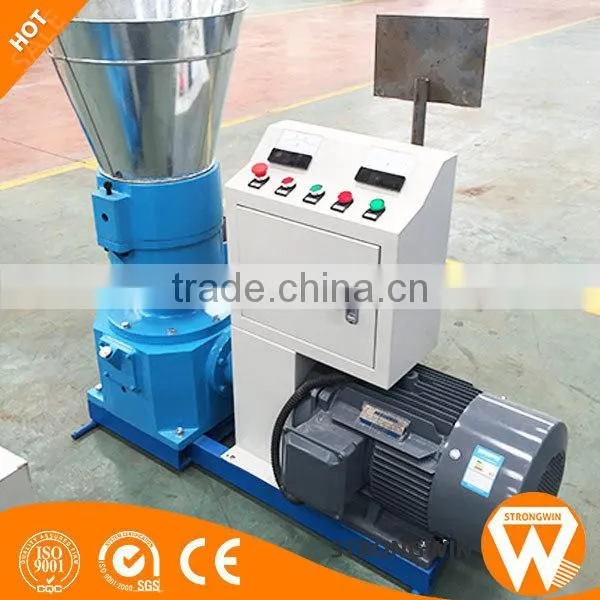

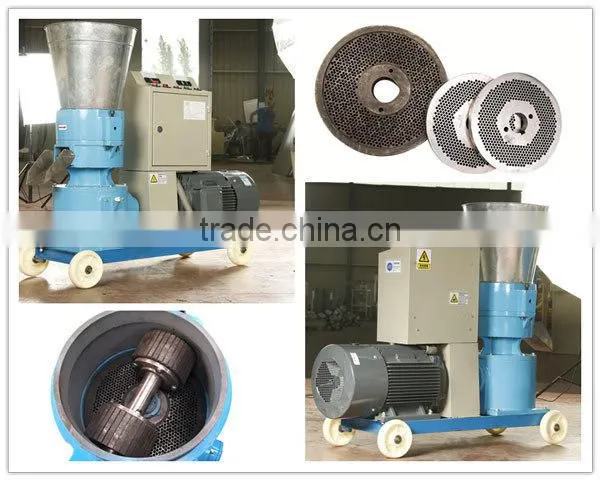

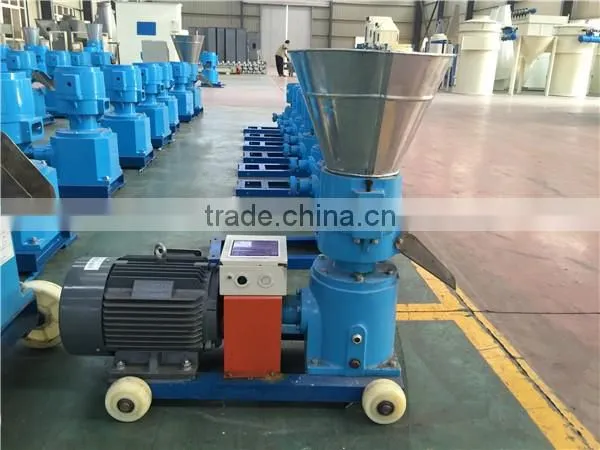

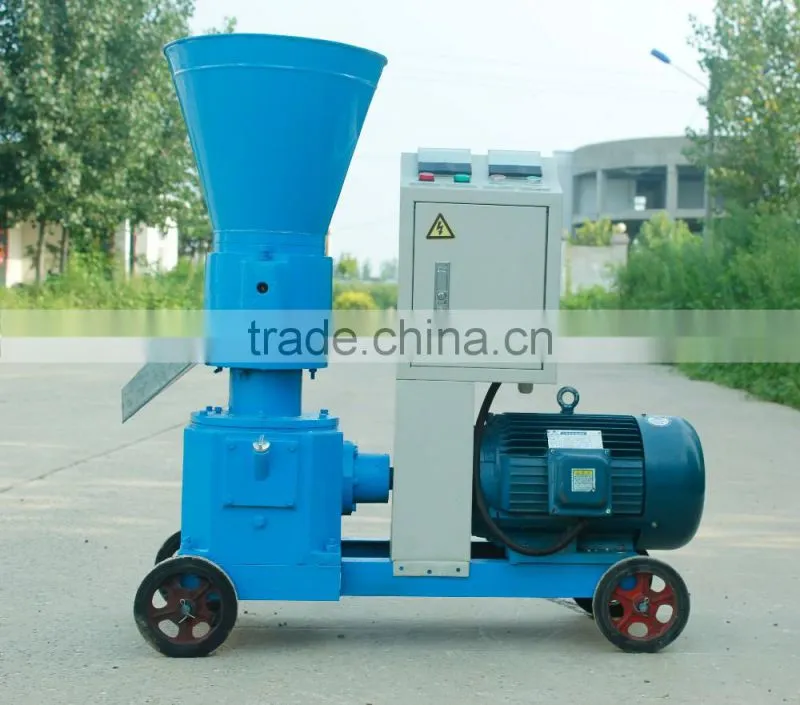

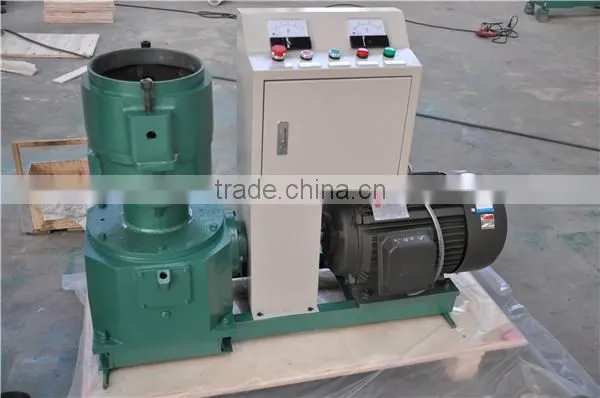

ZLSP-150B Flat Die small animal feed pellet mill
1.23 years Experience, With independent Import and Export Rights
2.Members of China Bioenergy
3.Member of Henan Animal Husbandry and Engineering Association
4.Member of Henan Quality and Safety of Agricultural Machinery Institute
5.CE,IDO,SGS,TUV Certification
Features of ZLSP series Flat Die small animal feed pellet mill
1. Works on the base of the friction and pressure between the roller and the mounted die,flat die wood sawdust pellet machine is also known as flat die pellet press.
2. Flat die pellet machine are the simplest design of animal feed pelletizer, this kind of manure pellet machine had been originally applied mainly in the animal feed market,which was the situation up to the 1970's.
3. Flat die pellet equipment works on a vertical design, using gravity as the main force for feeding the material through the machine.

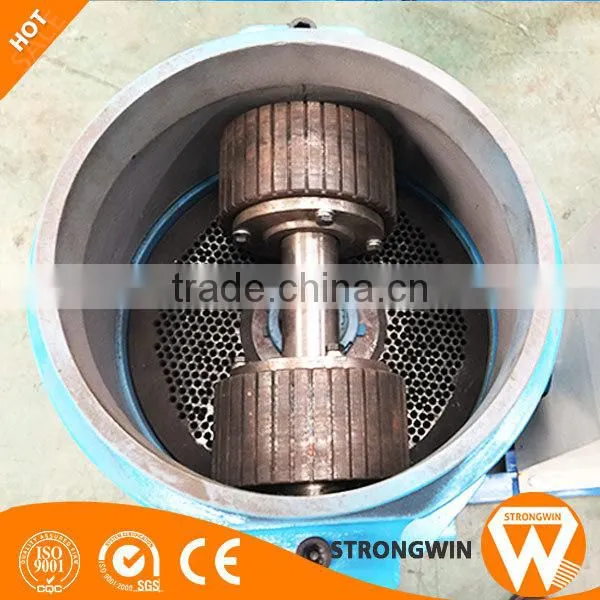

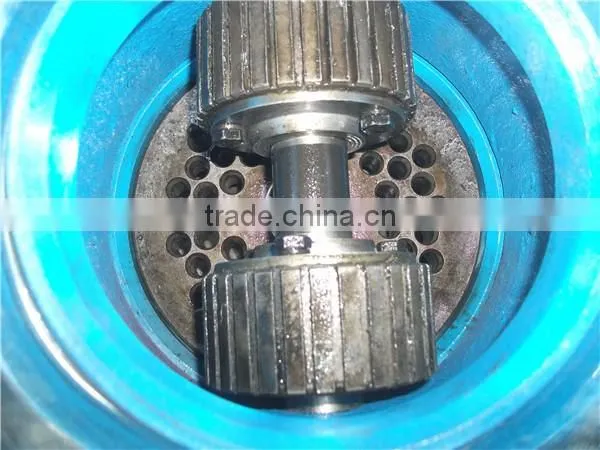

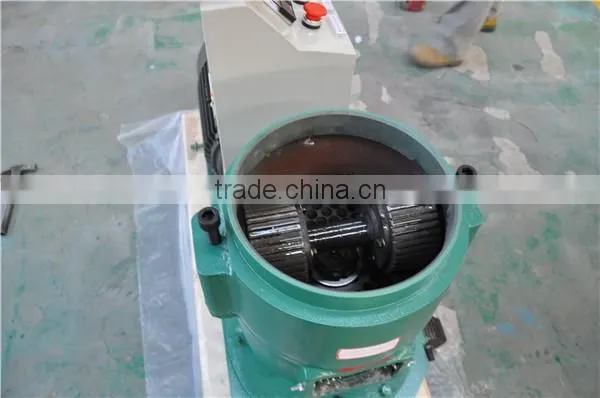

4. Flat die wood pellet mill have a horizontal die, with a series of rollers sitting on the die. When material goes in from the top feed inlet, it is compressed between the rollers and die.
Main Technical Parameters of ZLSP series Flat Die small animal feed pellet mill
| Flat Die Feed Pellet Machine | ||||
| Model | Motor Power | Capacity | Weight | Dimension |
| ZLSP-120A | 8 HP diesel engine (hand) | 75-100kg/h | 120kg/140kg | 900*440*730mm |
| ZLSP-120B | 3phase 3KW /single phase 2.2KW | 75-100kg/h | 210kg | 670*390*910mm |
| ZLSP-150A | 8 HP diesel engine (hand/electric) | 100-150kg/h | 180kg/220kg | 870*440*700mm |
| ZLSP-150B | 3phase 4KW | 90-120kg/h | 95kg/110kg | 700*350*650mm |
| ZLSP-200A | 15 HP diesel engine (hand/electric) | 250-350kg/h | 210kg/240kg | 1000*460*900mm |
| ZLSP-200B | 3phase 7.5KW | 200-300kg/h | 200kg/230kg | 900*430*950mm |
| ZLSP-200C | 3phase 7.5KW | 200-300kg/h | 200kg/230kg | 900*430*950mm |
| ZLSP-230A | 22 HP diesel engine (hand/electric) | 300-400kg/h | 280kg/310kg | 1180*560*1020mm |
| ZLSP-230B | 3phase 11KW | 300-400kg/h | 290kg/320kg | 1140*470*970mm |
| ZLSP-230C | 3phase 11KW | 300-400kg/h | 290kg/320kg | 1140*470*970mm |
| ZLSP-260A | 30 HP diesel engine (electric) | 400-600kg/h | 330kg/360kg | 1200*500*1070mm |
| ZLSP-260B | 3phase 15KW | 400-600kg/h | 320kg/360kg | 1120*490*1070mm |
| ZLSP-260C | 3phase 15KW | 400-600kg/h | 320kg/360kg | 1120*490*1070mm |
| ZLSP-300A | 55 HP diesel engine (electric) | 600-800kg/h | 410kg/450kg | 1220*600*1000mm |
| ZLSP-300B | 3phase 22KW | 600-800kg/h | 480kg | 1170*520*1070mm |
| ZLSP-300C | 3phase 22KW | 600-800kg/h | 480kg | 1170*520*1070mm |
Advantages
1.SIEMENS Motor
2.NSK Bearing
3.Plate is 2mm thicker than the common, durable to use
The oil press machine have been succeed export to: Thailand, Indonesia, Malaysia, South Korea, Japan, Russia, Nigeria, Tanzania, Morocco, Egypt, Algeria, Congo, Kenya, south Africa, Swaziland, Greece, French, Italy, Saudi Arabia, Iran, Georgia, Uzbekistan,Canada, America, Haiti, Honduras, Brazil, Chile, Bolivia,Australia, New Zealand, Fiji, etc.
Customer Visit

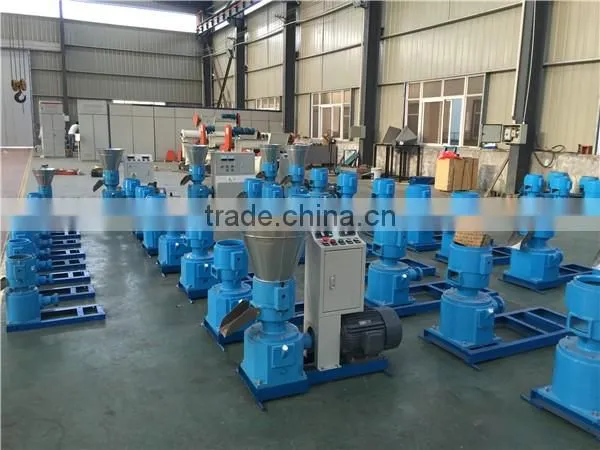

Workshop
1.Feed Pellet machine(Flat Die Type, Ring Die Type)
2.Wood Pellet machine(Flat Die Type, Ring Die Type)
3.Feed Pellet production line
4.Biomass Pellet production line
5.Extrude Feed machine
6.Wood Crusher
7.Mixer
8.Shaker
Welcome your inquiry for more information !
