Hot sell 5 ton per hour poultry feed manufacturing machine pellet mill machine
- 50 Set / Sets per Month
- Qingdao Shanghai Tianjin or other main ports
- T/T Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Strongwin |
Model Number: | SZLH350 | Type: | Feed Pellet Machine | Voltage: | 380V/50Hz or as per the customer's requirement |
Power(W): | 55kw | Dimension(L*W*H): | 2400*1200*2300mm | Weight: | 1990 kg |
Certification: | CE ISO SGS | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

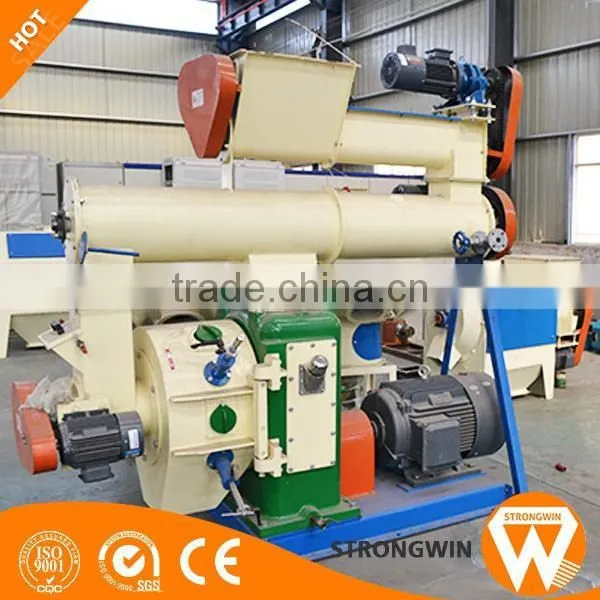

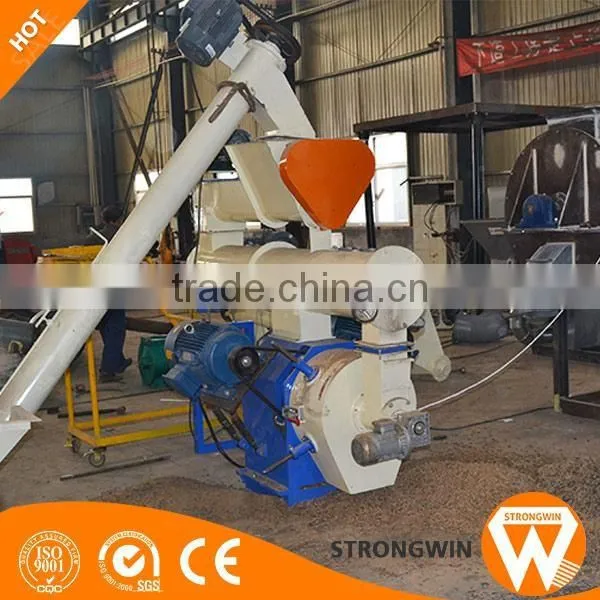

Hot sell 5 ton per hour poultry feed manufacturing machine pellet mill machine
1. poultry feed manufacturing machine introduction
Animal feed pellet line is a complete set of machines that are specifically used to make feed pellets.
The machine group generally including the following process: raw materials receiving and cleaning process, crushing process, mixing process, pellet making process, pellet cooling process, (pellet crumbling process), sifting process and packaging process.
The animal feed pellet machine is one of the key machines in feed pellet production line. It’s die mold is made of stainless steel or alloy steel for your choice. It has the characteristics of low cost, reasonable structure, compact layout, reliable performance and easy maintenance.

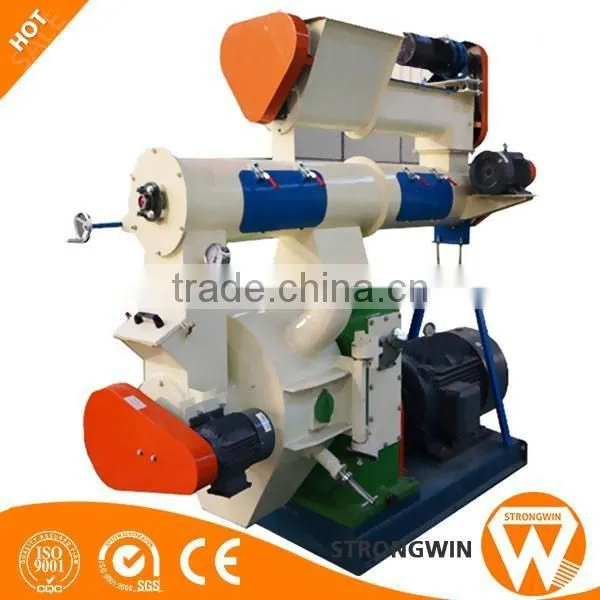

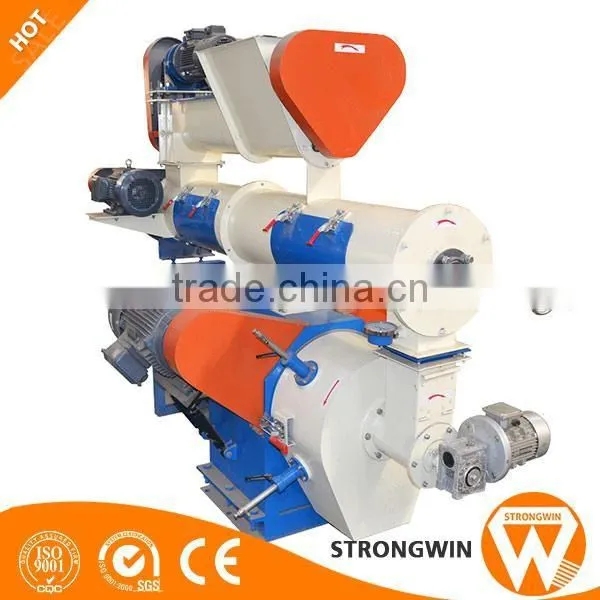

SZLH350 ring die pellet machine is widely used to produce pellets for animals,such as carp, chicken, pig, horse, cattle and other poultry and livestock animal. The pellets by our machine have firm and smooth structure and easy digest.Since now our machines have exported to Mali, Zambia, South Korea, Russia, Oman, Thailand, Bangladesh and so on.Some customers bought a single machine, and most customers bought a production line to found a feed making factory.
2. poultry feed machine features:
- America CPM model,high precision gear driven .
- Stainless steel material,frequency feeding speed control.
- Siemens Motor,Switzerland SKF bearing
- High efficiency,low noise working
ring die pellet machine Application
a. Widely used in large,medium and small aquaculture,grain feed factory,livestock farm,poultry farm,individual farmers, small and medium sized farms, as well as feed manufacturer plant.
b. The raw material and finished pellet:
3. poultry feed manufacturing machine feature and advantage
1). Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;
2). The interlock device, outer machine discharging device and over-load protection device work together to ensure the safety and reliability;
3). Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.
4). The cooking time and result are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.
5). The circulating lubrication oil system is specially designed to ensure the bearings in good condition.
6). The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner are options according to your requirements.
4. poultry feed machine technical parameters
Model | SZLH250 | SZLH320 | SZLH350 | SZLH 400 | SZLH 420 | SZLH508 |
Main Motor Power (kw) | 22 | 37 | 55 | 90 | 110 | 160 |
Conditioner Power (kw) | 1.5 | 2.2 | 2.2 | 3 | 5.5 | 7.5 |
Dia of mould (mm) | 250 | 320 | 350 | 400 | 420 | 508 |
Feeder Power (kw) | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
Size of Finished pellets (mm) | 1.5-12 | 1.5-12 | 1.5-12 | 1.5-18 | 1.5-18 | 1.5-18 |
Yeild (t/h) for animal feed | 1-2 | 2-4 | 2-6 | 3-8 | 4-12 | 4-18 |
Main accessories of pellet mill machine
Spare part | Brand Name |
Electric motor | SIEMENS (Germany) |
Level detector | Autonics (Korea) |
Crusher Bear (Jiangsu China)ring | NSK(Japan) |
Pellet machine bearing | SKF(Switzerland) |
IPC(industrial personal computer) | ADVANTECH Industrial Controlled Computer (Taiwan) |
position switches | Omron (Japan) |
Reduction box | Itc cathay Pacific (Jiangsu China) |
5. poultry feed manufacturing machine some pictures

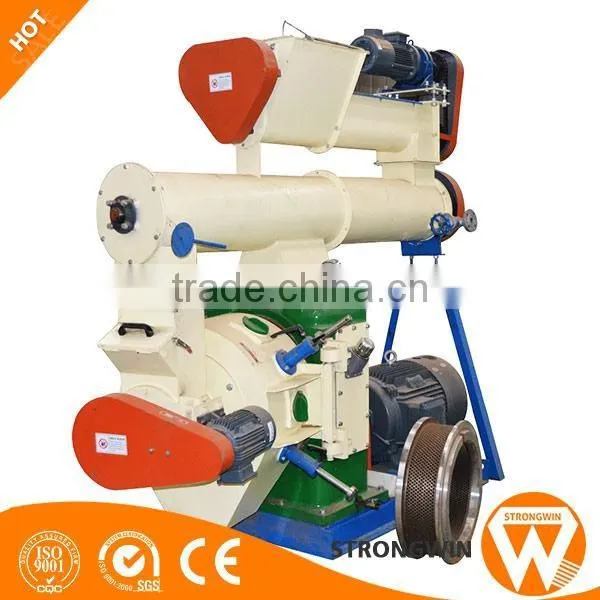

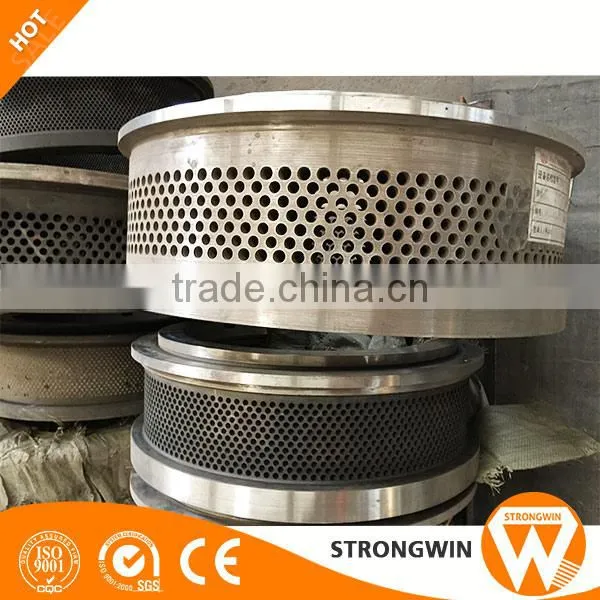

The ring die of the poultry feed machine

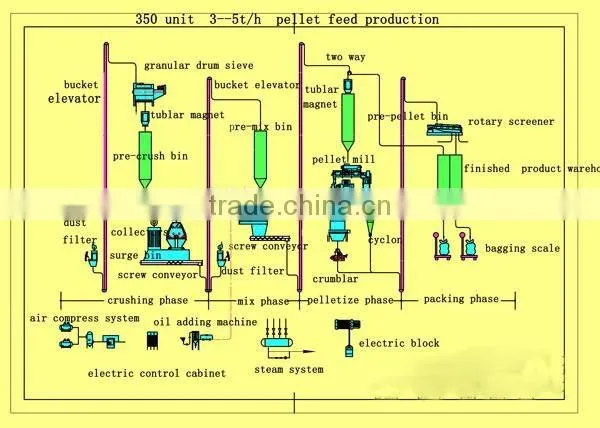

Drawings of the feed pellet production line
We also provide complete feed production line for you.

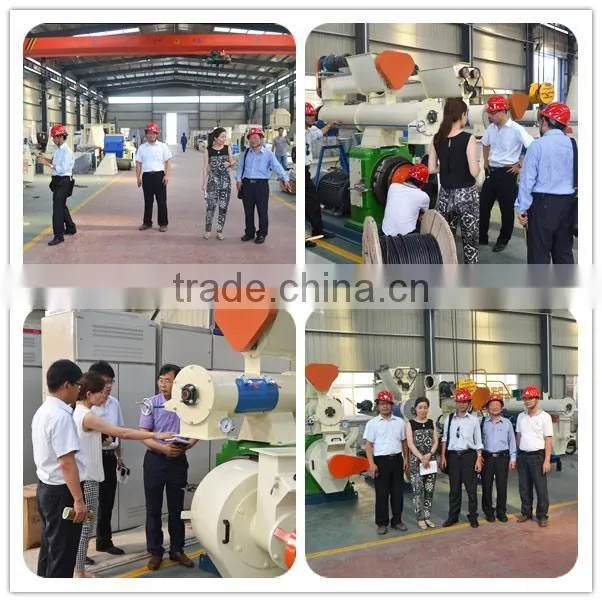

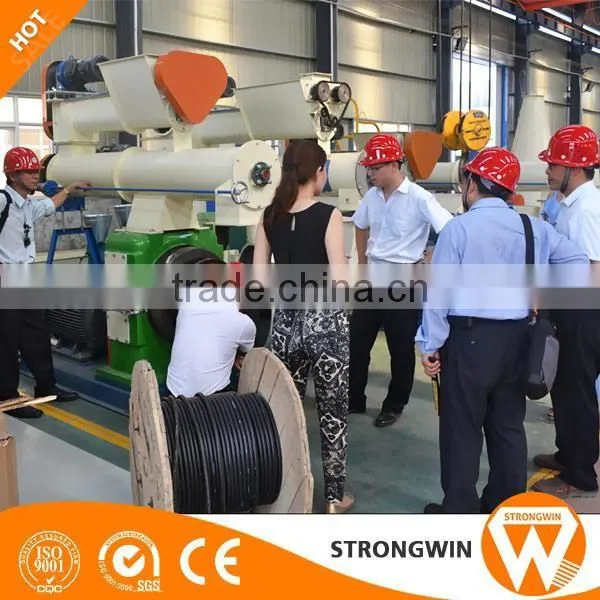

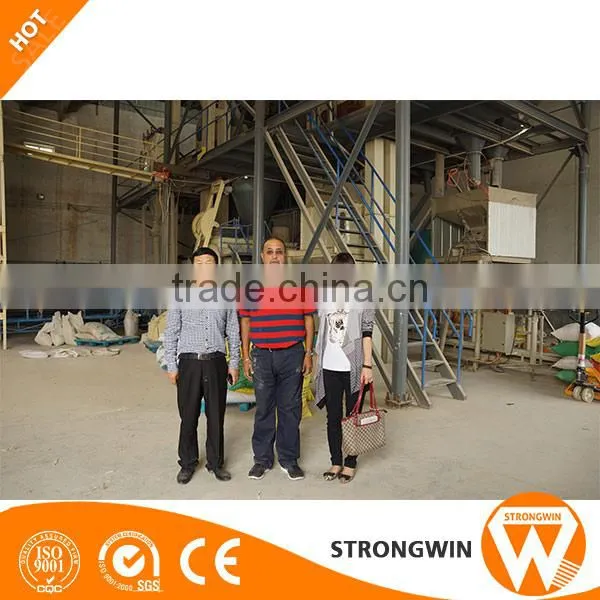

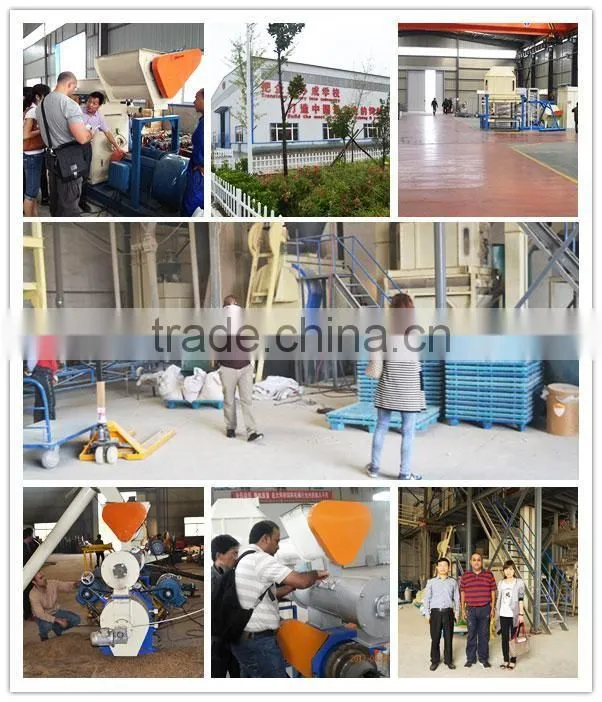

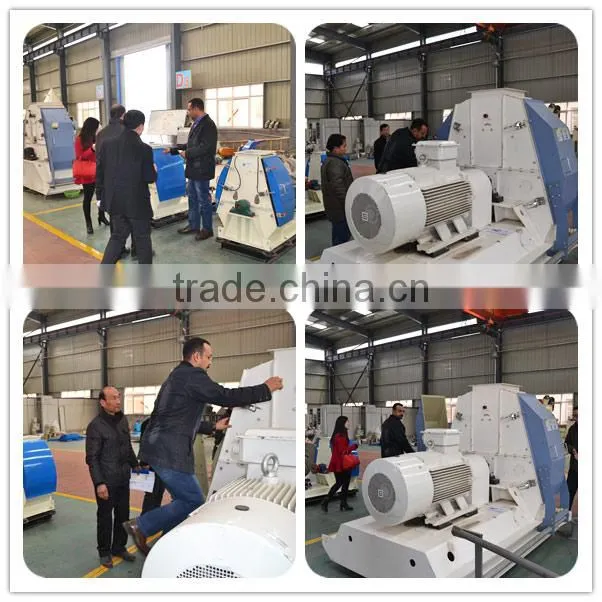

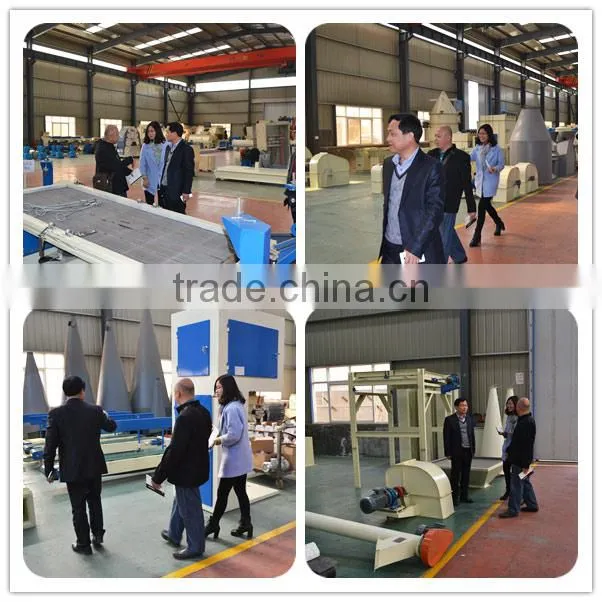

Customer Visiting and Testing on Site
6. feed pellet mill machine Certification
Packing condition
♥Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.
♥Tight the equipment in the truck without space to ensure no rubbing during the transportation.
THE REASONS WHY YOU CHOOSE OUR COMPANY
ONE: Pursue the highest level of Feed Processing Machinery in China,encourage customer to inspect machineries by caliper and calculator. Select Siemens Motor,Choose Swedish SKF Bearing.
TWO: Transform factory into university,build the most professional training & trusteeship team in Chinese feed industry,Ensuring that Strongwin Machinery can be running in a healthy condition by remote supervisory control and nanny trusteeship service.
THREE: Material thickness of main equipment is more than feed machinery standard 2mm,you can weigh and contrast -- Please pick up the caliper and calculator to inspect.
Our feed pelletizing solutions feature great flexibility. According to different feed types, different output configuration can be customized. There are great after-service and pelletizing solutions. If you are intended to start your business to make feed pellets in small or large scale, please do not hesitate to contact us for details.
Looking forward to cooperating with Friends all over the world.
