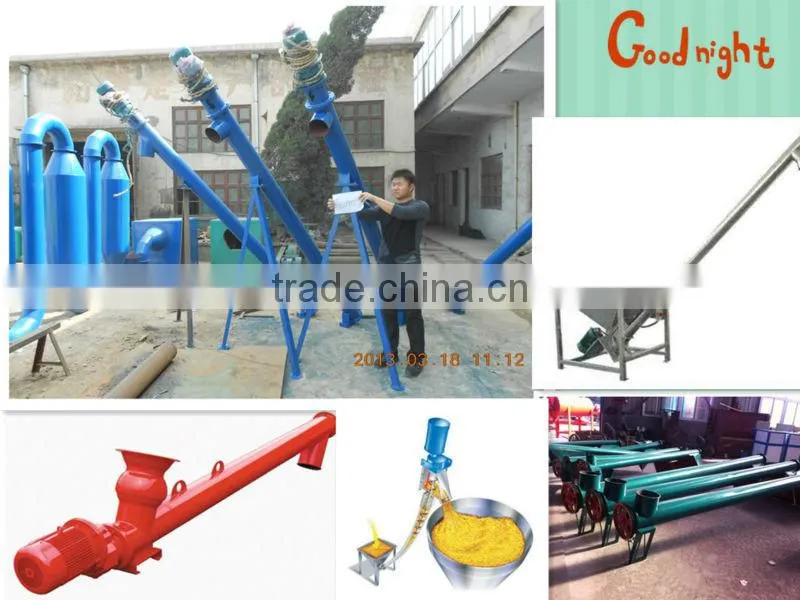

NEW screw conveyor/Grain Screw auger elevator/Spiral elevator
Description of screw auger elevator
This series of screw auger elevator is mainly used to work with powdery storage tank like cement silo to transport powdery material.
The advantages of screw auger elevator
1. Efficient delivery : small diameter , high rotating speed, large transmission capacity, variable pitch of spiral body, and small resistance of intermediate bearing make loading material smoothly, quickly and evenly.
2. Random arrangement : conveyor has good integral rigidity and can transport the products flatly or steeply inclined, it can be connected with its corollary equipments directly , and can be set up and dismantled easily with small floor space.
3. Good lubrication : low oil lubricating sliding tile, multilayer labyrinth oil seal design and integral lubricating system composed of of oil pump, distributor and pipeline are convenient and can completely lubricate all the running parts.
4. Reliable sealing : the dust cover of reducer is reliable for preventing leakage which can protect reducer and create good working condition. Improved peephole can prevent water seepage and material leakage .
5. Diverse connection : feed inlet and outlet can be connected not only with universal ball, bag,flange etc but also butterfly valve and gate valve.
6. Innovative design: special reducer designed and produced with introduced technology not only has the advantages of a small size, a big bearing torque ,low noise, no oil leakage etc, but also has the stable quality , reliable performance and long life.
|
Model
|
FXY160 |
FXY200 |
FXY250 |
FXY300 |
Metric diameter of screw(mm) |
160 |
200 |
250 |
300 |
Length of screw conveyor(m) |
2.5-6 |
4.5-12 |
6-9 |
6-9 |
Rotary speed of main axle |
100 |
209 |
209 |
174 |
External case diameter(mm) |
194 |
219 |
273 |
325 |
Woking angle |
<=20° |
<=35° |
<=35° |
<=35° |
Conveying capacity(t/h) |
25 |
25 |
50 |
75 |
Model of motor |
Y100L-4 |
Y132M-4 |
Y160M-4 |
Y180M-4
|
Power of motor |
3-7.5kw |
4-11kw |
7.5-11kw |
11-18.5kw |

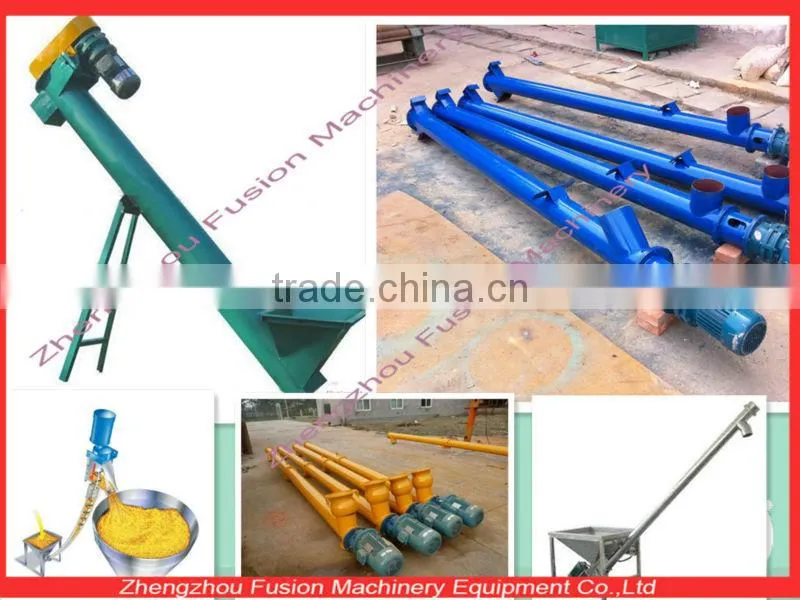

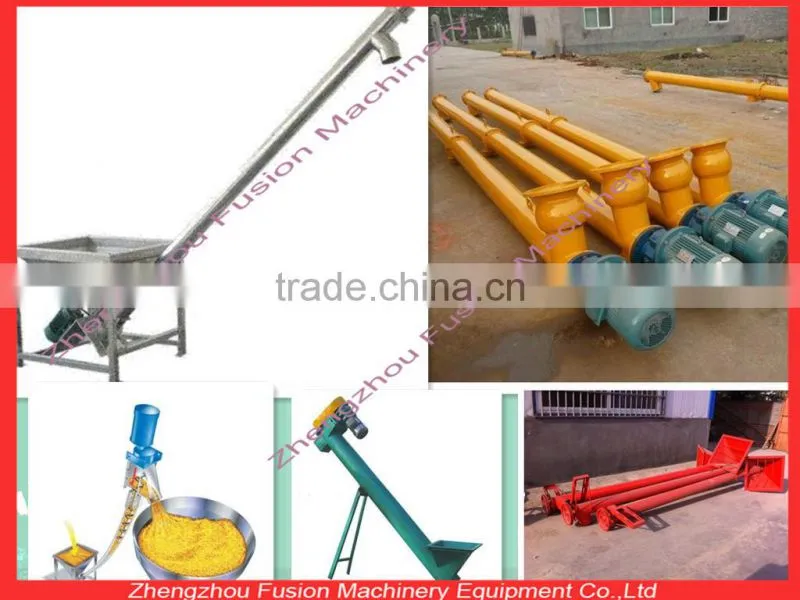

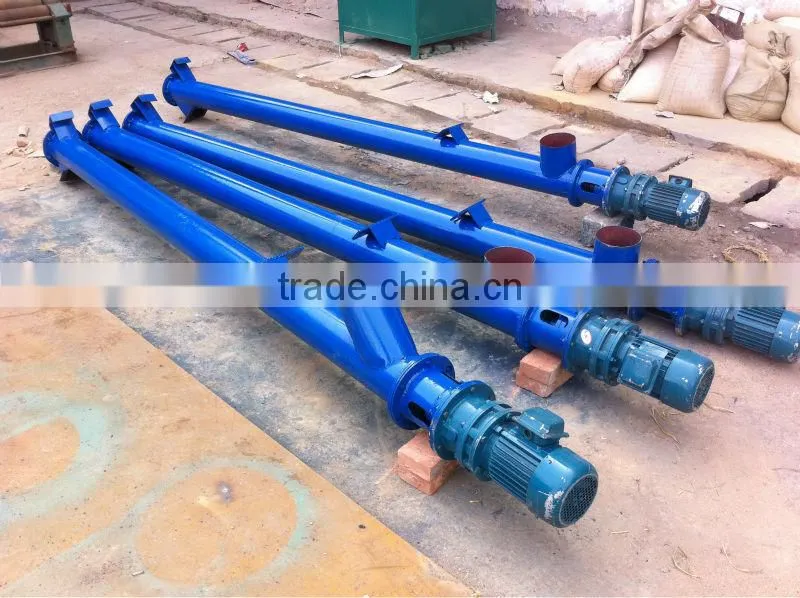

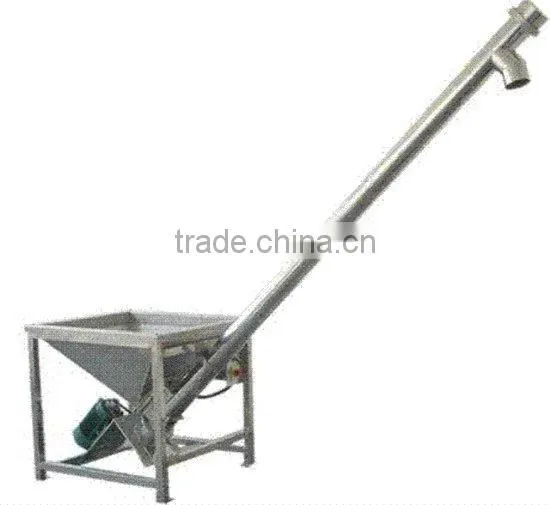

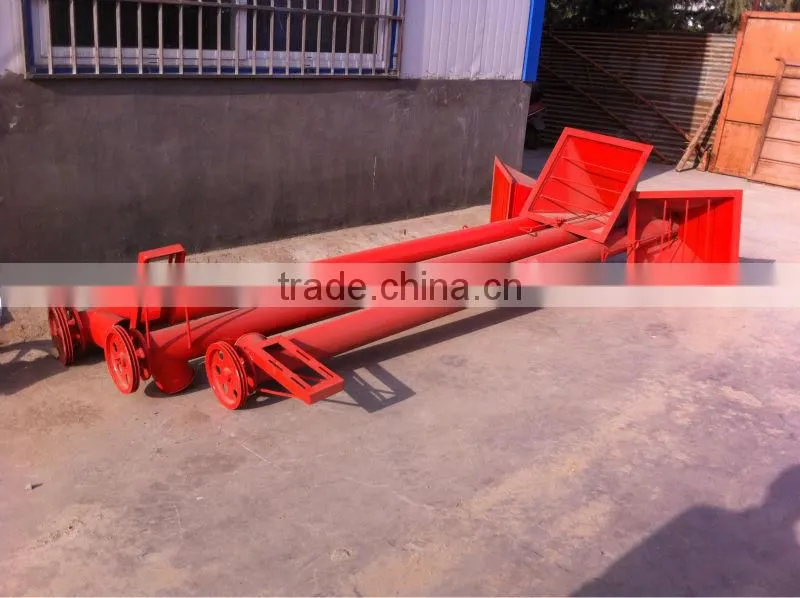

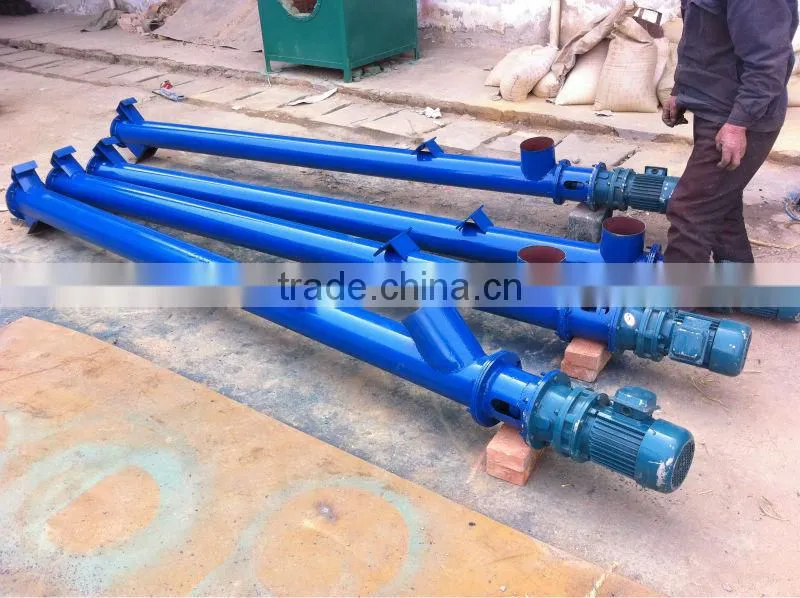

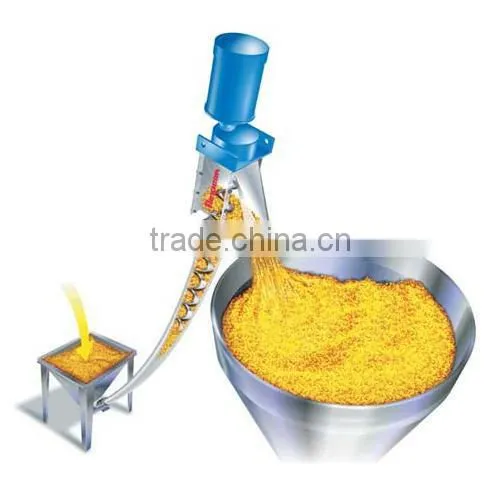

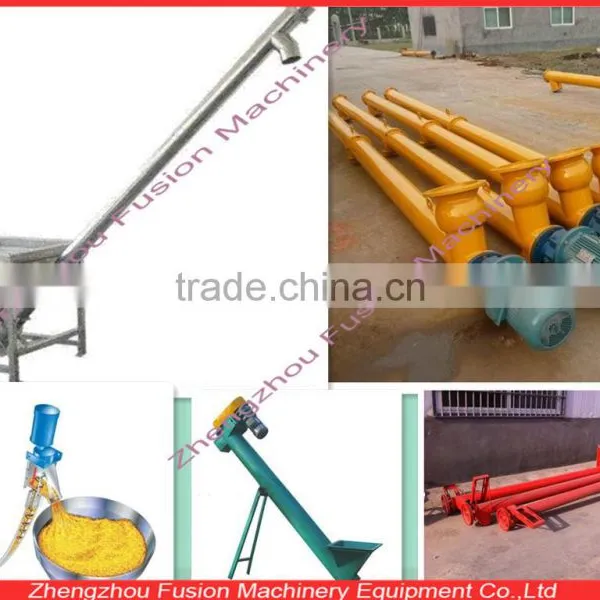

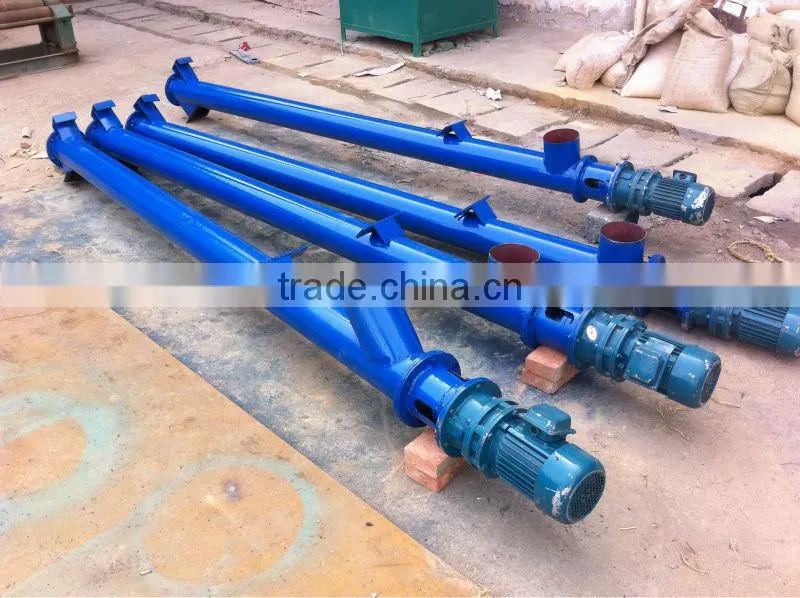

pictures
