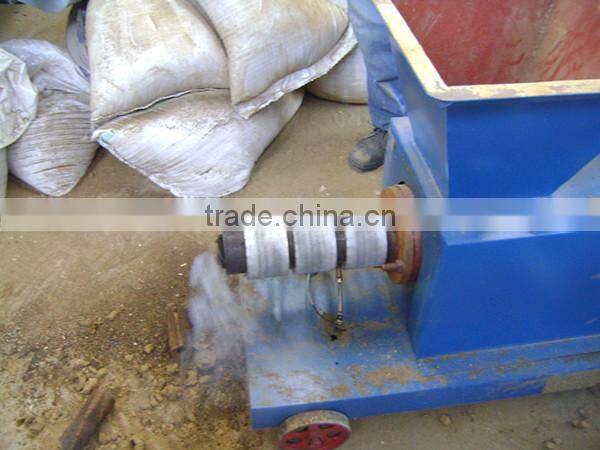

50mm Diameter Durable wood sawdust briquette extruder machine
Description of wood sawdust briquette extruder machine:
This wood sawdust briquette extruder machine is the use of wood chips, sawdust, crop straw (corn stalks , large soybean straw,sorghum, cotton stalks, rape stalks, peanut vine, sunflower stalk), chaff, grasses, shrubs, wood cut-off head, bamboo sawdust, bagasse, etc. as raw materials. and under conditions of high temperature and pressure, the use of the inherent characteristics of the wood raw material, through the screw extruder, and made into the main equipment of the rod-like solid fuel.

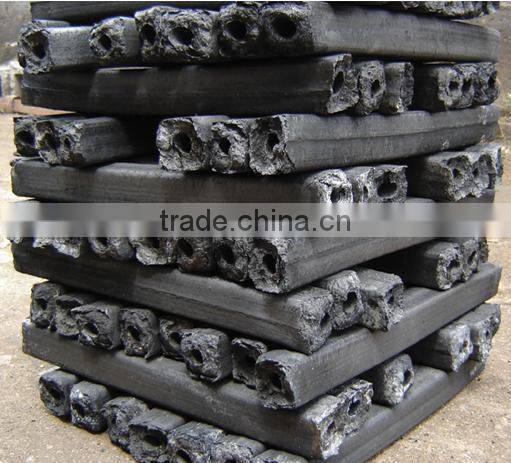

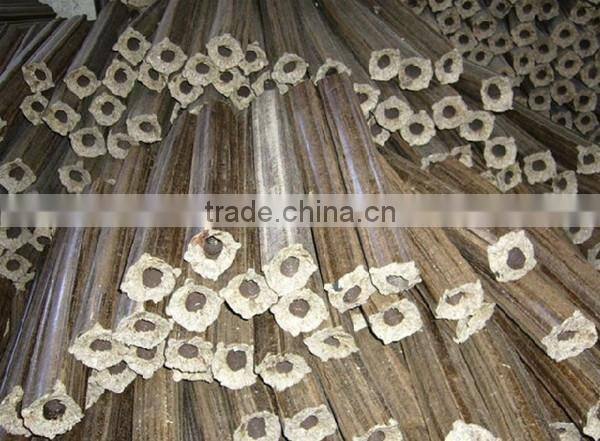

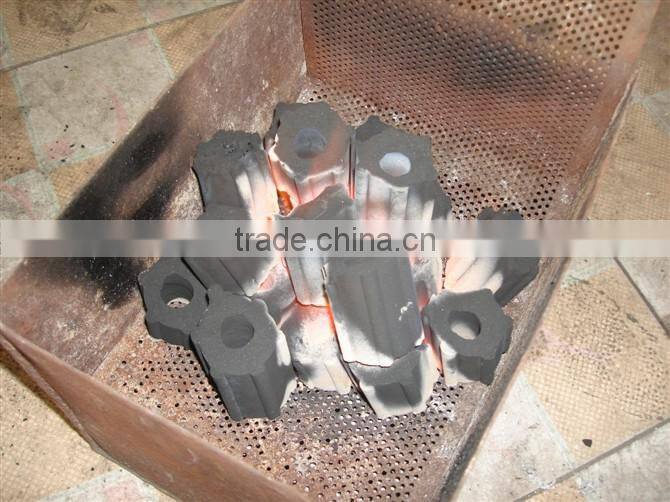

The produced carbon rod density, small size, flammable, and can replace firewood and coal-fired. Products in general an outer diameter of 50-80mm, and a pore diameter of 15-20mm, was a hollow quadrangular or hexagonal columnar. Can also be made spherical, particle-shaped, honeycomb-shaped.
The wood sawdust briquette extruder machine is a waste of renewable energy technology, calorific value is higher than the charcoal of similar raw materials, higher than the average coal.
Particularly suitable for winter heating, greenhouse warming or for ordinary life fuel. Industry instead of coal or heavy oil burning steam boilers, silicon carbide factory, explosives plants, garment factories , sewage treatment plants, mosquito coils plant, activated carbon plants and other industrial raw materials.
wood sawdust briquette extruder machine characteristics:
1, raw material humidity within 5-12%.
2, do not need to add any binder and harmful chemicals.
3, using state-of-the-art hot air drying system, drying with excellent results.
4,Carbonization equipment high temperature, purification, unless the smoke can be semi-finished products into smokeless, odorless, non-toxic cleaning carbon.
Technical data of the wood sawdust briquette extruder machine:
Model NO. |
FX-50 |
FX-60 |
FX-80 |
Productivity( Kg/h) |
150-200 |
200-250 |
250-350 |
Motor power (KW) |
11 kw-15kw |
15 kw-18.5kw |
18.5kw-22kw |
Weight (kg) |
550 kg |
650kg |
800 kg |
Dimension (mm) |
1800*700*1450 |
1800*700*1450mm |
2200*900*1600 |
Moisture |
5%-12% |
5%-12% |
5%-12% |
Production size |
Diameter :50mm |
Diameter :60mm |
Diameter :80mm |

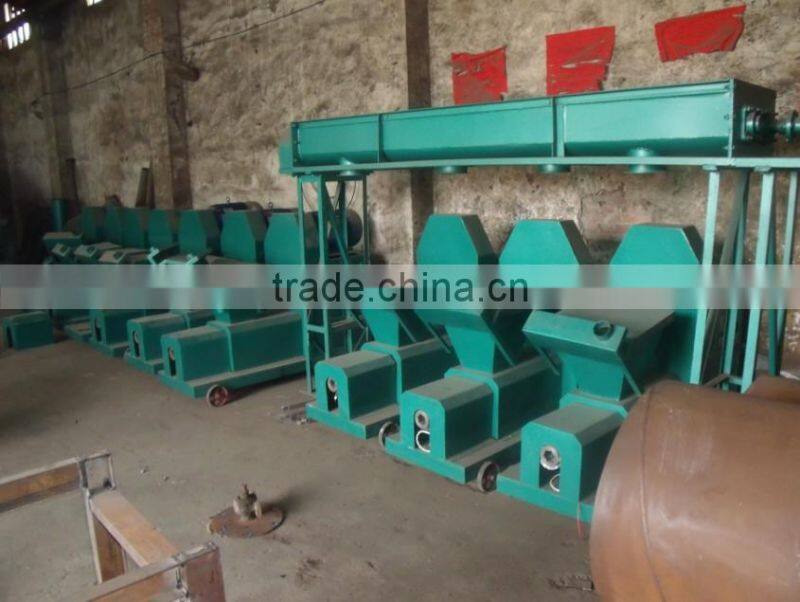

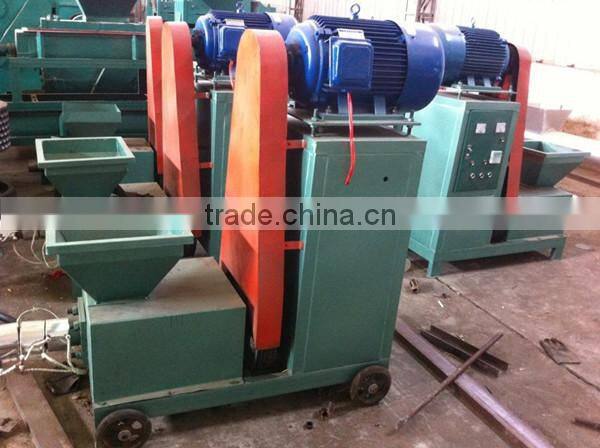

More Photoes:

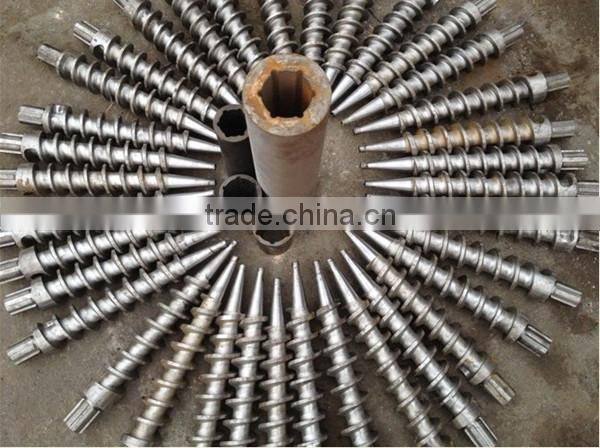

Some spare parts:
