Specifications
1 production speed: 200 m/min2 qualification rate : 99.9%
3 sold to Canada Pakistan Malaysia Nigeria Iran

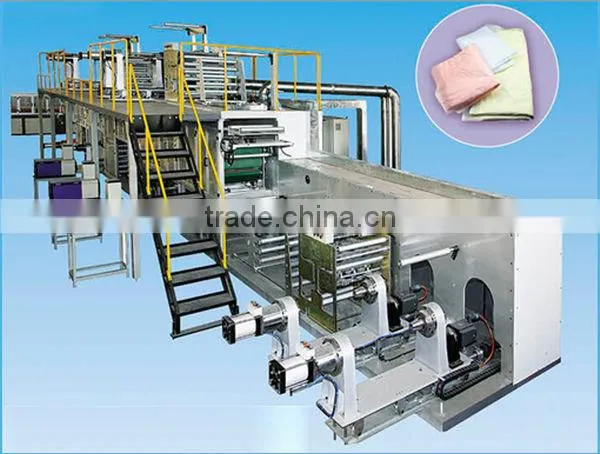

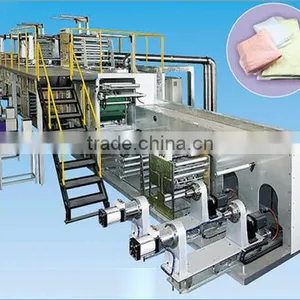

FULL SERVO MATERNAL UNDER PAD MACHINE
1 Technical parameters:
Designed speed: 220 M/Min
Real production Speed: 200 M/Min
Product size: L: (350-1500)mm x W(300-900)mm
Qualified rate: 99.99% (The rate is compared with qualified products with gross output products within7.5 hours)
Efficiency: ≥90%(The rate is compared real output with principle output within 7.5 hours)
Installed capacity: 200KW(Including hot melt system)
Practical capacity: 140KW(Including hot melt system)
Electric power supply: Three-phase & four-wire 380V/50HZ(Ground wire)
Electric wire: 3x95mm2+1x25mm2+1x16mm2
Air compressor: >0.6Mpa, 1.8m3/min
Weight: about 70T
Noise: <85dB(A)
Machine size: (25x8x4)M
Working size: (29x10x5)M
Container: 3x40HQ+1x20GP
2. FUNCTIONS&FEATURES
Single drum former device. Crusher can take both treated and untreated fluff pulp.
Fluff pulp feeding is controlled by servo motor. Or air laid paper can be used instead of fluff pulp to produce high quality pads.
SAP feeding device. SAP is added mixed with fluff pulp and controlled by servo motor. If use air laid paper to instead of fluff pulp, then SAP feeding device can be used as spare device.
Tissue paper double sides feeding units. If use air laid paper to instead of fluff pulp, then tissue paper is unnecessary to use.
Net shape pressing device. Cylinder pressing.
Fluff core or air laid paper position adjusting device
Fluff core or air laid paper cutting device. Cylinder pressing.
Bottom film and top sheet materials feeding unit , Glue adding and fixing shape by pressing.
Pad vertical folding
Wastes rejection device
Pad crosswise folding
Auto-counting and arrange coming out. (The main machine can link with stakcer machine to do automatic packing .)
3. SCHEME LIST
| Name | Unit | Quantity | Brand | Country of Origin |
| servo motor | set | 44 | A.B or Siemens or Mitsubishi | Germany or Japan |
| web guide | set | 4 | FIFE or BST | USA or Germany |
| touch screen | set | 1 | Siemens or Mitsubishi | Germany or Japan |
| PLC control system | set | 1 | Siemens or Mitsubishi | Germany or Japan |
| sensor | set | 24 | Sick,Omron,Delixi | European or Japanese |
| safety protection-phase switch,stay wire switch | set | 30 | Schmersal | Germany |
| hot melt applicator | set | 3 | ITW or Nordson | USA |
| material of cutter D2 | set | 3 | A.finkl | USA |
| bearing(according to use) | set | 1 | BEM/NSK/SKF | Germany/Japan/Sweden |
| timing belt | set | 1 | optibelt/gates | Germany/USA |
| low-voltage electrical equipment | set | 1 | Schneider | France |
| electric connect terminal | set | 2000 | Phoenix Contact | Germany |
| pneumatic component | set | 1 | SMC | Japan |
| solenoid valve | piece | 40 | SMC | Japan |
| water content segregator | piece | 1 | SMC | Japan |
| failure automatic warning | set | 1 | Mitsubishi | Japan |
| planet speed reducer | set | 4 | VGM | Taiwan China |
| motor | set | 14 | Siemens | Germany |
| automatic rejection system | set | 1 | Our company | Our company |
| dust recycle system | set | 1 | Our company | Our company |
| waste recycle system | set | 1 | Our company | Our company |
| safety protect system | set | 1 | Our company | Our company |
| raw material loading and unloading davit arm | set | 1 | Our company | Our company |
| raw material outer-fixed system | set | 1 | Our company | Our company |
| cotton core wheel forming unit | set | 1 | Our company | Our company |
| SAP feeding unit,quantity can be adjusted | set | 1 | Our company | Our company |
| cotton core press embossing | set | 1 | Our company | Our company |
| bottom tissue feeding unit | set | 1 | Our company | Our company |
| cotton core cutting | set | 1 | Our company | Our company |
| bottom PE film feeding,automatic unwinding | set | 1 | Our company | Our company |
| top layer,absorb cotton core,back sheet complex pressing | set | 1 | Our company | Our company |
| urgent stop | piece | 7 | Our company | Our company |
| products length folding and pressing | piece | 1 | Our company | Our company |
| products final cutting | set | 1 | Our company | Our company |
| products tri-folding | set | 1 | Our company | Our company |
| products output | set | 1 | Our company | Our company |
| pulp feeding unit with frequency controller | set | 1 | Our company | Our company |
| main materials automatic run,auto connection unit | set | 4 | Our company | Our company |
| tension control | set | 4 | Our company | Our company |
| products output in a line | set | 1 | Our company | Our company |
| stacker with 2 exits | set | 1 | Our company | Our company |
4. OUR PROMISE
1, we can customize the production line, as per customers' requirements.
2, our whole set of components are all imported from overseas.
3, within one year, all components are free to replace when wrong since the day of installation.
4, engineers available to service machinery overseas.
5, we can supply raw materials for your production.

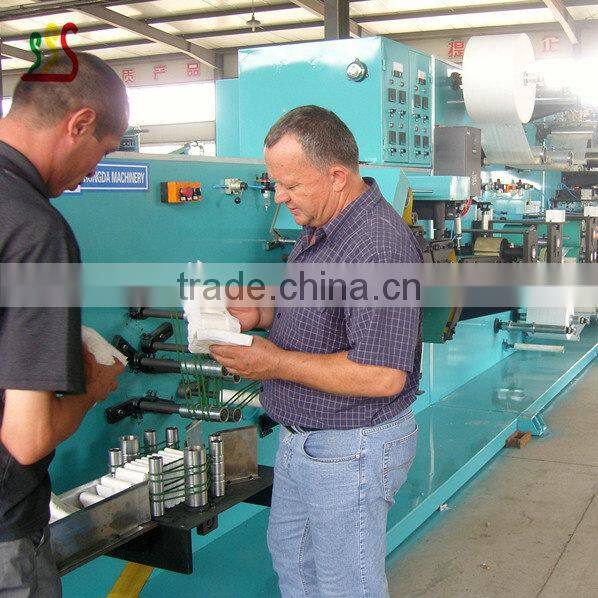

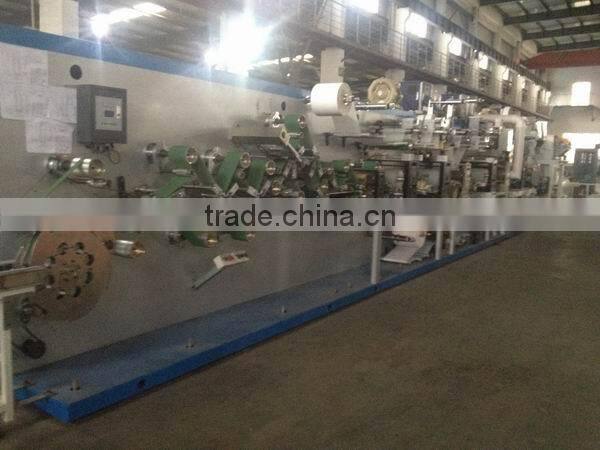

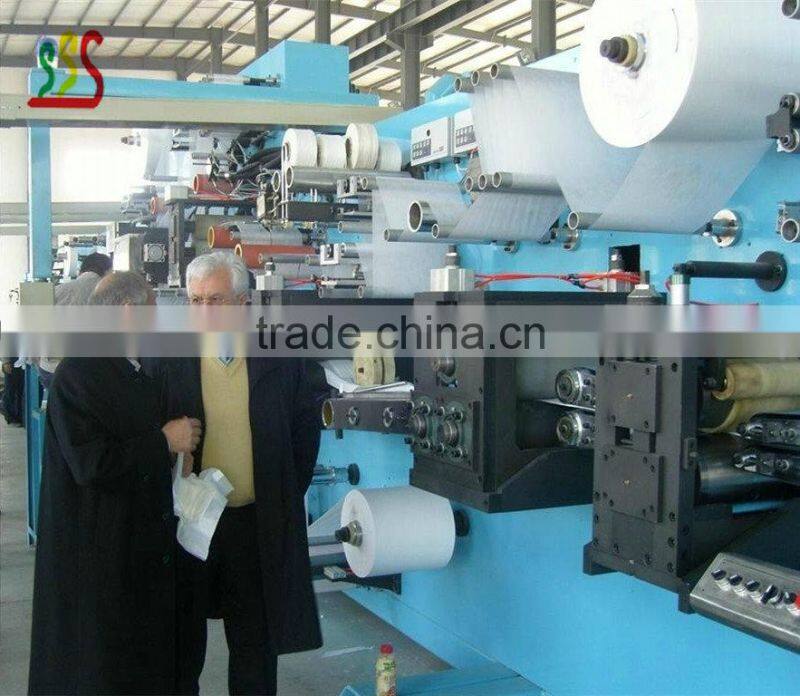

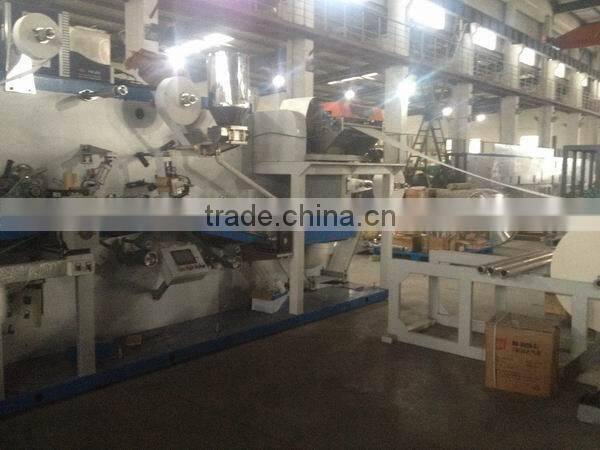

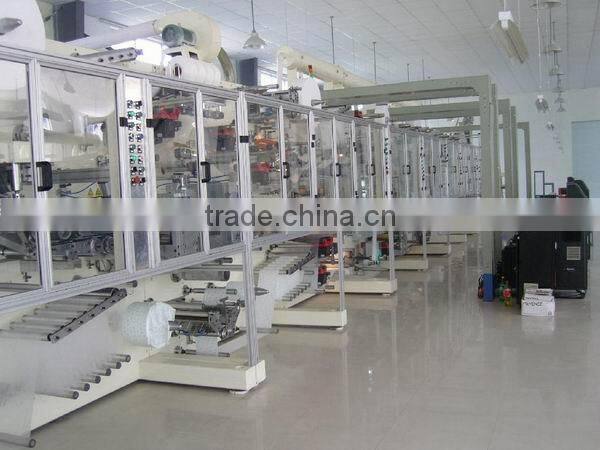

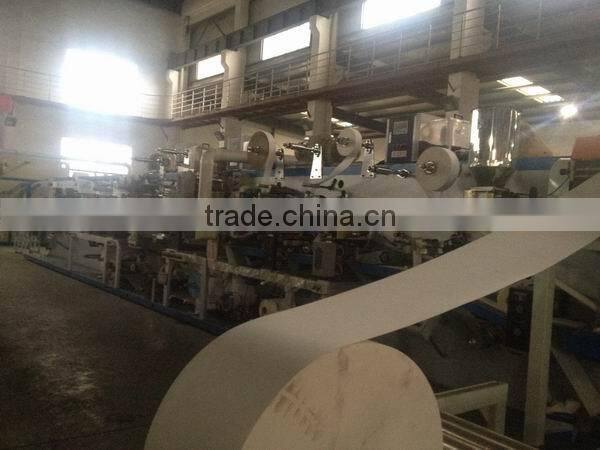

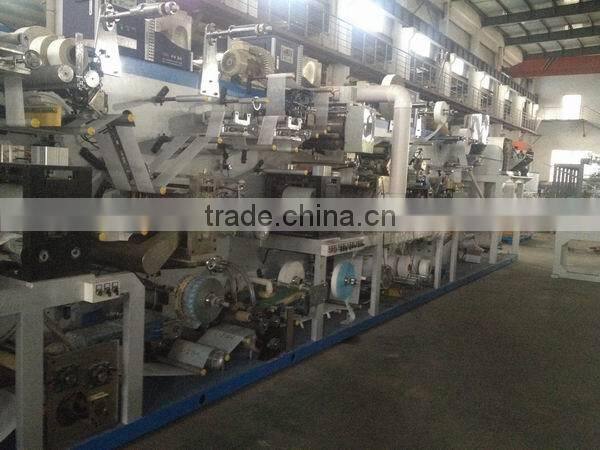

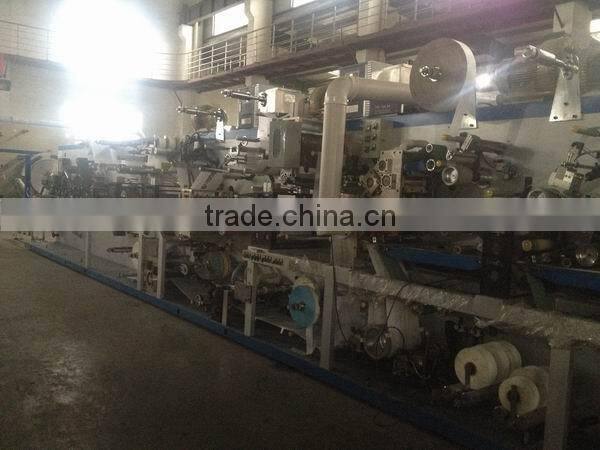

5. PICTURES
