Help CenterBaby Diaper Machine for All Kinds of Diaper
Related Products
-
High Efficiency Baby Diaper Machine Suitable All Kinds of DiaperUS$ 100,000 - 300,000MOQ: 1 Set -
Easy to Operate the Baby Diaper Machine Production Capacity is HighUS$ 100,000 - 300,000MOQ: 1 Set
-
High Productivity Baby Diaper MachineUS$ 100,000 - 300,000MOQ: 1 Set
-
Baby Diaper Machine With Diapers High Yield and SafeUS$ 100,000 - 300,000MOQ: 1 Set
-
Baby Diaper Machine With Defective Rate is LowUS$ 100,000 - 300,000MOQ: 1 Set
Specifications
1.Product variety2.Production of low energy consumption
3.Products of good quality
4.Production speed is fast
Rare power :65KW
Designed speed: 150 pcs / min
Stable produce speed: 80-100 pcs / min
Air consumption :1000 liter / min
Air pressure : 8-10 bar
Wastage : less than 2% (exclusive of inferiors caused by material connection in glue machine or interface of material connection )
Weight :30ton
Direction of the machine: as buyers’ requirements
Overall size of machine : 18L×2.5W×3H(M)
2 Specification
| Specification | Length of whole | Width of whole | Width of cotton core |
| XL | 500mm | 340mm | 90—120mm |
| L | 480mm | 330mm | |
| M | 430mm | 320mm | |
| S | 380mm | 300mm | |
3 Main equipment list
| Name | Unit | Quantity | Origin |
| pulp roll crushing machine | Set | 1 | OUR COMPANY |
| quantitative feeder machine | Set | 1 | OUR COMPANY |
| main machine of diaper | Set | 1 | OUR COMPANY |
| glue machine | Set | 2 | As customer's requirement |
| original blower | Set | 2 | OUR COMPANY |
| high pressure blower | Set | 2 | OUR COMPANY |
| electrical control cabinet | Set | 1 | OUR COMPANY |
| triple folding system | Set | 1 | OUR COMPANY |
4 Basic functions & characters
1,Stable square steel frame, face plate 20mm, floor plate 18mm, and square steel 150mm×150mm,120*120mm,100*80mm to strengthen the intension of the frame.
2, Upstroke crushing machine , can crush treated pulp .
3,Forming in quantative feeder machine, and the weight can be adjusted.
4,Pulp is formed evenly so as to be mixed with SAP sufficiently.
5,U-style cover of tissue
6,Equipped with SAP feeder device , increasing the water absorptivity of products
7,Arc-shape out-cutting & the tool post made of steel 45# with the thickness of outside and inside plate 35mm. Pressure can be adjusted by scale watch to easily operate and make the equal pressure of the two sides.
8,Lengthways-fold finished products, & products compacted, pressed and dragged by the cylinder
9,Three-fold unit folds two times to form the three-fold finished products.
10, Product collocation and convey unit with a clip transmission part to avoid rebounding
11, Intermediate feed of glue machine & lighter on the position of spaying glue
12, Speed of host machine( 22KW ) controlled by VFC
13, Driving system with spindle drive, gear box, timing belt, differential, gimbal & many shafts
14, Gear box & differential for new type diaper to lessen the transmission error
15, Gimbal used to cut paper pulp, embossing of solid protective part, front tape cutting, side tapes cutting, arc-shape cutting and product cutting
16, Supplying the air unifiedly
17, With the maintain lighter
18, A new type of air suction pipe to avoid the belt running towards the wrong way
19, The electric elements made in Delixi & Schneider companies, conveyer belt in Mitsubishi, Japan, timing belt in JB and axletree in NSK, Japan & WFD
20, All arc cutters made in Sanming, Fujian.

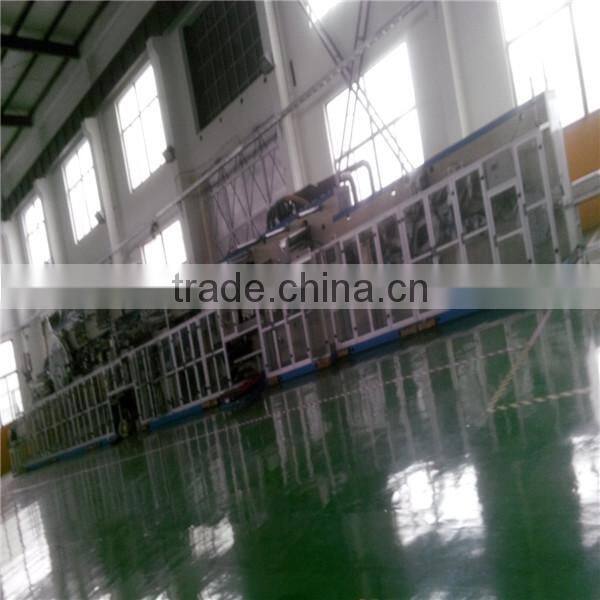

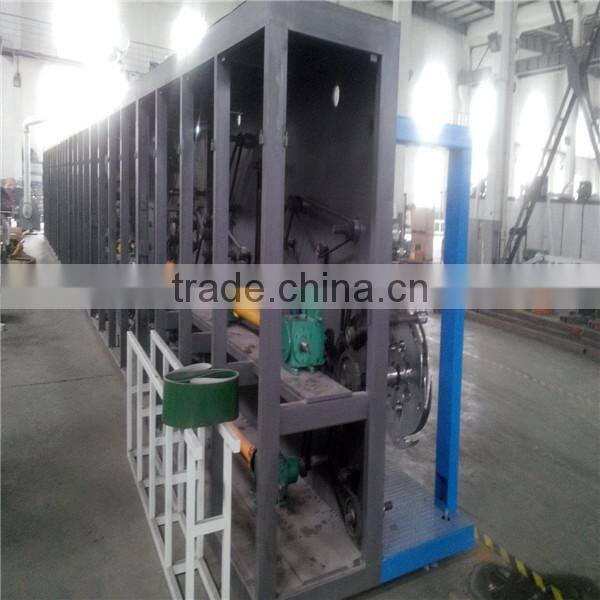

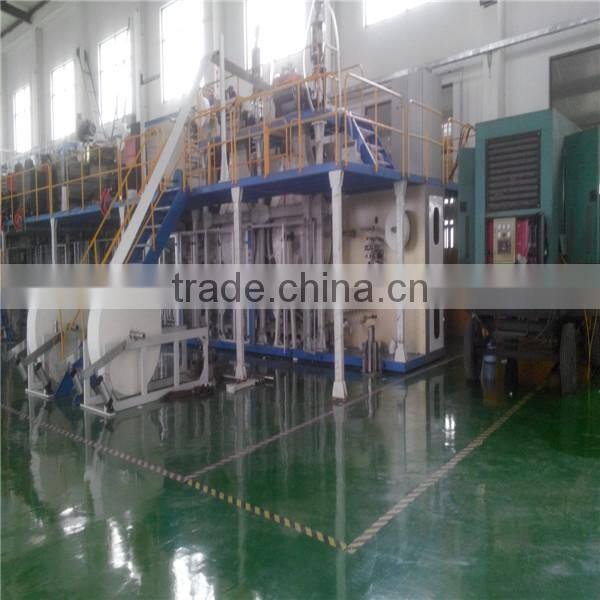

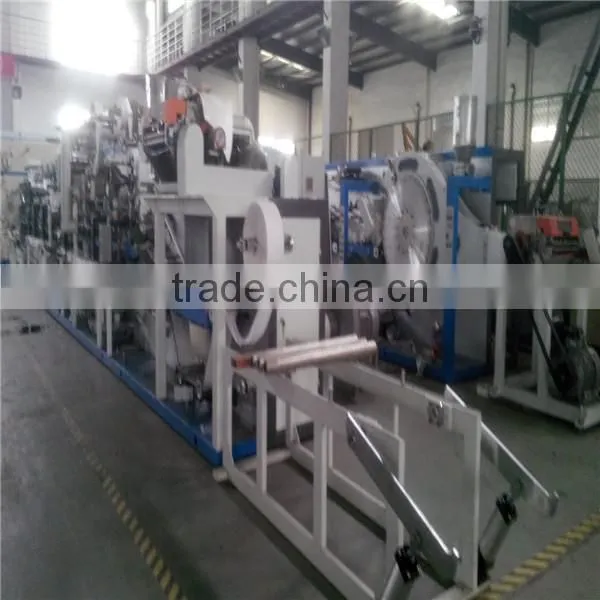

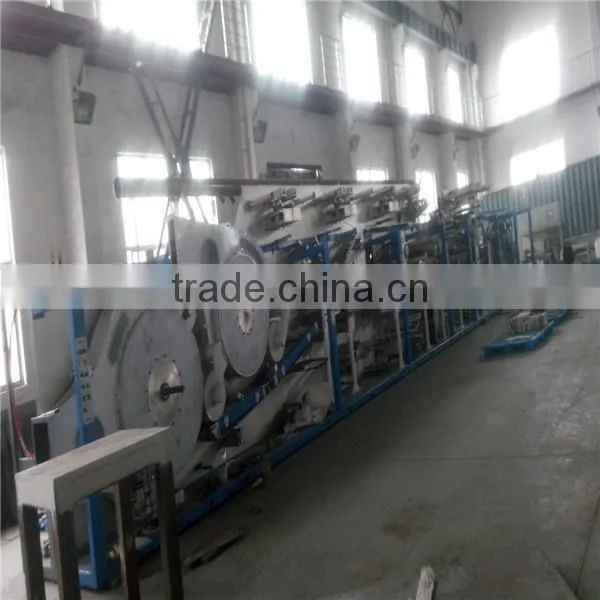

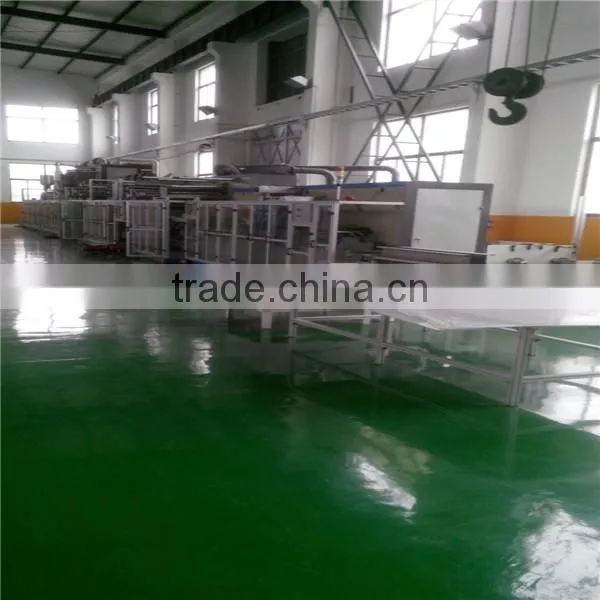

5. PICTURES
