animal feed crusher and mixer machine

Specifications

1) Over 10 years' experience
2) Made of fine stainless steel;
3) Advanced design
4)Easy to operate, clean and maintain.

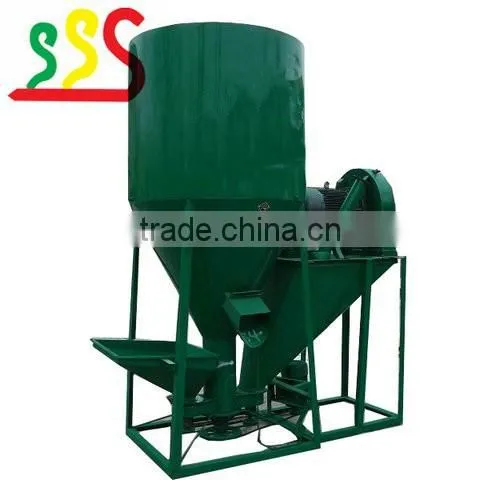

Animal feed crusher and mixer machine





1. Introduction:



(1)The machine consists of a feeding machine, grinder, mixer consists.



(2It can be used to crush all kinds of cereal, grain, like corn, wheat, bean, and others to powder that can make animal feed or for other process,



(3)it has the crush and mix function at the same time, very convenient and easy to operate.



(4)Applicable to feed, medicine, chemical industry, etc.







2. Features:



1) This animal feed crusher and mixer set vertical lifting, mixed bin, horizontal transporting as a whole.



(2)It is most suitable for small farmers using, and it can mix and crush feed for pigs, cows, horses, rabbit, chicken, fish, dove and so on.



(3)Vertical animal feed crusher and mixer actually designed for the rural raiser, small livestock farms and medium and small-sized feed factory, it is a small feed processing equipment.



(4)Agitation tank can stir 1000 kilograms at one single time ,matched with two motor.



(5)This machine’s self-priming function can absorb material into crushing work tank and then crush materials. After crushing, the crushed material can go through the side pipe into the mixed mixing work tank mixed stirring.







3. Technique parameter:



Model	Crushing Power(kw)	Mixing Power(kw)	Output(kg)	Diameter(mm)	Height(mm)
SSS-250	7.5	3	250-300	800	1880
	11	3	250-300	800	1880
SSS-500	7.5	3	500	800	2000
	11	3	500	800	2000
SSS-1000	7.5	3	1000	1200	2500
	11	4	1000	1200	2500





4.Structure:



Vertical crushing mixer feeding mechanism (mainly by the suction and conveying type), crushing host, mix to bin, mixed host, discharging institutions, transmission mechanism etc.







5. Operating principle:



(1)For crushing material feeding mechanism through the straw (or conveyor) is sent to smash the host, and materials in a high speed rotating hammer in the host city of crushing smash.



(2)After smashing of materials to be delivered through the screen piece of specific aperture be screening, to mix into bin, and then through the dial in feeder be forced into mixing barrel in the mixed.



(3)Without crushing material directly through the vice hopper and dial the mixture device into the mix of barrel.



(4)Two kinds of materials in a mixing barrel repeatedly in mix, finally through on the material institutions will mixing materials from discharging discharged door.
