Customized Baby Diaper Machine Factory in China

Customized Baby Diaper Machine Factory in China thumbnail-1
Customized Baby Diaper Machine Factory in China thumbnail-2
Customized Baby Diaper Machine Factory in China thumbnail-3
Customized Baby Diaper Machine Factory in China thumbnail-4
Customized Baby Diaper Machine Factory in China photo-1
Customized Baby Diaper Machine Factory in China photo-2
Customized Baby Diaper Machine Factory in China photo-3
Customized Baby Diaper Machine Factory in China photo-4
US$ 100,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Coal Gangue
Contact Supplier Request Quote Chat Now
SSS Hardware International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Interlock Block Making Machine
Brick Raw Material Coal Gangue
Processing Brick Production Line
Method Autoclaved Aerated Concrete
Automatic Yes
Capacity 4000-60000 Pieces/day
Place of Origin Anhui, China
Brand Name SSS
Model Number SSS-400
Voltage 380V
Power 320KW
Dimension(L*W*H) 38*12*4.5m
Certification CE
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Customized baby diaper machine factory in China



1 Technical parameters:



Model:  SSS-400

Power source: three phase: 380v 50hz

Installation Power: 320KW(excluding glue applicators, air compressor, the final power shall be confirmed

after completion)

Product Sizes: Medium and large sizes(only changing crotch size instead of changing waist size)

Producting Speed: 350pcs/min(Medium)

Qualification Rate: over 96%(excluding glue applicators, wastes caused by splicing raw materials)

Overall Size: 38m*12m*4.5m(for reference)

Machine Process Direction(raw material →products) right to left(facing machine)



2 Product structure

1,core layer structure: big cotton core adopts alien continuous stripping to shape and

small cotton core adopts direct buckle the forming. Big cotton core and small cotton core

are pressed solid after wrapping by tissues.

2, Acquisition layer slitting adopts scraping.(Scraping length is controlled by servo motors.)

3,Top sheets are composed of side nonwovens with elastic and middle materials,compressed

by embossing units.

4, Nonwoven sectioning units adopts motor sectioning mode.

5,Tightness of elastic is adjusted by double roller linear velocity controlled by frequency conversion.

6, Roll material and tube material are compatible for elastic feeding.

7, Cotton core cutting and final product cutting adopt side blade scraping.

8, Color calibration of former icon straight cut adding unit.

9, Waist combination adopts heat seal.

10, Detailed shape, structure, sizes of products is comfirmed according to the finalized products

by both parties.



3 Main equipment list

Scheme List
Name Unit Quantity Brand Country of Origin
servo motor set 81 A.B or Siemens or Mitsubishi USA or Germany or Japan
stacker servo motor set 9 A.B or Siemens or Mitsubishi USA or Germany or Japan
transducer set 6 A.B or Siemens or Mitsubishi USA or Germany or Japan
web guide set 16 FIFE or BST USA or Germany
PLC control system set 1 A.B or Siemens or Mitsubishi USA or Germany or Japan
sensor set 35 sunx or Yamatake Japan
safety protection-phase switch,stay wire switch set 75 Schmersal Germany
hot melt applicator set 9 ITW or Nordson USA
material of cutter D2 set 2 A.finkl USA
bearing(according to use) set 1 BEM/NSK/SKF Germany/Japan/Sweden
timing belt set 1 Optibelt/gates Germany/USA
low-voltage electrical equipment set 1 Schneider France
electric connect terminal set 1500 Phoenix Contact Germany
temperature control system set 9 Omron Japan
high speed rotation connection set 14 SMC Japan
relief valve set 8 SMC Japan
pneumatic component set 1 SMC Japan
solenoid valve set 40 SMC Japan
water content segregator piece 1 SMC Japan
precision potentiometer piece 10 SAKAE Japan
failure automatic warning piece 1 Mitsubishi Japan
mercury conducting ring set 6 ASSIAN TOOL Taiwan China
planet speed reducer set 8 VGM Taiwan China
ball bearing leading screw set 2 ABBA Taiwan China
beeline guide rail set 6 HIWIN Taiwan China
motor set 13 Siemens Germany
cotton core wheel forming unit set 1 JWC JWC company
feeding unit,quantity can be adjusted set 1 JWC JWC company
cotton core press embossing set 1 JWC JWC company
bottom tissue feeding unit set 1 JWC JWC company
cotton core cutting set 1 JWC JWC company
fluff core 90 degree transfer system set 1 JWC JWC company
bottom PE film feeding,automatic unwinding set 1 JWC JWC company
top layer,absorb cotton core,back sheet complex pressing set 1 JWC JWC company
urgent stop set 6 JWC JWC company
products length folding and pressing piece 1 JWC JWC company
frontal N.W laminated with elastic set 1 JWC JWC company
back N.W laminated with elastic set 1 JWC JWC company
products heating laminated and final cutting set 1 JWC JWC company
products output set 1 JWC JWC company
pulp feeding unit with frequency controller set 2 JWC JWC company
main materials automatic run,auto connection unit set 9 JWC JWC company
tension control set 9 JWC JWC company
automatic rejection system set 1 JWC JWC company
safety protect system set 1 JWC JWC company
raw material loading and unloading davit arm set 1 JWC JWC company
raw material outer-fixed system set 1 JWC JWC company
forming drum(single/double) set 1 JWC JWC company
ultraviolet rays sterilizing system set 1 JWC JWC company
products output in a line set 1 JWC JWC company
stacker with 4 exits or 2 exits set 1 JWC JWC company



NOTE: this spare parts list is for reference and will be subject to the practical number.

 4. OUR PROMISE

1, we can customize the production line, as per customers' requirements.

2, our whole set of components are all imported from overseas.

3, within one year, all components are free to replace when wrong since the day of installation.

4, engineers available to service machinery overseas.

5, we can supply raw materials for your production.

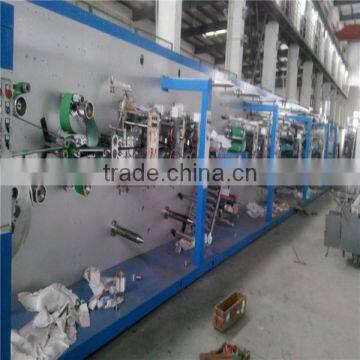

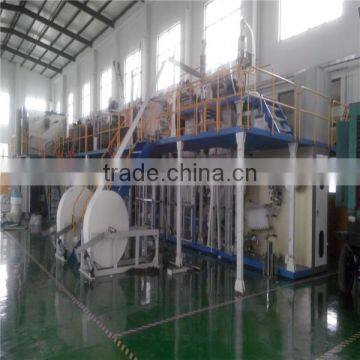

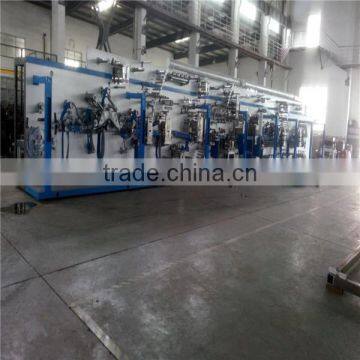

5. PICTURES
