2015 new product disposale baby diaper production line
1 Main parameters:
Power : 380V 50HZ
Rare power :65KW
Designed speed: 150 pcs / min
Stable produce speed: 80-100 pcs / min
Air consumption :1000 liter / min
Air pressure : 8-10 bar
Wastage : less than 2% (exclusive of inferiors caused by material connection in glue machine or interface of material connection )
Weight :30ton
Direction of the machine: as buyers’ requirements
Overall size of machine : 18L×2.5W×3H(M)
2 Specification
| Specification | Length of whole | Width of whole | Width of cotton core |
| XL | 500mm | 340mm | 90—120mm |
| L | 480mm | 330mm | |
| M | 430mm | 320mm | |
| S | 380mm | 300mm | |
3 Main equipment list
| Name | Unit | Quantity | Origin |
| pulp roll crushing machine | Set | 1 | OUR COMPANY |
| quantitative feeder machine | Set | 1 | OUR COMPANY |
| main machine of diaper | Set | 1 | OUR COMPANY |
| glue machine | Set | 2 | As customer's requirement |
| original blower | Set | 2 | OUR COMPANY |
| high pressure blower | Set | 2 | OUR COMPANY |
| electrical control cabinet | Set | 1 | OUR COMPANY |
| triple folding system | Set | 1 | OUR COMPANY |
4. OUR PROMISE
1, we can customize the production line, as per customers' requirements.
2, our whole set of components are all imported from overseas.
3, within one year, all components are free to replace when wrong since the day of installation.
4, engineers available to service machinery overseas.
5, we can supply raw materials for your production.
5 Basic functions & characters
1,Stable square steel frame, face plate 20mm, floor plate 18mm, and square steel 150mm×150mm,120*120mm,100*80mm to strengthen the intension of the frame.
2, Upstroke crushing machine , can crush treated pulp .
3,Forming in quantative feeder machine, and the weight can be adjusted.
4,Pulp is formed evenly so as to be mixed with SAP sufficiently.
5,U-style cover of tissue
6,Equipped with SAP feeder device , increasing the water absorptivity of products
7,Arc-shape out-cutting & the tool post made of steel 45# with the thickness of outside and inside plate 35mm. Pressure can be adjusted by scale watch to easily operate and make the equal pressure of the two sides.
8,Lengthways-fold finished products, & products compacted, pressed and dragged by the cylinder
9,Three-fold unit folds two times to form the three-fold finished products.
10, Product collocation and convey unit with a clip transmission part to avoid rebounding
11, Intermediate feed of glue machine & lighter on the position of spaying glue
12, Speed of host machine( 22KW ) controlled by VFC
13, Driving system with spindle drive, gear box, timing belt, differential, gimbal & many shafts
14, Gear box & differential for new type diaper to lessen the transmission error
15, Gimbal used to cut paper pulp, embossing of solid protective part, front tape cutting, side tapes cutting, arc-shape cutting and product cutting
16, Supplying the air unifiedly
17, With the maintain lighter
18, A new type of air suction pipe to avoid the belt running towards the wrong way
19, The electric elements made in Delixi & Schneider companies, conveyer belt in Mitsubishi, Japan, timing belt in JB and axletree in NSK, Japan & WFD
20, All arc cutters made in Sanming, Fujian.

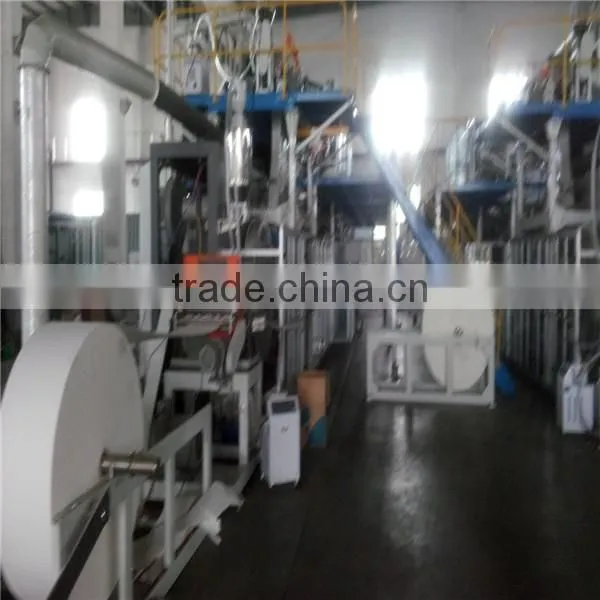

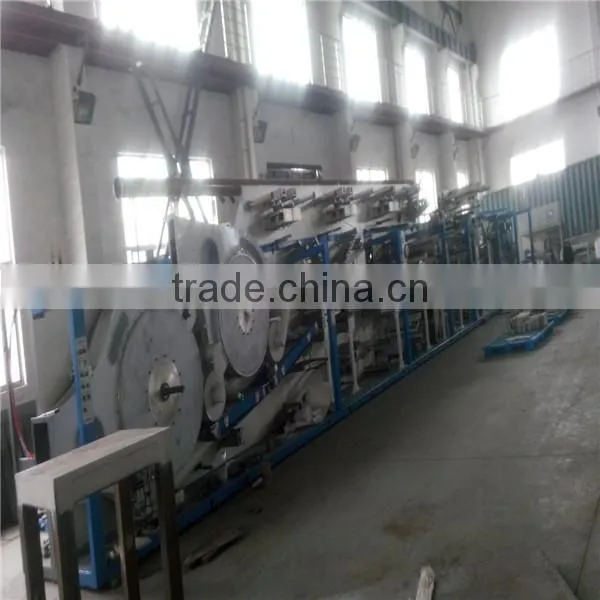

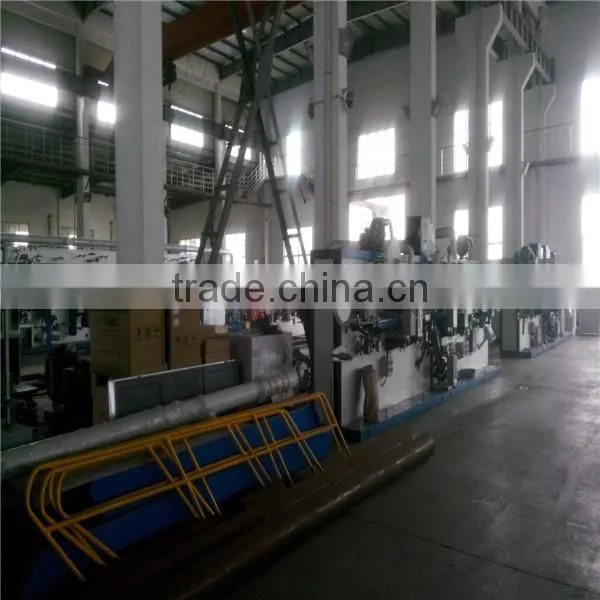

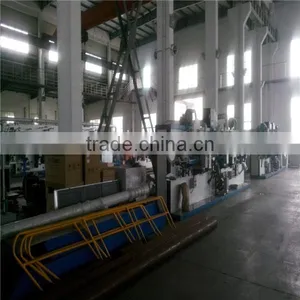

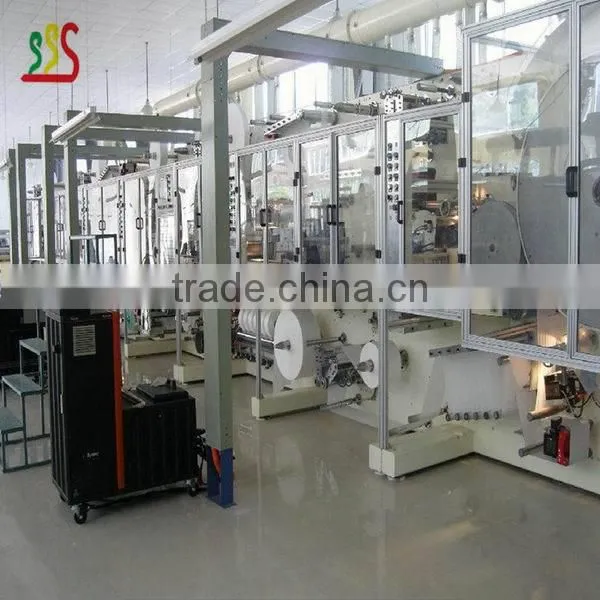

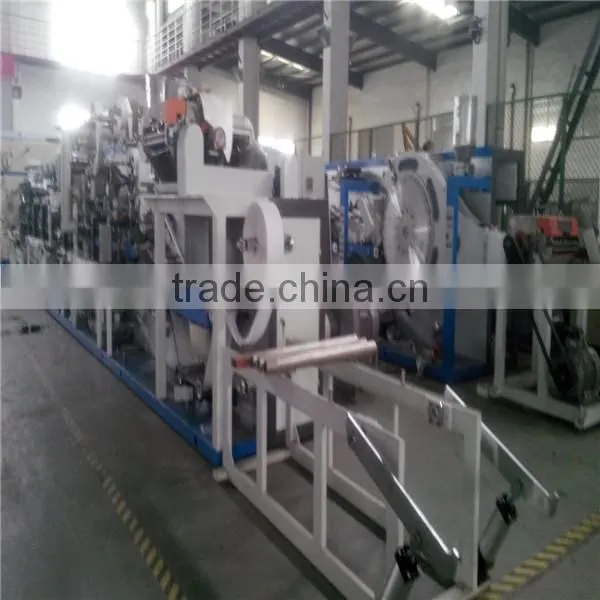

6. PICTURES
2015 new product disposale baby diaper production line
