Specifications
spiral freezer1. high efficiency and saving cost;
2. advanced design and technology;
3. large capacity and compact struct
IQF Spiral Freezer of potato For Sale
1.Technical Data for Single Spiral Freezer
| Model | SSS-DL300 | capacity | 300kg/hour | |
| Freezer size | 7600*3700*3300mm | Freezing time | 8~80 min ( adjusted) | |
| Temperature of inlet | 15°C | Temperature of outlet | -18°C | |
| Temperature of evaporation | -42°C | Temperature of inner | -35°C | |
| inlet length | 1600mm | outlet length | 1000mm | |
| layer of belt | 8 layers | Motor power | 9KW | |
| Rotate drum diameter | Φ2000mm | refrigerant capacity | 62kw(-25°C/+35°C) | |
| net height between layers | 100mm | Coolant | R404A | |
| Width of belt | 610 mm | Effective belt width | 540 m | |
| Freezing method | IQF | thickness of panel | 100mm | |
| Freezing product | fish, meat, seafood, pastry, poultry, ice cream, etc. | |||
2. main characteristics
1) Conveyor belt is made of special high strength stainless steel 304 which can meet food grade, running smoother and lasting longer;
2) All components can fully meet the hygienic requirements of HACCP;
3) This equipment is in life-long design which is structured as installation not welding, it will be much easier to maintenance;
4) Driving control is made of fine stainless steel;
5) There is unique design of symmetrical and fluent circle wind channel, which can keep cold in inlet and outlet;
6) It is equipped with evaporation in high efficiency which is 30% higher than common evaporation;
7) The bottom is made of stainless steel in 3mm thick,no leak and no risk of burst;
8) Main control components are from Schneider, and control box is made of stainless steel;
9) Reducer is from SEW, which can ensure high efficiency and long life.
4. This machine can be customized as per your requests.

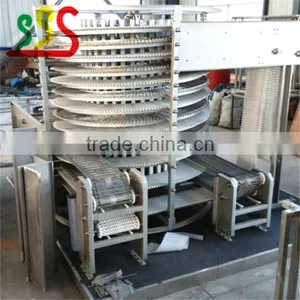

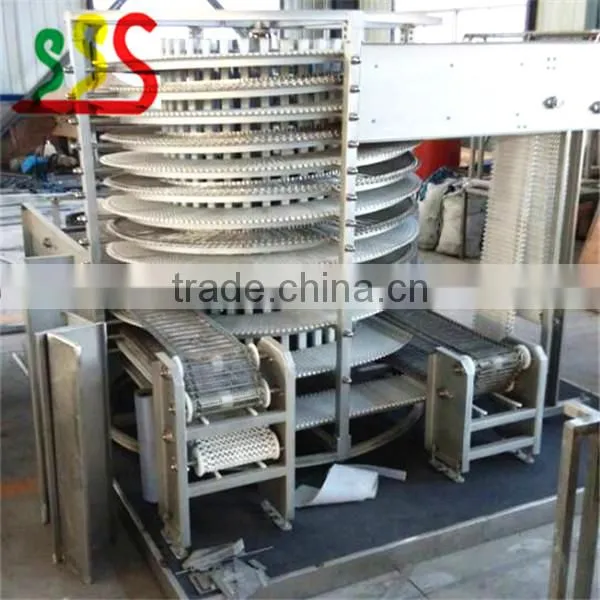

spiral freezer products pictures:
spiral freezer Equipment pictures :
Our Certification
If you have any questions , please contact me.
Our team will do our best to serve you !
