Specifications
Fish Meal Processing Machine1.Suitable for small capacity requested;
2.made of fine stainless steel;
3. can be customized

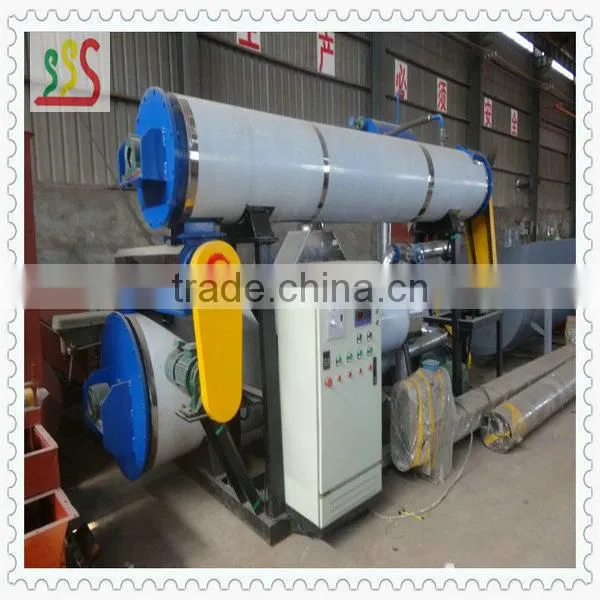

Fish Meal Processing Machine
1. Raw material and capacity
Raw material: raw fish or fish fillet and scraps( fish head, fish bones, fish offals), etc
2. Final product
Note: usually the capacity of fish meal is based on fish type and fish quality
3. Procedure
Raw material -> cooking and pressing -> drying -> skimmed fish meal
1) heating method: electrical heating of thermal oil 200°C
2) total power: 40kw
3) processing method: cooking, pressing, drying
4. Specification of equipment
| item | description | dimension | details |
| 1 | Screw conveyor | φ170×4000 | equipped with reducer 1 set, made of SUS304 |
| 2 | electrical cooker | φ377×3500 | ·material of outer heat preservation made of SUS430, thickness: 0.7mm; ·inner and outer cylinder made of Q235B; ·driving power: 1.5kw (speed adjusted by magnetization). |
| 3 | screw press | φ219×1000 | ·outer cover made of SUS430, thickness 0.7mm; · seive mesh applied SUS304; ·driving power: 1.5kw. |
| 4 | dryer | φ820×3500 | ·inner and outer cylinder made of Q235B; ·preservation made of SUS430, thickness 0.7mm; ·driving power: 4kw, V=30r/min; |
| 5 | thermal oil pump | driving power:1.5kw | |
| 6 | electric control box | electric control box 1 set |
Other supporting equipment, fittings and appliances

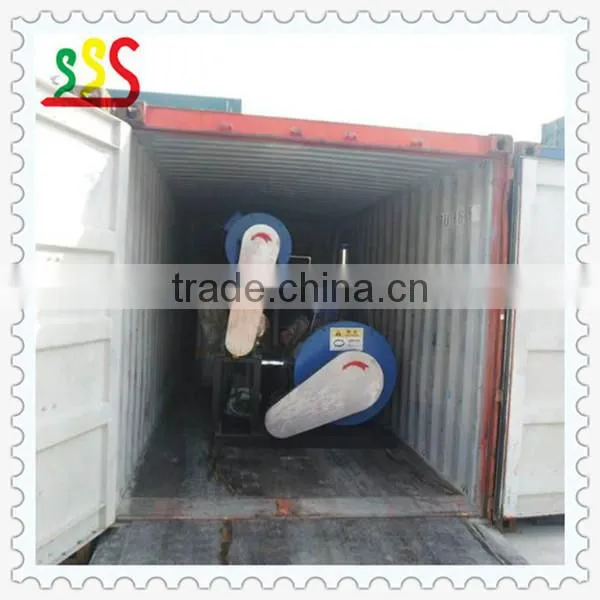

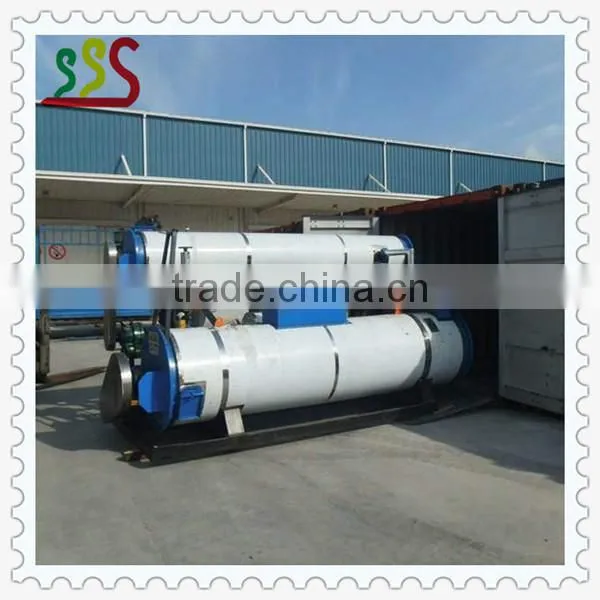

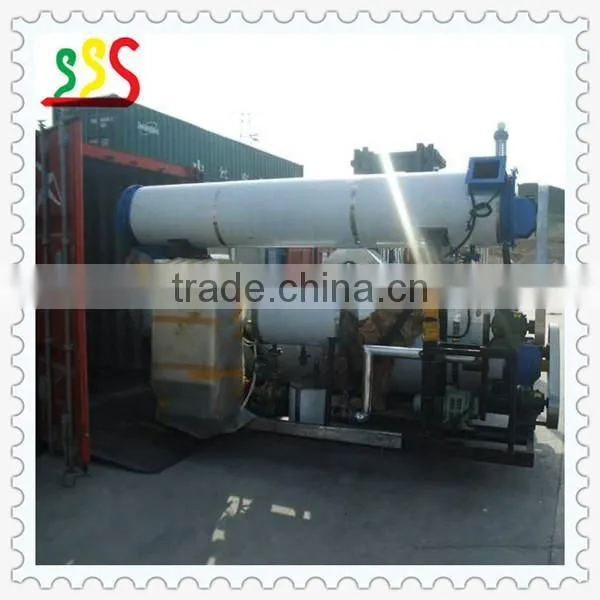

5. More Pictures and Certificate:
