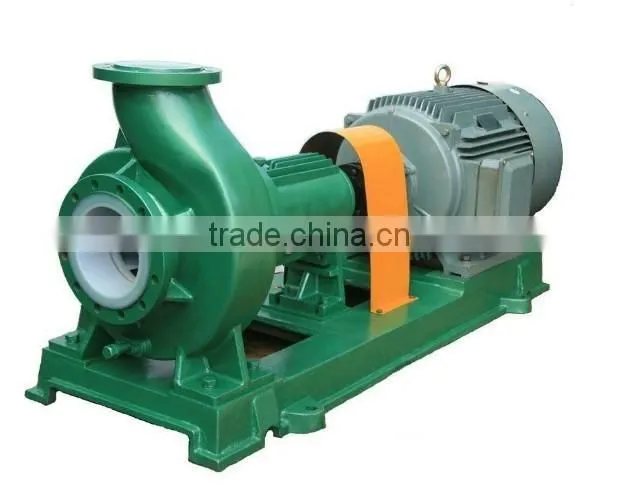

IHF series Fluorin Plastic centrifugal pump with motor for chemical industry
1.Brief Introduce
IHF Series chemical pump is made according to the international standards and combining nonmetal pump design process. Pump body adopt metal casing lining FEP (F46), pump cover, impeller and bushings use metal embedded parts coating fluorine plastic sintering, shaft seals use out-fitted type advanced bellows mechanical seal, static ring choose 99.9% alumina ceramics (or si3n4), rotating ring adopt F4 filled material, its anti-corrosion and wear-resisting ability is extremely good.
Actual use showed that the pump has the advantages of anti-corrosion and wear-resisting, high temperature resistant, not aging, high mechanical strength, stable operation, advanced structure, reliable sealed performance, simple disassemble and maintenance, long service life etc.
2.Specifications:
| Model: | IHF Series( DIN Inlet: 32mm~100mm),Fx: IHF100-65-250 |
| Max. capacity: | 130m3/h |
| Max. Head: | 2-82m |
| Speed: | 1450rpm ,2900rpm |
| Max. temperature: | -85 ~200 degrees |
| Engine: | Electric motor |
| Engine type: | normal electric or explosion-proof electric |

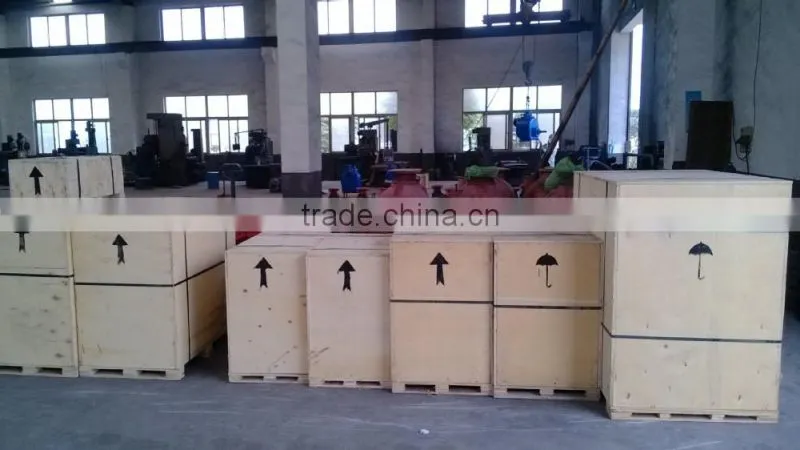

| Package: | Standard export plywood case |
3.Parameter Table
4.Parameter Curve

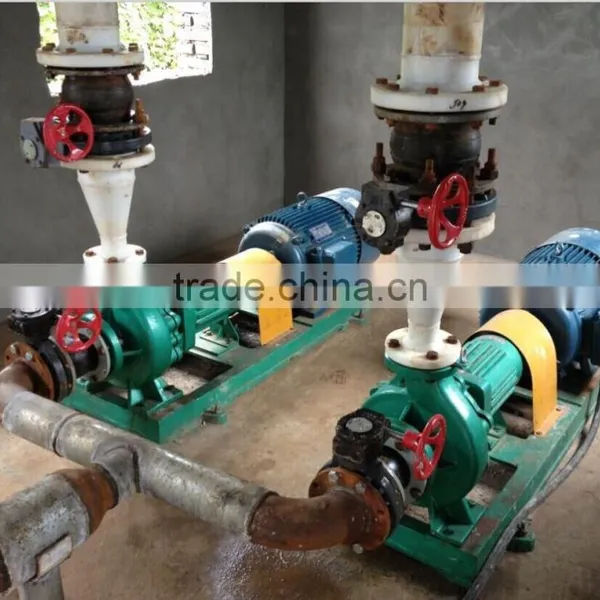

5.Application
IHF fluorine plastic centrifugal pump is widely accepted by its anti-corrosion and wear-resistance advantages, is widely used in chemical, making acid, alkali manufacturing, smelting, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, scientific research institutions, national defense industry and other industries conveying arbitrary concentration of acid, alkali, oil, the rare and precious liquids, toxic liquid, volatile chemical medium. It is currently one of the most popular pump.

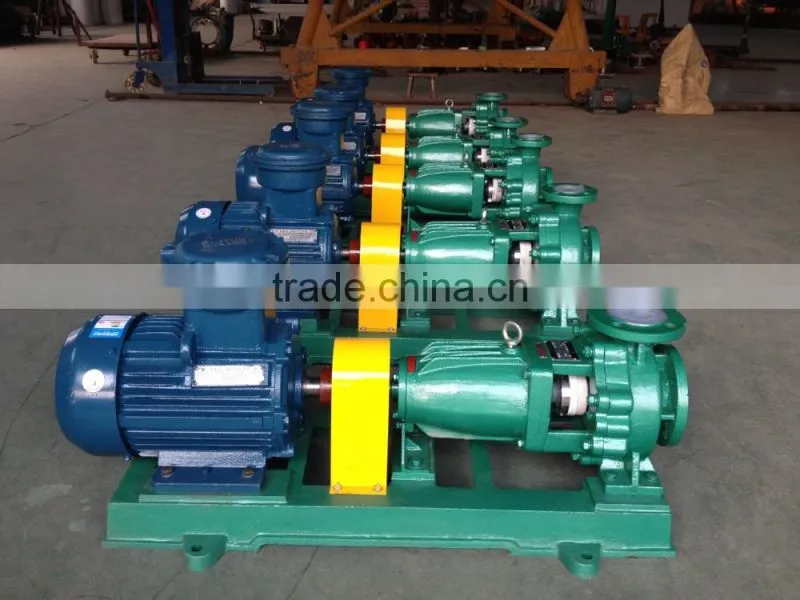

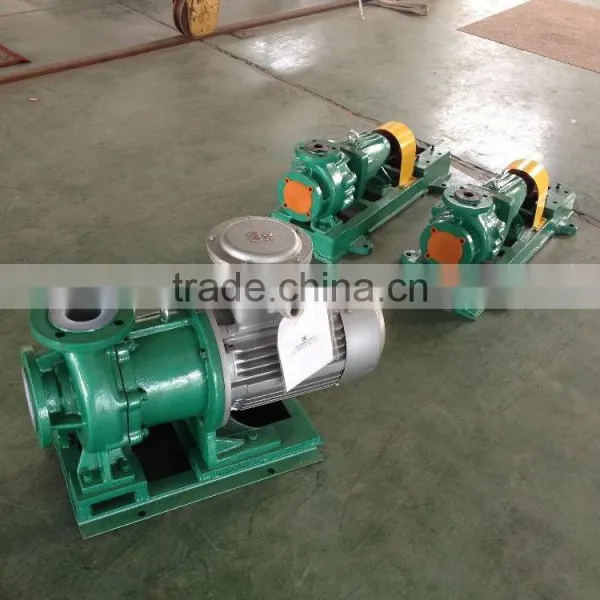

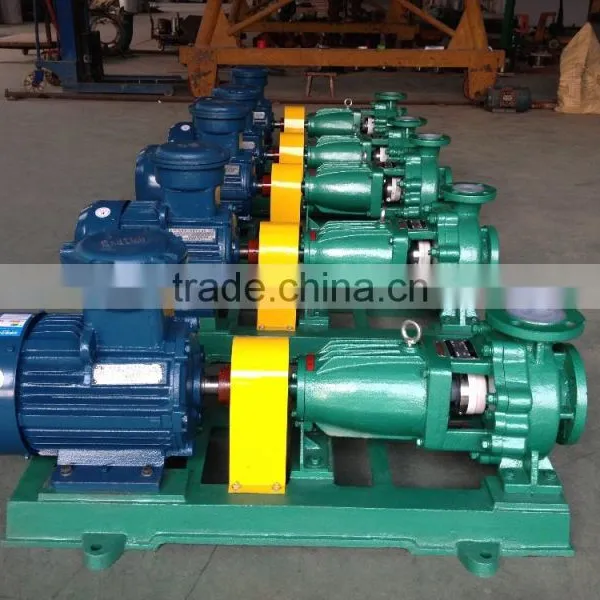

6.Products Show

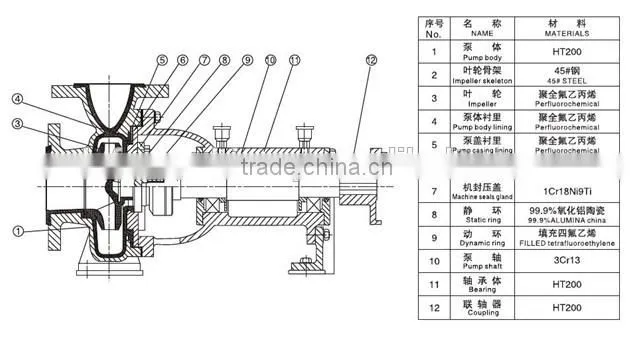

7.Structure
1.Warranty: Pump casing and other parts for one year , wearing parts for three months
2.Delivery time: it depends on the quantity of the order
3.Payment terms: 30% T/T in advace, 70% before shipment for large order
4.Terms of Delivery: FOB, CFR, CIF.
Welcome to Our office and factory!
About us
defu Machinery is an Enterprise involved in designing ,developing ,manufacturing and selling water pumps , Including self priming pump ,centrifugal pump ,diaphragm pump , gear pump , diesel engine pump and some others . Relying on the local industrial chain , DEFU has established its production base in Shanghai ,zhejiang and Shandong province .
