WQ Stainless Steel submersible pump for sewage
Product Introduction
WQ series submersible water discharge pumps are used as single or double flow channel impeller and wide pump body, allow solids passing through easily and fiber uneasily wound, made it most suitable to discharge sewage and dirt. And it’s distinctive design of double channel and large passage impeller effects high efficiency.
Specification
Flow rate: 8~3000m3/h
Head: 1~60m
Inlet/Outlet: 25~500mm(1"~20")
Power: 1.1~280kw
Performance
| Model | Bore | Flow rate | Head | Rotating rate | Power | Efficiency % | Weight | Water Pump Electric Control Panel | Automatic Coupling | Head Rang |
| (mm) | (m3/h) | (m) | r/min | kw | kg | |||||
| 25WQ8-22-1.1 | 25 | 8 | 22 | 2825 | 1.1 | 38.1 | 42 | QZD-1.1 | GAK-25 | 10-22 |
| 32WQ12-15-1.1 | 32 | 12 | 15 | 2825 | 1.1 | 40 | 42 | QZD-1.1 | GAK-32 | 8-15 |
| 40WQ20-7-1.1 | 40 | 20 | 7 | 2825 | 1.1 | 39 | 42 | QZD-1.1 | GAK-32 | 3-7 |
| 40WQ10-15-1.5 | 40 | 10 | 15 | 2825 | 1.5 | 44 | 52 | QZD-1.5 | GAK-32 | 6-15 |
| 40WQ15-15-1.5 | 40 | 15 | 15 | 2840 | 1.5 | 45.1 | 52 | QZD-1.5 | GAK-50 | 6-15 |
| 40WQ15-30-2.2 | 40 | 15 | 30 | 2840 | 2.2 | 48 | 55 | QZD-2.2 | GAK-50 | 15-30 |
| 50WQ20-7-0.75 | 50 | 20 | 7 | 2900 | 0.75 | 54 | 50 | QZD-0.75 | GAK-50 | 3-7 |
| 50WQ10-10-0.75 | 50 | 10 | 10 | 2900 | 0.75 | 56 | 50 | QZD-0.75 | GAK-50 | 4-10 |
| 50WQ12-15-1.5 | 50 | 12 | 15 | 2840 | 1.5 | 55 | 55 | QZD-1.5 | GAK-50 | 6-15 |
| 50WQ15-15-1.5 | 50 | 15 | 15 | 2840 | 1.5 | 55 | 55 | QZD-1.5 | GAK-50 | 6-15 |
| 50WQ18-15-1.5 | 50 | 18 | 15 | 2840 | 1.5 | 55 | 55 | QZD-1.5 | GAK-50 | 6-15 |
| 50WQ20-15-1.5 | 50 | 20 | 15 | 2840 | 1.5 | 55 | 55 | QZD-1.5 | GAK-50 | 6-15 |
| 50WQ25-10-1.5 | 50 | 25 | 10 | 2840 | 1.5 | 55 | 55 | QZD-1.5 | GAK-50 | 4-10 |
| 50WQ15-22-2.2 | 50 | 15 | 22 | 2840 | 2.2 | 56 | 60 | QZD-2.2 | GAK-50 | 10-22 |
| 50WQ15-25-2.2 | 50 | 15 | 25 | 2840 | 2.2 | 56 | 60 | QZD-2.2 | GAK-50 | 10-25 |
| 50WQ20-15-2.2 | 50 | 20 | 15 | 2840 | 2.2 | 56 | 60 | QZD-2.2 | GAK-50 | 6-15 |
| 50WQ27-15-2.2 | 50 | 27 | 15 | 2840 | 2.2 | 56 | 60 | QZD-2.2 | GAK-50 | 6-15 |
| 50WQ42-9-2.2 | 50 | 42 | 9 | 2900 | 2.2 | 56 | 60 | QZD-2.2 | GAK-50 | 4-9 |

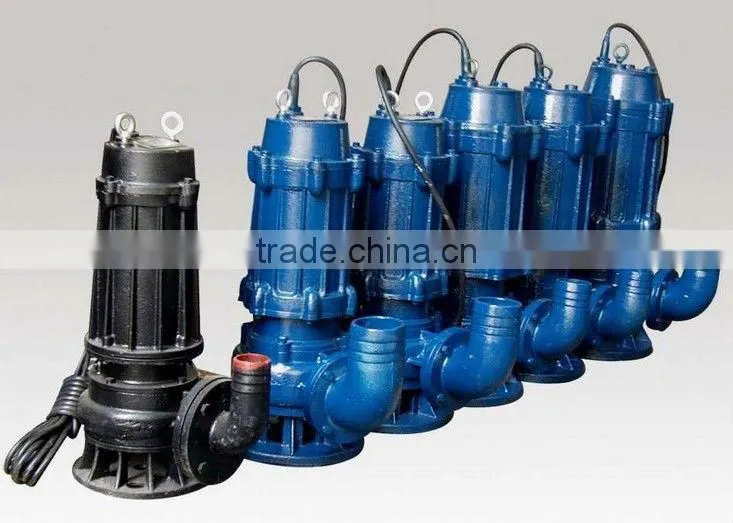

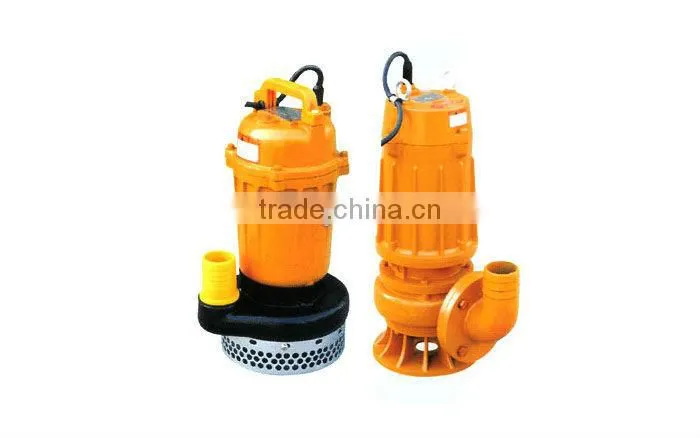

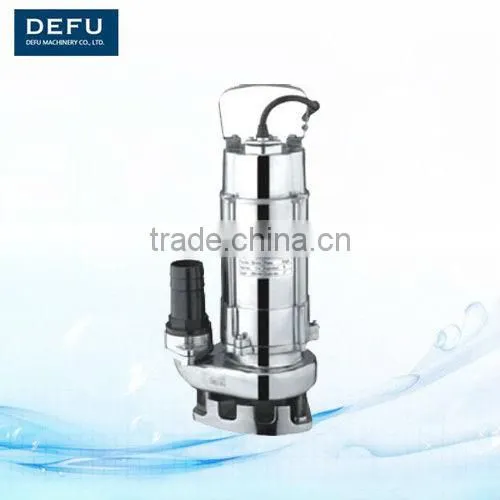

Product Pictures
DEFU Machinery is an enterprise involved in designing, developing, manufacturing and selling water pumps. Relying on the local industrial chain, DEFU has established its production base in Shanghai, Hubei and Shandong province.
Our main product:
self priming pump, double suction pump, diaphragm pump, diesel engine pump, multistage pump, gear pump and some others.
Terms of Payment
1. T/T
2. Western Union
3. L/C
Mode of Transport
Plywood Case
1. Mail Service
2. Phone Service
After Sales
1. We are very glad that customers give us come suggestion for product, price and services.
2. If any question. please let us know it in the first by Email or Telephone. we can deal with them for you in time.
3. Any more problems, please feel free to ask, and we will try our best to supply you!
Warranty
1. One year guarantee for the pump
2. Three month guarantee for the spare parts of pump
Factory Visit
Welcome any customer to visit our factory.
Welcome To Our Factor
1. Q: Whats the MOQ ?
A: 1 set for regular product ,the special one we need to discuss.
2. Q : What're your payments ?
A: For small order valve < 4000USD, our customer chose 100% T/T.
For order valve >4000USD, we can accept 30 % T/T inadvance , 70 % should be paid before shipping.
3 . Q : How long is the deliver time ?
A : For the order in stock ,we will deliver goods at once against payment.
For the orders out of stock , the products time is 7 days for bare pump, 25days for electric pump set or diesel engine pump set , the deliver time is base on the shipping date and your order by sea.
4. Q: What about the package ?
A : Standard export Plywood case .
5.Q : How is the pump delivered to us ?
A : For small order will be delivered by internation express ,like DHL,TNT ,FEDEX,UPS.
For large order ,it will be delivered by air ,sea ,vehicle or multi-modal transport.
6. Q : How long is the warranty ?
A: According to the internation standards , pump in standard operation is 1 year ,3 monthes for spare parts.
