diesel engine or electric motor centrifugal water pumps using for irrigation , firefighting
Single stage diesel engine irrigation end suction centrifugal water pump is an energy-saving pump designed by teamwork in the whole nation , it is improved on a basis on model BA,B and other single-stage water centrifugal pump .
Our centrifugal diesel engine irrigation end suction water pump are designed complying to BS EN733/DIN24255/ISO standard. This series of pumps have great advantage in inter changeable parts, high quality and low cost, and wide application.
The advantages of diesel engine end suction pump
its hydraulic capability is distributed reasonably ,wide option for user , conveniently check and repair , the efficency and throw is up to advanced international level .
Parameters Table of diesel engine irrigation end suction pump
Suction: 50-300mm
Flow rate: 6.3-1080 m3/h
Head: 5-150m
Speed: 1450r/min~ 3500 rpm
Suction ability : wet primining , vacumm system assisted
Max working pressure : 2.5 Mpa
Working temperature : - 10 °c ~ 105°c
Power : Diesel engine or electric motor
Trailer : two wheel or four wheel
Silenbox canpoy : available
Standard : DIN 24255 ; BS EN733 or ISO
Part Material
| Part | Material |
| Pump casing: | cast iron standard, stainless steel optional |
| Impeller: | stainless steel standard, bronze, cast iron optional |
| Shaft: | ASTM420 standard, ASTM304, ASTM316, ASTM1045 optional |
| Shaft seal | Mechanical seal standard |
Application of end suction pump
The usage of the end suction pump
1.industry and urban water supply
2. drainage sysytem
3. agricultural irrigation
4. firefighting
This pump is suitable to transfer the liquid medium like water or the physical and chemical feature like water. The temperature lower than 105°c
good reputation diesel engine irrigation end suction centrifugal water pump structure

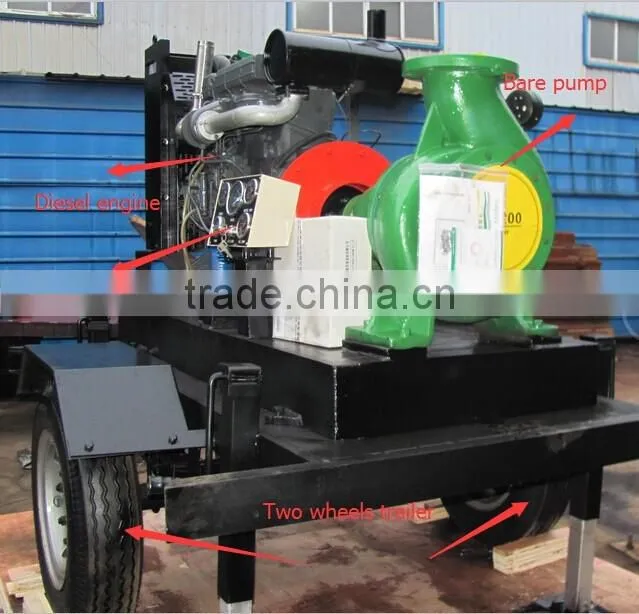

The Pump +Diesel Engine +trailer

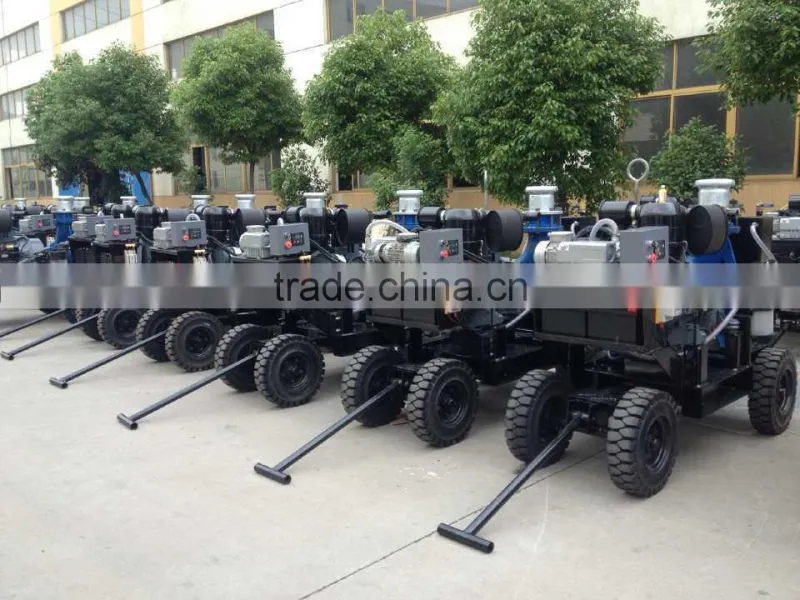

Diesel Engine Pump (with vacuum assisted sysytem)+trailer
About Us
DEFU Machinery is an Enterprise involved in designing ,developing ,manufacturing and selling water pumps ,
Including self priming pump ,centrifugal pump ,diaphragm pump , gear pump , diesel engine irrigation end suction centrifugal water pump and some others .
Relying on the local industrial chain , DEFU has established its production base in Shanghai ,Hubei and Shandong province .
>>> ISO 9001:2000 & CE Certificate
Welcome to our factory!
Contact me if you are interested in this pump.
