7.5hp Water Pump Water Supply Pump With Electric Motor
US$ 689 - 3,265
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
DEFU
Model Number:
DA/DAZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
400m3 h Agriculture Irrigation Centrifugal Water PumpUS$ 1,560 - 8,600MOQ: 1 Set -
7.5 hp End Suction Centrifugal Water Pump for Plants IrrigationUS$ 1,236 - 3,265MOQ: 1 Set
-
Horizontal Centrifugal Pump With General Motor or Explosion-proof Motor for Water or OilUS$ 1 - 5,000MOQ: 1 Set
-
Horizontal Single Stage End Suction PumpUS$ 2,500 - 8,600MOQ: 1 Set
-
Agriculture Water Pump Horizontal Diesel Engine Centrifugal Water PumpUS$ 1 - 5,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
DEFU
Model Number
DA/DAZ
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, electric
Pressure
High Pressure
Application
Other, water supply pump
Product Description
7.5hp water pump water supply pump with electric motor
DA/DAZ is used for handing clear water or the liquid similar to the water physically and chemically finding the apliication for water feed and supplly service in Mine, Plants and Towns , Air-conditioning, Extinguishing and Irrigation.
The DA/DAZ is a back-open type. the pump cover and the impeller can be dismantled without taking out both the suction and discharge piping.In the bearing bracket ,there are two ball bearings which are lubricated with oils or grease. the pump is dirven through the flexible couplings by the motor.
Pump detail picture
Design
Performance and dimensions referring to BS EN733/ DIN24255
Structure
Horizontal, Axial End-Suction, Single-Stage, Single-Suction, Volute Casing, Back pull-out, Centrifugal Pump
Flange
DIN2501 (ISO7005.2 / GB/T17241.6 PN1.6) standard, ANSI B16.5 Class150lb optional
Rotation
Clockwise viewing from the drive side
Performance Curve

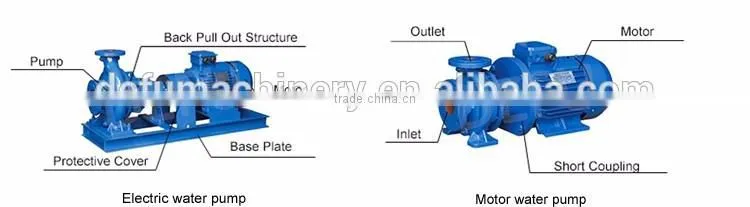

Other pump case
Pump + electric motor
mechanical seal
with Pinpin coupling
on the steel base plate
Pump + diesel engine ( Cummins or Chinese brand )
mechanical seal
with High elastic coupling
8 hours oil tank
on the two wheels trailer
Pump +diesel engnie ( Cummins or Chinese brand )
mechanical seal
with High elastic coupling
10hours oil tank
vaccum system
on the hanging backet
Process Flow Diagram
Lathe
installing
Spray lacqucer
Testing
Packing
To you
Our client
Certifications
Our factory
Related product
Fire fighting pump end suction pumps with diesel engine
Mini high pressure electric centrifugal water pump with electric motor
DA series electric driven end suction farm irrigation water pump machine with 80hp motor.
Contact us
WenZhou DEFU Machinery comapny is an Enterprise involved in designing ,developing , manufacturing and selling water pumps ,
Including self priming pump , centrifugal pump , diaphragm pump , gear pump , diesel engine pump and some others . Relying on the local industrial China,
DEFU has established its production base in Shanghai ,Hubei and Shandong province .
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2012
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
